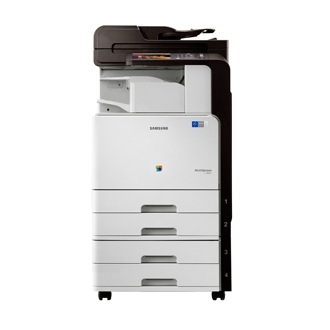

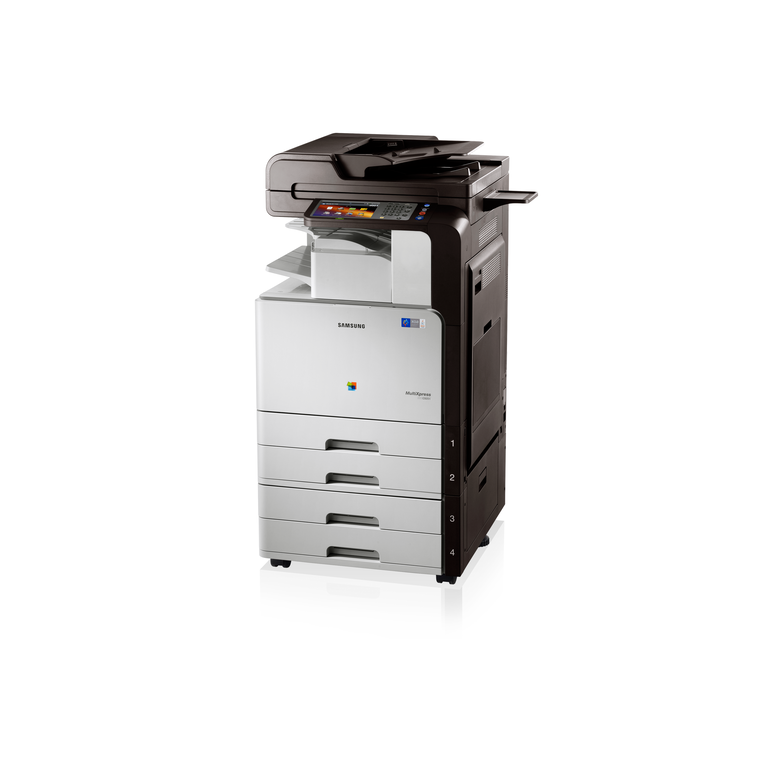

CLX-9301NA

Twice the power delivers more performance
Enjoy quality printouts
Polymerized toner
Make the most of your floor space

CLX-9301NA

FeaturesPrint

Product Configuration

Control costs the Eco way

Every business sees the need to cut costs wherever it can. You can save paper and energy with the ECO button. All it takes is one push and you can print more onto every page, including 2-up, 4-up and duplex, and also save more toner with automatic blank pages skipping.
With Easy-Eco Driver you’ll be able to accurately preview your document before printing. Adjust colour quality and other settings to meet your requirements and budget, as well as removing unnecessary text, images and other elements. Reduce wasted printouts and achieve more economically efficient printing.

Smart Samsung Solutions Support

Samsung secured our own In-house solutions as well as ISV solutions for user extensibility. These solutions reach every user and tailer controls and programmes to suit their bespoke needs.

Twice the power delivers more performance

Office productivity increases dramatically with fast printing and scanning capabilities, thanks to a fully integrated Samsung 1GHz Dual Core processor. Handling of large print/copy jobs is faster, and scan throughp ut is swifter. In fact, with every task taking 1.5 times quicker, you can spend more time working and less time waiting around.

Enjoy quality printouts

Samsung's unique ReCP (Rendering Engine for Clean Page) Technology improves the overall quality and vibrancy of your colour printing, ensuring every printout looks perfect. It automatically sharpens the focus of both graphics and text, while solid objects are overlapped to eliminate white gaps.

Polymerized toner

Our newly developed polymerized toner has smaller and more uniform particles than conventional toner. Your printouts will have crisper lines and more vivid colours, in addition to eliminating paper curling. Also, its higher wax content improves the image gloss and enhances the durability preventing unwanted fading.

Make the most of your floor space

With every business looking at maximising resources and working efficiently, you need a device that can optimise every inch of available floor space. Even in small, confined offices, its slim and simple design allows the CLX -9301NA to deliver big results.

The Samsung CLX-9301NA is designed to be quickly and easily installed. Setting up is a simple two-person job, and features an optimised package with everything you need including pre-installed DADF (Duplex Automatic Document Feeder).

Enjoy quality printouts

With the space saving 350-Sheet Inner finisher Finisher and an efficient internal card reader, you don't have to sacrifice more space for additional features.

Intuitive, Smart UI

For maximum control and visibility, the CLX-9301NA features a 7” colour touch panel with smooth flicking and scrolling. Thanks to the intuitive, smart User Interface User Interface, you can manage and control even the most complex jobs quickly and easily.

Low Power Consumption

With its ingenious All-in-One board, overall energy consumption is kept low by minimising power requirement. In fact, compared to conventional board it reduces TEC (Typical Electricity Consumption) by up to 60%. Meanwhile, Samsung Instant Fusing System (IFS) technology helps you print and copy faster, use less energy, and reduce energy costs.

Separable, Interchangeable consumables

Managerial costs can be kept under control. With separated Toner and OPC, and a Developer unit providing a yield of 300,000, your company can reduce maintenance costs. Also, because the OPC (Organic Photo Conductor) Drums are common for each colour, they are inter-changeable, reducing your cost in terms of inventory control.

XOA (Open Architecture Platform)

Enjoy the freedom of connecting your multifunctional product to your line-of-business applications through the unique Open Architecture Platform (XOA). Based on open standards, XOA allows print solution vendors to create embedded applications that enhance the use of the device’s capabilities to improve business processes.

TECH SPECSPrint

General

Standard Functions

Print, Copy, Scan, Network, Duplex
Value Added Functions

Fax, NW PC Fax
Processor

1GHz (Dual Core)
Operational Panel

7" Colour Touch-Panel LCD, 800 x 480 (WVGA)
Memory (Standard)

1GB
Memory (Maximum)

1GB
Hard Disk Drive

320GB or higher (Usable Space: 88GB)
Interface (Standard)

High Speed USB 2.0 Device / Host, Ethernet 10 / 100 / 1,000 BASE TX
Power Consumption

Max 1.5kW (Ready: 100W, Low power: 16W, Sleep: 1.5W)
Noise Level

Copying: 53dBA, Printing: 50dBA, Ready: 30dBA, Sleep: 27dBA
Dimension (WxDxH)

560 x 600 x 844mm / 22.0" x 23.6" x 33.2:" (including RADF)
Weight

76Kg / 167lbs (including RADF)
Max. Monthly Duty Cycle

100,000Pages
Network Security

SSL / TLS, IP sec, SNMPv3, IPv6, Protocol & Port Management, IP / MAC filtering
Certification

CCC (ISO15408), IEEE P2600-2008, WHQL Compliance

Print

Speed (Mono)

30ppm in A4 / Letter
Speed (Color)

30ppm in A4 / Letter
First Print Out Time (Mono)

9 seconds (From Ready Mode)
First Print Out Time (Color)

11.5 seconds (From Ready Mode)
Resolution

Default: 2400 x 600dpi Effective Output (600 x 600 x 2bit) / Max: 9600 x 600dpi effective output (600 x 600 x 4bit), 1200 x 1200dpi (Half Speed)
Print Languages

PCL5c, PCL6, Postscript 3, PDF 1.7+, XPS
Client OS Support

Windows 8 / 7 / Vista / XP / 2008R2 / 2008 / 2003, Mac OS 10.4 - 10.8, RedHat Enterprise Linux WS 4 / 5 (32 / 64bit), Fedora Core 2 - 10 (32 / 64bit), SuSE Linux 9.1 (32bit), OpenSuSE 9.2 / 9.3 / 10.0 / 10.1 / 10.2 / 10.3 / 11.0 / 11.1 (32 / 64bit), Mandrake 10.0 / 10.1 (32 / 64bit), Mandriva 2005-2009 (32 / 64bit), Ubuntu 6.06 / 6.10 / 7.04 / 7.10 / 8.04 / 8.10 (32 / 64bit), SuSE Linux Enterprise Desktop 9 / 10 (32 / 64bit), Debian 3.1 / 4.0 / 5.0 (32 / 64bit)
Direct Print Support

Jpeg, Tiff, PDF, Samsung PRN
Network Protocols

IP Management (DHCP, DHCPv6, BOOTP, AutoIP, SetIP, Static) / Discovery Protocol (SLP, UPnP, Bonjour, DNS, WINS) / Printing Protocol (TCP / IP (9100), TCP / IP (9100) v6 , LPR, LPR6 , IPP, WSD) / Management Protocol (SNMPv1.2, SNMPv1.2 (IPv6), SNMP3, SNMPv3 (IPv6), HTTP, HTTPs, LDAP, SMTP) / Scan Protocol (SMTP, FTP, SMB, Twain for Network) / Security Protocol (SMB, Kerberos, LDAP, IPsec)

SHOW MORE SPECS

Copy

Speed (Mono)

30cpm in A4 / Letter
Speed (Color)

30cpm in A4 / Letter
First Copy Out Time (Mono)

6.9 seconds
First Copy Out Time (Color)

8 seconds
Resolution

600 x 600dpi
Reduce / Enlarge Range

25% - 400%
Multi Copy

9,999Pages
Copy Features

ID Copy, Clone Copy, N-UP Copy, Poster Copy

Scan

Scan Speed (Mono)

45ipm (300dpi / A4 / Letter)
Scan Speed (Color)

45ipm (300dpi / A4 / Letter)
Compatibility

Network TWAIN
Resolution (Enhanced)

Up to 4800 x 4800dpi
Scan Destinations

E-mail, USB, FTP, SMB, HDD, PC

FAX

Compatibility

ITU-T G3, Super G3
Modem Speed

33.6kbps
Resolution

Up to 600 x 600dpi (Mono)
Memory

HDD Back-up
Auto Dial

Yes
Fax Feature

Speed Dial, Group, Dial, On-hook Dial, Auto Redial, Caller ID, Secure Reception, Fax forwarding, etc.

Paper Handling

Input Capacity (Cassette)

1,040 Sheets
Input Capacity (Maximum)

2,180 Sheets (1,140-Sheet Standard + 1,040-Sheet Optional DCF)
Input Capacity (Multipurpose Tray)

100 Sheets
Input Capacity (Other Options)

520-Sheet Optional Cassette x 2
Media Type (Cassette)

Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled / Label / CardStock / Letterhead / Thick / Cotton / Coloured / Archive / Glossy
Media Type (Multipurpose Tray)

Printer Default / Plain Paper / Thick Paper / Thin Paper / Bond Paper / Colour Paper / CardStock / Labels / Envelope / Preprinted / Letterhead / Recycled Paper / Cotton / Archive / Glossy
Media Type (Other Options)

Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled / Label / CardStock / Letterhead / Thick / Cotton / Coloured / Archive / Glossy
Media Size (Cassette)

Cassette 1: 148 x 210mm ~ 297 x 354mm (5.8" x 8.2" ~ 11.7" x 14.0") / Cassette 2: 148 x 210mm ~ 297 x 432mm (5.8" x 8.2" ~ 11.7" x 17.0")
Media Size (Multipurpose Tray)

98 x 148mm ~ 297 x 432mm (3.8" x 5.8" ~ 11.7" x 17.0")
Media Size (Other Options)

148 x 210mm ~ 297 x 432mm (5.8" x 8.2" ~ 11.7" x 17.0")
Media Weights (Cassette)

Plain Paper: 71 ~ 90g/m² (21 ~ 24lb), (Duplex: 20 ~ 24lb) / Thick Paper: 91 ~ 105g/m² (25 ~ 28lb), (Duplex: 25 ~ 28lb) / Heavy Weight 1 Paper: 106 ~ 120g/m² / Heavy Weight 2 Paper: 121 ~ 175g/m² / Extra Heavy Weight 1 Paper: 176 ~ 216g/m² / Thin Paper: 60 ~ 70g/m² (16 ~ 19lb) / Bond Paper: 105 ~ 120g/m² (28 ~ 32lb) / Punched Paper: 71 ~ 90g/m² (19 ~ 24lb) / Pre-Printed: 71 ~ 90g/m² (19 ~ 24lb) / Recycled: 60 ~ 90g/m² (16 ~ 24lb) / CardStock: 105 ~ 163g/m² (28 ~ 43lb) / Letterhead: 71 ~ 90g/m² (19 ~ 24lb) / Cotton paper: 75 ~ 90g/m² (20 ~ 24lb) / Label: 120 ~ 150g/m² (32 ~ 40lb)
Media Weights (Multipurpose Tray)

16 ~ 47lb (60 to 176g/m²) (Simplex, Duplex)
Media Weights (Other Options)

Plain Paper: 71 ~ 90g/m² (21 ~ 24lb), (Duplex: 20 ~ 24lb) / Thick Paper: 91 ~ 105g/m² (25 ~ 28lb), (Duplex: 25 ~ 28lb) / Heavy Weight 1 Paper: 106 ~ 120g/m² / Heavy Weight 2 Paper: 121 ~ 175g/m² / Extra Heavy Weight 1 Paper: 176 ~ 216g/m² / Thin Paper: 60 ~ 70g/m² (16 ~ 19lb) / Bond Paper: 105 ~ 120g/m² (28 ~ 32lb) / Punched Paper: 71 ~ 90g/m² (19 ~ 24lb) / Pre-Printed: 71 ~ 90g/m² (19 ~ 24lb) / Recycled: 60 ~ 90g/m² (16 ~ 24lb) / CardStock: 105 ~ 163g/m² (28 ~ 43lb) / Letterhead: 71 ~ 90g/m² (19 ~ 24lb) / Cotton paper: 75 ~ 90g/m² (20 ~ 24lb) / Label: 120 ~ 150g/m² (32 ~ 40lb)
ADF Type

RADF
ADF Document Capacity

100Sheets

Supplies

Toner (Black)

20,000 pages (5% Coverage)
Toner (Color)

15,000 pages (5% Coverage)
Imaging Unit/Drum (Black)

50,000 pages (5% Coverage)
Imaging Unit/Drum (Color)

50,000 pages (5% Coverage)
Waste Toner Container

Approx. 26,300 pages (5% Coverage)

Option

Option

Cabinet Stand, Dual Cassette Feeder, Job Separator, Inner Finisher, Fax Kit, FDI Kit, Working Table, SmarThru Workflow, CounThru
