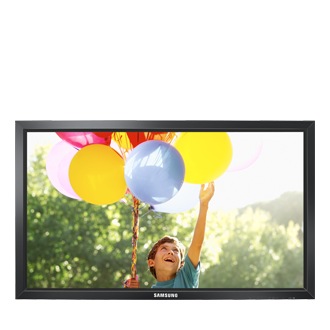

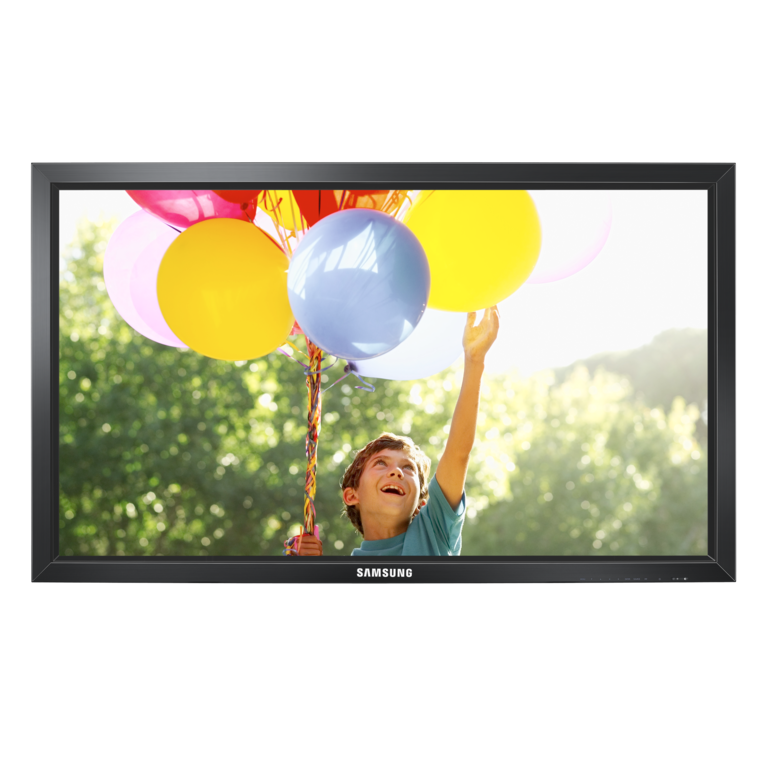

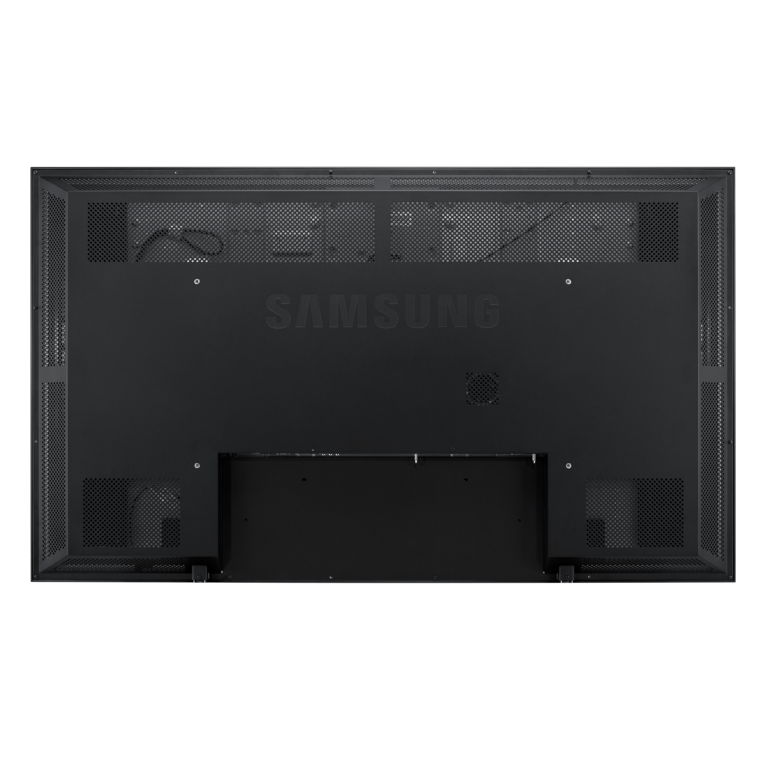

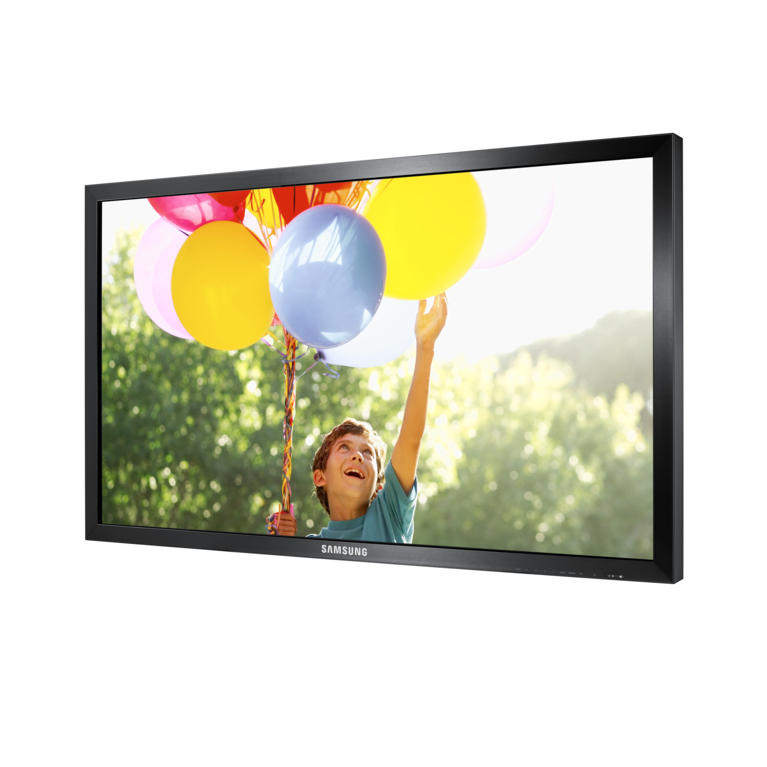

650TS-2

Touch screen with protective glass panel and fast response time
Glare proof surface for better viewing
Multimedia supportive software with Magic IMS

650TS-2

FeaturesPrint

Enhanced Sensitivity And Readability With Touch Screen

The Samsung TS series is designed with a versatile touch screen that allows users to access content, draw and write by touching the screen directly with the supplied Touch Pen or their finger. The Touch Pen provides a comfortable and accurate writing experience. The e-Board also features an intelligent function designed to eliminate interruptions by accidental screen touches. This natural and intuitive approach creates an interactive learning experience that's also more engaging for both the teacher and student.

Auto Brightness Sensor

The new TS Series LED LFD screens come a brightness sensor that detects the ambient light instensity and automatically adjusts the screen brightness.

Bright, Clear, Non-Glare Screen

Designed with a high resolution LCD screen with wide viewing angles, the Samsung e-Board allows every student to see what is being taught and improves their learning experience. The e-Board maintains crisp and clear imaging and brightness consistently across the entire screen so there is less stress on the eyes after hours of viewing and the screen remains clear and bright even after hours of use.

Various Connectivity From Analogue To Digital

Access a wide range of digital content for a more engaging user experience with our comprehensive connectivity options. Connect PCs and other compatible devices to display the content that is most relevant to your audience. The TS Series lets you control your display with both Ethernet/RS-232C remote control simultaneously.

Reliable Digital Signage Display

Our extensive range of LFDs produces astonishing advertising solutions when used to create increasingly popular Digital Information Displays. The displays’ advanced features and widest variety of sizes will ensure reliable performance while making a compelling impact on your audience. The ultra-narrow bezels result in a superior visual experience, and they are specifically designed for both indoor and outdoor use thanks to airtight casing that protects them from dust, humidity and high temperatures.

TECH SPECSPrint

Display

H-Scanning Frequency

30kHz ~ 81kHz
Maximum Pixel Frequency

148.5MHz
V-Scanning Frequency

56Hz ~ 85Hz

Panel

Diagonal Size

65"
Light Source Type

CCFL
Type

AMV3
Resolution

1920*1080 (16:9)
Pixel Pitch(mm)

0.744(H) x 0.744(V)
Active Display Area

1428.48(H) x 803.52(V)
Brightness

500cd/m2
Contrast Ratio (Dynamic)

10000:1
Viewing Angle (Horizontal/Vertical)

178/178
Response Time (G-to-G)

8ms
Display Color

8 bit - 16.7M
Color Gamut

72%
Contrast Ratio

5000:1

SHOW MORE SPECS

Connectivity

Input

RGB

Analog D-SUB, DVI-D

Video

CVBS, HDMI

AUDIO

RCA(L/R) , Stereo mini Jack
Output

RGB

DVI-D(Loop-out)

Video

N/A

AUDIO

Stereo mini Jack, Speaker Out

Power Out

N/A
External Control

RS232C(in/out)
External Sensor

N/A
Network

Slide-In Modular

Mechanical Specification

Dimension

Set Dimension (WxHxD)

1554 * 924 * 138

Package Dimension (WxHxD)

1690 x 1060 x 450
weight

Set Weight

70

Package Weight

80.4
VESA Mount

800*400mm
Protection Glass

Yes
Stand Type

Foot Stand(optional)
Media Player Option Type

Slide-In Modular

Operation

Operating Temperature

10℃~ 40℃
Humidity

10~80%

General Feature

Key

All-in-one Touchscreen
Special

Embedded Touch (Optical) ,Lamp Error Detection, Anti Retention, Brightness Sensor, Temperature Sensor, Built-In Fan Control, RS232C MDC, Built in Speaker (15W + 15W), Plug and Play (DDC2B, DDC/CI), PIP/PBP, Video Wall(5x5), Button Lock, Digital Daisy Chain, Slide In Moduler Design
Touch Screen Module

Embedded

Power

Energy Efficiency Class

N/A
Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power consumption

Off Mode

less than 1W

On Mode

470 (max) / 430 (typ)

Sleep Mode

less than 2W
Type

Internal

Embedded PC

CPU

N/A
N/B

N/A
S/B

N/A
GPU

N/A
FDM/HDD

N/A
Memory

N/A
Ethernet

N/A
Connectivity

USB

N/A

Output

N/A

Others

N/A

Certification

EMC

FCC (USA) FCC Part 15, Subpart B class ACE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22)KCC (Korea) :KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22)C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003
Environment

N/A
Safety

UL (USA) : UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) :IEC60950-1SASO (Saudi Arabia) : IEC60950-1

Accessory

Included

Quick Setup Guide, Warranty Card,Application CD,D-Sub cable, Power Cord,Remote Controller, Batteries, USB cable, touch pen
Optional

Mount

WMN7070D

Specialty

N/A

Stand

STN-L65D

Support

User Manual
- User Manual

  3.09 MB, pdf, ENGLISH

  2012.01.02

  Download
Other Manuals (2)
- User Manual

  4.06 MB, pdf, ARABIC

  2012.01.02

  Download
- User Manual

  4.01 MB, pdf, FRENCH

  2012.01.02

  Download
Driver (1)
- Device(Install)

  Win 98/ME/2K/XP/X64/Vista/Vista64, 0.05 MB, exe, MULTI LANGUAGE

  Close tooltip pop-up
  1. Title
  Monitor driver
  2. Applicable Model
  SyncMaster 650TS
  3. Carrier or Corporate Customer
  Open Market
  4. Description
  If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64/Vista/Vista64, this program will help

  you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

  System Requirements : Windows 98/Me/2000/XP/X64/Vista/Vista64

  2009.09.30

  Version : 1.0

  Download
