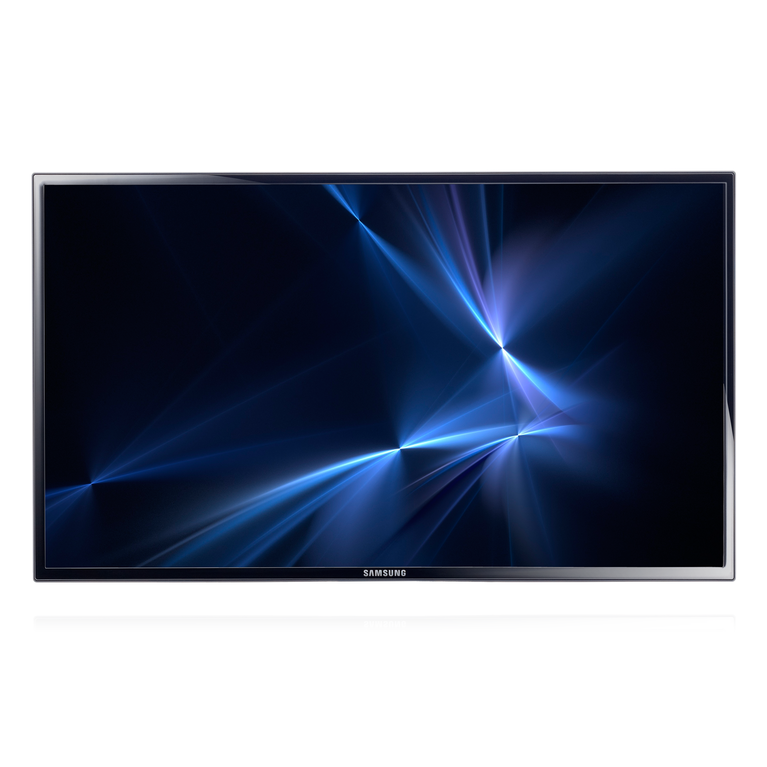

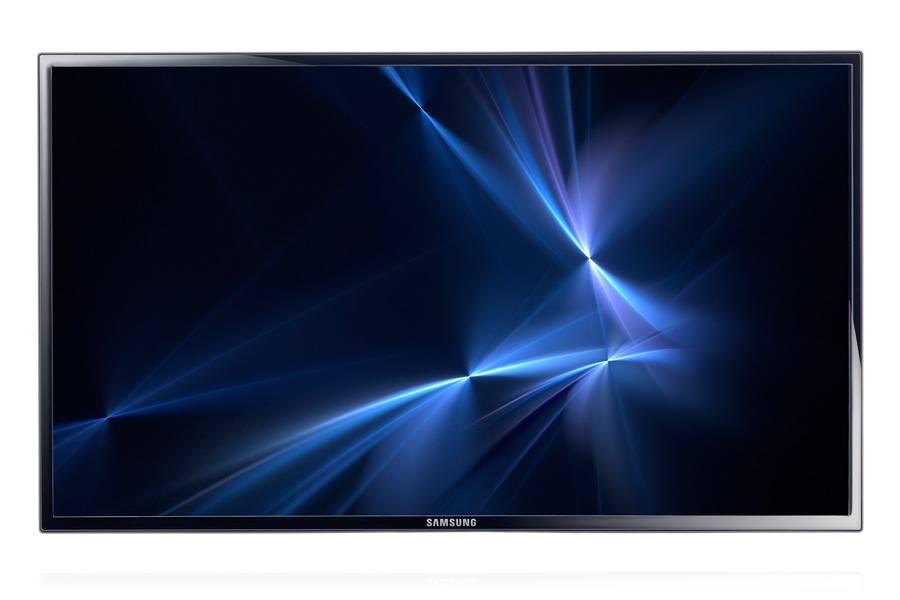

MD40B

Enhanced Performance With Cost-Effective Solution
Direct LED technology for less
Low power consumption and eco-friendly
Enhanced user-experience with built-in media player

MD40B

FeaturesPrint

Enhanced User Experience

Samsung LFDs leverage the most cutting-edge technology to provide enhanced functionality aligned to your business needs. With the built-in media player for your Samsung LFD, you can activate your display capabilities more than you ever thought possible. Built within a microchip the media player has a CPU with a powerful processing speed of 800MHz and an impressive cache size of 512KB. The inclusion of our Samsung MagicInfo Lite software enables you to run the LFD as a stand alone unit without the need of additional players.

Various Connectivity From Analogue To Digital

Access a wide range of digital content for a more engaging user experience with our comprehensive connectivity options. Connect PCs and other compatible devices to display the content that is most relevant to your audience. The MD Series lets you control your display with both Ethernet/RS-232C and remote control simultaneously. It also features a built-in LAN card, allowing users to access the network without the need for addtional devices or inffrastructure.

Low Power Consumption

The Samsung MD Series deliver a cost-effective solution that's also gentle on the planet with the eco-friendly, low power consuming LED back light solution. Plus, you can optimise the conditions of your digital signage by reducing the amount of heat radiating through the actual display area. Conventional LFDs emit consistent amounts of heat across the breadth of the display while the new Samsung LFD not only minimise but centralise is around the sides of the screen. You can now enjoy low power consumption, meaning lower running costs.

Direct LED Technology

At Samsung, you get cost-effective display solutions with Direct LED technology, which is greener and more eco-friendly than CCFL lamps. The LED are situated behind the panel and the light is emitted from the rear. Its easy to fit and bright colour uniformity means that you can enjoy the same innovative LED technology.

Reliable Digital Signage Display

Our extensive range of LFDs produces astonishing advertising solutions when used to create increasingly popular Digital Information Displays. The displays’ advanced features and widest variety of sizes will ensure reliable performance while making a compelling impact on your audience. The ultra-narrow bezels result in a superior visual experience, and they are specifically designed for both indoor and outdoor use thanks to airtight casing that protects them from dust, humidity and high temperatures.

TECH SPECSPrint

Display

H-Scanning Frequency

30 ~ 81kHZ
Maximum Pixel Frequency

148.5MHz
V-Scanning Frequency

56 ~ 75HZ

Panel

Diagonal Size

40"
Type

60Hz LED BLU
Resolution

1920x1080 (16:9)
Pixel Pitch(mm)

0.15375(H) x 0.46125(V)
Active Display Area

885.6(H) x 498.15(V)
Brightness

350nit
Contrast Ratio (Dynamic)

100,000 : 1(AV Mode)
Viewing Angle (Horizontal/Vertical)

178:178
Response Time (G-to-G)

8ms
Display Color

16.7M
Color Gamut

72%

SHOW MORE SPECS

Connectivity

Input

RGB

Analog D-SUB, DVI-D

Video

Component, CVBS, HDMI

AUDIO

Stereo mini Jack
Output

RGB

N/A

Video

N/A

AUDIO

Stereo mini Jack

Power Out

N/A
External Control

RS232C(in/out), RJ45
External Sensor

N/A

Mechanical Specification

Dimension

Set Dimension (WxHxD)

925.4 x 541.0 x 93.5

Package Dimension (WxHxD)

1005 x 615 x 151
weight

Set Weight

9.6

Package Weight

11.7
VESA Mount

200*200mm
Protection Glass

N/A
Stand Type

Foot Stand (Optional)
Media Player Option Type

Embedded

Operation

Operating Temperature

0℃~ 40℃
Humidity

10~80%

General Feature

Key

Slim & Light LFD with Built-in MagicInfo Lite
Special

Built in MagicInfo Lite, Built in Speaker(10W + 10W), Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight, Built in DTV Tuner(ATSC, North America & Korea)

Power

Energy Efficiency Class

n/a
Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power consumption

Off Mode

less than 1W

On Mode

119(Max), 87(Typical), 405.79(BTU)

Sleep Mode

less than 1W
Type

Internal

Embedded PC

CPU

n/a
N/B

n/a
S/B

n/a
GPU

n/a
FDM/HDD

n/a
Memory

n/a
Ethernet

n/a
Connectivity

USB

n/a

Output

n/a

Others

n/a

Certification

EMC

FCC (USA) : Part 15, Subpart B Class A // Part 15, Subpart BKCC/EK (Korea) : KN22 / 24 // KN13 / 20CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 // EN55013:2001+A1:2003+A2:2006, EN55020:2007VCCI (Japan) : VCCI V-3 / 2010.04 Class A // CCC (China) : GB9254-2008 (CISPR22) Class A GB 17625.1-2003 // GB13837-2003 (CISPR13:2001) GB17625.1-2003BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)C-Tick (Australia) : AS/NZS CISPR22:2009 // AS/NZS CISPR13:2004
Environment

ENERGY STAR 5.0 (USA)
Safety

n/a

Accessory

Included

Quick Setup Guide, Warranty Card,Application CD, D-Sub cable, Power Cord,Remote Controller, Batteries
Optional

Mount

WMN4070SDWMN250MD(TBD)

Specialty

CML400D (Ceiling Mount)

Stand

STN-L4055AD

Support

User Manual
- User Manual

  12.59 MB, pdf, ENGLISH

  2012.05.18

  Download
Other Manuals (4)
- Quick Guide

  2.4 MB, pdf, KOREAN, ENGLISH, ARABIC, CHINESE, CHINESE, FRENCH, GERMAN, HUNGARIAN, INDONESIAN, ITALIAN, JAPANESE, KAZAKH, POLISH, PORTUGUESE, RUSSIAN, SPANISH, SWEDISH, TURKISH

  2012.10.22

  Download
- Quick Guide

  2.26 MB, pdf, KOREAN, ENGLISH, ARABIC, CHINESE, CHINESE, FRENCH, GERMAN, HUNGARIAN, INDONESIAN, ITALIAN, JAPANESE, KAZAKH, POLISH, PORTUGUESE, RUSSIAN, SPANISH, SWEDISH, TURKISH

  2012.10.15

  Download
- User Manual

  12.88 MB, pdf, ARABIC

  2012.05.18

  Download
- User Manual

  12.63 MB, pdf, FRENCH

  2012.05.18

  Download
