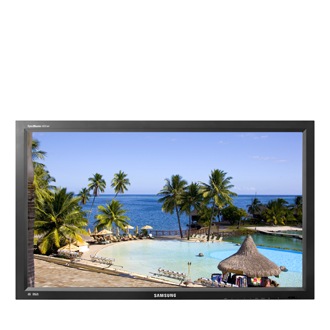

460MX-3

Enjoy High Impact, Sharp Images and Low Costs

460MX-3

FeaturesPrint

Connectivity

Samsung LFDs come equipped with a number of connectivity features that enhance performance without requiring additional equipment. The Samsung MX Series includes professional display port interface that enables high performance multi-display control without the need for a distrubutor over longer distances (two times longer than DVI). The Series also features an upgraded Multi Display Control solution that lets you control a large numbe rof displays through their embedded RS232 and RJ45 interfaces.

Convenient Features

Samsung LFDs leverage the most cutting-edge technology to provide enhanced functionality aligned to your business needs. Maximise impact with a great picture twinned with ultra-crisp audio. The powerful built-in speakers will allow your message to be heard loud and clear while saving you the cost and space of having to purchase and install separate speakers. The Samsung MX Series LFDs also give you the flexibility to install your display vertically or horizontally. Our intelligent Smart Scheduling feature enables you to set timer schedules for time, date, volume and input source whether the display is on or off.

Optional Function

With the Samsung MX Series LFD, you can customise the content of your LFD solution with the optional Slide-in-Module (SIM) feature to meet your unique needs. Run content from a PC quickly and easily by simply sliding the PC in and out of the display without having to dismantle the unit. You can also protect your screen while it is displayed in public areas with our optional, specially designed protective glass. Scratch resistant and shatter-proof, this optional screen shields the panel from damage so your images stay clear for years to come.

Best Picture Quality

As one of the brightest displays on the market today, the Samsung MX Series is built using industry-leading technology. The MX Series produces more vibrant and realistic images than any other LFD in its class to ensure your message gets the attention it deserves. The Samsung LFD Full HD models are naturally eye catching and demand attention. The rich colour and dramatic depth of detail contained in the images provides the perfect platform for a high visibility, high impact digital display.

Reliable Digital Signage Display

Our extensive range of LFDs produces astonishing advertising solutions when used to create increasingly popular Digital Information Displays. The displays’ advanced features and widest variety of sizes will ensure reliable performance while making a compelling impact on your audience. The ultra-narrow bezels result in a superior visual experience, and they are specifically designed for both indoor and outdoor use thanks to airtight casing that protects them from dust, humidity and high temperatures.

TECH SPECSPrint

Display

H-Scanning Frequency

30kHz ~ 81kHz
Maximum Pixel Frequency

148.5MHz
V-Scanning Frequency

56Hz ~ 85Hz

Panel

Diagonal Size

46"
Light Source Type

CCFL
Type

S-PVA( B-DID)
Resolution

1920*1080 (16:9)
Pixel Pitch(mm)

0.53025(H) * 0.53025(V)
Active Display Area

1018.08(H) x 572.67(V)
Brightness

450cd/m2
Contrast Ratio (Dynamic)

10000:1
Viewing Angle (Horizontal/Vertical)

178/178
Response Time (G-to-G)

8ms
Display Color

8 bit - 16.7M
Color Gamut

72%
Contrast Ratio

3000:1

SHOW MORE SPECS

Connectivity

Input

RGB

Analog D-SUB, DVI-D, Display Port

Video

CVBS, HDMI1,HDMI2, Component(D-sub 15pin)

AUDIO

RCA(L/R) , Stereo mini Jack
Output

RGB

N/A

Video

N/A

AUDIO

Stereo mini Jack

Power Out

5V (for SBB)
External Control

RJ45, RS232C(in/out)
External Sensor

N/A
Network

SIM

Mechanical Specification

Dimension

Set Dimension (WxHxD)

1102 X 658 X 125.5

Package Dimension (WxHxD)

1220 X 780 X 310
weight

Set Weight

22.8

Package Weight

29.8
VESA Mount

600*400mm
Protection Glass

Optional
Stand Type

Foot Stand(optional)
Media Player Option Type

SIM (Slide in Module )

Operation

Operating Temperature

0℃~ 40℃
Humidity

10~80%

General Feature

Key

Economy and Reliability
Special

Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC,Built in Speaker (10W + 10W),Plug and Play (DDC2B), PIP/PBP, Video Wall(10x10), Pivot Display, Button Lock, Smart Scheduling, Smart F/W update
Touch Screen Module

N/A

Power

Energy Efficiency Class

N/A
Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power consumption

Off Mode

less than 1W

On Mode

260W(max) / 233W(typ)

Sleep Mode

less than 2W
Type

Internal

Embedded PC

CPU

N/A
N/B

N/A
S/B

N/A
GPU

N/A
FDM/HDD

N/A
Memory

N/A
Ethernet

N/A
Connectivity

USB

N/A

Output

N/A

Others

N/A

Certification

EMC

FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22)KCC (Korea) :KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22)C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003
Environment

ENERGY STAR 5.0 (USA)
Safety

UL (USA) : UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) :IEC60950-1SASO (Saudi Arabia) : IEC60950-1

Accessory

Included

Quick Setup Guide, Warranty Card,Application CD, D-Sub cable, Power Cord,Remote Controller, Batteries
Optional

Mount

WMN5770D

Specialty

CML500D(ceiling mount), STN-520WE(welcome Board)

Stand

STN-L3255D

Support

User Manual
- User Manual

  6.12 MB, pdf, ENGLISH

  2012.01.30

  Download
Other Manuals (4)
- User Manual

  5.72 MB, pdf, ARABIC

  2012.01.30

  Download
- User Manual

  6.17 MB, pdf, FRENCH

  2012.01.30

  Download
- Quick Guide

  1.7 MB, pdf, ENGLISH

  2010.12.20

  Download
- Quick Guide

  1.71 MB, pdf, FRENCH

  2010.12.20

  Download
Driver (1)
- Device(Install)(460MX-3 driver)

  Win 98/ME/2K/XP/X64/Vista/Vista 64/Win7/Win7 64, 7.9 MB, exe, MULTI LANGUAGE

  Close tooltip pop-up
  1. Title
  Monitor Driver
  2. Applicable Model
  SyncMaster 460MX-3
  3. Carrier or Corporate Customer
  Open Market
  4. Description
  If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64/Vista/Vista64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

  System Requirements : Windows 98/Me/2000/XP/X64/Vista/Vista64 /Windows7(32bit/64bit)

  2010.12.14

  Version : 1.0

  Download
