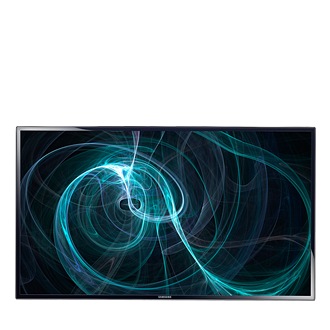

ME55B

With a unique design and impressive features like the brightness sensor and embedded media player, this product is ideal for business.

ME55B

FeaturesPrint

Various Connectivity From Analogue To Digital

Access a wide range of digital content for a more engaging user experience with our comprehensive connectivity options. Connect PCs and other compatible devices to display the content that is most relevant to your audience. The ME Series lets you control your display with both Ethernet/RS-232C remote control simultaneously.

Auto Brightness Sensor

The new ME Series LED LFD screens come a brightness sensor that detects the ambient light instensity and automatically adjusts the screen brightness.

Enhanced User Experience

Samsung LFDs leverage the most cutting-edge technology to provide enhanced functionality aligned to your business needs. With the built-in media player for your Samsung LFD, you can activate your display capabilities more than you ever thought possible. Built within a microchip the media player has a CPU with a powerful processing speed. The inclusion of our Samsung MagicInfo Lite software enables you to run the LFD as a stand alone unit without the need of additional players.

Edge LED Technology

Samsung Edge LED solution utilises LED lamps around the edge of the panel so the LEDs emit light on the side of the panel. This results in a much thinner screen that requires fewer lamps meaning reduced power consumption and less heat generation. Its slim and light weight design offers heavy weight communication solutions for any business looking to convey concise marketing or educational messages. Plus low power consumption means lower running costs. The LED technology driving the LFD consumes less energy than conventional CCFL-based LFD and is lower on co2 emissions.

Reliable Digital Signage Display

Our extensive range of LFDs produces astonishing advertising solutions when used to create increasingly popular Digital Information Displays. The displays’ advanced features and widest variety of sizes will ensure reliable performance while making a compelling impact on your audience. The ultra-narrow bezels result in a superior visual experience, and they are specifically designed for both indoor and outdoor use thanks to airtight casing that protects them from dust, humidity and high temperatures.

TECH SPECSPrint

Display

H-Scanning Frequency

30 - 81 KHz
Maximum Pixel Frequency

148.5 MHz
V-Scanning Frequency

48 - 75 Hz

Panel

Diagonal Size

55"
Light Source Type

LED
Type

120 Hz LED BLU
Resolution

1,920 x 1,080
Pixel Pitch(mm)

0.21(H) x 0.63(V) mm
Active Display Area

1,209.6(H) x 680.4(V) mm
Brightness

380 cd/㎡
Contrast Ratio (Dynamic)

100,000:1 (AV Mode)
Viewing Angle (Horizontal/Vertical)

178 / 178 ° (CR > 10)
Response Time (G-to-G)

8 ms
Display Color

10 bit Dithering - 1.07 Billion
Color Gamut

72 %
Contrast Ratio

5,000:1

SHOW MORE SPECS

Connectivity

Input

RGB

Analog D-SUB, DVI-D, Display Port

Video

Component (CVBS Common), HDMI

AUDIO

Stereo mini Jack
Output

RGB

DVI-D

Video

N/A

AUDIO

Stereo Mini Jack

Power Out

N/A
External Control

RS232C (In/Out) thru Stereo Jack, RJ45
External Sensor

IR, Ambient Light
Network

SBB-A

Mechanical Specification

Dimension

Set Dimension (WxHxD)

1,246.4 x 718.2 x 29.9

Package Dimension (WxHxD)

1,364.0 x 848.0 x 199.0
weight

Set Weight

17.1 Kg

Package Weight

22.2 Kg
VESA Mount

400 x 400mm
Protection Glass

Optional
Stand Type

Foot Stand (Optional)
Media Player Option Type

Embedded

Operation

Operating Temperature

0 - 40 ℃
Humidity

10 - 80 %

General Feature

Key

Slim & Light LFD with Built-in MagicInfo Lite
Special

Built in MagicInfo Lite, Built in Speaker (10W + 10W), Plug and Play (through USB), Narrow Bezel, Slim Depth (29.9,mm), Video Wall(10x10)
Touch Screen Module

Overlay
Internal Player

Processor

Cortex-A8 Single Core CPU with NEON DSP

On-Chip Cache Memory

L1 (I/D) : 32KB / 32KB L2 (Unified) : 512KB

Clock Speed

Up to 800MHz

Main Memory Interface

Dual 32bit DDR3-667 (1333MHz)

Graphics

2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES

Storage (FDM)

4GB (1.2GB Occupied by O/S, 2.8GB Available)

Multimedia

Video Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.

Host Bus

PCIEx 2.0

IO Ports

USB 2.0

Operating System

Linux

Power

Energy Efficiency Class

N/A
Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power consumption

Off Mode

Less than 1 W

On Mode

143 W (Max) / 117 W (Typ)

Sleep Mode

Less than 1 W
Type

Internal

Embedded PC

CPU

N/A
N/B

N/A
S/B

N/A
GPU

N/A
FDM/HDD

N/A
Memory

N/A
Ethernet

N/A
Connectivity

USB

N/A

Output

N/A

Others

N/A

Certification

EMC

FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003
Environment

ENERGY STAR 5.0 (USA)
Safety

cUL (USA+Canada) : UL60065 TUV (Germany) : EN60065 CB (Europe) : IEC60065/EN60065 EK (Korea) : K60065 CCC (China) : GB8898 PSB (Singapore ) : IEC60065 GOST (Russia ) : IEC60065, EN55022 SIQ (Slovenia ) : IEC60065, EN55022 PCBC (Poland ) : IEC60065, EN55022 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM SASO (Saudi Arabia ) : IEC60065

Accessory

Included

Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries
Optional

Mount

WMN4270SD, WMN2000BD

Specialty

CML450D (Ceiling Mount)

Stand

STN-L4055AD
