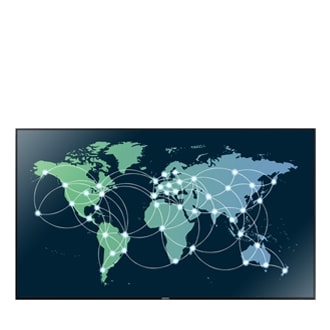

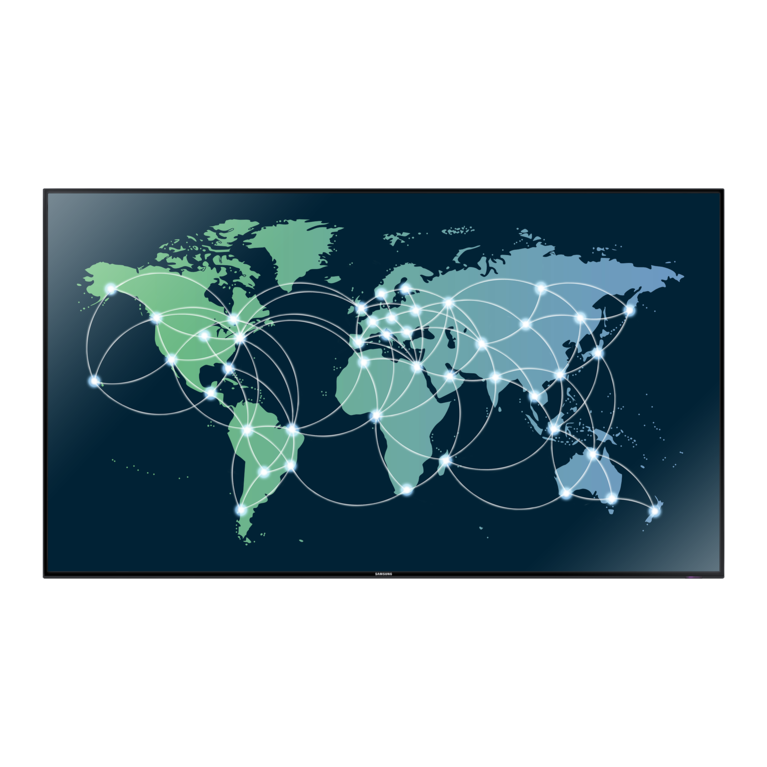

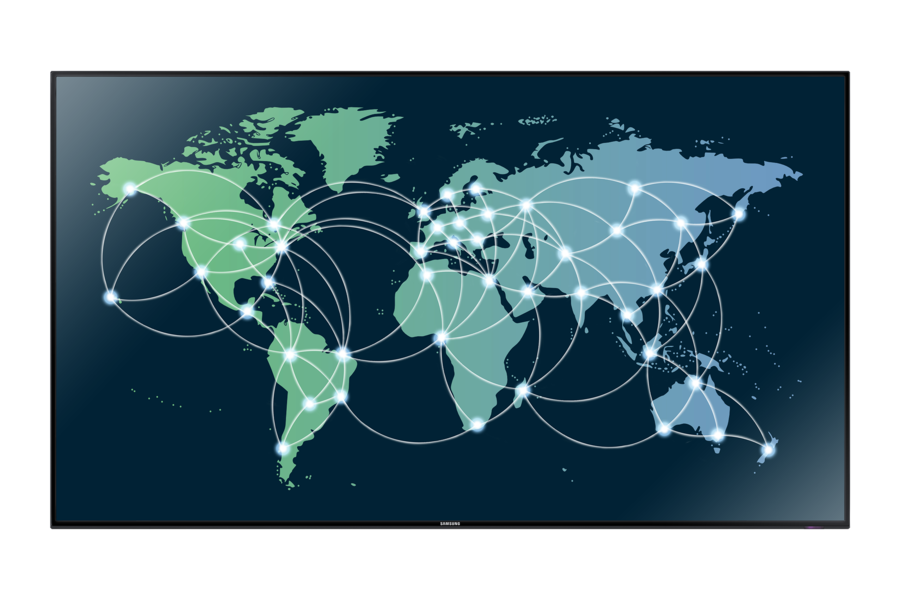

  • ED75D ED75D Front Black ED75D ED75D Front Black

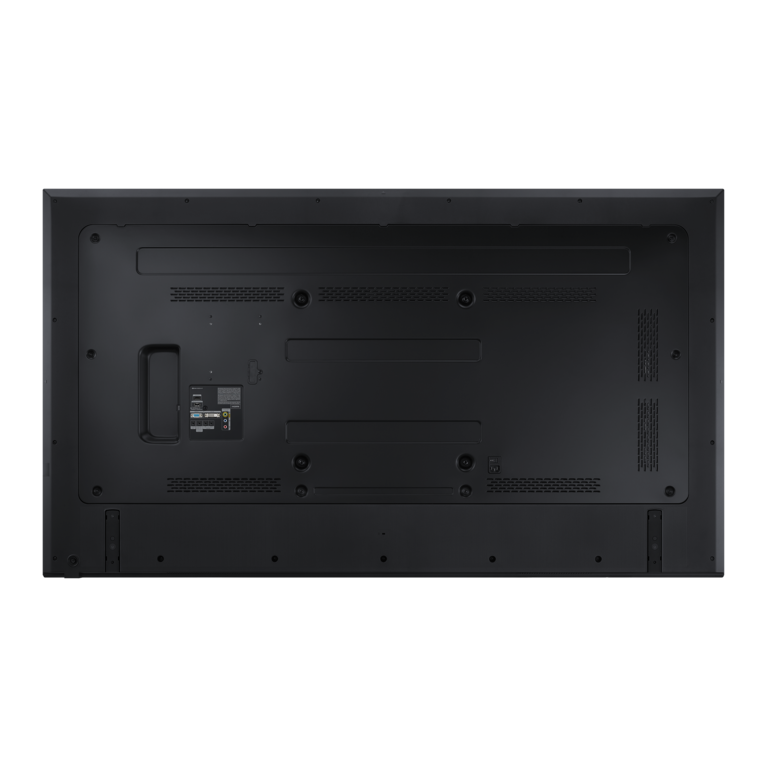

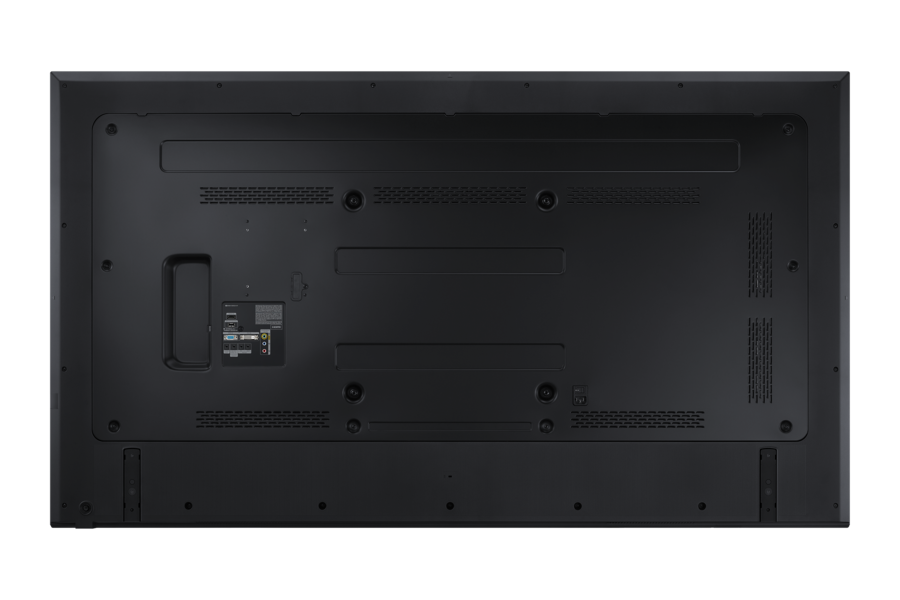

  • ED75D ED75D Back Black ED75D ED75D Back Black

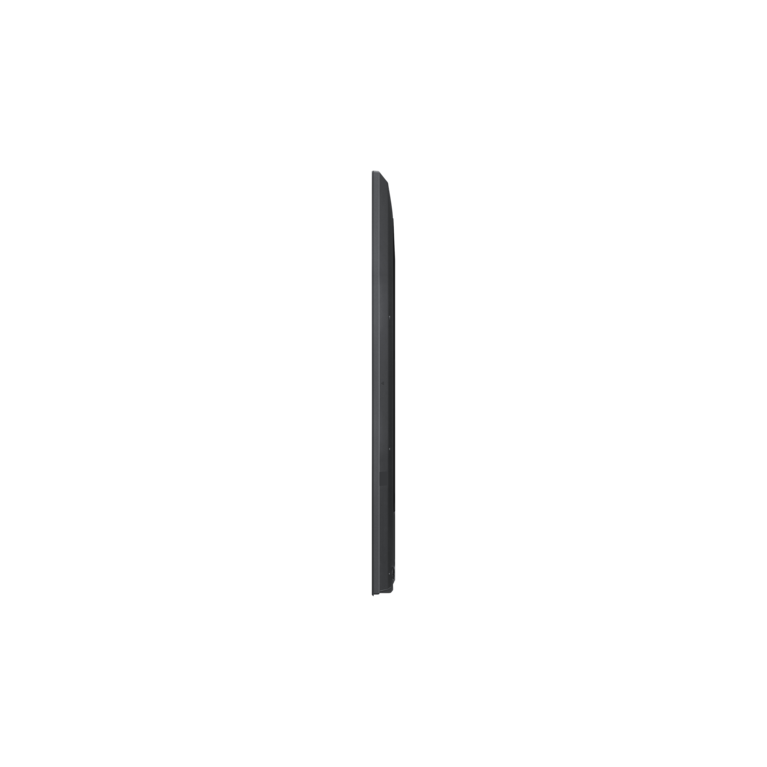

  • ED75D ED75D Right Side Black ED75D ED75D Right Side Black

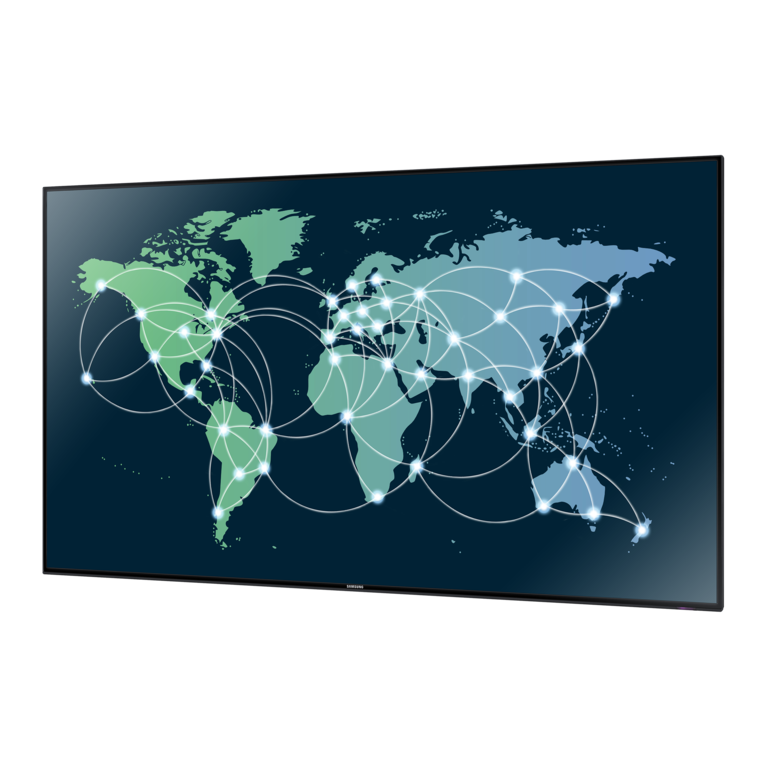

  • ED75D ED75D Right Perspective Black ED75D ED75D Right Perspective Black

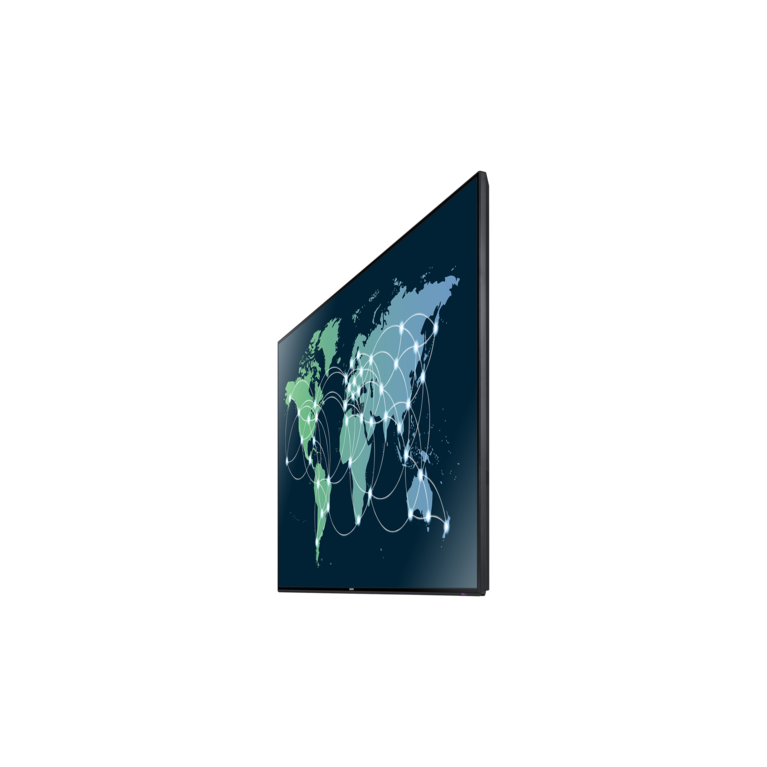

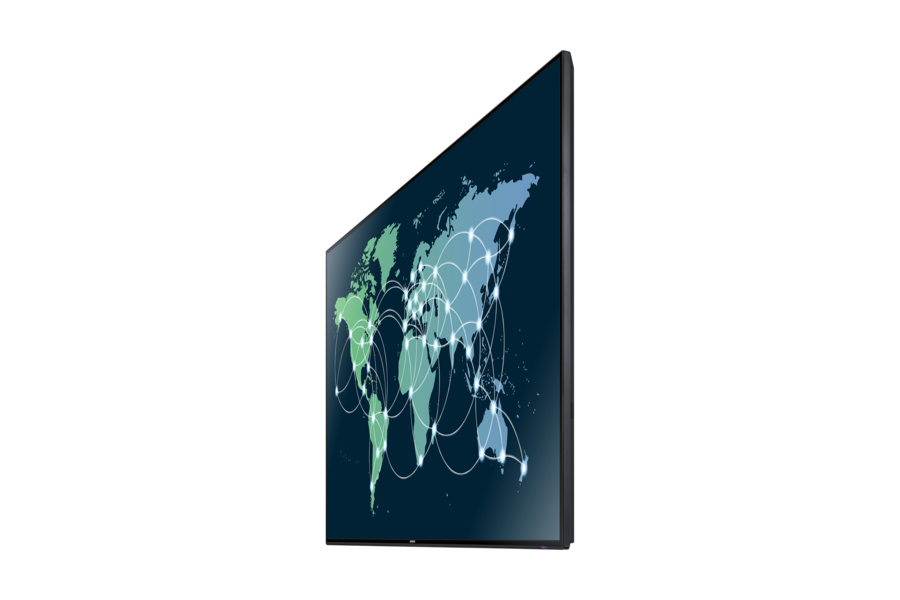

  • ED75D ED75D Dynamic Black ED75D ED75D Dynamic Black

  • ED75D ED75D Front Black
  • ED75D ED75D Back Black
  • ED75D ED75D Right Side Black
  • ED75D ED75D Right Perspective Black
  • ED75D ED75D Dynamic Black
COMPARE

ED75D

ED75D

black
  • An affordable digital display for your essential signage needs
Request a quote

ED75D

Request a quote

FeaturesPrint

Increase content possibilities with external content drives and the optional Samsung PIM

Increase content possibilities with external content drives and the optional Samsung PIM
EDD Series displays are designed to use content from various external sources, including PCs, external hard drives and USB drives, with an optional PIM. Samsung PIMs use Intel® Open Pluggable Specification (OPS) connectivity to enable power and video source delivery through a single cable. No additional power cord is necessary. With the optional PIM installed, external clutter is reduced so that the slim design of EDD Series displays is retained.

Enhance visual communication for increased productivity

Enhance visual communication for increased productivity
EDD series 65” and 75” displays come with an optional, easy-to-install Touch Overlay accessory that enriches the user experience and elevates your brand in any environment. Improved IR touch technology using vertical and horizontal sensing ensures every inch of the screen provides a realistic multi-touch experience. The durable 3.2mm thick overlay protects your display from countless sources of damage including dust to assure long-lasting performance.

Opt for Samsung EDD LFDs—the smart choice for your business

Samsung EDD Series displays are perfectly suited to various business environments and demands, with clear advantages:

• Higher reliability. LFDs are required to undergo stricter, more rigorous quality assurance testing under various environmental conditions. Stringent testing includes lifecycle, dust testing and power surges.
• Optimised display connectivity. LFDs offer RS-232C connection that provides you with a simple way to link multiple displays for access to broader range of digital content. The accompanied multiple display control (MDC) program gives you easy control of all connected displays and content from one central location through the RS-232C connection. You can even merge the MDC protocol into your existing technology.
Captivate your audience with an immersive viewing experience

Captivate your audience with an immersive viewing experience

Entice your audience with crisp, clear FHD images and realistic colour on a sleek display with Samsung d-LED technology. A sleek, lightweight design and slim bezels keep your audience focus on your message, helping you capture more business opportunities. The accompanied pivot function gives you the flexibility to display your message vertically or horizontally for the optimal view.
Sustainable design

Sustainable design

Samsung digital displays emit less heat and carbon dioxide, use less energy, and are mercury- and lead-free. The eco-friendly design helps reduce your company’s environmental footprint.



Connectivity

Connectivity

Connect the display to other digital signage easily with interfaces based on your specific needs. The displays provide not only the essential connections businesses use the most but support for a wide range of source device types. Interfaces include HDMI, DVI, D-sub, Component and Composite input as well as RS-232C for extensive connectivity.

TECH SPECSPrint

Panel

  • Diagonal Size

    75"

  • Type

    120Hz LED BLU

  • Resolution

    1920 × 1080 (16:9)

  • Pixel Pitch(mm)

    0.2865(H) × 0.8595(V)

  • Active Display Area

    1650.24(H) × 928.26(V)

  • Brightness

    320nit

  • Contrast Ratio (Dynamic)

    4,000:1

  • Viewing Angle (Horizontal/Vertical)

    178:178

  • Response Time (G-to-G)

    4ms

  • Display Color

    10bit Dithering - 1.07Billion

  • Color Gamut

    70%

Connectivity

  • Input

    RGB
    Analog D-SUB, DVI-D
    Video
    CVBS, Component, HDMI
    AUDIO
    Stereo mini Jack

  • Output

    AUDIO
    Stereo mini Jack

SHOW MORE SPECS

Support

  • User Manual
    • User Manual
      1.95 MB, pdf, ENGLISH
      2015.07.10
      Download
  • Other Manuals (8)
    • User Manual
      2.04 MB, pdf, HEBREW
      2015.07.10
      Download
    • User Manual
      2.27 MB, pdf, ARABIC
      2015.07.10
      Download
    • User Manual
      2.04 MB, pdf, FRENCH
      2015.07.10
      Download
    • Quick Guide
      2.36 MB, pdf, ENGLISH, ARABIC, FRENCH, PORTUGUESE
      2014.11.21
      Download
    • Quick Guide
      1.25 MB, pdf, ENGLISH, FRENCH, GERMAN, HUNGARIAN, ITALIAN, POLISH, PORTUGUESE, SPANISH, SWEDISH, TURKISH
      2014.11.17
      Download
    • CE DoC
      0.13 MB, pdf, ENGLISH
      2014.11.17
      Download
    • CE DoC
      0.13 MB, pdf, ENGLISH
      2014.11.17
      Download
    • Quick Guide
      3.76 MB, pdf, ENGLISH, KAZAKH, RUSSIAN, UKRAINIAN
      2014.05.02
      Download
