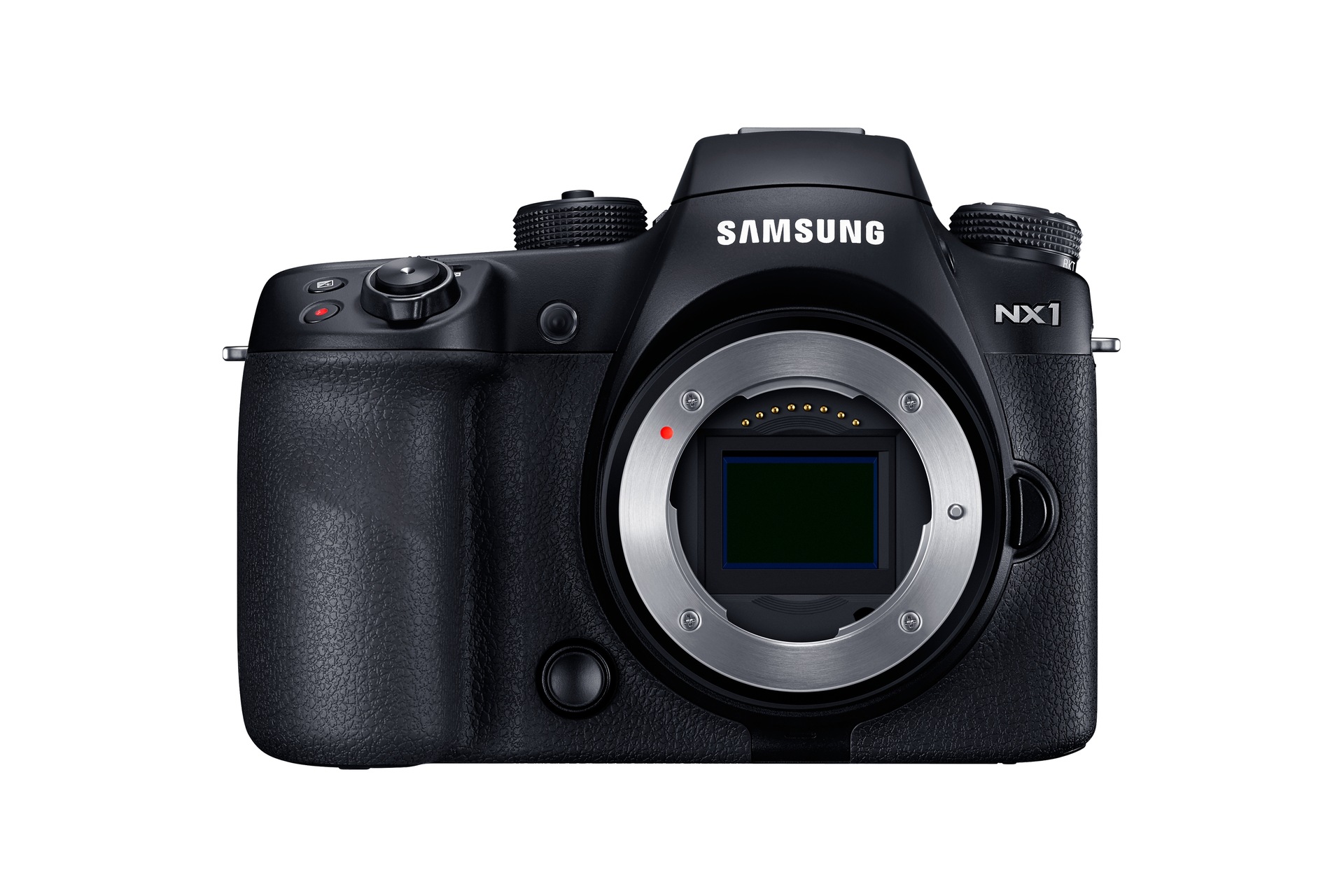

NX1 (16-50 mm Power Zoom)


NX1 (16-50 mm Power Zoom) 0 5 0 reviews
  • 28MP
  • 15FPS
  • 4K Video

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of disposal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

NX1 (16-50 mm Power Zoom)


<br />
High-speed image processor DRIMe V
Meet the DRIMe V, Samsung’s fastest, most powerful image processor yet. It drives the speed, performance and accuracy you need to shoot breathtaking photos or 4K UHD video under any lighting conditions.
High-speed image processor DRIMe V
Extremely fast and accurate NX AF System III
Capture signature images with amazing speed and precision. The NX AF System III features a blazingly fast AF of 0.055s , with 205 Phase Detection AF points and 153 cross-type sensor for edge-to-edge focus coverage.
Extremely fast and accurate NX AF System III
Fast continuous shooting up to 15 fps at 28 MP
The NX1 pushes the boundaries for continuous shooting, giving you 15 precision continuous shots every second, all at a high resolution of 28 MP, and up to 70 of those pictures at one time.
Fast continuous shooting up to 15 fps at 28 MP
Accurate shots every time
See and compose your shot in an incredibly quick 0.005 seconds with the NX1’s OLED Electronic View Finder. It comes on instantly and gives you a clean and wide view that reproduces the sharpness of optical view finders.
Accurate shots every time
Ultra-high 1/8,000s shutter speed
With a powerful shutter capable of shooting at up to 1/8,000 sec, the NX1 can freeze and capture some of the fastest moving subjects with exquisite clarity.
Ultra-high 1/8000s shutter speed
Redefine images with 28 MP BSI APS-C sensor
The NX1 comes with a highly innovative 28 MP sensor that records more details without increasing noise beyond the level of a conventional 20 MP sensor. Crop images without worry and print without losing quality.
Redefine images with 28MP BSI APS-C sensor
Shoot with confidence even in low light
Thanks to a truly innovative technology called Adaptive Noise Reduction, the NX1 is capable of producing crystal clear images virtually free of noise, even set at a high ISO of 25600.
Shoot with confidence even in low light
Breathtaking 4K UHD video recording
The NX1 records video in true 4K, giving you 4 times the resolution of Full HD. It even supports HEVC (H.265), which captures extreme details while consuming only half the memory space of the conventional H.264 codec.
Breathtaking 4K UHD video recording
Highly durable magnesium alloy body
Built to last a lifetime and go anywhere with ease, the NX1 is fully crafted from highly durable magnesium alloy, giving you the firm, rigid structure you would expect from the most premium cameras.
Highly durable magnesium alloy body
Constructed to be dust and splash resistant
Every passing moment can be photo-worthy, but it’s not always sunny out there. That’s why the NX1 was built with a dust and splash resistant structure. It’s ready to perform even when your surroundings are dusty or wet.
Constructed to be dust and splash resistant
Convenient top-mounted LCD status window
The NX1 comes with a top-mounted LCD status display window that shows all your current camera setting values, putting all your key settings and information precisely where you’d expect them to be on a top-of-the-line camera.
Convenient top-mounted LCD status window
Easy sharing with Wi-Fi and Bluetooth
The NX1 supports the most advanced Wi-Fi standard available for instant transfers of high-resolution photos and videos. Together with Bluetooth and NFC, you get all the fast connectivity you need for easy sharing.
Easy sharing with Wi-Fi and Bluetooth

tech specs


  • Typ


  • Sensormått

    23.5 x 15.7 mm

  • Effektivt antal pixlar

    Approx. 28.2 MP

  • Total Pixel

    Approx. 30.7 MP

  • Färgfilter

    RGB Primary

Lens Mount

  • Mount

    Samsung NX Mount

  • Usable Lens

    Samsung NX Lens (3D Lens Supported)


Image Stabilization

  • Typ

    Lens Shift (depends on Lens)

  • Mode

    OIS Mode1 / Mode2 / OFF

Distortion Correct

  • Distortion Correct

    LDC On / Off (depends on Lens)


  • i-Function

    Aperture / Shutter speed / EV / ISO / WB / i-Zoom


  • Typ

    Super AMOLED w / Touch Screen

  • Size

    76.6 mm (3")

  • Resolution

    1,036 k dots

  • Field of View

    Approx. 100%

  • Guide Display



  • Typ

    EVF (OLED) w / Eye Contact Sensor

  • Resolution

    XGA 2,360 K dots equiv.

  • Filed of View

    Approx. 100%

  • Magnification

    Approx. 1.04x (APS-C, 50 mm, -1 m⁻¹)

  • Eyepoint

    Approx. 21 mm

  • Diopter Adjustment

    Approx. -4.0 - +2.0 m-1


  • Typ


  • Focusing point

    205 Points (Phase Detection AF), 209 Points (Contrast AF), AF Range: EV -4 - 20

  • Mode

    Active AF, Continuous AF, MF, Single AF

  • AF-Assist Lamp



  • Speed

    Auto: 1/8,000 seconds - 1/4 seconds / Manual: 1/8,000 seconds - 30 seconds / Bulb


  • Metering System

    TTL 221 Block segment, Metering: Multi, Centre-weighted, Spot

  • Compensation

    Still: ±5 EV, Movie: ±3 EV (1/3 EV step)

  • ISO Equivalent

    Auto, 100 - 25600 (1 EV or 1/3 EV step) (EXT.51200)


  • Mode

    Single, Continuous, Self-timer, Bracket

  • Continuous

    15 fps

  • Bracket

    AE, WB, PW, Depth

  • Self-Timer

    2 - 30 seconds (1 seconds step)


  • Typ


  • Mode

    1st Curtain, 2nd Curtain, Auto, Auto + Red-eye reduction, Fill-in, Fill-in + Red-eye reduction, Smart Flash, Off

  • Guide Number

    11 (at ISO 100)

  • Angle of View Coverage

    28 mm wide-angle (Equivalent to 35 mm)

  • Sync Speed

    Less than 1/250 seconds

  • Flash Compensation

    -2 - +2 EV (1/2 EV step), FEL

  • External Flash

    Samsung External Flash available

  • Synchro (Flash attachment)

    Hot Shoe

White Balance

  • Micro Adjustment

    Each 7 steps in Amber / Blue / Green / Magenta axis

  • Mode

    Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (W / N / D), K (Manual), Tungsten, Auto + Tungsten

Dynamic Range Expansion

  • Dynamic Range Expansion

    Off, Smart Range+, HDR


  • Picture Wizard

    Calm, Classic, Cool, Custom (1 - 3), Forest, Landscape, Portrait, Retro, Standard, Vivid

  • Smart Filter

    Vignetting, Minature (H), Miniature (V), WaterColour, Selective Colour (R / G / B / Y 4 Colours)


  • Mode

    Auto, Aperture Priority, Custom1, Custom2, Manual, Program, Shutter Priority, Smart

  • Smart

    Beauty Face, Landscape, Action Freeze, Rich Tone, Panorama, Waterfall, Silhouette, Sunset, Night, Fireworks, Light Trace, Multi-Exposure, Samsung Auto Shot

  • Image Size

    JPEG (3:2): 28 M (6480 x 4320), 13.9 M (4560 x 3040), 7.1 M (3264 x 2176), 3 M (2112 x 1408) / (16:9): 23.6 M (6480 x 3648), 11.9 M (4608 x 2592), 6.2 M (3328 x 1872), 2.4 M (2048 x 1152) / (1:1): 18.7 M (4320 x 4320), 9.5 M (3088 x 3088), 4.7 M (2160 x 2160), 2 M (1408 x 1408) / RAW: 28 M (6480 x 4320)

  • Quality

    Super Fine, Fine, Normal

  • Color Space

    Adobe RGB, sRGB


  • Format


  • Compression

    Movie: HEVC (H.265), MJPEG (VGA 30p only) Sound: AAC (MP4), Linear PCM (AVI)

  • Mode

    Aperture Priority, Auto, Manual, Program, Shutter Priority, Smart, Custom 1, Custom 2

  • Image Size

    3840 x 2160 (30 fps Only), 4096 x 2160 (24 fps Only), 1920 x 1080,1280 x 720, 640 x 480

  • Frame Rate

    60 fps, 30 fps, 24 fps NTSC / 50 fps, 25 fps, 24 fps PAL

  • Quality

    High Quality , Normal, Pro (3840 / 4096 only)

  • Sound


Image Play

  • Typ

    Single image, Thumbnails (15 / 24 images), Slide show, Movie


  • Still

    Edit, Colour, Portrait, Smart Filter

  • Movie

    Still Image Capture, Trim Movie


  • External Media

    SD, SDHC, SDXC (up to 64 GB), UHS-I, UHS-II support


  • Languages

    33 Languages (Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese (Portugal), Portuguese (Brazil), Polish, Finnish, Russian, Norsk, Simplified / Traditional Chinese, Arabic, Persian, Turkish, Hebrew, Thai, Greek, Hungarian, Estonian, Lithuanian, Latvian, Serbian, Croatian, Vietnamese, Romanian, Japanese)

Network and Wireless Connectivity

  • Wi-Fi

    IEEE 802.11b/g/n/ac

  • NFC


  • Connectivity Support



  • Digital Output Connector

    USB 3.0

  • Video Out


  • External Release


  • USB


  • Audio

    3.5 mm Stereo MIC Input, 3.5 mm Stereo Output


  • Capacity

    1,860 mAh

  • Charging

    DC 5 V, 2 A via Micro USB port

  • Still Image Capturing Time

    500 shot (CIPA Standard)

Physical specification

  • Dimension (WxHxD)

    138.5 x 102.3 x 65.8 mm

  • Weight

    Approx. 550 g (body only)

Operating Environment

  • Operating Temperature

    0 - 40 °C

  • Operating Humidity

    5 - 85%


  • Application

    I-Launcher (Web version included), Power Media Player, Samsung Movie Converter, Samsung DNG Converter, Adobe Photoshop Lightroom 5

System Requirement

  • Windows

    Windows 7 / 8 / 8.1, Intel 3rd Gen. i5 3.4 GHz or higher (equivalent AMD processor) recommended

  • Macintosh

    Mac OS 10.7 or higher recommended
