460PX

460PX

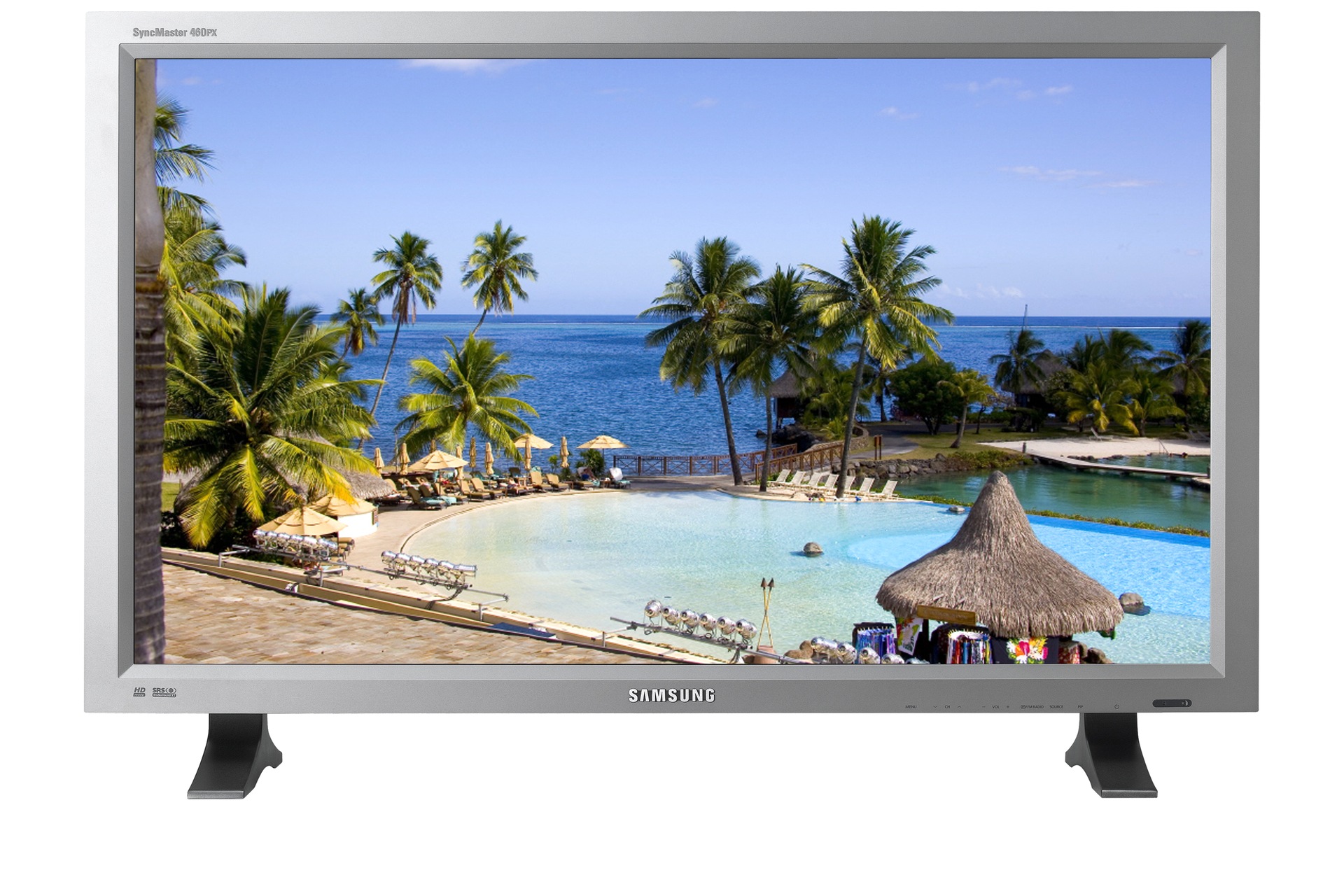

Versatile beyond imagination, SAMSUNG's large format displays (LFD) can be used to display a variety of input — including video, PC, DTV and more. Whatever is displayed comes through as vivid images and strikingly sharp text. This attention grabbing display can be placed virtually anywhere.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

460PX

Features

  • multi-purpose display

enhanced colour with DNIe pro

enhanced colour with DNIe pro
New Technology of SAMSUNG: Brighter & Clearer Images Video signal: AV, S-Video, Component, HDMI (Not PC Signal)

circuit design with fan

circuit design with fan
Fan in back side of product keeps reliability during display to prevent over heating User can adjust the working condition of FAN by OSD control

MagicSpeed (8ms)

MagicSpeed (8ms)
monitor supports fast response time to reduces blurring image.

multiple display control

multiple display control
MDC Program controls a variety of source as a single system by built-in RS-232C interface.

PIP & PBP

PIP & PBP
PIP (Picture In Picture) / PBP (Picture By Picture): Multi tasking function allows user to enjoy an image from two different source at onceWork and play at the same time

pivot technology

pivot technology
Flexible Pivot Function that freely rotates around 90˚degrees, allowing you to easily View a vertical image or text without mouse scrolling.This function gives you more flexibility, supporting presentations in portrait mode.

power saving system

power saving system
DPMS (Display Power Management Signaling) Adopted uses less than 1W in stand-by mode and monitor goes to stand-by mode automatically after checking its status. Auto Power on-off function :732N plus /932B plus can turn on and off the Power automatically if Monitor detect the DPMS mode.

various external AV devices

various external AV devices
With CVBS, S-video, and Component inputs, can be connected to various AV devices such as DVD player, VCR, Audio, Camcorder, Game consoles as well as computers.As the popularity of high-resolution sources like DVD and HDTV are more increasing, component inputs are becoming more common

extended video wall format

extended video wall format
Extended Video Wall Function - Full Mode: Video Wall regardless of cabinet bezel- Natural Mode: User can adjust video wall image ※ Support All Video wall Combination from 1x1 to 5x5

VESA wall mount standard

VESA wall mount standard
Because the 400PX features VESA Flat Display Mounting Interface Standard Support, you can use it with any 3rd party installations easily.

wide viewing angle

With S-PVA Technology, you’ll always get a clear image with no distortion from any angle.

anti-image retention mode

Other than a Screen Scroll mode, you’ve got 3 additional settings. Plus, there’s also the Anti-image Timer Function available.

vertical input

Features Vertical Input Considering Cable-finishing for vertical input types and clean-touch cabling.

superior image quality

The 460PX monitor offers a display of high brightness and clear contrast. With a combination of 500cd/m2 brightness, 1200:1 and 1366x768 resolution, the 460PX delivers a superior image quality.

fast response time

With MagicSpeed², the 460PX responds almost three times faster than other monitors and significantly reduces the ghosting and jagged pixel effects. The fast response time of 8ms also ensures stable viewing of DVDs and streaming video.

signal balance

The 460PX enables long distance cable connections between a PC and the display — receiving content from a PC up to 100 metres away.

tech specs

Dimension of LS46BHYNB/XSG

Display

  • Screen Size
    46"
  • Resolution
    1366 x 768
  • Viewing Angle (Horizontal/Vertical)
    178˚/178˚

Panel

  • Brightness
    450 cd/m²
  • Contrast Ratio
    1200:1
  • Response Time (G-to-G)
    8 ms (GTG)
  • Display Color
    16.7 Mil.

SHOW MORE SPECSExpand

Signal Input

  • Video Signal
    Analog RGB, DVI -D, Composite S-video, component Video
  • Sync. Signal
    Separate H/V,Composite, SOG
  • Connector
    D-Sub,DVD-D,S-Video,BNC(Video),BNC(Component /PC)

Power

  • Power consumption
    290W
  • Stand-by Power (DPMS)
    <1 Watts

Features

  • Plug & Play
    DDC 2B
  • Multimedia Speakers
    10W x 2ch (Option)
  • Special Features
    Anti-image retention, Matrix Video Wall (2 x 2, 3 x 3, 4 x 4, 1 x 5, 5 x 1 ,5 x 5), Safety Lock, PIP/PBP
  • Mac compatibility
    Yes
  • Wall Mount
    Mounting Kit Available (option)
  • Cabinet Color
    Black

Dimension

  • Set Dimension with Stand (WxHxD)
    1102 x 715 x 293mm
  • Set Dimension without Stand (WxHxD)
    1102 x 658 x 126.5mm
  • Shipment Dimension (WxHxD)
    1248 x 824 x 304mm

weight

  • Package Weight
    38 kg

Design

  • Stand Type
    Foot Stand

Support

Quick Guide

3.01 MB, pdf, ENGLISH

2008.03.17

Other Manuals (5)

Driver (1)

  • VGA(Graphics)

    Win 98/ME/2K/XP/X64, 0.06 MB, exe, MULTI LANGUAGE

    2006.10.31 tooltipbox

    Close tooltip pop-up
    If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 98/Me/2000/XP/X64 or higher
