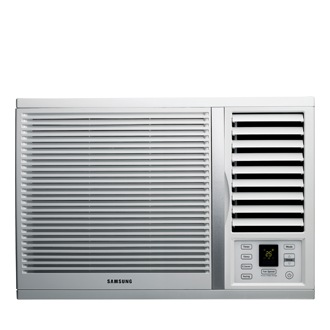

AWT24W1B

AWT24W1B

Your room is your heaven for living, thinking, and resting. therefore,your room deserves an air conditioner that's perfect for all of your needs. With convenient control and healthy features, you will never want to leave. Lose yourself in a room cooled just the way you like it. With a Samsung Window Type Air Conditioner, it's not hard to imagine.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

AWT24W1B

Features

  • Powerful Window aIr conditioner

Silver Coated Technology

Silver Coated Technology
Samsung Air Conditioners are the first and only of its kind to coat the filter and the evaporator with silver coating. Most other brands of air conditioners available on the market have not incorporated a silver coating to their filters or evaporators, leaving you more vulnerable to breathing in unhealthy air. However, because we have coated the filter and the evaporator with a silver disinfecting and antimicrobial coating, we do offer superior protection.

Slide-out Chassis

Slide-out Chassis
The Window Type air conditioner is easy to install because the chassis can be detached by sliding it out. Just install the lightweight cabinet on the wall or in a window and then insert the unit in the cabinet by sliding it in. That’s all it takes to install a Samsung Window Type air conditioner.

Easy-to-Access Filter

Easy-to-Access Filter
You can slide the filter in and out without removing the front grille for quick and easy cleaning. Dust, soot, and pollen in the air are efficiently collected and easily removed.

4-Way Air Direction

4-Way Air Direction
The Window Type air conditioner provides fresh air in 4 directions. Its size is compact, but it can blow air far to every corner of your room.

A Delightful Day with Good’sleep Mode

A Delightful Day with Good’sleep Mode
What if you can have 82% longer deep-sleep hours, what if you can keep optimum skin temperature while sleeping, and what if you can save up to 30% energy everyday? Based on precise studies undertaken for many years, Samsung’s Good’sleep Mode will miraculously change your life, enabling all three what-if’s.

Ventilation Control

Ventilation Control
The air can be directed in the direction you want by adjusting the horizontal louver and the vertical louvers. It is possible to set the horizontal louver to swing at a constant speed or fix it to point airflow in the desired direction.

Powerful “UTR” Compressor

Powerful “UTR” Compressor
Prompt and powerful cooling with UTR compressor

tech specs

Dimension of AWT24W1BXSG

General Feature

  • Air Purification
    Anti-bacteria Coating

    Yes

  • Moisture Removal (Pts/hr)

    2.65

  • Convenience
    Rust Free Cabinet

    Yes

    Washable Grille

    Yes

    Easy to Acess Filter

    Yes

    Auto Swing

    Yes

    Slide In/Out

    Yes

  • Operating Mode
    Temperature Control

    Yes

  • Air Flow
    Air Direction

    4 way

    Air Flow Control Step (Cool/Fan)

    3 / 2

    Air Discharge

    Side

  • Air Ventilation

    Yes

  • Compressor type

    ROTARY

Performance

  • Capacity (Btu/hr)

    22000

  • Air Circulation (Max, CFM)

    12.2

  • Capacity (Cooling, Kcal/hr)

    5,544

  • Capacity (Cooling, kW)

    6.45

  • Energy Efficiency
    EER (Cooling, btu/W)

    8.7

    Power consumption

    2700

  • Noise Level

    57 / 64

SHOW MORE SPECSExpand

Physical Specification

  • Dimension
    Net Dimension (WxHxD)

    660 x 425 x 745 mm

    Net Dimension (Depth without Grille)

    745mm

Electrical Data

  • Energy Efficiency
    Operating Current

    12.3

  • Power Source
    Φ/V/Hz

    220 ~ 240 / 50 / 1
