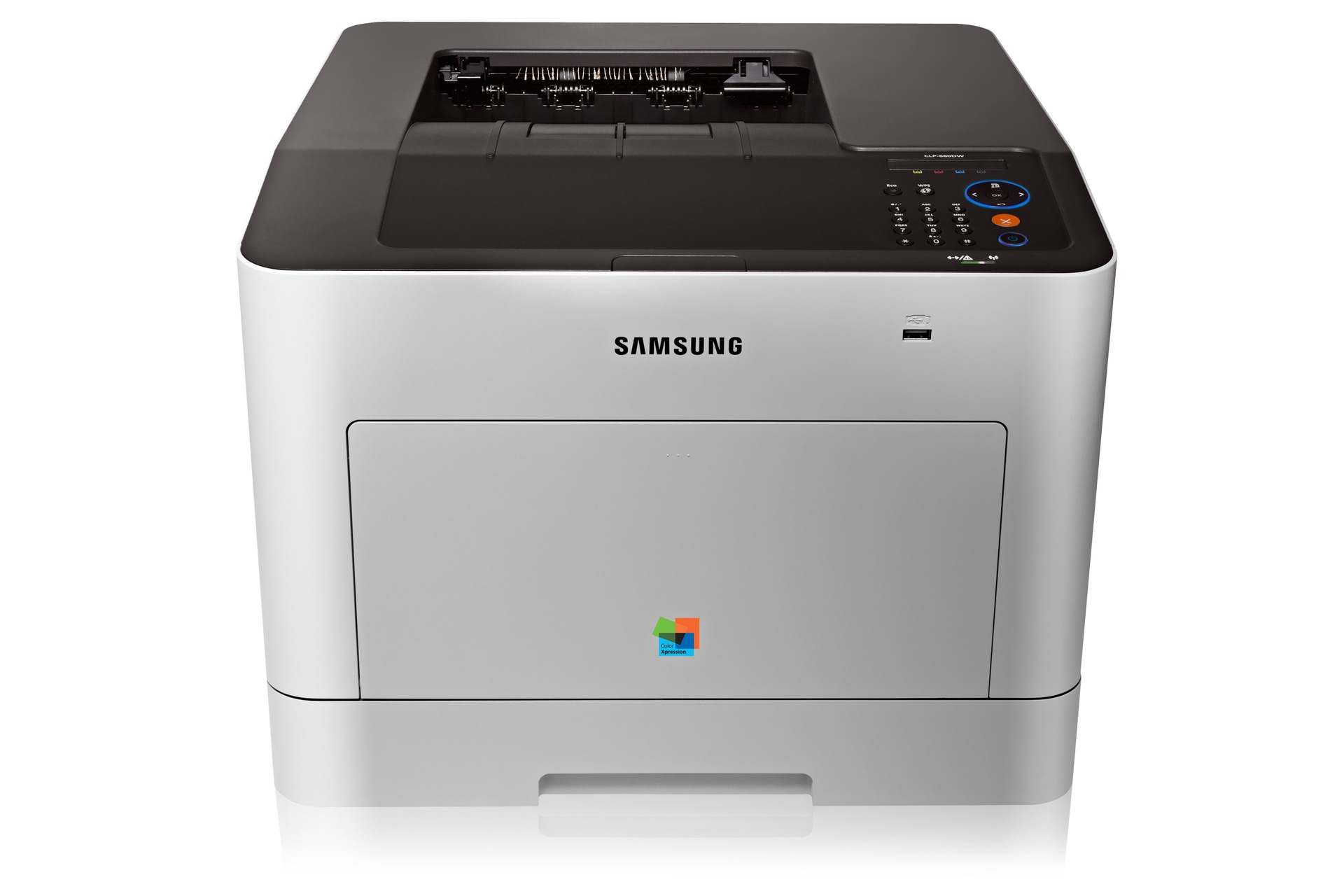

9600dpi 24ppm Wireless Colour Printer CLP-680DW

Features

  • Samsung Colour Laser Printer
  • True colour at the speed of light

Product Configuration




Make sharp images and text even sharper

Samsung’s unique ReCP (Rendering Engine for Clean Page) Technology improves the overall quality and vibrancy of your colour printing, ensuring every printout looks perfect. It automatically sharpens the focus of both graphics and text, while solid objects are overlapped to eliminate white gaps.


Make colours more vibrant

Our newly developed polymerised toner has smaller and more uniform particles than conventional toner. Your printouts will have crisper lines and more vivid colours, in addition to eliminating paper curling. Also, its higher wax content improves the image gloss and enhances the durability preventing unwanted fading.


More power, higher productivity

Some days it seems like the printing never ends. With the CLP-680DW's 533MHz Dual CPU, and 512MB standard memory (expandable up to 1GB) you can be sure that this printer will handle the entire load of your workgroup's need.
Speedy and flexible paper handling

Speedy and flexible paper handling

If you want to print or copy onto heavier weights of paper, you can. Weights of up to 220g/m² are handled with ease through the 50 page multipurpose tray as well as the 250 page standard cassette. Plus, with the optional 520 sheet second cassette you can increase your total paper input capacity to 820 sheets. That way you can also use up to three different media types without the need to waste time changing paper.


Easy Operating Panel

With the CLP-680DW's two line liquid crystal display and intuitive 5 key compass navigation you can control the device's status, browse the menu and access each unique feature with ease.
m²

Convenient USB printing

Print documents directly from the printer, without the need of a computer, via a front-facing Direct USB slot located just below the operating panel.


Secure, confidential printing

If you need to print sensitive data through your printer, you can relax. You can now ensure personal print jobs remain personal. Just enter a password, and you can retrieve a print job at your convenience, away from any prying eyes. And with the integrated numeric key pad it's easier than ever!


Low cost, low impact on the world

Save toner, paper and energy with ease - it's good for the environment and it's good for your business' profits. Being economical and printing vibrant colour documents goes hand in hand with the CLP-680DW


Low Power Consumption

Despite its impressive list of features and functions, the CLP-680DW consumes less energy than most of its competitors. Its innovative polymerised toner requires lower fusing temperatures, the instant fusing technology saves warm up time before first print, and our new Dual CPU make it one of the greenest devices around today.


Easy Eco Driver

Easy Eco Driver helps you compile digital documents in multiple formats and makes it easy to share them with others - even through social networks.


Get the right result before printing

The Samsung Easy Colour Manager allows you to adjust the colour balance, saturation, brightness or contrast of any image prior to printing. Perfect for matching the exact colours of your company logo every time.


Take the stress out of print management

For maximum control, Easy Printer Manager lets you manage all your devices from one location. Check device and toner status, change device settings or set alerts – even through e-mail.


Mobile Printing

With the Samsung Mobile Print App, you can print your docu-ments, pictures, and presentations directly from your Android, iOS, or Windows Phone 7 mobile devices with ease.


Easy toner replacement

Toner changes are made easier with a top loading slide out drawer. And with high yield all-in-one toner cartridges, you save not only time but money.

tech specs

Dimension of CLP-680DW/XSG

General

  • Functions
    Standard
    Print
    Optional
    WPS / One-touch Eco Mode / Direct USB / Mobile Print
  • Processor
    Dual CPU (Main: 533MHz / Sub: 150MHz)
  • Operational Panel
    2-Line LCD
  • Memory
    Standard
    256MB
    Maximum
    512MB
  • Interface
    Standard
    High-Speed USB 2.0 / USB Host / Ethernet 10 / 100 / 1,000 Base-TX / IEEE 802.11b/g/n Wireless Network
    Optional
    IEEE 1,284B Parallel Connector
  • Power consumption
    450W (Average) / 14W (Standby) / 2W (Sleep Mode) / 1.49kWh (TEC)
  • Noise Level
    Less than 52dBA (Printing) / Less than 32dBA (Standby)
  • Dimension (WxDxH)
    420.0 x 452.5 x 311.3mm (16.54" x 17.81" x 12.26")
  • weight
    20.15Kg (44.42lb)
  • Max. Monthly Duty Cycle
    60,000 Pages

Print

  • Speed
    Speed(Mono)
    Up to 24ppm in A4 (25ppm in Letter)
    Speed (Color)
    Up to 24ppm in A4 (25ppm in Letter)
  • First Print Out Time
    First Print Out Time (Mono)
    Less than 17 seconds (From Ready Mode)
    First Print Out Time (Colour)
    Less than 17 seconds (From Ready Mode)
  • Resolution
    Up to 9600 x 600dpi Effective Output (600 x 600 x 4bit)
  • Emulation
    PCL5Ce / PCL6C / PS3 / PDF V1.7 / SPL-C (Samsung Printer Language Colour)
  • Duplex Print
    Built-In
  • Operating System
    Window 2003 / Window 2008 / Window XP / Window Vista / Window 7 / Window 2003 Server / Window 2008 Server / Window 2008 Server R2 / Mac OS X 10.4-10.7 Various Linux, UNIX
  • Direct Print Support
    PDF V1.7
  • Print features
    Automatic Double Sided Print / Direct Print / Secure Print

SHOW MORE SPECSExpand

Paper Handling

  • Input Capacity
    Cassette
    250-Sheet Standard Cassette
    Multipurpose tray
    50-Sheet MP Tray
    Other Options
    520-Sheet SCF
    Maximum
    820 Sheets
  • Media Type
    Cassette
    Plain Paper / Thin Paper / Thick Paper / Cardstock / Thicker Paper / Hole Punched / Transparency / Pre-Printed / LetterHead / Recycled / Archive / Bond / Label / Envelope / Cotton / Coloured / Glossy
    Multipurpose tray
    Plain Paper / Thin Paper / Thick Paper / Cardstock / Thicker Paper / Hole Punched / Transparency / Pre-Printed / LetterHead / Recycled / Archive / Bond / Label / Envelope / Cotton / Coloured / Glossy
    Other Options
    Plain Paper / Thin Paper / Cardstock / Hole Punched / Pre-Printed / LetterHead / Recycled / Archive / Bond / Label / Cotton / Coloured / Glossy
  • Media Size
    Cassette
    A4 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / A5 / Statement / A6 / Index Card Stock / Postcard / Envelope Monarch / Envelope No-10 / Envelope DL / Envelope C5 / Envelope C6 / Envelope No 9 / Custom [76 x 127mm (3" x 5") - 216 x 356mm (8.5" x 14")]
    Multipurpose tray
    A4 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / A5 / Statement / A6 / Index Card Stock / Postcard / Envelope Monarch / Envelope No-10 / Envelope DL / Envelope C5 / Envelope C6 / Envelope No 9 / Custom [76 x 127mm (3.0" x 5.0") - 216 x 356mm (8.5" x 14")]
    Other Options
    A4 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / A5 / Statement / Custom[98 x 210mm (3.86" x 8.3") - 216 x 356mm (8.5" x 14")]
  • Media Weights
    Cassette
    Supported Weight: 60 - 220g/m² (16 - 59lb) Thin Paper: 60 - 70g/m² / Plain Paper: 70 - 90g/m² / Thick Paper: 91 - 105g/m² / Bond Paper: 105 - 120g/m² / Cardstock: 121 - 163g/m² / Thicker Paper: 164 - 220g/m²
    Multipurpose tray
    Supported Weight: 60 - 220g/m² (16 - 59lb) Thin Paper: 60 - 70g/m² / Plain Paper: 70 - 90g/m² / Thick Paper: 91 - 105g/m² / Bond Paper: 105 - 120g/m² / Cardstock: 121 - 163g/m² / Thicker Paper: 164 - 220g/m²
    Other Options
    Supported Weight: 60 - 163g/m² (16 - 43lb) Thin Paper: 60 - 70g/m² / Plain Paper: 70 - 90g/m² / Thick Paper: 90 - 105g/m² / Bond Paper: 105 - 120g/m² / Cardstock: 121 - 163g/m²
  • Output Capacity
    150-Sheet Face Down

Consumables

  • Toner
    Black
    Standard Toner Cartridge Yield: 2,000 Standard Pages (Ships with 2,000 Pages Starter Toner Cartridge) / High Toner Cartridge Yield: 6,000 Standard Pages
    Color (C/M/Y)
    Standard Toner Cartridge Yield: 1,500 Standard Pages (Ships with 1,500 Pages Starter Toner Cartridge) / High Toner Cartridge Yield: 3,500 Standard Pages
  • Transfer Belt
    Approx. 100,000 Pages
  • Waste Toner Container
    Approx. 14,000 Pages (Black) / 3,500 Pages (Colour)

Option

  • Option
    520-Sheet Cassette / IEEE 1,284B Parallel Connector / 512MB Memory

Solution

  • Device Management
    Yes
  • Output Management
    Yes
  • Mobility
    Yes

Support
