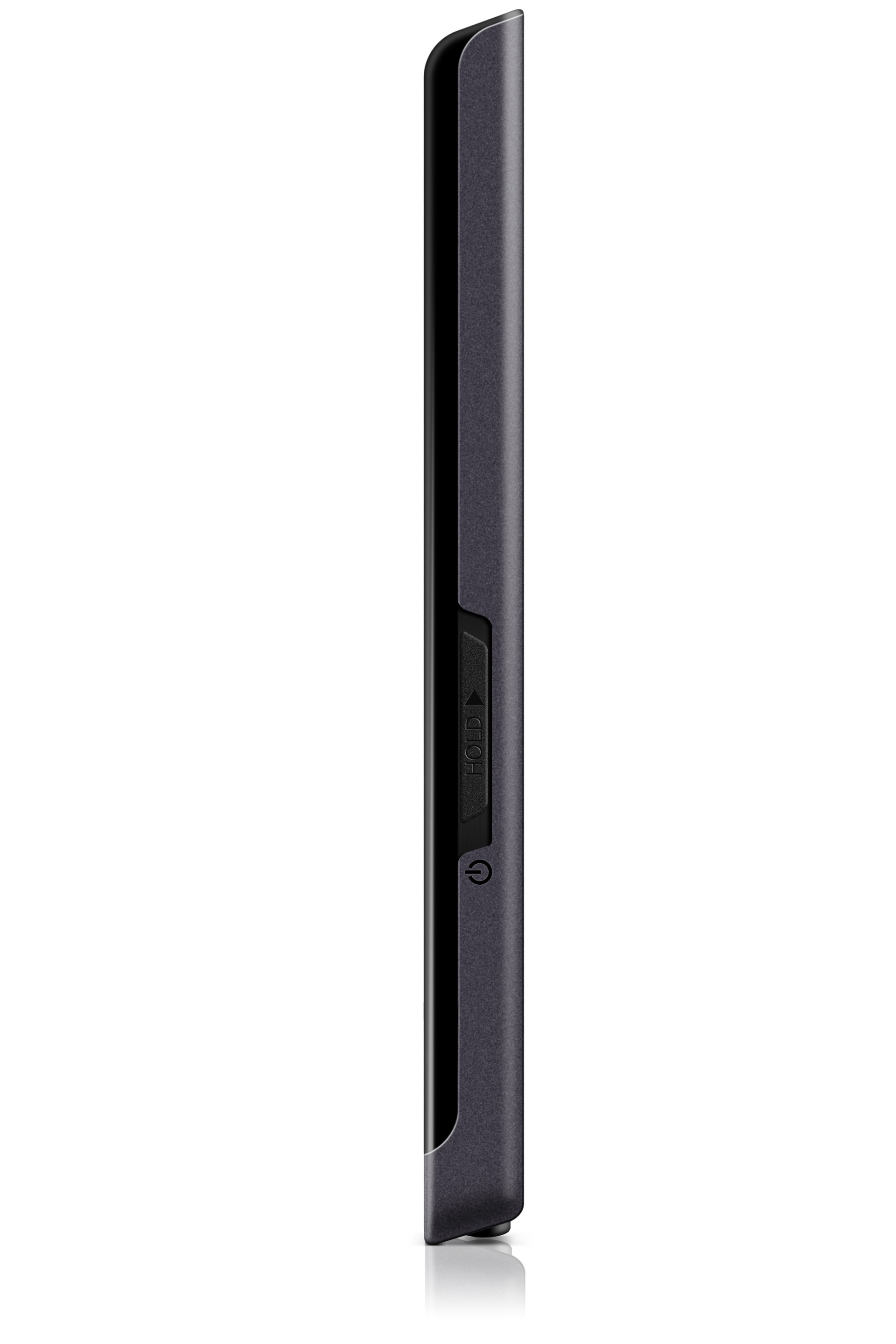

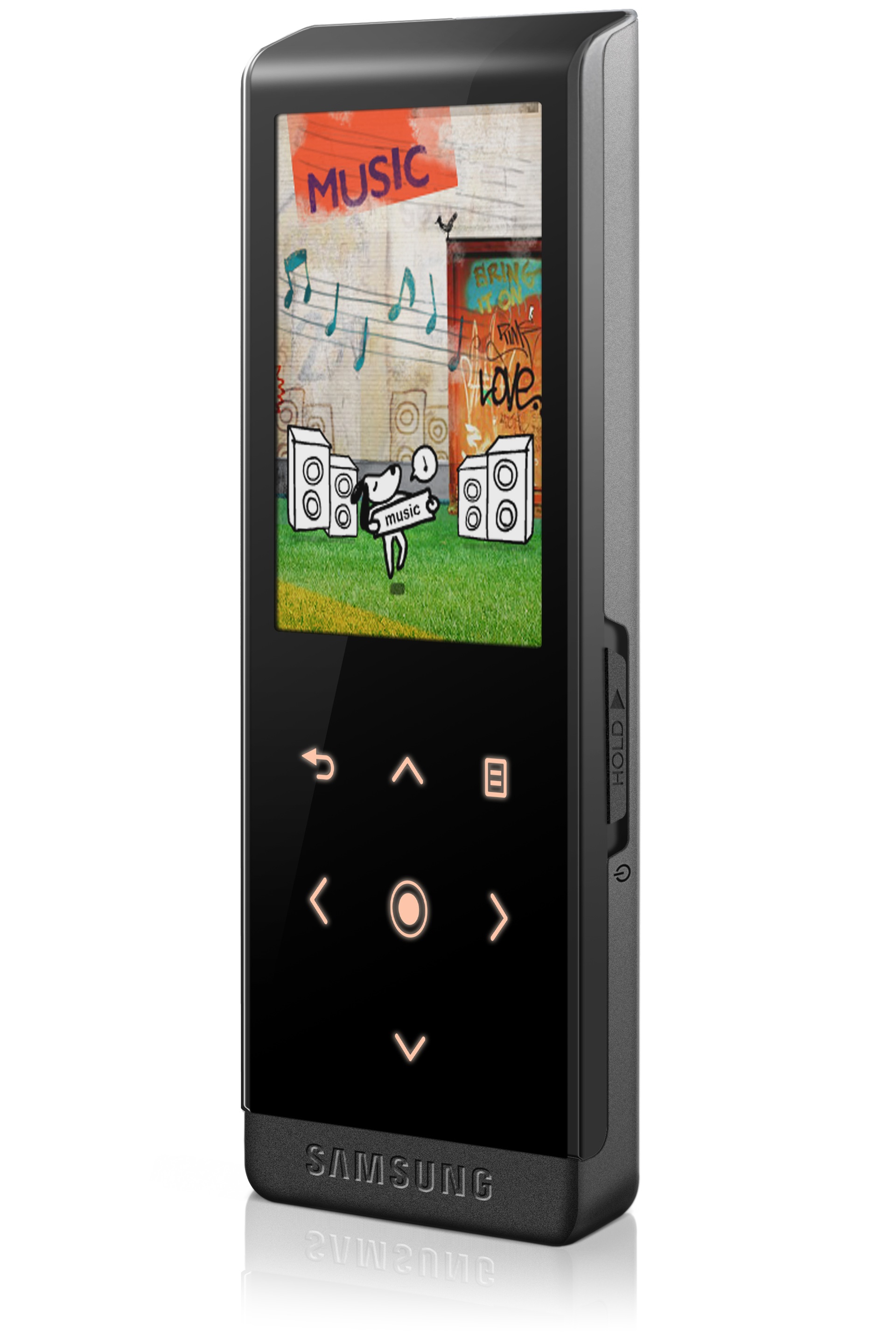

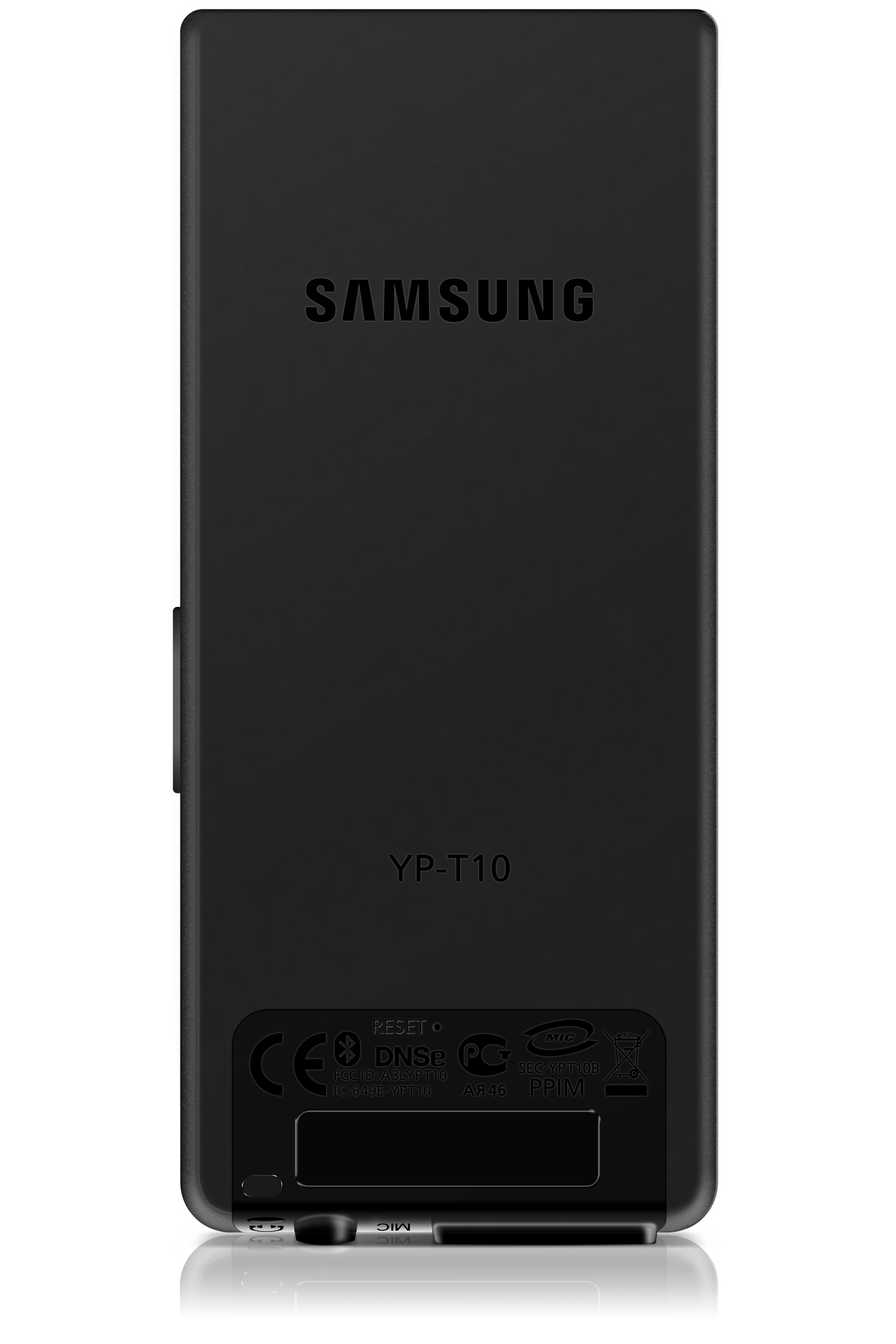

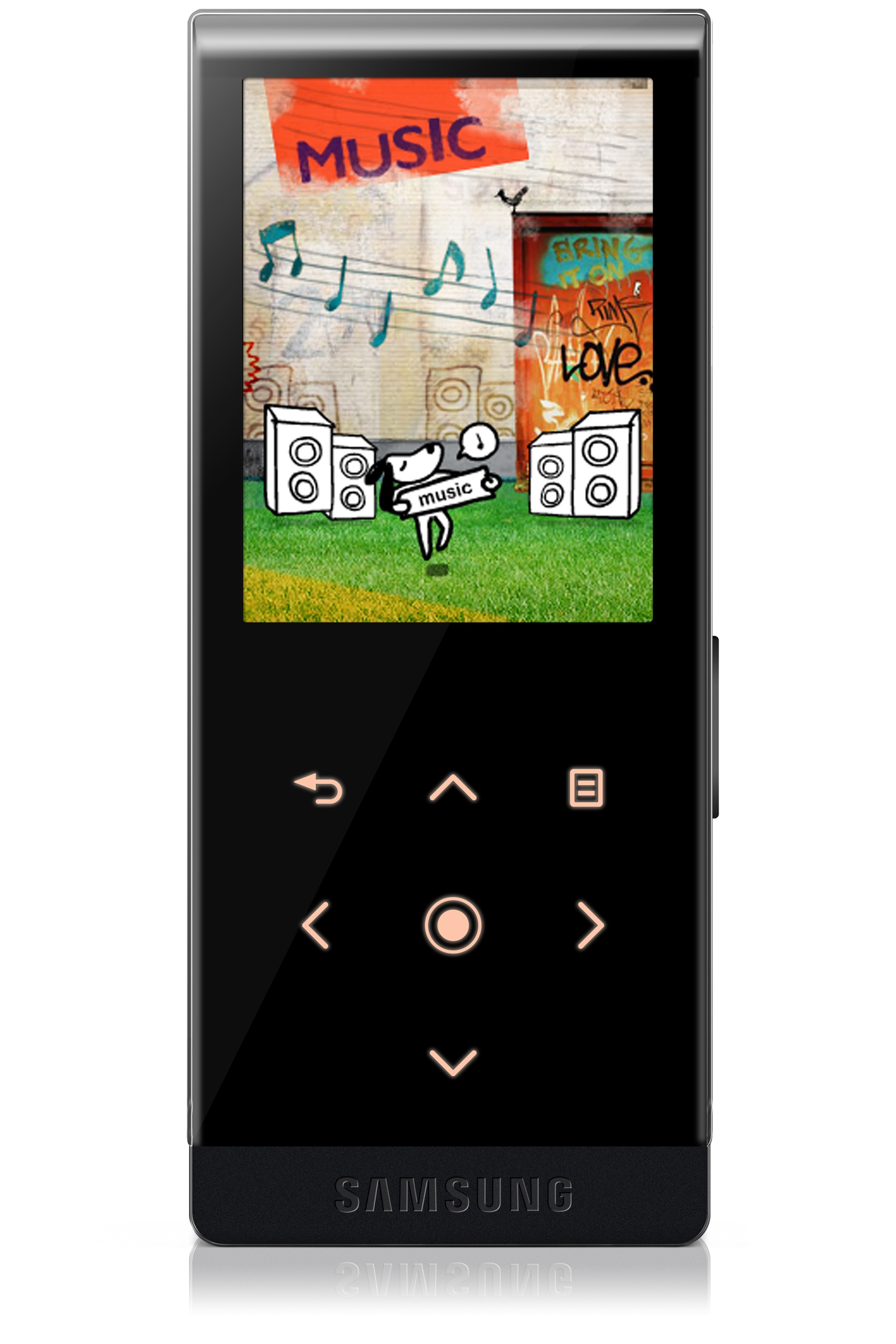

YP-T10

YP-T10AB

At just 7.9mm-thick and weighing only 43g, the T10 combines a video and music player, FM radio, photo viewer, voice recorder, text viewer and Flash game player in one small device.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

YP-T10

Features

  • slim entertainment powerhouse

2" QVGA video (30fps)

2" QVGA video (30fps)
Movies play brilliantly on the 2" QVGA (320x240, 30fps) display.

Bluetooth 2.0

Bluetooth 2.0
The YP-T10 features Bluetooth 2.0 to stream audio to compatible headsets wirelessly. It can support 2 wireless headsets and plugged-in earphones at the same time, meaning that the music can be shared among 3 people at once. Wireless audio streaming is also available while enjoying video.

fun & customised GUI

fun & customised GUI
Choose from the "Sammy" Character Animation GUI and the Pendant GUI (5 colours to match your player's colour). You can even personalise the wallpaper with your own images.

powerful & multi-functional

powerful & multi-functional
It's not just a superb audio player. The YP-T10 boasts other handy features like an FM Radio, FM Recording, Voice Recording, Text Viewer and Image Viewer.

DNSe 2.0

DNSe 2.0
With SAMSUNG's amazing sound technology, DNSe (Digital Natural Sound engine), you enjoy a rich audio experience. Get the best sound quality from any genre of music with the following DNSe settings — 3D Sound, Bass Extension, Concert Hall, Equaliser, plus Clarity enhancement.

YA-BS300 : Enjoy your MP3 player with Mobile Bluetooth Speaker

YA-BS300 : Enjoy your MP3 player with Mobile Bluetooth Speaker
Supporting 2 Bluetooth devices with Bluetooth 2.0/ Tele-conference with hands-free function / DNSe for 3D surround sound effect with 2W sound output / Control Button on the speaker / highly stylish and compact, fitting even the smallest bags. ** Compatible only with YP-S5, YP-T10 and YP-P2 ** Optional accessory, sold separately

YA-BH270 : Enjoy your music with wireless stereo headset

YA-BH270 : Enjoy your music with wireless stereo headset
Supporting 2 Bluetooth devices with Bluetooth 2.0/ Hands-free function while listening to music / High quality stereo sound. ** Optional accessory, sold separately

tech specs

Dimension of YP-T10AB/MEA

Battery Capacity

  • Voice Recording Time
    Battery Voice Recording Time

    5hrs

  • Audio Playback Time
    Battery Playback Time (Audio)

    30hrs

  • Video Playback Time
    Battery Playback Time (Video)

    4hrs

General Feature

  • Type
    Product Type

    MP3 Player

  • Battery Type
    Battery Type

    Li-Polymer

  • Display Screen
    Display Screen

    2"

  • Embedded MIC
    Embedded Mic.

    Yes

  • Display Type
    Display Type

    TFT LCD

  • Display Resolution
    Display Resolution

    QVGA (320 x 240)

  • Embedded Speaker
    Embedded Speaker

    No

  • View Text
    View Text

    Yes

  • Datacasting
    Datacasting

    Yes

  • Wireless Internet
    Wireless Internet

    No

  • View Video
    View Video

    Yes

  • Bluetooth
    Special Functions (Bluetooth)

    Yes

  • FM Radio
    FM Radio

    Yes

  • View Picture
    View Picture

    Yes

  • Line-In Recording
    Line-In Recording

    No

  • Voice Recording
    Voice Recording

    Yes

  • Game
    Game

    No

  • Tuner (DMB)
    Tuner (DMB)

    No

  • Time
    Music Storage Capacity(@128kbps MP3)

    30hrs (2GB), 60hrs (4GB), 120hrs (8GB)

    Memory Voice Recording Time

    40hrs (2GB), 80hrs (4GB), 160hrs (8GB)

    Charging Time (PC)

    2.5hrs

    Charging Time (Adapter)

    2.5hrs

    Video Storage Capacity

    3.7hrs (2GB), 7.3hrs (4GB), 14.6hrs (8GB)

SHOW MORE SPECSExpand

Package Specification

  • Dimension for Master Carton (WxHxD)
    Dimensions for Master Carton W x H x D

    Box:440 x 177 x 148mm, Blister:317 x 195 x 222mm

  • Blister
    Blister

    Yes

  • Dimension for Package (WxHxD)
    Dimensions for Package W x H x D

    Box:86.4 x 110.4 x 40.7mm

  • Weight for Package
    Weight for Package

    Box:342g , Blister:361g

  • Gift Box
    Gift Box

    No

  • Dimension for Unit (WxHxD)
    Dimensions for Unit W x H x D

    41.5 x 96 x 7.9mm

  • Weight for Unit
    Weight for Unit

    43g

  • Weight for Master Carton
    Weight for Master Carton

    Box:2.4 kg, Blister:2.1 kg / Box:3.82 kg , Blister:2.54 kg

Physical Specification

  • Storage Type
    Storage Type

    Flash Memory

  • Output Power (@16 Ohm Earphones)
    Output power(@16 Ohm Earphones)

    20mW/CH

  • Memory Capacity
    Memory Capacity

    Q (2GB), A (4GB), C (8GB)

  • Touch Screen
    Touch Screen

    No

  • SD MMC Expansion Slot
    SD MMC Expansion Slot

    No

  • Available Colour
    Available Colour

    B (Midnight Black), U (Mystic Purple), R (Maple Red), G (Lime-Yellow), W (White Cloud)

Functional Features

  • File Format Supported
    File Format Supported

    WMV/SVI/JPEG/MP3/WMA/OGG/TXT

  • Recording
    VOR (Voice Operated Recording)

    No

    VER (Voice Enhanced Recording)

    No

    Voice Enhanced Playback

    No

    FM Recording

    Yes

    Voice Recording(bit rate)

    Yes

    Video-In Recording (TV Recording)

    No

    Moblie TV Recording

    No

  • Wallpaper
    Wallpaper

    Yes

  • Alarm
    Alarm

    No

  • TTS (Text to Speech)
    TTS (Text to Speech)

    No

  • Adjustable Play Speed
    Adjustable Play Speed

    Yes

  • Album Art
    Album Art

    Yes

  • Lyrics Display
    Lyrics Display

    No

  • Clock
    Clock

    Yes

  • STT (Speech to Text)
    STT (Speech to Text)

    No

File Management

  • Library (Artist, Album,Genre,Title DB sorting)
    Library (Artist, Album,Genre,Title DB sorting)

    Yes

  • PC Playlist (WPL)
    PC Playlist (WPL)

    Yes

  • Mobile Playlist (Favorite)
    Mobile Playlist (Favorite)

    Yes

  • PC Playlist (SPL)
    PC Playlist (SPL)

    Yes

  • File Navigation
    File Navigation

    Yes

  • PC Application
    PC Application

    SMS

System

  • Connectivity
    OS Compatibility

    Window XP/Vista

    USB Connection (MTP/UMS)

    UMS

    USB Host

    No

    Connectivity (USB Version)

    USB2.0

  • Sound Effect
    User EQ

    Yes

    Preset EQ

    Yes

    Sound Feedback

    Yes

  • Custom
    Multi-language

    Yes

    Resume

    Yes

    Bookmark

    Yes

Accessory

  • Included Accessories
    Included Accessories

    Earphones, USB cable

Support

User Manual

6.04 MB, pdf, ARABIC

2009.02.06

Other Manuals (5)

Software (2)

Firmware (5)

  • GUI

    Win 2000/XP/Vista, 117.15 MB, zip, MULTI LANGUAGE

    Version : 0.0

    2009.04.24 tooltipbox

    Close tooltip pop-up
    YP-T10 3rd wave notice
  • Games

    Win 2000/XP/Vista, 8.74 MB, zip, MULTI LANGUAGE

    Version : 3.06

    2008.06.25 tooltipbox

    Close tooltip pop-up
    - Worldwide 24 city subway maps with simple information
  • Upgrade File

    Win 2000/XP/Vista, 12.3 MB, zip, MULTI LANGUAGE

    Version : 3.06

    2008.06.10 tooltipbox

    Close tooltip pop-up
    YP-T10 Firmware (2008.06.10)

    The improvement of shuffle algorithm in playing music
  • Upgrade File

    Win 2000/XP/Vista, 12.3 MB, zip, MULTI LANGUAGE

    Version : 3.03

    2008.04.25 tooltipbox

    Close tooltip pop-up
    YP-T10 3rd Wave Firmware (2008.04.25)

    *Improvement

    - 3 Games (Bubble smile, Bomb, Bomb, Chicken Runaway)

    - AAC Suport

    - Video Bookmark

    - Horizontal Textviewer

    - Delete file on T10

    - T10 additional GUIs
  • Upgrade guide

    Win 2000/XP/Vista, 0.25 MB, pdf, MULTI LANGUAGE

    Version : 0.0

    2008.03.21 tooltipbox

    Close tooltip pop-up
    How to upgrade
