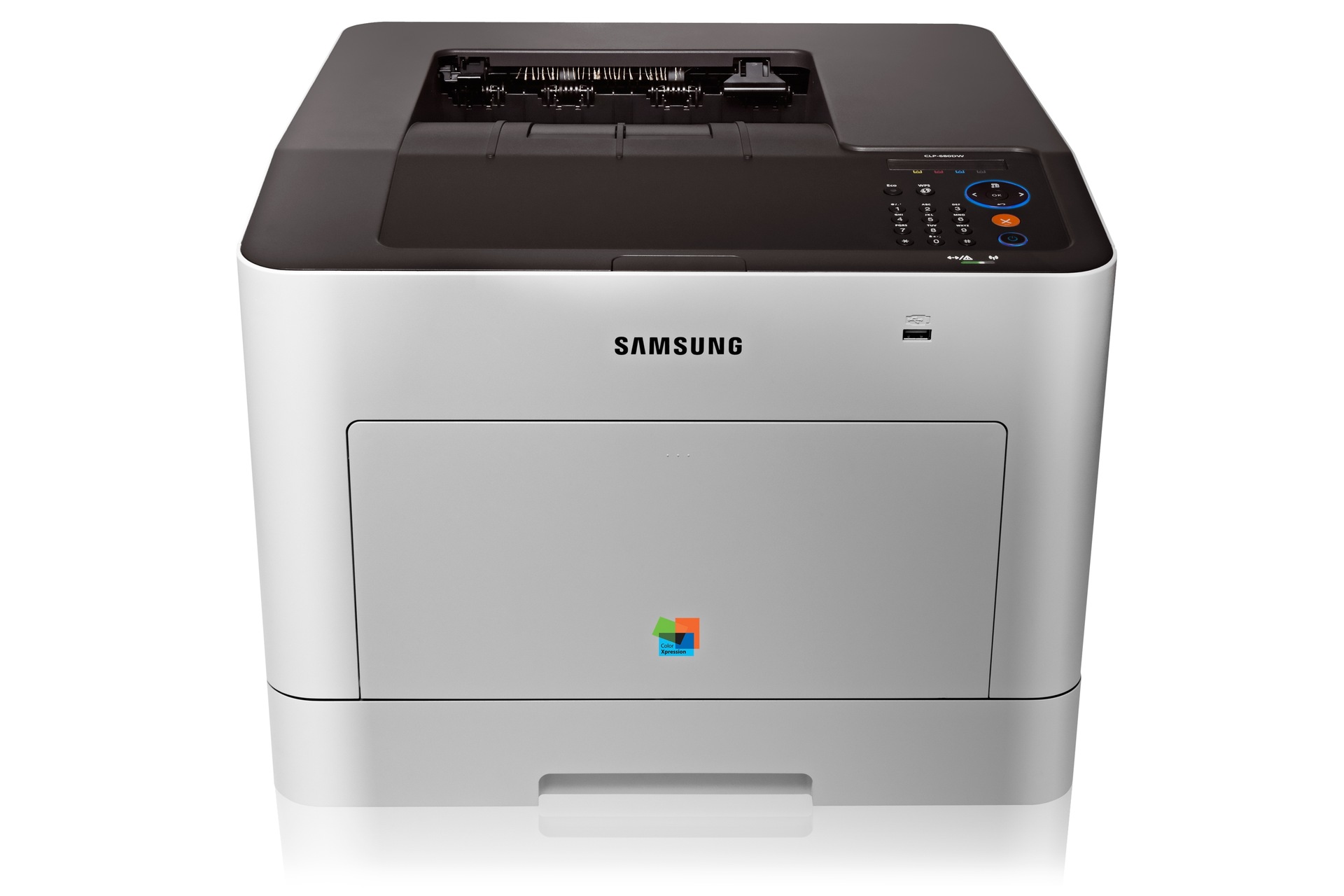

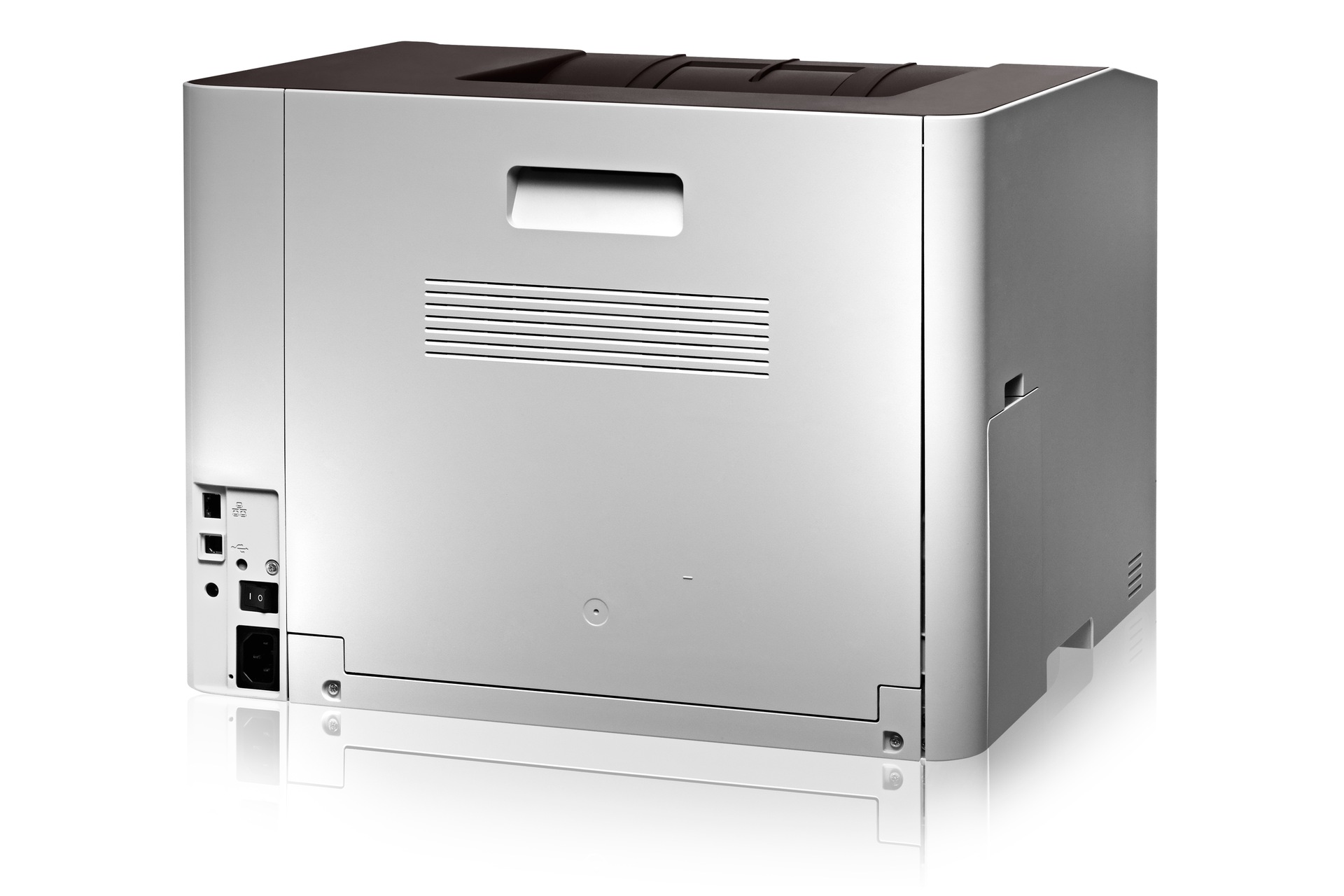

CLP-680DW

CLP-680DW

  • True colour at the speed of light

FeaturesPrint

Product Configuration

Product Configuration

Make sharp images and text even sharper

Make sharp images and text even sharper
Samsung’s unique ReCP (Rendering Engine for Clean Page) Technology improves the overall quality and vibrancy of your colour printing, ensuring every printout looks perfect. It automatically sharpens the focus of both graphics and text, while solid objects are overlapped to eliminate white gaps.

Make colours more vibrant

Make colours more vibrant
Our newly developed polymerized toner has smaller and more uniform particles than conventional toner. Your printouts will have crisper lines and more vivid colours, in addition to eliminating paper curling. Also, its higher wax content improves the image gloss and enhances the durability preventing unwanted fading.

More power, higher productivity

More power, higher productivity
Some days it seems like the printing never ends. With the CLP-680DW's 533 MHz Dual CPU, and 512MB standard memory (expandable up to 1GB) you can be sure that this printer will handle the entire load of your workgroup's need.

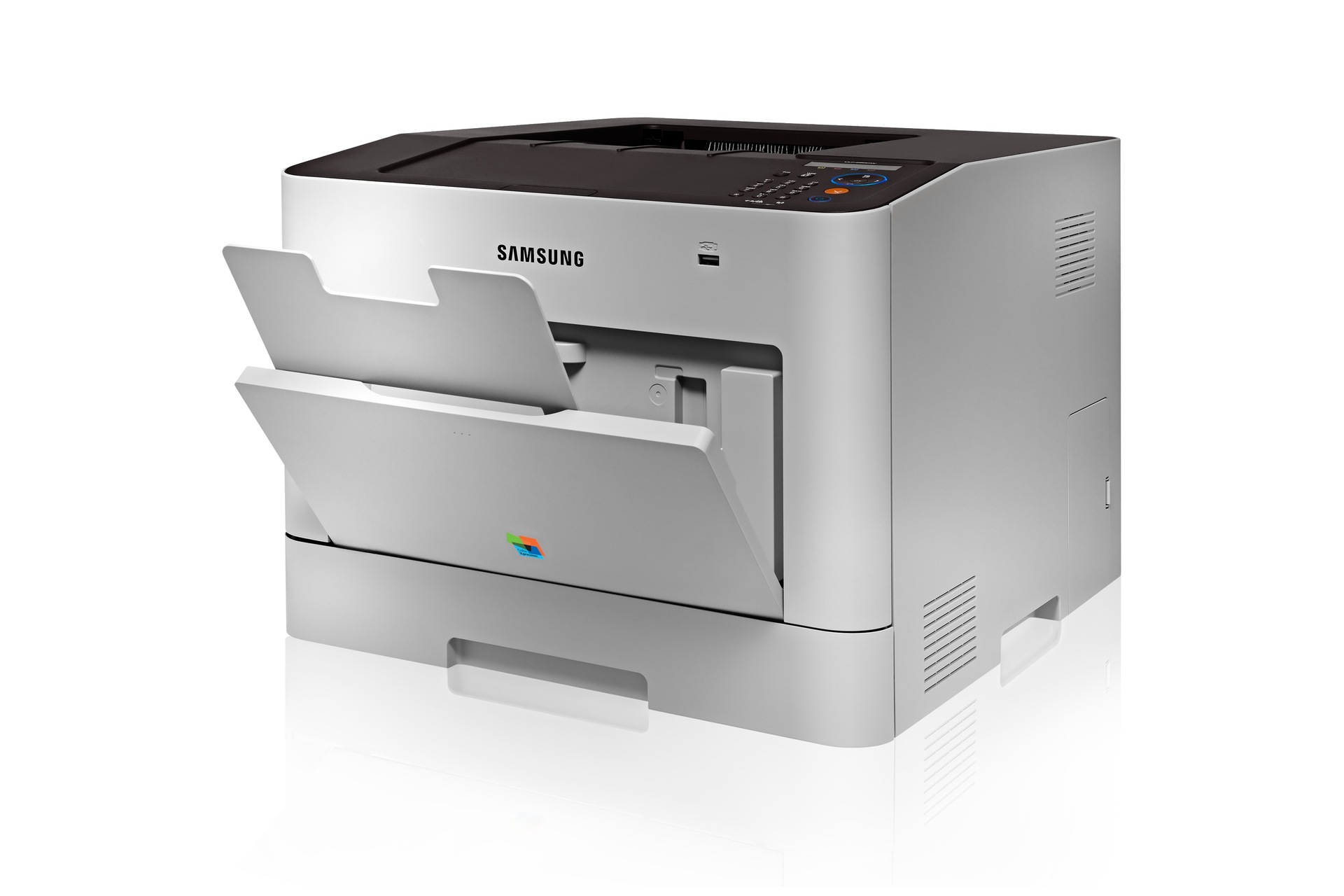

Speedy and flexible paper handling

Speedy and flexible paper handling
If you want to print or copy onto heavier weights of paper, you can. Weights of up to 220g/m2 are handled with ease through the 50 page multipurpose tray as well as the 250 page standard cassette. Plus, with the optional 520 sheet second cassette you can increase your total paper input capacity to 820 sheets. That way you can also use up to three different media types without the need to waste time changing paper.

Easy Operating Panel

Easy Operating Panel
With the CLP-680DW's two line liquid crystal display and intuitive 5 key compass navigation you can control the device's status, browse the menu and access each unique feature with ease.

Convenient USB printing

Convenient USB printing
Print documents directly from the printer, without the need of a computer, via a front-facing Direct USB slot located just below the operating panel.

Secure, confidential printing

Secure, confidential printing
If you need to print sensitive data through your printer, you can relax. You can now ensure personal print jobs remain personal. Just enter a password, and you can retrieve a print job at your convenience, away from any prying eyes. And with the integrated numeric key pad it's easier than ever!

Low cost, low impact on the world

Low cost, low impact on the world
Save toner, paper and energy with ease - it's good for the environment and it's good for your business' profits. Being economical and printing vibrant colour documents goes hand in hand with the CLP-680DW

Low Power Consumption

Low Power Consumption
Despite its impressive list of features and functions, the CLP-680DW consumes less energy than most of its competitors. Its innovative polymerized toner requires lower fusing temperatures, the instant fusing technology saves warm up time before first print, and our new Dual CPU make it one of the greenest devices around today.

Easy Eco Driver

Easy Eco Driver
Easy Eco Driver helps you compile digital documents in multiple formats and makes it easy to share them with others - even through social networks.

Get the right result before printing

Get the right result before printing
The Samsung Easy Colour Manager allows you to adjust the colour balance, saturation, brightness or contrast of any image prior to printing. Perfect for matching the exact colours of your company logo every time.

Take the stress out of print management

Take the stress out of print management
For maximum control, Easy Printer Manager lets you manage all your devices from one location. Check device and toner status, change device settings or set alerts – even through e-mail.

Mobile Printing

Mobile Printing
With amazing Samsung Mobile Printing solution, you don’t have install any drivers to your mobile devices. Simply Just Install Samsung Mobile Print application on your mobile devices, and you can print directly from your mobile device.

Easy toner replacement

Easy toner replacement
Gone are the days of fiddly, dirty and time-consuming toner cartridge changes. It’s all made easier with a push loading drawer. What’s more, the high yield cartridges mean fewer changes.

TECH SPECSPrint

General

  • Functions

    Standard
    Print
    Optional
    WPS / One-touch Eco Mode / Direct USB / Mobile Print
  • Processor

    Dual CPU (Main: 533MHz / Sub: 150MHz)
  • Operational Panel

    2-Line LCD
  • Memory

    Standard
    256MB
    Maximum
    512MB
  • Interface

    Standard
    High-Speed USB 2.0 / USB Host / Ethernet 10 / 100 / 1,000 Base-TX / IEEE 802.11b/g/n Wireless Network
    Optional
    IEEE 1284B Parallel Connector
  • Power Consumption

    450W (Average) / 14W (Standby) / 2 W (Sleep Mode) / 1.49kWh (TEC)
  • Noise Level

    Less than 52dBA (Printing) / Less than 32dBA (Standby)
  • Dimension (WxDxH)

    420 x 452.5 x 311.3mm (16.54" x 17.81" x 12.26")
  • Weight

    20.15kg (44.42 lb)
  • Max. Monthly Duty Cycle

    60,000 Pages

Print

  • Speed

    Speed (Mono)
    Up to 24 ppm in A4 (25 ppm in Letter)
    Speed (Color)
    Up to 24 ppm in A4 (25 ppm in Letter)
  • First Print Out Time

    First Print Out Time (Mono)
    Less than 17sec (From Ready Mode)
    First Print Out Time (Color)
    Less than 17sec (From Ready Mode)
  • Resolution

    Up to 9,600 x 600 dpi Effective Output (600 x 600 x 4 bit)
  • Emulation

    PCL5Ce / PCL6C / PS3 / PDF V1.7 / SPL-C (Samsung Printer Language Color)
  • Duplex Print

    Built-In
  • Operating System

    Windows 8 / 7 / Vista / XP / 2008R2 / 2008 / 2003, Mac OS X 10.4 - 10.8, Various Linux / Unix
  • Direct Print Support

    PDF V1.7
  • Print features

    Automatic Double Sided Print / Direct Print / Secure Print

SHOW MORE SPECS

Support

  • User Manual
    • User Manual
      0.01MB, htm, ENGLISH
      2015.03.05
  • Other Manuals (8)
    • User Manual
      0.01MB, htm, PORTUGUESE
      2015.03.05
    • User Manual
      0.01MB, htm, FRENCH
      2015.03.05
    • User Manual
      0.01MB, htm, ARABIC
      2015.03.05
    • Universal Print Driver Guide
      0.91 MB, pdf, ENGLISH
      2013.05.08
    • User Manual
      27.97 MB, pdf, PORTUGUESE
      2012.06.26
    • User Manual
      25.85 MB, pdf, FRENCH
      2012.06.26
    • User Manual
      30.12 MB, pdf, ENGLISH
      2012.06.26
    • Quick Guide
      14.07 MB, pdf, ENGLISH
      2012.05.17
  • Software (12)
    • Easy Printer Manager
      Mac OS 10.5 ~ 10.10, 49.73 MB, zip, MULTI LANGUAGE
      2015.04.21
      Version : V1.02.01
    • Easy Printer Manager
      Win XP/2003/2008/Vista/Win 7/Win 8(32/64bit), 39.74 MB, exe, MULTI LANGUAGE
      2015.04.21
      Version : V1.05.79.00
    • Easy Color Manager
      Mac OS 10.5 ~ 10.10, 13.9 MB, zip, MULTI LANGUAGE
      2015.03.06
      Version : V1.04.17
    • Set IP
      Mac OS 10.5 ~ 10.10, 0.22 MB, zip, MULTI LANGUAGE
      2014.10.21
      Version : V1.00.10
    • Easy Wireless Setup
      Mac OS 10.5 ~ 10.10, 7.14 MB, zip, MULTI LANGUAGE
      2014.10.21
      Version : V1.4.8
    • Easy Color Manager
      Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 16.18 MB, exe, MULTI LANGUAGE
      2014.07.11
      Version : V4.00.06
    • Easy Wireless Setup
      Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 4.13 MB, exe, MULTI LANGUAGE
      2014.06.23
      Version : V3.70.18.0
    • SyncThru 6
      Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 208.73 MB, zip, MULTI LANGUAGE
      2014.03.04
      Version : V6.0.2.319
    • Set IP
      Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 1.41 MB, exe, MULTI LANGUAGE
      2013.12.13
      Version : V1.05.08.3:14
    • SyncThru 6,Job account plug-in
      Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 4.97 MB, par, MULTI LANGUAGE
      2013.06.11
      Version : V1.0.1.1.1305031623
    • SyncThru 6,SNMP Agent
      Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 27.07 MB, exe, MULTI LANGUAGE
      2013.06.11
      Version : V6.0.0.286
    • Easy Deploy Manager
      Win XP/2003/2008/Vista/Win 7/Win 8(32/64bit), 15.93 MB, exe, MULTI LANGUAGE
      2012.10.24
      Version : V1.00.31
  • Driver (11)
    • Print Driver
      Mac OS 10.5 ~ 10.10, 7.78 MB, zip, MULTI LANGUAGE
      2015.03.25
      Version : V5.01.01
    • Print Driver,(Add Printer)
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 54.61 MB, zip, MULTI LANGUAGE
      2015.03.25
      Version : V3.12.75.04.30
    • Print Driver,(Post Script)
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 47.14 MB, exe, MULTI LANGUAGE
      2015.03.25
      Version : V2.01.06.24
    • Print Driver
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 50.19 MB, exe, MULTI LANGUAGE
      2015.03.25
      Version : V3.12.75.04.30
    • Print Driver
      Linux, 14.58 MB, gz, MULTI LANGUAGE
      2015.03.11
      Version : V1.00.35
    • Universal Print Driver
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 21.34 MB, exe, MULTI LANGUAGE
      2015.02.02
      Version : V2.50.06.00:03
    • Universal Print Driver,PCL6
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 14.41 MB, exe, MULTI LANGUAGE
      2015.02.02
      Version : V2.50.06.00:02
    • Universal Print Driver PS
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 13.79 MB, exe, MULTI LANGUAGE
      2015.02.02
      Version : V2.50.06.00:03
    • Universal Print Driver,XPS
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 17.79 MB, exe, MULTI LANGUAGE
      2015.02.02
      Version : V2.50.06.00:02
    • Print Driver,XPS
      Windows 8 (32bit,64bit), 16.39 MB, exe, MULTI LANGUAGE
      2014.04.25
      Version : V3.03.11.00:08
    • Print Driver
      Linux, 43.16 MB, gz, MULTI LANGUAGE
      2012.05.11
      Version : 4.00.36:03.46
  • Firmware (1)
    • Firmware File
      All OS, 69.18 MB, zip, MULTI LANGUAGE
      2015.03.18
      Version : V4.00.02.26
