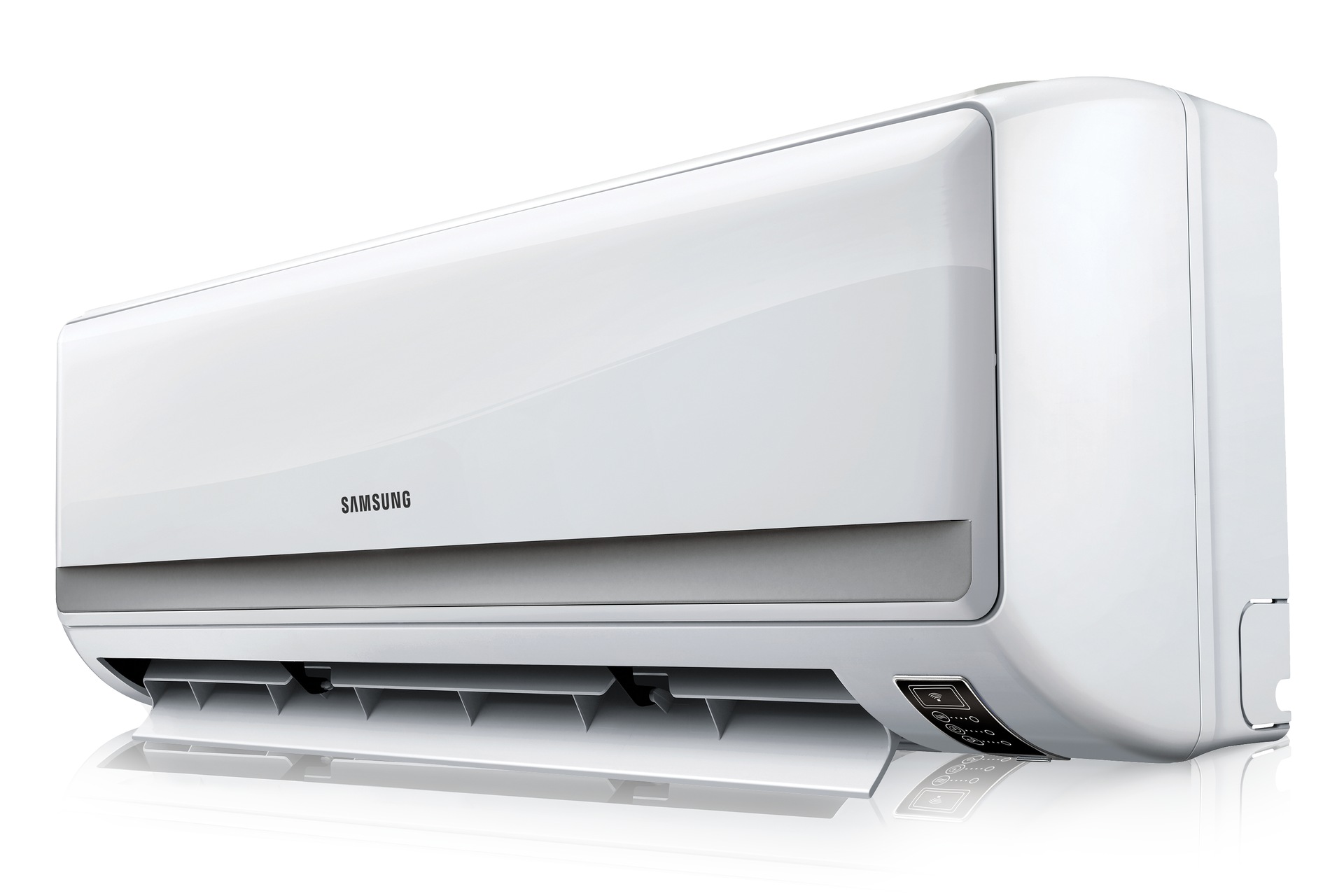

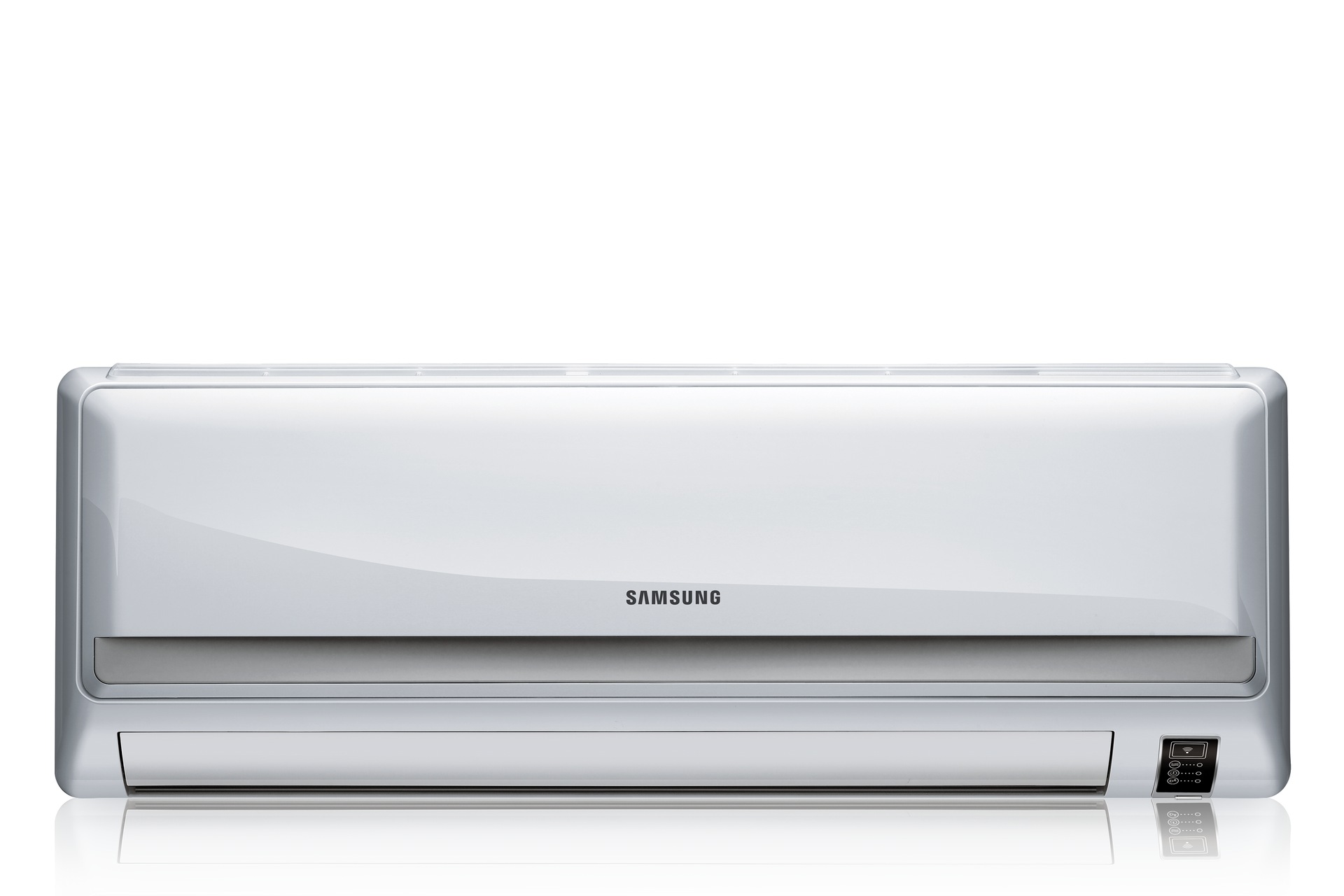

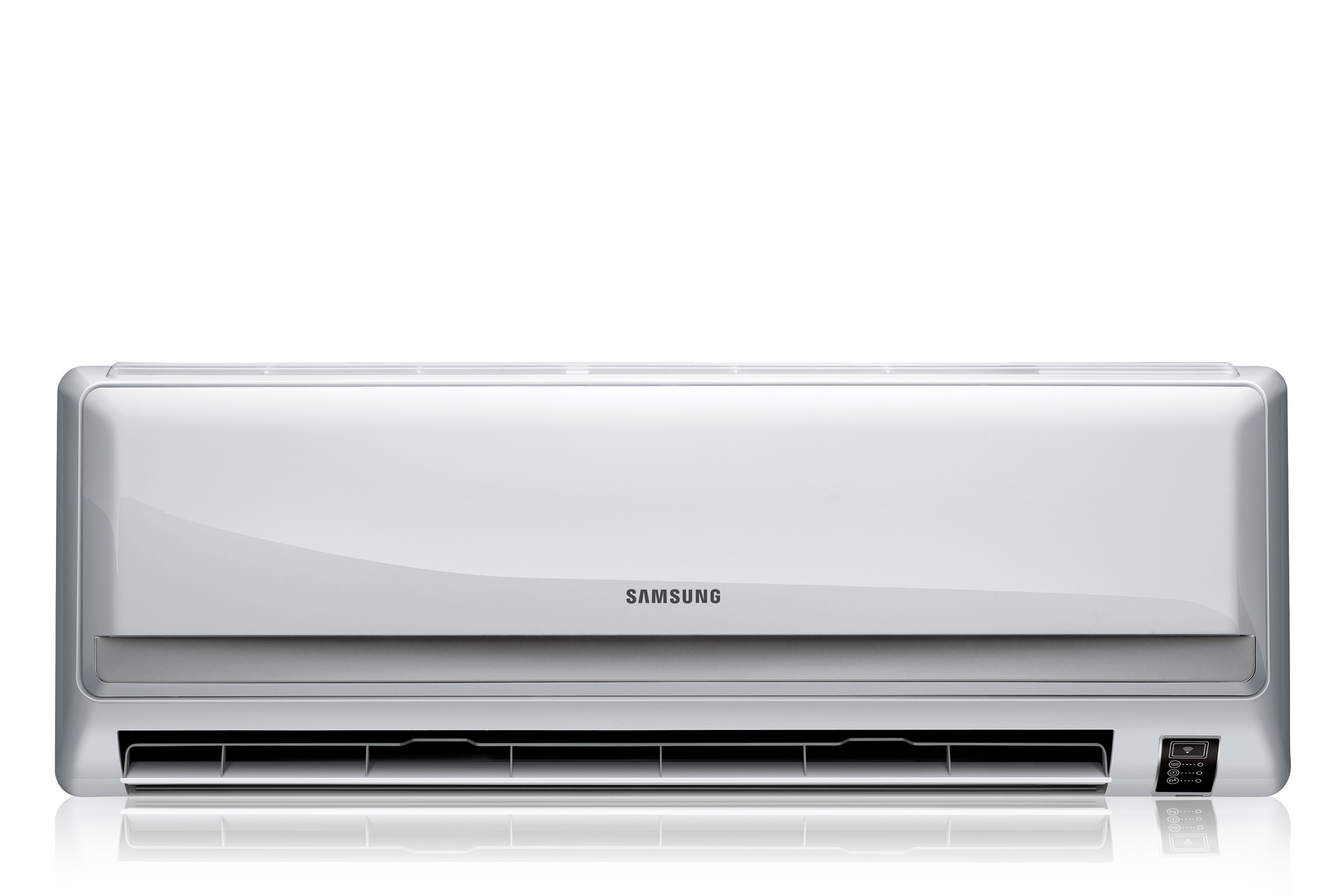

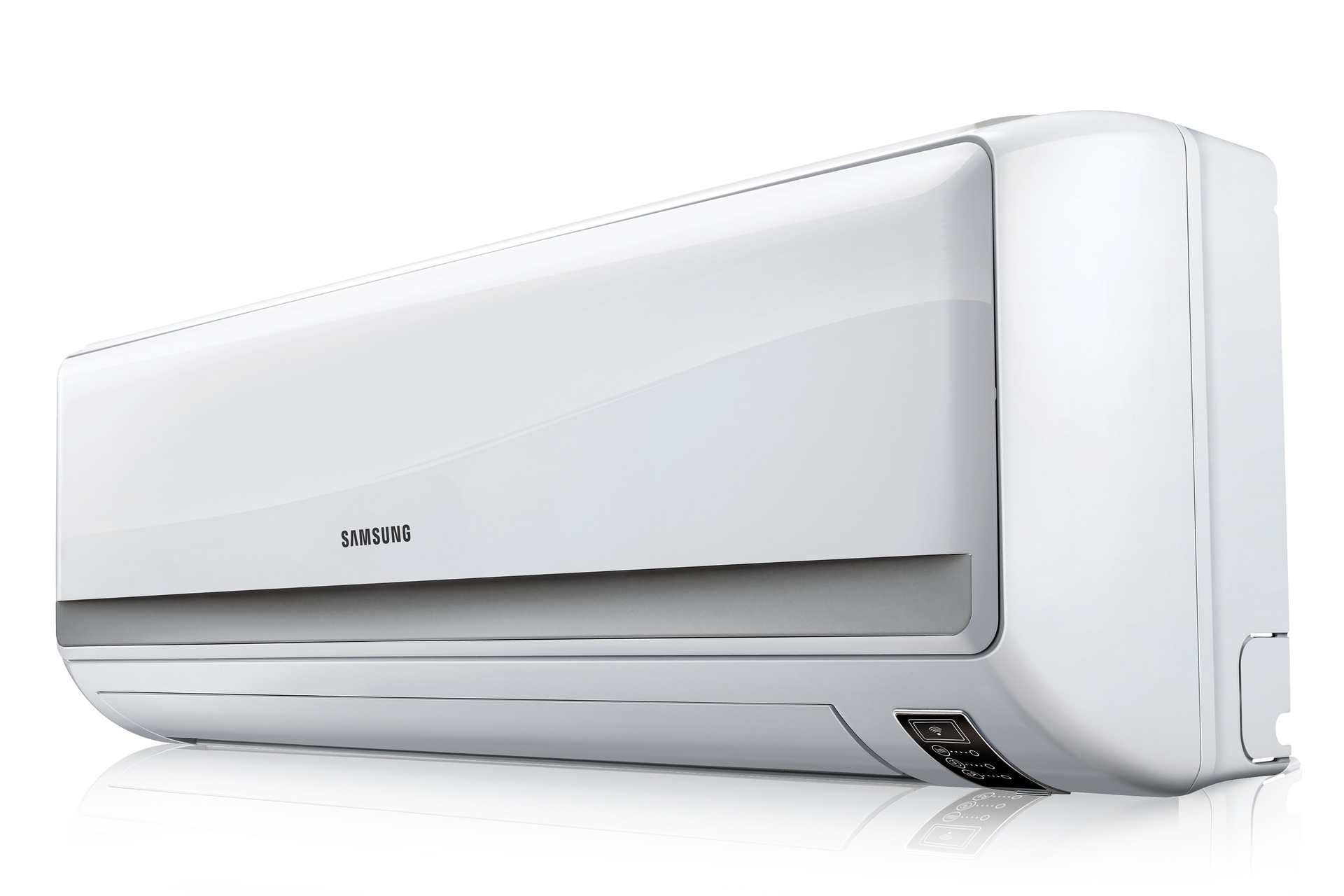

Max R410a Inverter 12 000BTU

AQV12UGFN

  4 5 2 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Max R410a Inverter 12 000BTU

Features

  • Turbo Cooling
  • Anti corrosion fin
  • Good Sleep
  • Full HD Filter (MAX 80%)

Turbo cooling

Samsung new air conditioner operates in its maximum speed in Turbo Cooling mode to quickly reach the set temperature. Instantly cool down your space with Samsung's Turbo Cooling technology.

Anti corrosion fin

When corrosion starts, it shortens the life of the heat exchanger by reducing durability and allowing bacteria to grow. Samsung heat exchanger fin is designed to resist corrosion so you have cool, comfortable air for a ling time.

Good Sleep

Missing out on a good night’s sleep can mean bad news for your day. That’s why Samsung’s Good Sleep feature creates an ideally comfortable climate in your bedroom. With a precise temperature control system and automatic moisture adjustment, all three vital stages of your sleep is protected from humidity and heat so you wake up fully refreshed and ready to take on a new day. Good Sleep not only saves you precious minutes and hours of potentially lost sleep, it also saves up to 36% in energy consumption compared to the normal cooling mode.

Smart Saver

You don''t have to worry about your electricity bills when using a samsung air conditioner. You no longer have to turn off your air conditioner when you feel the room is cool enough and turn it back on again when the air is not comafortable to save electricity.

Complete comfort. Total efficiency.

Samsung’s S-Inverter not only reaches your desired temperature quickly, it maintains it without all the inefficient on-and-off required by most ACs. With S-Inverter, you don’t have to shut the power off to conserve energy and keep your bill down. The AC automatically changes its operation mode to economic, saving up to 50% in energy consumption compared with a non-inverter AC, while still delivering ultimate comfort at your exact desired temperature. And, it doesn’t only require less energy, it produces less vibration, so your environment is as peaceful as it is comfortable.

Full HD Filter (MAX 80%)

The full high density filter collects up t0 80% of dust and allergy causing bacteria.

tech specs

Dimension of AQV12UGFNEUR

Performance

  • Energy Efficiency
    EER (Cooling, Btu/W)
    13.7Btu/hW
    EER (Cooling, W/W)
    4.02W/W
    COP (Heating, W/W)
    4.1W/W
  • Moisture Removal (l/hr)
    0.9l/hr
  • Noise Level
    Indoor High/Low
    36 / 21dB
    Outdoor High
    45dB

Electrical Data

  • Power Source
    Φ/V/Hz
    1 / 220 - 240V / 50Hz
  • Energy Efficiency
    Power Consumption (Cooling)
    620W
    Power Consumption (Heating)
    800W
    Operating Current (Cooling)
    3A
    Operating Current (Heating)
    3.8A

SHOW MORE SPECSExpand

Physical Specification

  • Dimension
    Net Dimension (WxHxD, Indoor)
    820 x 285 x 205mm
    Net Dimension (WxHxD, Outdoor)
    790 x 545 x 285mm
  • Weight
    Net Weight (Outdoor)
    30.5kg
    Shipping Weight (Indoor)
    10.2kg
    Shipping Weight (Outdoor)
    34.5kg
    Net Weight (Indoor)
    8.2kg

Technical Information

  • Refrigerant Type
    R410A
  • SVC Valve
    Liquid (ODxL)
    Liquid 6.35mm x 5m
    Gas (ODxL)
    Gas 9.52mm x 5m
  • Piping Length
    Piping Length (Max)
    15m
  • Piping Height
    Piping Height (Max)
    8m

General Feature

  • Air Purification
    S-Plasma Ion
    No
    Auto Roof Shutter
    No
    Full HD Filter
    80
    DNA Filter
    No
    Deodorizing Filter
    No
    Catechin Filter
    No
    Allergy Care
    No
    Anti-Bacteria Coating
    Yes
    Auto Clean (Self Cleaning)
    Yes
  • Air Flow
    Wide Twin Blade
    No
    Optimal Single Blade
    Yes
    Air Flow Control Step (Cool/Fan)
    4 / 4
    Air Direction Control (Up/Down)
    Auto
    Air Direction Control (Left/Right)
    Manual
    Natural Breeze
    Yes
  • Operating Mode
    Dlight Cool
    No
    Good Sleep
    Yes
    Smart Saver
    Yes
    Turbo Mode
    Yes
    Dehumidification
    Yes
    Auto Mode
    Yes
    Fan Mode
    Yes
    Quiet
    Yes
  • Convenience
    Indoor Temp. Display
    No
    Filter Cleaning Indicatior
    No
    Remote Controller
    Yes
    Display On/Off
    No
    Beep On/Off
    No
    Real-Time Timer
    No
    24-Hour Timer
    Yes
    Auto Restart
    Yes
    Auto Changeover
    Yes
  • Outdoor Unit
    Compressor Type
    BLDC
    Anti-Corrosion Fin
    Yes
    Multi-Channel Condensor
    No
  • Low Ambient
    Cooling
    -10 ~ 46°C
    Heating
    -15 ~ 24°C
