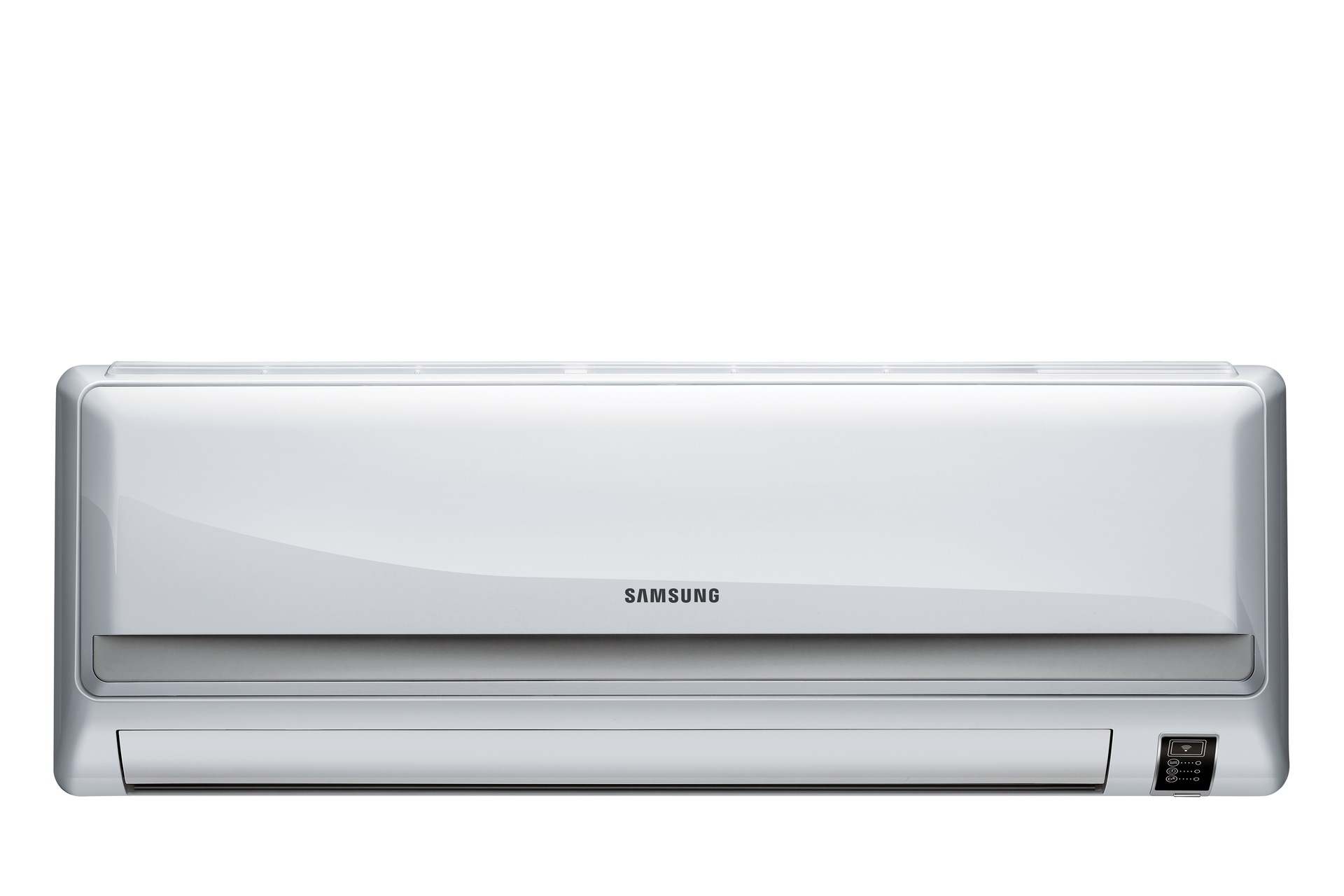

Max R22 9 000BTU

AQ09UGQN

  4 5 1 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Max R22 9 000BTU

Features

  • Ideal air for perfect coolness

Compact Size.

Compact Size.
Samsung's advanced technology continues to amaze by developing new compct air conditioners, which reduxedoverall size by at least 12% while maintaining perfoman. Now experience greater convenience in space and installation

Easy to use. Easy to master.

Easy to use. Easy to master.
Samsung’s ergonomic, innovative remote control was designed for everyone, whether you’re in the first grade or celebrating your 81st birthday. With bigger numbers, soft-touch buttons, an easy-view display and a comfy grip, you’re always in control. And its circular navigation keypad truly brings power to the people.

Enjoy Comfortable

Enjoy Comfortable
Enjoy Comfortable Air Conditioning with Less Energy. Samsung's high efficiency MAX air conditioner lets you enjoy coolness at minimal cost. Its unique Smart Saver function prevents unnecessary energy consumption and Good SleepnII controls the temperature so that you can sleep comfortably throughout the night. Now enjoy powerful cooling, stay comfortable, and spend less.

Cooler with Stronger Air Conditioning!

Cooler with Stronger Air Conditioning!
Enjoy exceptional cooling power with the Samsung Max Air Conditioner. Max cools the room faster with strong refreshing air that fills the room quickly. With the touch of a button, experience cool comfort.
Wake up in a good mood with Good Sleep.

Wake up in a good mood with Good Sleep.

Missing out on a good night’s sleep can mean bad news for your day. That’s why Samsung’s Good Sleep feature creates an ideally comfortable climate in your bedroom. With a precise temperature control system and automatic moisture adjustment, all three vital stages of your sleep is protected from humidity and heat so you wake up fully refreshed and ready to take on a new day. Good Sleep not only saves you precious minutes and hours of potentially lost sleep, it also saves up to 36% in energy consumption compared to the normal cooling mode.

tech specs

Dimension of AQ09UGQNXFA

Performance

  • Energy Efficiency
    EER (Cooling, Btu/W)
    9.00Btu/hW
    EER (Cooling, W/W)
    2.64W/W
    COP (Heating, W/W)
    3.26W/W
  • Moisture Removal (l/hr)
    1 l/hr
  • Noise Level
    Indoor High/Low
    33 / 26dBA
    Outdoor High
    48dBA

Electrical Data

  • Power Source
    Φ/V/Hz
    1 / 220 - 240V / 50Hz
  • Energy Efficiency
    Power Consumption (Cooling)
    1,000W
    Power Consumption (Heating)
    900W
    Operating Current (Cooling)
    4.6A
    Operating Current (Heating)
    4.2A

SHOW MORE SPECSExpand

Physical Specification

  • Dimension
    Net Dimension (WxHxD, Indoor)
    728 x 255 x 185mm
    Net Dimension (WxHxD, Outdoor)
    660 x 475 x 242mm
  • Weight
    Net Weight (Outdoor)
    23.5kg
    Shipping Weight (Indoor)
    8.1kg
    Shipping Weight (Outdoor)
    25.7kg
    Net Weight (Indoor)
    6.4kg

Technical Information

  • Refrigerant Type
    R22
  • SVC Valve
    Liquid (ODxL)
    Liquid 6.35mm x 5m
    Gas (ODxL)
    Gas 9.52mm x 5m
  • Piping Length
    Piping Length (Max)
    15m
  • Piping Height
    Piping Height (Max)
    7m

General Feature

  • Air Purification
    S-Plasma Ion
    No
    Auto Roof Shutter
    No
    Full HD Filter
    60
    DNA Filter
    No
    Deodorizing Filter
    No
    Catechin Filter
    No
    Allergy Care
    No
    Anti-Bacteria Coating
    Yes
    Auto Clean (Self Cleaning)
    Yes
  • Air Flow
    Wide Twin Blade
    No
    Optimal Single Blade
    Yes
    Air Direction Control (Up/Down)
    Auto
    Air Direction Control (Left/Right)
    Manual
    Natural Breeze
    Yes
  • Operating Mode
    Dlight Cool
    No
    Good Sleep
    Yes
    Smart Saver
    Yes
    Turbo Mode
    Yes
    Dehumidification
    Yes
    Auto Mode
    Yes
    Fan Mode
    Yes
    Quiet
    No
  • Convenience
    Indoor Temp. Display
    No
    Filter Cleaning Indicatior
    No
    Remote Controller
    Yes
    Display On/Off
    No
    Beep On/Off
    No
    Real-Time Timer
    No
    24-Hour Timer
    Yes
    Auto Restart
    Yes
    Auto Changeover
    Yes
  • Outdoor Unit
    Compressor Type
    Rotary
    Anti-Corrosion Fin
    Yes
    Multi-Channel Condensor
    No
  • Low Ambient
    Cooling
    15 - 43°C
    Heating
    -5 - 24°C
