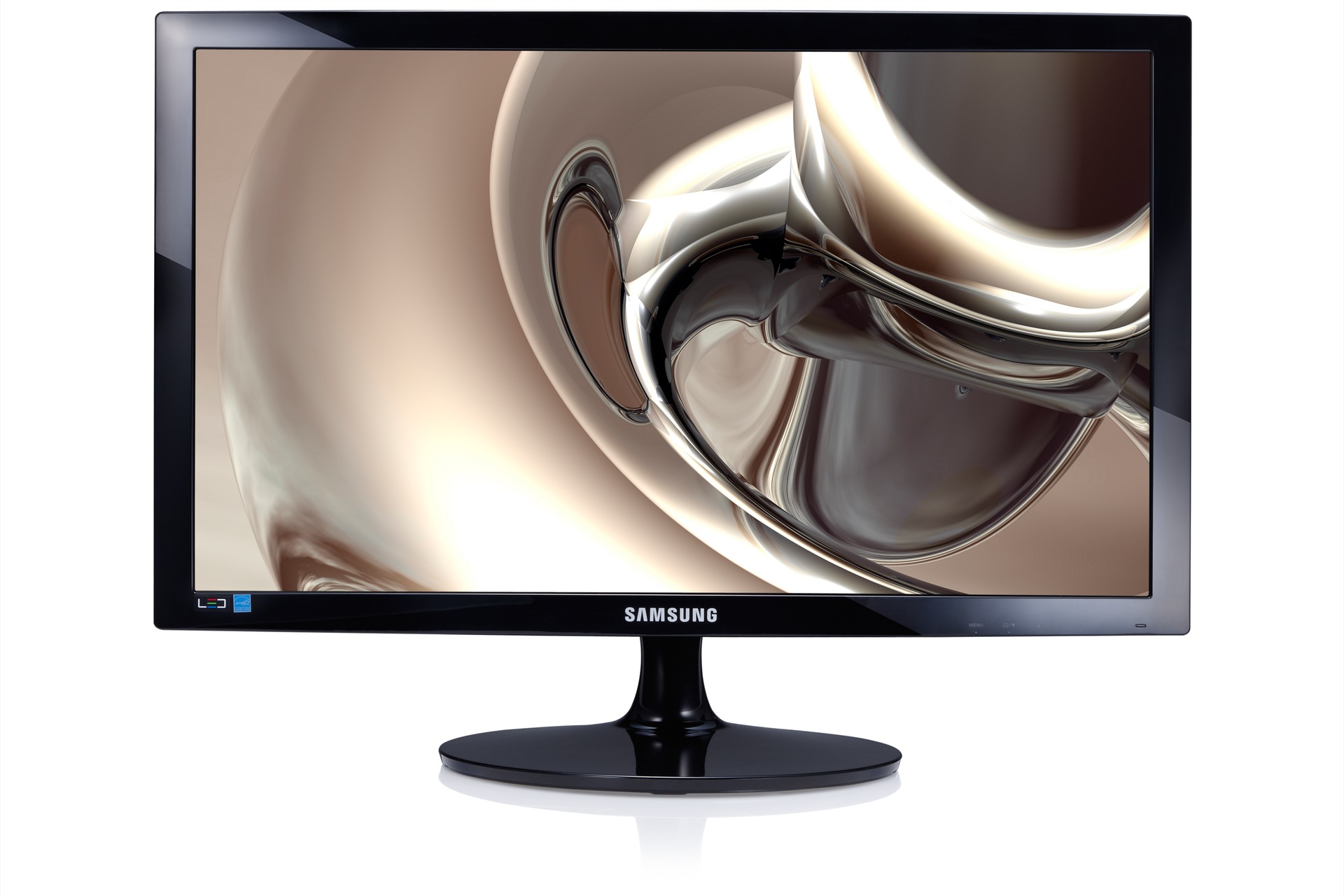

23" S23B300B

Series 3 LED Monitor

S23B300B

  0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

23 S23B300B Series 3 LED Monitor

Features

  • Series 3 LED Monitor

Upgrade to the next level with Mega Dynamic Contrast.

Upgrade to the next level with Mega Dynamic Contrast.
Experience amazing new levels of colour, brilliance and picture quality through the very latest in Mega Dynamic Contrast Ratio. Samsung SA300 monitors deliver images so real-to-life that it will transform your whole viewing experience. Packed with breathtaking 5,000,000:1 contrast ratio, the highest level currently available, the SA300 monitor ensures that blacks are at their absolute darkest and (with pristine whites) colours are at their brightest. You will immediately notice the crystal clear picture and its unbelievable intensity. It is like an explosion of colours and leaves other screens seeming dull in comparison. So, take your viewing pleasure to the next level with Samsung Mega Dynamic Contrast Ratio – and enjoy your multimedia content with the professionalism it deserves.

Control brightness, conserve energy.

Control brightness, conserve energy.
Eco saving makes saving energy easy. It adjusts the brightness of your Samsung monitor based on how much energy you want to save. And with the choice of three energy saving modes (50%, 25% and Power Saving off), you can really tailor your monitor use to meet your own personal needs. Samsung’s commitment to saving energy is designed to help both you and the environment, and with up to 50% saving on consumption, you can really make a positive impact on your eco footprint. Take the effort out of saving energy and take control with Eco saving.

See it your way with wider viewing angles.

See it your way with wider viewing angles.
How do you like to watch movies? Do you like lying down on the couch? Sitting in your favourite chair? Cooking or exercising? Whether you’re standing, sitting or lying down, Samsung Magic Angle makes sure that the movie always takes centre stage and that you’re always comfortable. This means, thanks to the 5-mode angle management, that whatever angle you watch your Samsung monitor, you will enjoy a full visual experience with amazing picture clarity. So, start seeing your favourite movies and other multimedia in total comfort and without limitations thanks to Magic Angle.

tech specs

Dimension of LS23B300BS/XA

Display

  • Screen Size
    23" (16:9)
  • Type
    LED
  • Brightness
    250cd/m²
  • Contrast Ratio
    Mega ∞ DCR (Static 1,000:1)
  • Resolution
    1920 x 1080
  • Response Time
    5ms
  • Viewing Angle (Horizontal/Vertical)
    170° / 160°
  • Colour Support
    16.7M

Interface

  • D-Sub
    1ea
  • Wireless Display
    No
  • DVI
    1ea
  • HDMI
    No
  • Dual Link DVI
    No
  • USB
    No
  • Display Port
    No
  • Audio In/Out
    No
  • Speaker
    No
  • USB Hub
    No

SHOW MORE SPECSExpand

General Feature

  • Mobile Control
    No
  • Embedded Function
    Eco Saving, Multi Screen S / W, Samsung MagicAngle, Samsung MagicBright3, Samsung MagicColour, Off Timer, MagicTune, Customised Key, Image Size
  • Additional PC S/W
    No
  • OS Compatibility
    Yes
  • Windows Certification
    Yes
  • Energy/Environment Mark
    Energy Star 5.0
  • Mobile High-Definition Link (MHL)
    No

Design

  • Color
    High Glossy Black
  • Stand Type
    Simple
  • Stand Function
    Tilt
  • Wall Mount
    No

Power

  • Power Supply
    100 - 240V (50/60hz)
  • Power Consumption
    30W (Typ.)
  • Power Consumption (DPMS)
    0.3W (Typ.)
  • Power Consumption (Stand-by)
    0.3W
  • Type
    External Adaptor

Dimension

  • Set Dimension with Stand (WxHxD)
    547 x 405 x 197mm
  • Set Dimension without Stand (WxHxD)
    547 x 330 x 53mm
  • Package Dimension (WxHxD)
    668 x 403 x 111mm

Weight

  • Set Weight with Stand
    2.9kg
  • Set Weight without Stand
    2.55kg
  • Package Weight
    4.3kg

Accessory

  • Cables
    D-Sub Cable
  • Others
    E-manual, Install CD, Quick Setup Guide

REVIEWS (0)

Owners Overall Ratings

Your opinions about this product can be helpful to us and to anyone thinking about buying one.

Support

User Manual

8.59 MB, pdf, ARABIC

2014.04.30

Other Manuals (3)

Driver (1)

  • Device(Install)

    Win 2000/XP/Vista/Win7/Win8 (32,64bit), 8.02 MB, exe, MULTI LANGUAGE

    2012.11.29 tooltipbox

    Close tooltip pop-up
    1. Title
    Monitor Driver
    2. Applicable Model
    SyncMaster S23B300B
    3. Carrier or Corporate Customer
    Open Market
    4. Description
    If you have trouble for setting up the Monitor under Windows 2000/XP/Vista/7 this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 2000/ XP/ Vista/ 7/ 8(32bit/64bit)
