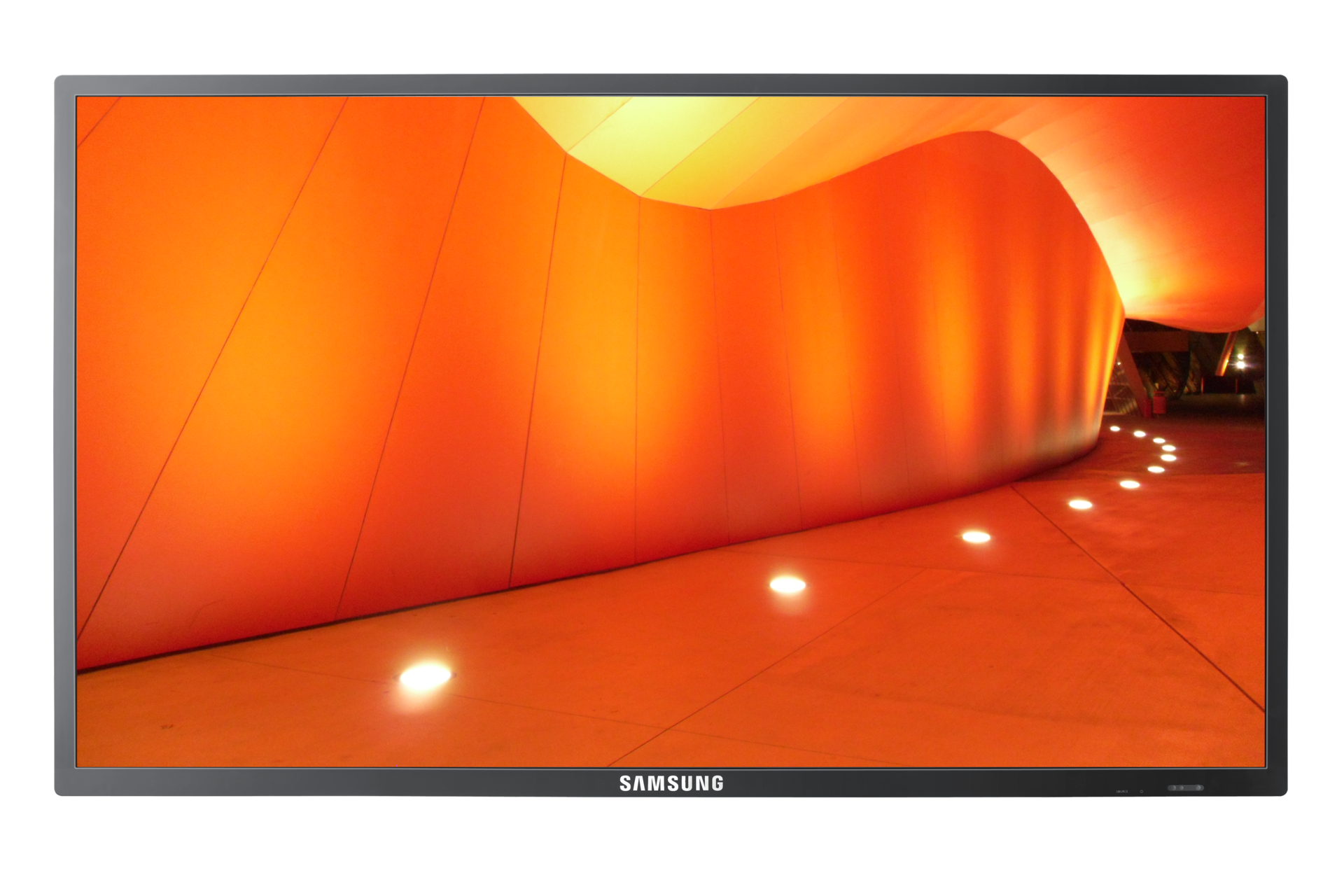

55" 550DX LCD
Display

550DX

  0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

55" 550DX LCD
Display

Features

  • 550DX

A smart sensor that automatically saves energy.

A smart sensor that automatically saves energy.
Stop worrying about the lighting conditions affecting your display. This Samsung LFD adjusts its brightness levels as ambient light changes so your images are always crystal-clear. And while it compensates for low-light and high-light environments, you’ll save energy and stay eco-friendly.

Reliable, durable and dust-resistant.

Reliable, durable and dust-resistant.
Introducing a monitor that was built to stand the test of time—and dust. This Samsung LFD is durable and dust-resistant. Corner-sealing design, double-layer structure, and screw and user hole sealing add to its ruggedness. Make sure dirt and dust don’t stand in the way of getting your message out.

Enhanced connectivity without extra costs.

Enhanced connectivity without extra costs.
Create a professional digital display without having to purchase any extras—like a distributor or external equipment. Samsung makes it easy with a display port that delivers enhanced connectivity and an improved display interface. With a simple adapter, you can connect your PC, monitor or TV using an HDMI or DVI cable that’s more than twice as long as standard cables. Discover an easy, cost-effective way to create a powerful display.

Easy control goes the distance.

Easy control goes the distance.
With content constantly changing, you need a reliable software solution that lets you communicate with remote displays in a cost-effective, time-efficient manner. Samsung LFDs feature an upgraded Multi Display Control solution that lets you control a large number of monitors through their embedded RS232 and RJ45 interfaces. Easy and intuitive to use, you can control monitors over short and long distances.

Set a schedule that’s always on time.

Set a schedule that’s always on time.
Keep your monitor running efficiently at all times. This Samsung LFD boasts a smart scheduling feature. The automatic power on/off function allows you to designate time, day, volume, input source and holiday dates. There’s even a convenient on-screen display setting with up to 3 schedules including day and time.

A video wall that lives up to your standards

 A video wall that lives up to your standards
Create the ultimate video wall with Samsung LFDs that cater to your needs. And because this LFD has an embedded video matrix processor, it supports 1x1 to 10x10 wall formats, allowing you to enjoy total convenience. Best yet, since they need no additional support, the possibilities are almost endless.

Save money, save space with built-in speakers.

Save money, save space with built-in speakers.
Maximise your impact with a great picture and crisp audio. Your message will be heard loud and clear with built-in speakers. You’ll save money when you eliminate the cost of purchasing separate speakers, and you’ll save valuable space as well.

A cool way to ensure longevity.

A cool way to ensure longevity.
Enjoy continuous, reliable operation thanks to a built-in fan control. Housed inside of the LFD, the fan guarantees you can count on it for years to come without worrying about it overheating. You can even control the fan with an easy-to-use on screen display.

Brighter lights, better picture.

Brighter lights, better picture.
With an intensely illuminated DID panel your message is always in the spotlight. Its high brightness and contrast level make the screen clear and readable in public. In fact, on average it’s 1.5 times as bright as TV screens. Plus with a low operating temperature this Samsung LFD will be completely reliable for years to come.

Choose the right view, landscape or portrait.

Choose the right view, landscape or portrait.
This Samsung LFD gives you the flexibility to display your image vertically or horizontally—whatever the situation calls for. With a pivot function that rotates the screen 90˚degrees and the freedom to display presentations in portrait mode or advertisements in landscape mode, this makes for one versatile monitor.

Stay in the loop with DVI-out.

Stay in the loop with DVI-out.
Enjoy superior picture quality with a DVI-out interface that lets you share content between multiple LFDs thanks to an easier-to-connect video matrix. LFDs used to have to be connected to the PC individually, but digital loop out allows you to connect them without connecting to a PC. Better yet, the digital loop out produces a single image without any loss of quality, and there’s no need for a separate video signal distributor. It’s easy to install and the most cost-effective way to connect multiple displays.

Twice the information, double the impact.

Twice the information, double the impact.
Whether your presentation requires a picture-in-picture configuration or a picture-by-picture arrangement, this Samsung LFD makes it possible. When one image just isn’t enough, two video signals can be viewed simultaneously for maximum impact.

A great picture that’s glare-free.

A great picture that’s glare-free.
Whether you have a story to tell or a product to sell, it’s important that your image is crystal clear. This Samsung LFD delivers just that—even if your display is located in a brightly-lit environment. It eliminates any reflections that can disrupt your ad’s readability, keeping images smooth and visible.

A slide-in design with easy accessibility.

A slide-in design with easy accessibility.
Enjoy convenient, quick access to the PC, network or receiver with this LFD’s optional slide-in modular design. It’s discreetly located on in the rear side of the unit. And there are a variety of module options that can be easily combined with the LFD. You can even insert a customised module—whether it’s Samsung or a third party manufacturer.
Sharper images make everything crystal clear.

Sharper images make everything crystal clear.

Eliminate the judder effect and experience clarity that’s unreal thanks to this monitor’s 120Hz refresh rate. It operates at twice the speed of conventional 60fps monitors, so moving text and captions are easily readable and high-speed video is crystal-clear.

Upgrade effortlessly.

Upgrade effortlessly.
This Samsung LFD LFD makes upgrading firmware easy. The simple transmission is accomplished through an image file, using a DVI, HDMI or display port. Samsung’s LFD LFD lets you perform upgrades effortlessly through a direct connection with your PC.

tech specs

Dimension of LH55CSPLBC/XY

Display

  • H-Scanning Frequency

    30kHz ~ 81kHz

  • Maximum Pixel Frequency

    148.5MHz

  • V-Scanning Frequency

    56Hz ~ 85Hz

Panel

  • Diagonal Size

    55"

  • Type

    S-PVA (DID)

  • Resolution

    1920 x 1080 (16:9)

  • Pixel Pitch(mm)

    0.21 (H) x 0.63 (V)

  • Active Display Area

    1,209.6 (H) x 680.4 (V)

  • Brightness

    700cd/m²

  • Contrast Ratio (Dynamic)

    20,000:1

  • Viewing Angle (Horizontal/Vertical)

    178° / 178°

  • Response Time (G-to-G)

    8ms

  • Display Colour

    8bit - 16.7M

  • Colour Gamut

    72%

  • Contrast Ratio

    4,000:1

SHOW MORE SPECSExpand

Connectivity

  • Input
    RGB

    Analog D-SUB, DVI-D, Display Port

    Video

    CVBS, HDMI1, HDMI2

    Audio

    RCA (L/R) , Stereo mini Jack

  • Output
    RGB

    DVI-D (Loop-out)

    Audio

    Stereo mini Jack

    Power Out

    5V (for SBB)

  • External Control

    RS232C (in / out), RJ45

  • External Sensor

    Stero mini jack (IR in / out)

Mechanical Specification

  • Dimension
    Set Dimension (WxHxD)

    1,263.8 x 741.7 x 136.3mm

    Package Dimension (WxHxD)

    1,690 x 450 x 1,060mm

  • Weight
    Set Weight

    35.5kg

    Package Weight

    42kg

  • VESA Mount

    600 x 400mm

  • Protection Glass

    Optional

  • Stand Type

    Foot Stand (optional)

  • Media Player Option Type

    SIM (Slide in Module )

Operation

  • Operating Temperature

    0°C ~ 40°C

  • Humidity

    10 ~ 80%

General Feature

  • Key

    Professional heavy usage

  • Special

    Lamp Error Detection,Brightness Sensor, Anti Retention, Temperature Sensor, RS232C / RJ45 MDC,Built in Speaker (10W + 10W),Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Button Lock, Digital Daisy Chain, Smart Scheduling, Smart F/W update

Power

  • Power Supply

    AC 100 - 240V~ (+/- 10%), 50 / 60Hz

  • Power Consumption
    Off Mode

    Less than 1W

    On Mode

    390W (max) / 353W (typ)

    Sleep Mode

    Less than 2W

  • Type

    Internal

Accessory

  • Included

    Quick Setup Guide, Warranty Card,Application CD, D-Sub cable, Power Cord,Remote Controller, Batteries

  • Optional
    Mount

    WMN5770D

    Specialty

    CML500D (ceiling mount), STN-520WE (welcome Board)

    Stand

    STN-L3255D

Certification

  • EMC

    FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS / NZS3548 (CISPR22) CCC (China): GB 9254-2008, GB 17625.1-2003

  • Environment

    ENERGY STAR 5.0 (USA)

  • Safety

    UL (USA) : UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) :IEC60950-1SASO (Saudi Arabia) : IEC60950-1
