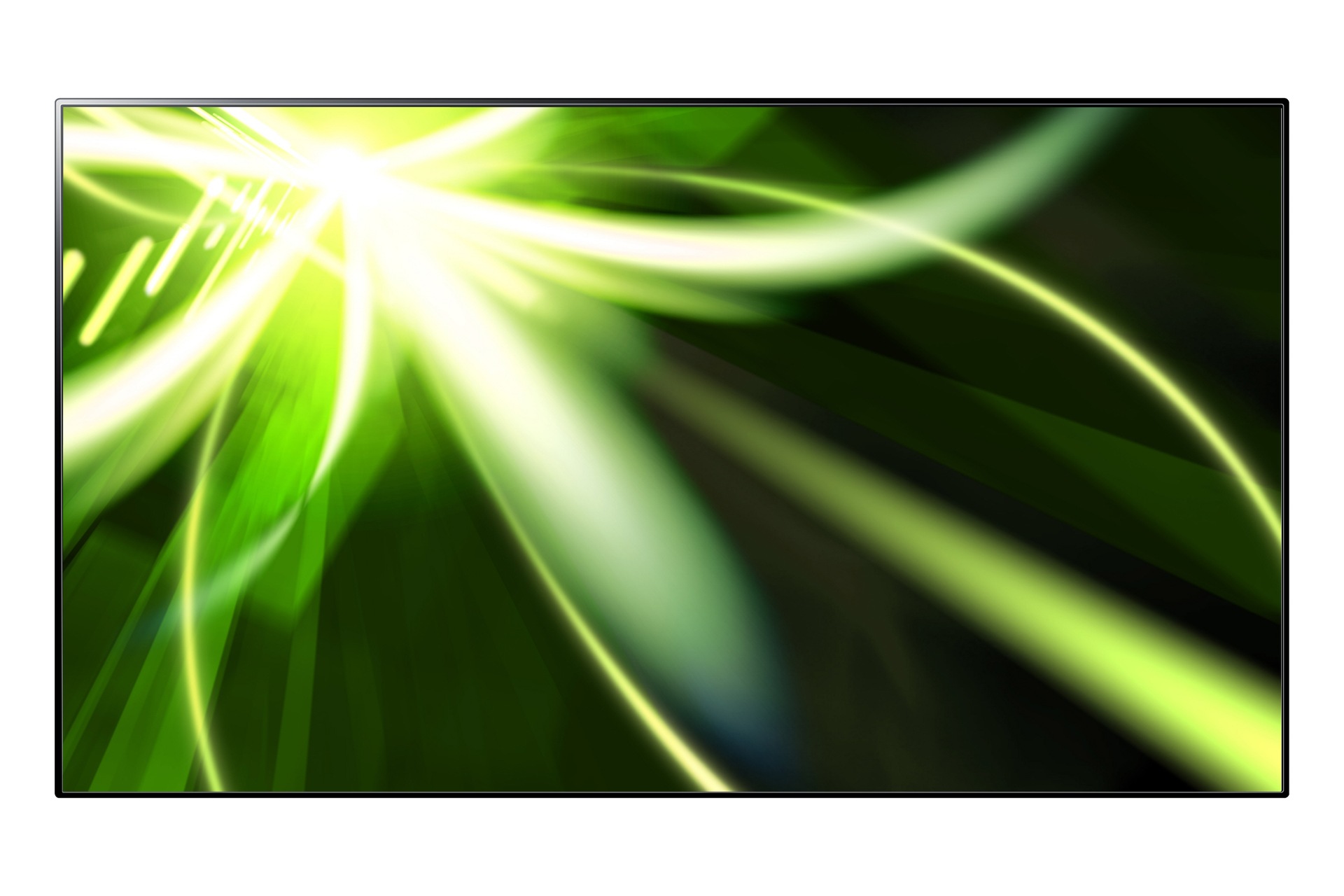

46'' UD46A
LED Video Wall

UE46A

  0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

46'' UD46A LED Video Wall

Features

  • 46'' UD46A LED Video Wall

Easy installation and slim depth

Easy installation and slim depth
The Samsung LFD Monitor, which is lighter and slimmer than previous LFD models, offers simple and effective communication solutions for any modern business. With a quick and easy installation, setting up your business LFD can be achieved with minimal fuss. And you can forget the troublesome task of hanging your cumbersome LFD thanks to the new slim and lightweight design. It not only requires less support to hold it up, but can also be conveniently moved about with its easy-to-carry dimensions. The contemporary design will also add a touch of sophistication to the overall messaging.

Readability

Readability
Don’t settle for a viewing experience that is hampered by unnecessary reflections and a poor contrast ratio. Samsung’s new LFD offers a perfect viewing experience with its incomparable readability. The vibrant and rich images are created through the panel’s ability to avoid diffused reflections from external light, such as sunlight, thus minimising glare. The result is a superb picture quality that is sharper and higher in contrast ratio, revealing deeper blacks and brighter colours. It is a dynamic visual experience that you’ve been waiting for.

Super narrow bezel

Super narrow bezel
Nothing shows sophistication like a display with a thin bezel. The Samsung LFD has gone one step further with a narrower bezel and will simply have audiences mesmerised by its contemporary look and feel. The larger display area will capture people’s attention and will add weight to your message. With the popularity of flat screens, it is essential that your business has the right look, like the slimmer bezel.

Reduced heat

Reduced heat
Optimise the conditions of your digital signage by reducing the amount of heat radiating through the actual display area. Conventional LFDs emit consistent amounts of heat across the breadth of the display, while the new Samsung LFD not only minimise it but centralise it around the sides of the screen. This proves helpful in creating a more enjoyable environment to be in, especially when working in close proximity to the displays, like at a business convention.

Internal Media Player On-Chip

Internal Media Player On-Chip
Give your business every chance of success with access to the latest multimedia. The Samsung LFD is compatible with all the latest content, ensuring that your communication is both flexible and varied. With a Built-in On-Chip contents player, there is no longer any need to attach a PC or network connection to upload content, simply plug in your USB stick and you are ready to go. Everything from movies to PowerPoint and music tracks can be tailored to your exact needs.

tech specs

Dimension of LH46UEPLGC/XY

Display

  • H-Scanning Frequency

    30 ~ 81kHz

  • Maximum Pixel Frequency

    148.5MHz

  • V-Scanning Frequency

    48 ~ 75Hz

Panel

  • Diagonal Size

    46"

  • Type

    240Hz LED BLU

  • Resolution

    1920 x 1080 (16:9)

  • Pixel Pitch(mm)

    0.46125 (H) x 0.15375 (V)

  • Active Display Area

    1018.08 (H) x 527.67 (V)

  • Brightness

    420 nit

  • Viewing Angle (Horizontal/Vertical)

    178:178

  • Response Time (G-to-G)

    4ms

  • Display Colour

    10 bit Dithering - 1.07 Billion

  • Colour Gamut

    73%

  • Contrast Ratio

    5,000:1

SHOW MORE SPECSExpand

Connectivity

  • Input
    RGB

    Analog D-SUB, DVI-D, Display Port

    Video

    Component (CVBS Common), HDMI

    Audio

    Stereo mini Jack

  • Output
    RGB

    DVI-D

    Audio

    Stereo mini Jack

  • External Control

    RS232C (in / out) thru stereo jack, RJ45

Mechanical Specification

  • Dimension
    Set Dimension (WxHxD)

    1030.4 x 585 x 29.9mm

    Package Dimension (WxHxD)

    1170 x 705 x 199mm

  • Weight
    Set Weight

    12kg

    Package Weight

    15.9kg

  • VESA Mount

    400 x 400mm

  • Stand Type

    Foot Stand (optional)

  • Media Player Option Type

    Internal Player (Embedded H / W) / 800MHz (512KB, L2 Cache Size) Processor / 850MB (Excluding OS, F / W Usage) Storage / 1GByte DDR3 SDRAM (667MHz Clock) System Memory / Video Memory Shared with System Memory

Operation

  • Operating Temperature

    0°C ~ 40°C

  • Humidity

    10 ~ 80%

General Feature

  • Key

    LED Slim Video wall

  • Special

    Built in MagicInfo Lite, Built in Speaker (10W + 10W), Plug and Play (thru USB), Narrow bezel, Slim depth (29.9, mm)

Power

  • Power Supply

    AC 100 - 240V ~ (+ / - 10%), 50 / 60Hz

  • Power Consumption
    Off Mode

    Less than 1W

    On Mode

    160W (Max) / 140W (Typ)

  • Type

    Internal

Accessory

  • Included

    Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries

  • Optional
    Mount

    WMN4270SD / WMN2000BD / WMN4655MD (for Video wall W / M)

    Specialty

    CML450D (ceiling mount)

    Stand

    STN-LE4055AD

Certification

  • EMC

    FCC (USA) FCC Part 15, Subpart B class BCE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22) KCC (Korea): KN22, KN24BSMI (Taiwan): CNS13438 (CISPR22) C-Tick (Australia): AS / NZS3548 (CISPR22) CCC (China): GB 9254-2008, GB 17625.1-2003

  • Environment

    ENERGY STAR 5.0 (USA)

  • Safety

    CUL (USA + Canada): UL60065 TUV (Germany): EN60065CB (Europe): IEC60065 / EN60065EK (Korea): K60065 CCC (China): GB8898PSB (Singapore): IEC60065 GOST (Russia): IEC60065, EN55022 SIQ (Slovenia): IEC60065, EN55022 PCBC (Poland): IEC60065, EN55022 NOM (Mexico): NOM-001-SCFI-1993IRAM (Argentina): IRAMSASO (Saudi Arabia): IEC60065
