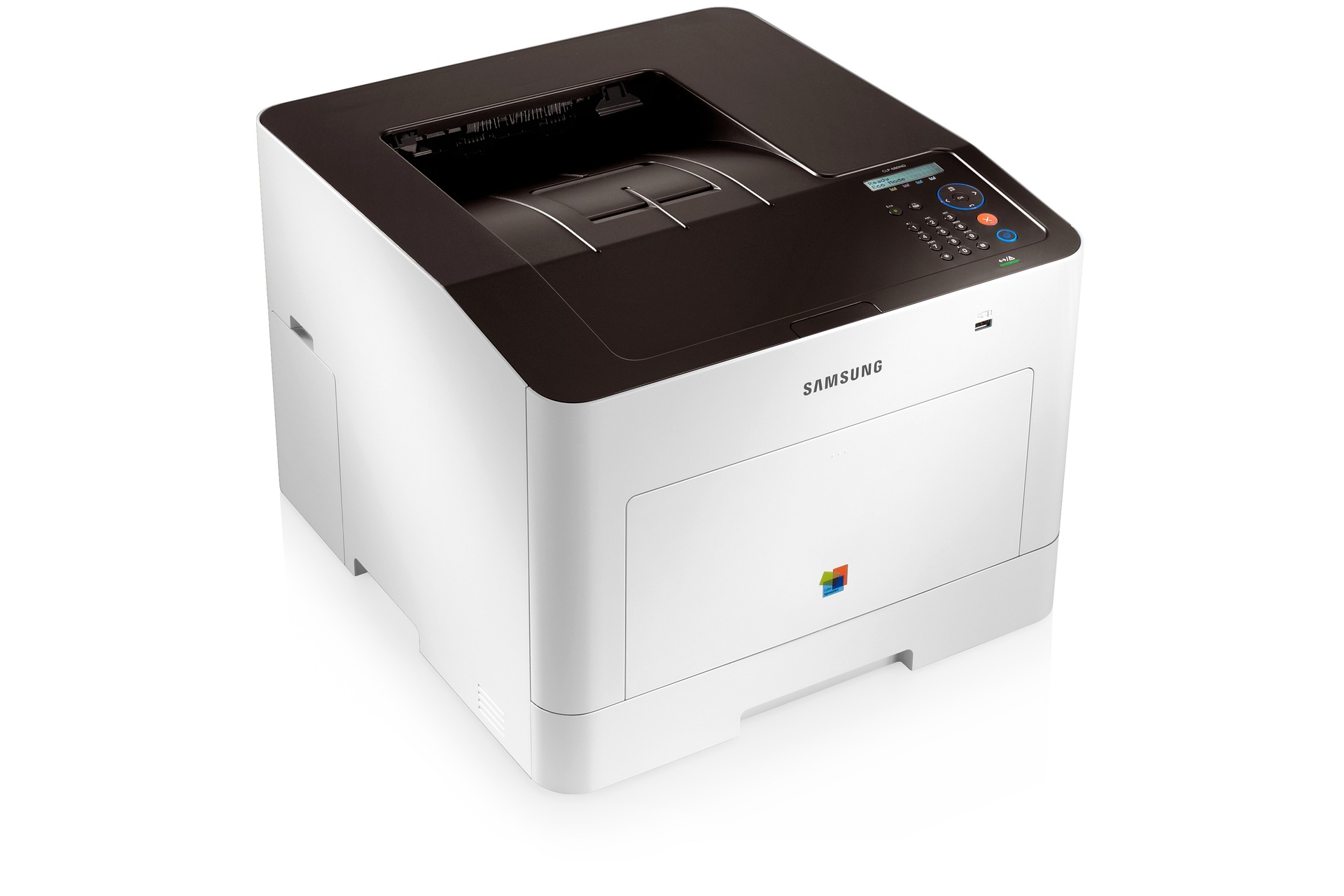

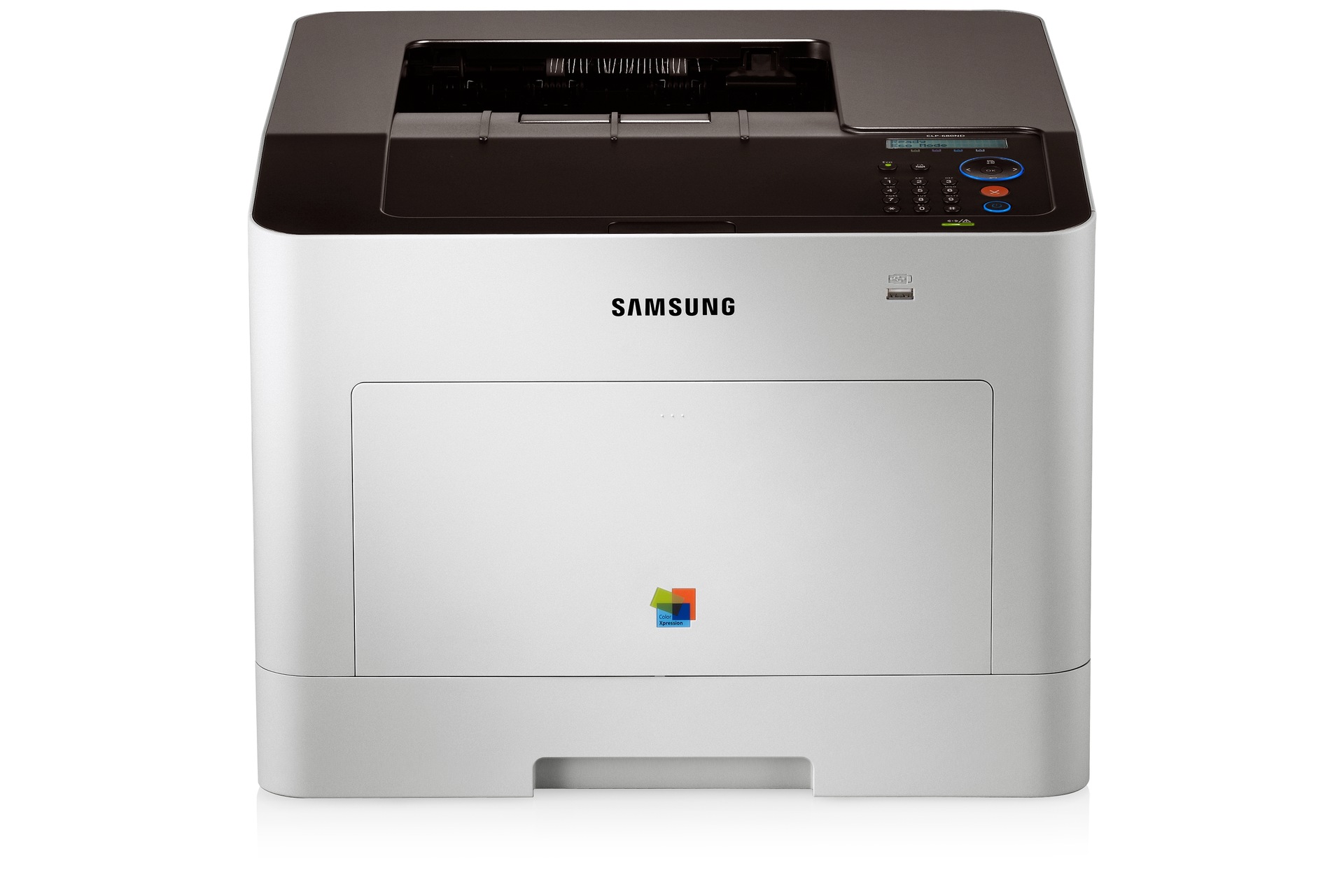

CLP-680ND Colour Laser Printer

CLP-680ND

  0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

CLP-680ND Colour Laser Printer

Features

  • Fast and economical colour printing
  • Now every workgroup can enjoy professional colour output
  • High power printing performance
  • Professional colour printing made easy for you

Product Configuration

Product Configuration





Easy Operating Panel

Easy Operating Panel
With the CLP-680ND's two line liquid crystal display and intuitive 5 key compass navigation you can control the device's status, browse the menu and access each unique feature with ease.

Convenient USB printing

Convenient USB printing
Print documents directly from the printer, without the need of a computer, via a front-facing Direct USB slot located just below the operating panel.
Make sharp images and text even sharper

Make sharp images and text even sharper

Samsung’s unique ReCP (Rendering Engine for Clean Page) Technology improves the overall quality and vibrancy of your colour printing, ensuring every printout looks perfect. It automatically sharpens the focus of both graphics and text, while solid objects are overlapped to eliminate white gaps.
Make colours more vibrant

Make colours more vibrant

Our newly developed polymerised toner has smaller and more uniform particles than conventional toner. Your printouts will have crisper lines and more vivid colours, in addition to eliminating paper curling. Also, its higher wax content improves the image gloss and enhances the durability preventing unwanted fading.
More power, higher productivity

More power, higher productivity

Some days it seems like the printing never ends. With the CLP-680ND's 533MHz Dual CPU, and 512MB standard memory (expandable up to 1GB) you can be sure that this printer will handle the entire load of your workgroup's need.
Speedy and flexible paper handling

Speedy and flexible paper handling

If you want to print or copy onto heavier weights of paper, you can. Weights of up to 220g/m2 are handled with ease through the 50 page multipurpose tray as well as the 250 page standard cassette. Plus, with the optional 520 sheet second cassette you can increase your total paper input capacity to 820 sheets. That way you can also use up to three different media types without the need to waste time changing paper.
Secure, confidential printing

Secure, confidential printing

If you need to print sensitive data through your printer, you can relax. You can now ensure personal print jobs remain personal. Just enter a password, and you can retrieve a print job at your convenience, away from any prying eyes. And with the integrated numeric key pad it's easier than ever!
Low cost, low impact on the world

Low cost, low impact on the world

Save toner, paper and energy with ease - it's good for the environment and it's good for your business' profits. Being economical and printing vibrant colour documents goes hand in hand with the CLP-680ND.Extra high yield means extra low costs Enjoy professional colour print-outs while staying in complete control of your total cost of ownership. Our specially developed higher yield cartridges means more time between changes and less expense with each print out.Cut costs with duplex printing With the integrated duplex feature, saving paper has never been easier. That’s because the paper is turned automatically so that you can print on both sides. It could mean an amazing saving of up to 50% on your paper consumption.Save money the eco way Every business sees the need to cut costs wherever it can. With the ECO button and the smart eco driver funtions it's easier than ever. Print more on each page with the N-up and duplex functionality, skip blank pages or print in greyscale instead of full colour. With the result simulator you can even see how much CO2, power and paper you've saved.

Fast and economical colour printing

Businesses today need to know that they can produce a high level of printing quickly, and in a cost-effective way. The CLP-680ND not only delivers brilliant colour quality, but speeds through high print volumes with ease. A fast Dual CPU, gigabit network support and instant fusing technology ensures enhanced speed and less waiting time. Yet what sets it apart economically is the range of cost-effective and innovative features, such as high yield toner, low energy consumption and eco-friendly settings. It makes this medium workgroup printer as cost conscious as they come.
Low Power Consumption

Low Power Consumption

Despite its impressive list of features and functions, the CLP-680ND consumes less energy than most of its competitors. Its innovative polymerized toner requires lower fusing temperatures, the instant fusing technology saves warm up time before first print, and our new Dual CPU make it one of the greenest devices around today.

Now every workgroup can enjoy professional colour output

Whatever size your team, and however busy you are, you can rely on the CLP-680ND to constantly deliver professional, quality colour output. Because anything less isn’t good enough.

High power printing performance

Whatever the size of your print job, the CLP-680ND will shine with an impressive 17 seconds First Print Out Time, and a speedy 24 pages per minute after that. This means you can focus on what's important rather than wait for your prints.

Professional colour printing made easy for you

With the CLP-680ND you can increase your entire workgroup’s workflow with a range of easy-to-use features and ingenious time-saving support software that helps free you to work smarter and faster.
Easy Solution support

Easy Solution support

The printer also brings you software support designed to put you in control of delivering ultimate quality printouts easier than ever before.
Easy Eco Driver

Easy Eco Driver

Easy Eco Driver helps you compile digital documents in multiple formats and makes it easy to share them with others - even through social networks.Samsung Eco-Driver earned the 2012 "Outstanding Achievement" Award from Buyers Lab, Inc.
Take the stress out of print management

Take the stress out of print management

For maximum control, Easy Printer Manager lets you manage all your devices from one location. Check device and toner status, change device settings or set alerts – even through e-mail.
Get the right result before printing

Get the right result before printing

The Samsung Easy Colour Manager allows you to adjust the colour balance, saturation, brightness or contrast of any image prior to printing. Perfect for matching the exact colours of your company logo every time.
Easy toner replacement

Easy toner replacement

Gone are the days of fiddly, dirty and time-consuming toner cartridge changes. It’s all made easier with a push loading drawer. What’s more, the high yield cartridges mean fewer changes.
Mobile Printing

Mobile Printing

With amazing Samsung Mobile Printing solution, you don’t have install any drivers to your mobile devices. Simply Just Install Samsung Mobile Print application on your mobile devices, and you can print directly from your mobile device.

tech specs

Dimension of CLP-680ND/XFA

General

  • Functions
    Standard

    Print

    Optional

    One-touch Eco Mode / Direct USB / Mobile Print

  • Processor

    Dual CPU (Main: 533MHz / Sub: 150MHz)

  • Operational Panel

    2-Line LCD

  • Memory
    Standard

    256MB

    Maximum

    512MB

  • Interface
    Standard

    High-Speed USB 2.0 / USB Host / Ethernet 10 / 100 / 1,000 Base-TX

    Optional

    IEEE 1,284B Parallel Connector

  • Power Consumption

    450W (Average) / 14W (Standby) / 1W (Sleep Mode) / 1.49kWh (TEC)

  • Noise Level

    Less than 52dBA (Printing) / Less than 32dBA (Standby)

  • Dimension (WxDxH)

    420 x 452.5 x 311.3mm (16.54" x 17.81" x 12.26")

  • Weight

    20.15kg (44.42lb)

  • Max. Monthly Duty Cycle

    60,000 Pages

Print

  • Speed
    Speed (Mono)

    Up to 24ppm in A4 (25ppm in Letter)

    Speed (Color)

    Up to 24ppm in A4 (25ppm in Letter)

  • First Print Out Time
    First Print Out Time (Mono)

    Less than 17s (From Ready Mode)

    First Print Out Time (Color)

    Less than 17s (From Ready Mode)

  • Resolution

    Up to 9600 x 600dpi Effective Output (600 x 600 x 4 bit)

  • Emulation

    PCL5Ce / PCL6C / PS3 / PDF V1.7 / SPL-C (Samsung Printer Language Colour)

  • Duplex Print

    Built-In

  • Operating System

    Windows 8 / 7 / Vista / XP / 2008R2 / 2008 / 2003, Mac OS X 10.4 - 10.8, Various Linux / Unix

  • Direct Print Support

    PDF V1.7

  • Print features

    Automatic Double Sided Print / Direct Print / Secure Print

SHOW MORE SPECSExpand

Paper Handling

  • Input Capacity
    Cassette

    250-Sheet Standard Cassette

    Multipurpose tray

    50-Sheet MP Tray

    Other Options

    520-Sheet SCF

    Maximum

    820 Sheets

  • Media Type
    Cassette

    Plain Paper / Thin Paper / Thick Paper / Cardstock / Thicker Paper / Hole Punched / Transparency / Pre-Printed / LetterHead / Recycled / Archive / Bond / Label / Envelope / Cotton / Coloured / Glossy

    Multipurpose tray

    Plain Paper / Thin Paper / Thick Paper / Cardstock / Thicker Paper / Hole Punched / Transparency / Pre-Printed / LetterHead / Recycled / Archive / Bond / Label / Envelope / Cotton / Coloured / Glossy

    Other Options

    Plain Paper / Thin Paper / Cardstock / Hole Punched / Pre-Printed / LetterHead / Recycled / Archive / Bond / Label / Cotton / Coloured / Glossy

  • Media Size
    Cassette

    A4 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / A5 / Statement / A6 / Index Card Stock / Postcard / Envelope Monarch / Envelope No-10 / Envelope DL / Envelope C5 / Envelope C6 / Envelope No 9 / Custom [76 x 127mm (3" x 5") - 216 x 356mm (8.5" x 14")]

    Multipurpose tray

    A4 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / A5 / Statement / A6 / Index Card Stock / Postcard / Envelope Monarch / Envelope No-10 / Envelope DL / Envelope C5 / Envelope C6 / Envelope No 9 / Custom [76 x 127mm (3.0" x 5.0") - 216 x 356mm (8.5" x 14")]

    Other Options

    A4 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / A5 / Statement / Custom[98 x 210mm (3.86" x 8.3") - 216 x 356mm (8.5" x 14")]

  • Media Weights
    Cassette

    Supported Weight: 60 - 220g/m² (16 - 59lb) Thin Paper: 60 - 70g/m² / Plain Paper: 70 - 90g/m² / Thick Paper: 91 - 105g/m² / Bond Paper: 105 - 120g/m² / Cardstock: 121 - 163g/m² / Thicker Paper: 164 - 220g/m²

    Multipurpose tray

    Supported Weight: 60 - 220g/m² (16 - 59lb) Thin Paper: 60 - 70g/m² / Plain Paper: 70 - 90g/m² / Thick Paper: 91 - 105g/m² / Bond Paper: 105 - 120g/m² / Cardstock: 121 - 163g/m² / Thicker Paper: 164 - 220g/m²

    Other Options

    Supported Weight: 60 - 163g/m² (16 - 43lb) Thin Paper: 60 - 70g/m² / Plain Paper: 70 - 90g/m² / Thick Paper: 90 - 105g/m² / Bond Paper: 105 - 120g/m² / Cardstock: 121 - 163g/m²

  • Output Capacity

    150-Sheet Face Down

Consumables

  • Toner
    Black

    Standard Toner Cartridge Yield: 2,000 Standard Pages (Ships with 2,000 Pages Starter Toner Cartridge) / High Toner Cartridge Yield: 6,000 Standard Pages *Declared Yield Value in accordance with ISO / IEC 19798

    Color (C/M/Y)

    Standard Toner Cartridge Yield: 1,500 Standard Pages (Ships with 1,500 Pages Starter Toner Cartridge) / High Toner Cartridge Yield: 3,500 Standard Pages *Declared Yield Value in accordance with ISO/IEC 19798

  • Transfer Belt

    Approx. 100,000 Pages

  • Waste Toner Container

    Approx. 14,000 Pages (Black) / 3,500 Pages (Colour)

Option

  • Option

    520-Sheet Cassette / IEEE 1,284B Parallel Connector / 512MB Memory

Solution

  • Device Management

    Yes

  • Output Management

    Yes

  • Mobility

    Yes

REVIEWS (0)

Owners Overall Ratings

Your opinions about this product can be helpful to us and to anyone thinking about buying one.

Support

User Manual

0.01MB, htm, PORTUGUESE

2014.09.15

Other Manuals (8)

Software (11)

  • Easy Printer Manager

    Mac OS 10.5 ~ 10.10, 54.84 MB, zip, MULTI LANGUAGE

    Version : V1.01.79

    2014.11.07

  • Easy Printer Manager

    Win XP/2003/2008/Vista/Win 7/Win 8(32/64bit), 39.73 MB, exe, MULTI LANGUAGE

    Version : V1.05.58.01

    2014.11.07

  • Set IP

    Mac OS 10.5 ~ 10.10, 0.22 MB, zip, MULTI LANGUAGE

    Version : V1.00.10

    2014.10.21

  • Easy Wireless Setup

    Mac OS 10.5 ~ 10.10, 7.14 MB, zip, MULTI LANGUAGE

    Version : V1.4.8

    2014.10.21

  • Easy Color Manager

    Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 16.18 MB, exe, MULTI LANGUAGE

    Version : V4.00.06

    2014.07.11

  • Easy Wireless Setup

    Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 4.13 MB, exe, MULTI LANGUAGE

    Version : V3.70.18.0

    2014.06.23 tooltipbox

    Close tooltip pop-up
    Samsung Easy Wireless Setup will help you configure the wireless network settings of your printer.
  • SyncThru 6

    Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 208.73 MB, zip, MULTI LANGUAGE

    Version : V6.0.2.319

    2014.03.04

  • Set IP

    Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 1.41 MB, exe, MULTI LANGUAGE

    Version : V1.05.08.3:14

    2013.12.13

Driver (11)

  • Print Driver,(Add Printer)

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 54.15 MB, zip, MULTI LANGUAGE

    Version : V3.12.38.06.27

    2014.09.12

  • Print Driver,(Post Script)

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 30.2 MB, exe, MULTI LANGUAGE

    Version : V2.01.00.21

    2014.09.12

  • Print Driver

    Mac OS 10.5 ~ 10.9, 7.77 MB, zip, MULTI LANGUAGE

    Version : V5.00.04

    2014.09.12

  • Print Driver

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 32.68 MB, exe, MULTI LANGUAGE

    Version : V3.12.38.06.27

    2014.09.12

  • Universal Print Driver,XPS

    Win Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 17.61 MB, exe, MULTI LANGUAGE

    Version : 2.50.05.00:10

    2014.08.11

  • Universal Print Driver

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 21.2 MB, exe, MULTI LANGUAGE

    Version : 2.50.05.00:10

    2014.08.11

  • Universal Print Driver,PCL6

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 14.27 MB, exe, MULTI LANGUAGE

    Version : 2.50.05.00:10

    2014.08.11

  • Universal Print Driver PS

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 13.63 MB, exe, MULTI LANGUAGE

    Version : 2.50.05.00:10

    2014.08.11

Firmware (1)

  • Firmware File

    All OS, 45.05 MB, zip, MULTI LANGUAGE

    Version : V4.xx.01.61

    2014.08.11
