A3 Colour Multi-Function Device (CLX-9201NA)

CLX-9201NA

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Need more Info?

Request information about Samsung business products, solutions and services. We will contact you shortly.

Email Usprint.au@samsung.com

MAKE A REQUEST

A3 Colour Multi-Function Device (CLX-9201NA)

Features

  • True colour at exceptional speed
    For every business

Product Configuration

Product Configuration

Smart Samsung Solutions Support

Smart Samsung Solutions Support
Samsung secured our own In-house solutions as well as ISV solutions for user extensibility. These solutions reach every user and tailer controls and programmes to suit their bespoke needs.
Twice the power delivers more performance

High Performing

Thanks to a fully integrated Samsung 1GHz Dual Core processor, handling of large print / copy jobs is fast, and scans put through are swift.
Enjoy quality printouts

Make sharp images and text

Samsung’s ReCP (Rendering Engine for Clean Page) Technology helps generate quality and vibrancy of your colour printing, ensuring printouts looks exceptional. It can automatically sharpen the focus of both graphics and text, while solid objects are overlapped to minimise white gaps.
Polymerized toner

Make colours vibrant

Our newly developed polymerised toner has small and highly uniform particles, designed for crisp lines and vivid colours, and to minimise paper curling. Also, its high wax content helps improves the image gloss.
Make the most of your floor space

Make the most of your floor space

With every business looking at maximising resources and working efficiently, you need a device that can optimise every inch of available floor space. Even in small, confined offices, its slim and simple design allows the CLX -9201NA to deliver big results. The Samsung CLX-9201NA is designed to be quickly and easily installed. Setting up is a simple two-person job, and features an optimized package with everything you need including pre-installed DADF (Duplex Automatic Document Feeder).
Intuitive, Smart UI

Intuitive, Smart UI

For outstanding control and visibility, the CLX-9201NA features a 7” colour touch panel with smooth flicking and scrolling. Thanks to the intuitive, smart User Interface User Interface, you can manage and control even the most complex jobs quickly and easily.
XOA (Open Architecture Platform)

XOA (Open Architecture Platform)

Enjoy the freedom of connecting your multifunctional product to your line-of-business applications through the unique Open Architecture Platform (XOA). Based on open standards, XOA allows print solution vendors to create embedded applications that help enhance the use of the device’s capabilities and business processes.

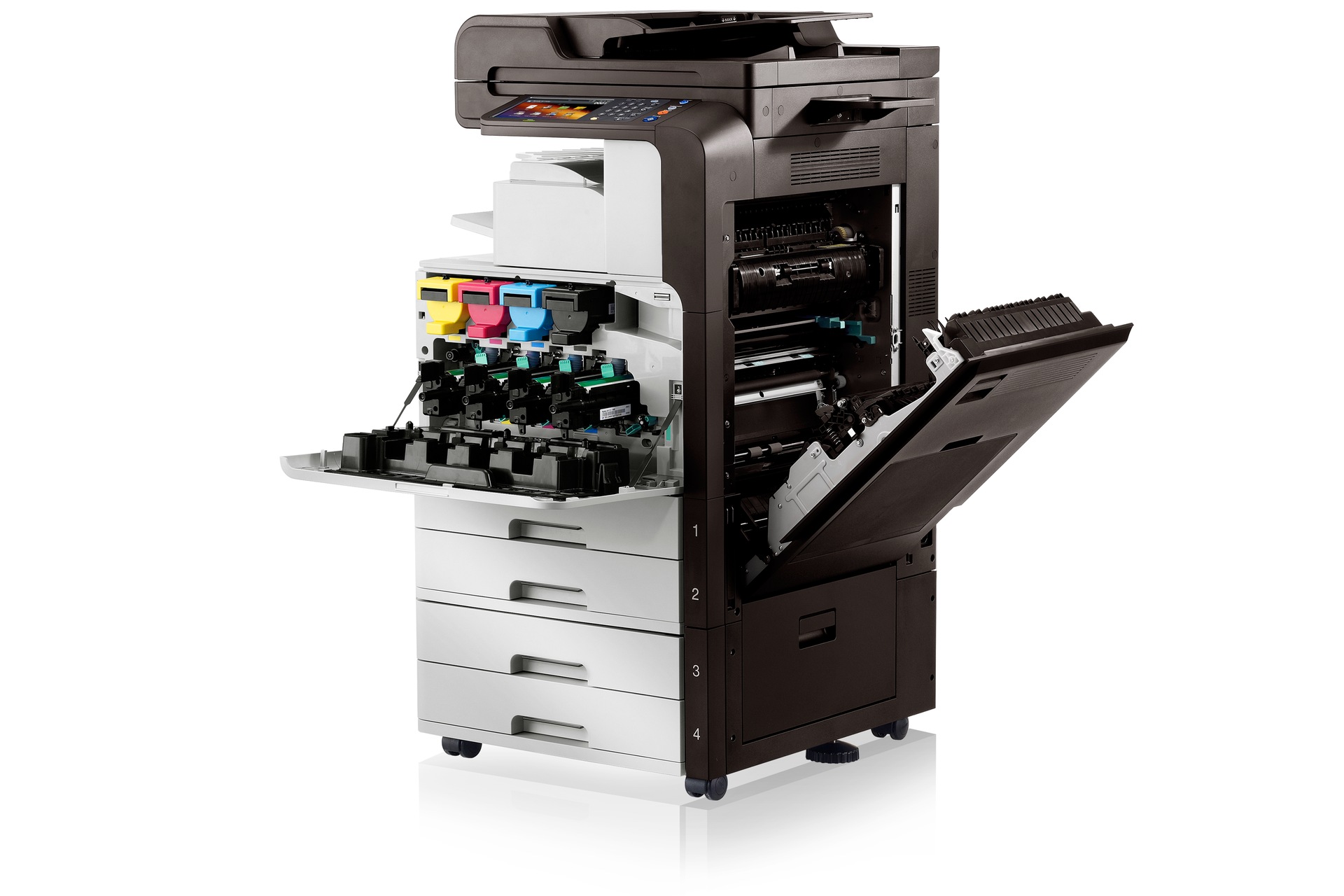

Separable, Interchangeable consumables

Separable, Interchangeable consumables

Because the OPC (Organic Photo Conductor) Drums are common for each colour, they are inter-changeable. You can replace each coloured toner individually when they run out.
Easy Mobile Print

Easy Mobile Print

Get more from all your compatible mobile devices easily, quickly and conveniently without the need for installing any print drivers. Wireless* printing, scanning and file transfers let you do more on the go. Samsung's easy 3 step mobile print : Install application, Select device and Print file. *Internet connection required. Data and subscription charges may apply.

tech specs

General

  • Functions
    Standard

    Print, Copy, Scan, Network, Duplex

    Value Added

    Fax, NW PC Fax

  • Processor

    1GHz (Dual Core)

  • Operational Panel

    7" Color Touch-Panel LCD, 1024 x 600 (WSVGA)

  • Memory
    Standard

    1GB

  • Hard Disk Drive

    320GB or higher (Usable Space: 88GB)

  • Interface
    Standard

    High Speed USB 2.0 Device/Host, Ethernet 10/100/1000 BASE TX

  • Warm-up time
    From Power On

    34 sec

    From Sleep

    25 sec

  • Power consumption

    Max 1.5kW( Ready : 100W, Low power : 16W, Sleep : 1.5W )

  • Sound Pressure Levels

    Copying: 53dBA, Printing: 48dBA, Ready: 30dBA, Sleep: 27dBA

  • Dimension (WxDxH)

    560 x 600 x 844 mm / 22.0" x 23.6" x 33.2:" (including DADF)

  • Weight

    76 Kg / 167 lbs (including DADF)

  • Max. Monthly Duty Cycle

    100,000 Pages

  • Network Security

    SSL/TLS, IP sec, SNMPv3, IPv6, Protocol & Port Management, IP/MAC filtering

  • Certification

    CCC(ISO15408), IEEE P2600-2008, WHQL Compliance

Print

  • Speed
    Speed (Mono)

    20 ppm in A4/Letter

    Speed (Colour)

    20 ppm in A4/Letter

  • First Print Out Time
    First Print Out Time (Mono)

    10 sec (From Ready Mode)

    First Print Out Time (Colour)

    12 sec (From Ready Mode)

  • Resolution

    Default : 2,400 x 600 dpi Effective Output (600 x 600 x 2 bit) / Max : 9,600 x 600 dpi effective output (600 x 600 x 4 bit), 1,200 x 1,200 dpi (Half Speed)

  • Emulation

    PCL5c, PCL6, Postscript 3, PDF 1.7+, XPS

  • Duplex Print

    Built-in

  • Operating System

    Windows 2003/Vista/2008/7, Mac OS X10.5 ~ 10.6, Linux

  • Network Protocols

    IP Management(DHCP, DHCPv6, BOOTP, AutoIP, SetIP, Static) / Discovery Protocol (SLP, UPnP, Bonjour, DNS, WINS) / Printing Protocol(TCP/IP(9100), TCP/IP(9100)v6 , LPR, LPR6 , IPP, WSD) / Management Protocol(SNMPv1.2, SNMPv1.2(IPv6), SNMP3, SNMPv3(IPv6), HTTP, HTTPs, LDAP, SMTP) / Scan Protocol(SMTP, FTP, SMB, Twain for Network) / Security Protocol(SMB, Kerberos, LDAP, IPsec)

  • Direct Print Support

    Jpeg,Tiff,PDF,Samsung PRN

SHOW MORE SPECSExpand

Copy

  • Speed
    Speed (Mono)

    20 cpm in A4/Letter

    Speed (Colour)

    20 cpm in A4/Letter

  • First Copy Out Time
    First Copy Out Time (Mono)

    7.9 seconds

    First Copy Out Time (Color)

    9.6 seconds

  • Resolution

    600 x 600 dpi

  • Reduce / Enlarge Range

    25% - 400%

  • Multy Copy

    9,999 Pages

  • Copy Features

    ID Copy, Clone Copy, N-UP Copy, Poster Copy

Scan

  • Speed
    Speed (Mono)

    45 ipm (300 dpi / A4/Letter)

    Speed (Colour)

    45 ipm (300 dpi / A4/Letter)

  • Color Mode

    Mono / Gray / Color

  • Compatibility

    Network TWAIN

  • Resolution (Enhanced)

    Up to 4,800 x 4,800 dpi

  • Scan Destinations

    E-mail, USB, FTP, SMB, HDD, PC

Fax

  • Compatibility

    ITU-T G3, Super G3

  • Modem speed

    33.6 Kbps

  • Resolution

    Up to 600 x 600 dpi (Mono)

  • Compression Method

    MH/MR/MMR/JBIG

  • Memory

    HDD Back-up

  • Auto Dial

    Support

  • Fax Feature

    Speed Dial, Group, Dial, On-hook Dial, Auto Redial, Caller ID, Secure Reception, Fax forwarding, etc.

Paper Handling

  • Input Capacity
    Cassette

    520-Sheet Standard Cassette x 2

    Multipurpose tray

    100-Sheet MP Tray

    Other Options

    520-Sheet Optional Cassette x 2

    Maximum

    2,180 Sheets ( 1,140-Sheet Standard + 1,040-Sheet Optional DCF)

  • Media Type
    Cassette

    Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled / Label / CardStock / Letterhead / Thick / Cotton / Colored / Archive / Glossy

    Multipurpose tray

    Printer Default / Plain Paper / Thick Paper / Thin Paper / Bond Paper / Color Paper / CardStock / Labels / Envelope / Preprinted / Letterhead / Recycled Paper / Cotton / Archive / Glossy

    Other Options

    Plain Paper / Thin Paper / Bond / Punched / Pre-Printed / Recycled / Label / CardStock / Letterhead / Thick / Cotton / Colored / Archive / Glossy

  • Media Size
    Cassette

    Cassette 1: 148 x 210 mm ~ 297 x 354 mm (5.8" x 8.2" ~ 11.7" x 14") / Cassette 2: 148 x 210 mm ~ 297 x 432 mm (5.8" x 8.2" ~ 11.7" x 17")

    Multipurpose tray

    98 x 148 mm ~ 297 x 432 mm (3.8" x 5.8" ~ 11.7" x 17")

    Other Options

    148 x 210 mm ~ 297 x 432 mm (5.8" x 8.2" ~ 11.7" x 17")

  • Media Weights
    Cassette

    Plain Paper: 71~90g/㎡(21~24 lb), (Duplex : 20~24lb) / Thick Paper: 91~105g/㎡(25~28 lb), (Duplex : 25~28lb) / Heavy Weight 1 Paper : 106~120g/㎡ / Heavy Weight 2 Paper : 121~175g/㎡ / Extra Heavy Weight 1 Paper : 176 ~ 216g/㎡ / Thin Paper: 60~70g/㎡ (16~19 lb) / Bond Paper: 105~120g/㎡ (28~32 lb) / Punched Paper: 71~90g/㎡ (19~24 lb) / Pre-Printed : 71~90g/㎡ (19~24 lb) / Recycled : 60~90g/㎡ (16~24 lb) / CardStock : 105~163g/㎡ (28~43lb) / Letterhead : 71~90g/㎡ (19~24 lb) / Cotton paper : 75~90g/㎡ (20~24 lb) / Label : 120~150g/㎡ (32~40 lb)

    Multipurpose tray

    16~47lb (60 to 176g/㎡) ( Simplex, Duplex )

    Other Options

    Plain Paper: 71~90g/㎡(21~24 lb), (Duplex : 20~24lb) / Thick Paper: 91~105g/㎡(25~28 lb), (Duplex : 25~28lb) / Heavy Weight 1 Paper : 106~120g/㎡ / Heavy Weight 2 Paper : 121~175g/㎡ / Extra Heavy Weight 1 Paper : 176 ~ 216g/㎡ / Thin Paper: 60~70g/㎡ (16~19 lb) / Bond Paper: 105~120g/㎡ (28~32 lb) / Punched Paper: 71~90g/㎡ (19~24 lb) / Pre-Printed : 71~90g/㎡ (19~24 lb) / Recycled : 60~90g/㎡ (16~24 lb) / CardStock : 105~163g/㎡ (28~43lb) / Letterhead : 71~90g/㎡ (19~24 lb) / Cotton paper : 75~90g/㎡ (20~24 lb) / Label : 120~150g/㎡ (32~40 lb)

  • Output Capacity

    Standard: 500 Sheets (Center Output Tray), Optional Inner Finisher: 350 Sheets (50-Sheet Top Tray / 300-Sheet Finishing Tray / Stapling / Offset)

  • adf
    Type

    DADF

    Document Capacity

    100 Sheets

    Document Size

    A3, A4 LEF, A4 SEF, A5 LEF, A5 SEF, B4, B5 LEF, B5 SEF

    Document Weight

    60~175g/㎡(16~46 lb)

Consumables

  • Toner
    Black

    20,000 pages (5% Coverage)

    Color (C/M/Y)

    15,000 pages (5% Coverage)

  • Imaging Unit/Drum
    Black

    50,000 pages (5% Coverage)

  • Waste Toner Container

    50,000 pages (5% Coverage)

Option

  • Option

    Cabinet Stand, Dual Cassette Feeder, Job Separator, Inner Finisher, Fax Kit, FDI Kit, Working Table, SmarThru Workflow, CounThru

Solution

  • Device Management

    Yes

  • Output Management

    Yes

  • Document Management and Distribution

    Yes

  • Security

    Yes

  • Mobility

    Yes

Support

Universal Print Driver Guide

0.91 MB, pdf, ENGLISH

2013.04.22

Other Manuals (6)

Software (15)

  • Easy Document Creator

    Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 18.01 MB, exe, MULTI LANGUAGE

    Version : V1.06.46

    2014.12.23

  • Easy Printer Manager

    Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 39.73 MB, exe, MULTI LANGUAGE

    Version : V1.05.66.00

    2014.12.23

  • PC fax Utility

    Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 9.94 MB, exe, MULTI LANGUAGE

    Version : V1.11.14

    2014.12.23

  • Easy Printer Manager

    Mac OS 10.5 ~ 10.10, 54.84 MB, zip, MULTI LANGUAGE

    Version : V1.01.79

    2014.11.07

  • PC fax Utility

    Win XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 9.79 MB, exe, MULTI LANGUAGE

    Version : V1.11.11

    2014.11.07

  • Set IP

    Mac OS 10.5 ~ 10.10, 0.22 MB, zip, MULTI LANGUAGE

    Version : V1.00.10

    2014.10.21

  • PC fax Utility

    Mac OS 10.5 ~ 10.10, 6.41 MB, zip, MULTI LANGUAGE

    Version : V1.01.43

    2014.10.21

  • Easy Wireless Setup

    Mac OS 10.5 ~ 10.10, 7.14 MB, zip, MULTI LANGUAGE

    Version : V1.4.8

    2014.10.21

Driver (17)

  • Printing & Scan Driver

    Linux, 15.87 MB, gz, MULTI LANGUAGE

    Version : V1.00.29

    2014.11.26

  • Scan Driver

    Mac OS 10.4 ~ 10.10, 49.03 MB, zip, MULTI LANGUAGE

    Version : V2.31.51

    2014.11.11

  • Scan Driver

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 22.6 MB, exe, MULTI LANGUAGE

    Version : V3.31.19.13

    2014.09.30

  • Print Driver,(Post Script)

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 30.12 MB, exe, MULTI LANGUAGE

    Version : V2.00.99.50

    2014.09.30

  • Print Driver

    Mac OS 10.4 ~ 10.9, 6.63 MB, zip, MULTI LANGUAGE

    Version : V1.24.00

    2014.09.30

  • Print Driver,PCL6

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 30.6 MB, exe, MULTI LANGUAGE

    Version : V3.12.29.07.51

    2014.09.30

  • Print Driver,(Add Printer)

    Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 51.4 MB, zip, MULTI LANGUAGE

    Version : V3.12.29.07.51

    2014.09.30

  • Universal Print Driver,XPS

    Win Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 17.61 MB, exe, MULTI LANGUAGE

    Version : 2.50.05.00:10

    2014.08.11

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderGoIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu ViewerGo
