Samsung
Product Features
Samsung Ducted System Components
Controller
A stylish and intuitive controller makes it easy to select desired temperature and fan speeds. Premium controller models also include a number of advanced features such as LCD backlighting and time scheduling.
Outdoor Unit
The outdoor unit contains the Samsung Smart Inverter compressor which circulates refrigerant to the indoor unit and back again. The unit also contains a heat exchanging coil and a fan which blows air across the coil.

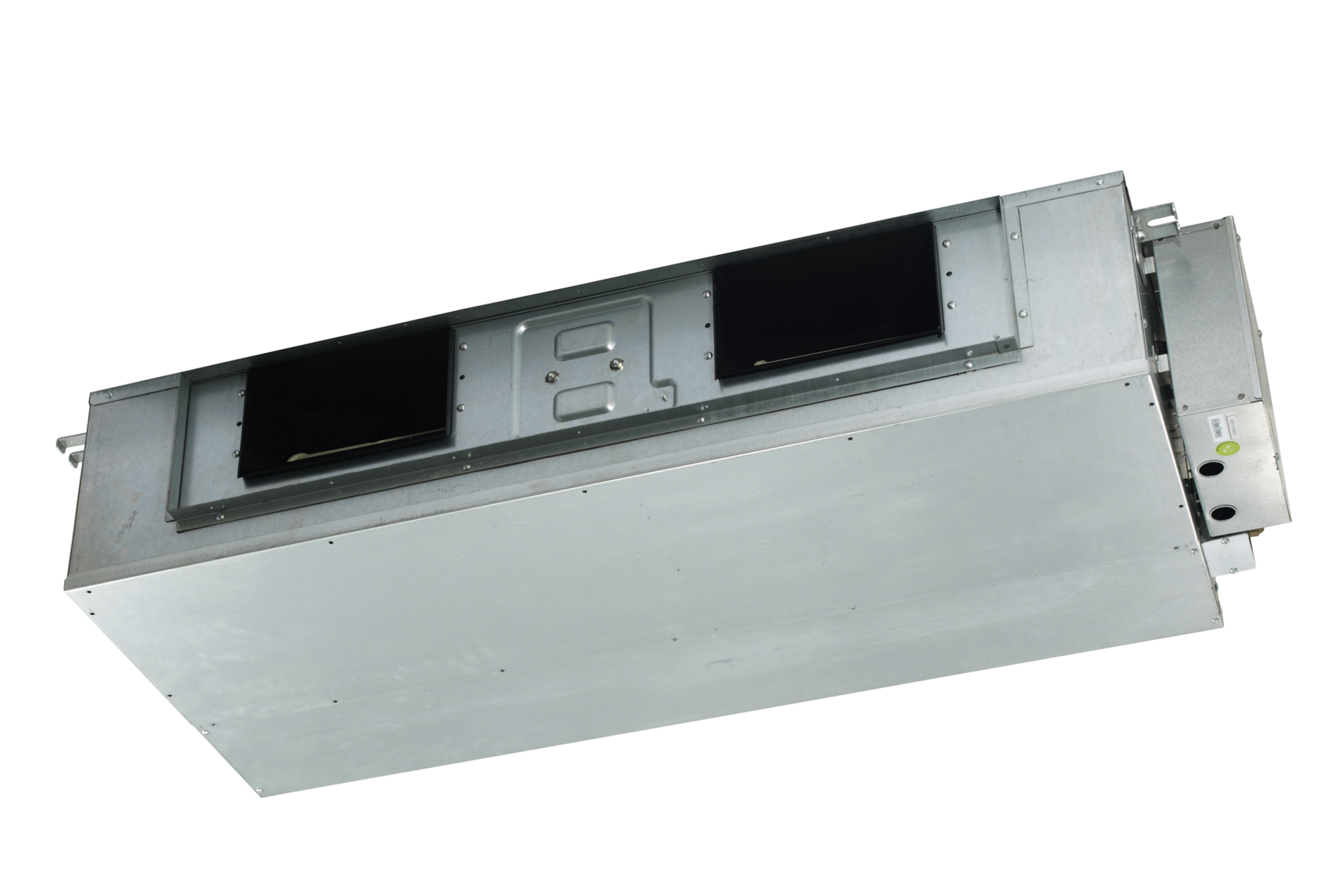

Indoor Unit
The indoor unit, hidden from view, also contains a heat exchanging coil that cools the air in your house in cooling mode and warms it in heating mode. A fan then blows the conditioned air through the ducts installed in your roof space to the outlets in the ceiling of each room.
Samsung Smart Inverter
Intelligent and Effective Air
Samsung’s Smart Inverter technology maintains the ideal temperature without constantly shutting off and switching on the compressor. It automatically adjusts the capacity of the system to cope with any temperature variances, helping to ensure that you experience minimal temperature fluctuation for optimal comfort.
Specifications
Performance
Capacity (Cooling)
- - Capacity > Cooling : [42700Btu/h]_x000D_ - Capacity > Cooling : [12,500W]
Capacity (Heating)
- - Capacity > Heating : [47800Btu/h]_x000D_ - Capacity > Heating : [14,000W]
Fan
- Air Flow Rate : 45.00/38.00/31.00
Sound Pressure Levels
- High (H) : 48.00/37.00dB(A)
Technical Information
Refrigerant Type
- R410a
Physical Specifications
Dimension
- Net Dimension (WxHxD) : 1200 x 360 x 650
- Gross Dimension (WxHxD) : 1447 x 425 x 769
Panel
- Model Name : No
- Net Weight : No
- Gross Weight : No
- Net Dimension (WxHxD) : No
- Gross Dimension (WxHxD) : No
