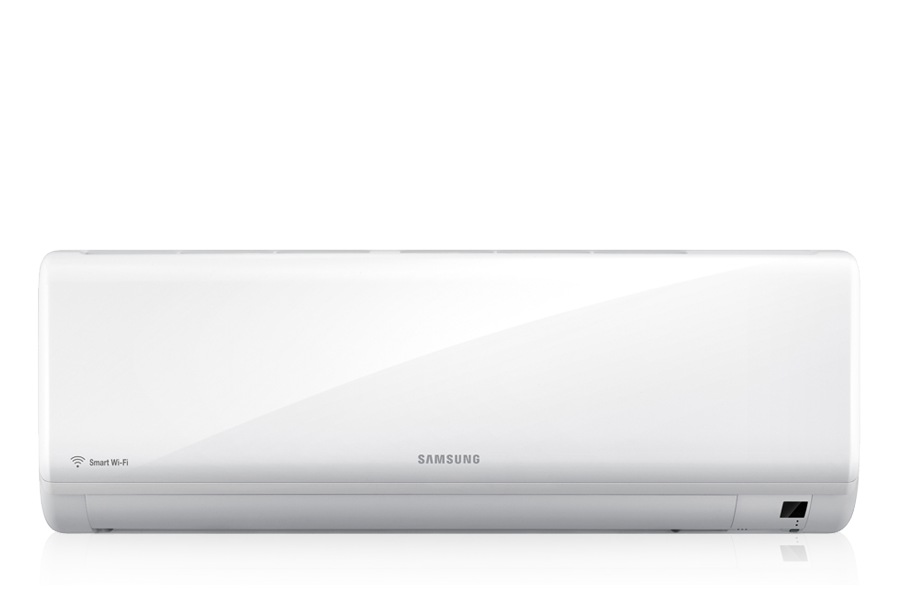

8.0kW Cool/9.0kW Heat Capacity (AQV30TWEN)

AQV30TWEN

8.0kW Cool/9.0kW Heat Capacity (AQV30TWEN) The new Samsung Smart Series™ air conditioning units allow you to control your comfort in an exceptional way. The new range is Wi-Fi enabled*, allowing the user to control the air conditioning unit via their compatible Android™ or iOS Smart Phone while they are in or out of the house. The addition of the Samsung D’light Cool mode to this range also helps control your comfort in a different way.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

8.0kW Cool/9.0kW Heat Capacity (AQV30TWEN)

Features

  • Wi-Fi Enabled Control
  • D’Light Cool Mode
  • HD Filtration with Ioniser
  • DRED Enabled with DRM 1, 2 &3 Capability

In Home Control

Inimitable Design in Color and style
With a compatible Android or iOS Smartphone and access to a Wi-Fi internet connection in your house, you can connect this new range of air conditioning and have control literally at your finger tips, virtually no matter where you are. When connected to your in house Wi-Fi network, your compatible Smart Phone acts like another remote control. However, line of sight is not always needed. So if you want to turn on your Air Conditioning unit in the upstairs bedroom, just use your compatible phone, while you sit on the lounge watching TV.

Out of Home Control

World Top Class Energy Efficiency
When connected out of home, you will obviously need to be on a 3G or Wi-Fi network. When used in this mode you can turn the unit on / off, select the mode, set the temperature and set up a time clock*. Forgotten to turn your Air Conditioning unit off – Samsung SmartSeries allows you to turn it off virtually wherever you are with your compatible smartphone. It will also tell you the temperature in the room so you can make a decision if you need to switch it on before you get home. Want to turn you air conditioning unit on an hour before you get home? No problem with the Samsung Smart Series™. The Samsung Smart Air Conditioner app also has a pop up reminder to remind you to clean your filter. This is an essential task in maintaining the proper operation of your air conditioning unit that many people simply forget to do. Download the Samsung Smart Air Conditioner App to your compatible smartphone through the following links: Google Play iTunes

D’Light Cool Mode

d†light Cool
The new Samsung Smart Series™ range of air conditioning units have a Samsung feature called D’light Cool Mode. In D’light Cool mode the unit measures both Temperature and Humidity. In humid environments even at a cool temperature, humidity levels can be high, making the occupants feel uncomfortable. The Samsung Smart Series™ air conditioning unit used in the D’light Cool mode will make an assessment of both temperature and humidity. Thus even if the required temperature is reached the unit will continue to dehumidify until a comfortable index level is reached.

HD Filtration with Ioniser

3D wind
Samsung’s HD Filter has a very small opening size giving the filter a great dust holding ability. This may assist in helping to reduce the amount of dust that can pass through the filter.

Good Sleep II mode

S-Plasma ion
Innovative technology developed to control the air temperature during your sleep and help maintain a comfortable skin temperature to assist in getting a comfortable sleep.

Turbo Mode

Full HD Filter
Switch on Turbo Mode to set the unit at it’s maximum speed to help reach the desired temperature faster.

Smart Mode

S-Plasma ion
Enables the air conditioner compressor to operate at a reduced intensity when the air conditioner is not required to be run at maximum cooling / heating.

Positive Payback

Positive Payback
In Southern Qld, you may receive an EFTPOS gift-card upon installation of this product provided you are a Participant in the 'PeakSmart' Compatible Air-conditioner Project. Click here for further details and the Energex PeakSmart terms and conditions.

Waterfall Airflow

In heating mode the new Samsung Smart Series™ units can target the air down at almost 90 degrees angle. We call this Waterfall Airflow and it helps air to be distributed in different directions in the room.

5 Year Warranty^ – For Human Comfort only

5 Year Warranty^ – For Human Comfort only
5 Year warranty applies to human comfort only and excludes costs for labour and access equipment where Samsung-branded air conditioning unit is installed in an area which is not easily accessible.

Auto Clean Indoor Coil

Runs the indoor fan for a set after the air conditioning unit is switched off. This helps to dry off moisture within the indoor unit.

Corrosion Resistant Fins

Helps to protect the outdoor heat exchanger from corrosion with the aim of extending the life of your air conditioning unit.

Additional Features on Samsung Smart Series™

• 4 Fan Speeds • Quiet Mode • DRED Enabled • Auto restart • DRED Enabled with DRM 1, 2 & 3 Capability

tech specs

Dimension of AQV30TWENXSA

Performance

  • Air Circulation (Max, ㎥/min)

    19.5

  • Capacity (Heating, kW)

    9.0

  • Capacity (Cooling, kW)

    8.0

  • Energy Efficiency
    ACOP (Heating, W/W)

    3.297

    AEER (Cooling, W/W)

    3.226

  • Moisture removal (l/hr)

    4.5

  • Sound Pressure Levels
    Indoor High/Low/Quiet (Sound Pressure)

    47 / 31dBA

    Outdoor High (Sound Power)

    55dBA

Electrical Data

  • Energy Efficiency
    Operating Current (Cooling)

    11.4A

    Operating Current (Heating)

    12.4A

    Power Consumption (Cooling)

    2,470 Watts

    Power Consumption (Heating)

    2,720 Watts

  • Power Source
    Φ/V/Hz

    1 / 220 - 240V / 50Hz

SHOW MORE SPECSExpand

Physical Specifications

  • Dimension
    Net Dimension (WxHxD, Indoor)

    1,065 x 298 x 222mm

    Net Dimension (WxHxD, Outdoor)

    880 x 931 x 320mm

  • Weight
    Net Weight (Indoor)

    13kg

    Net Weight (Outdoor)

    71.5kg

    Shipping Weight (Indoor)

    15kg

    Shipping Weight (Outdoor)

    76kg

Technical Information

  • Piping Length
    Piping Length (Max)

    30m

  • Piping Height
    Piping Height (Max)

    15m

  • Refrigerant Type

    R410a

  • SVC Valve
    Liquid (ODxL)

    Liquid 6.35 x 7.50mm

    Gas (ODxL)

    Gas 15.88 x 7.50mm

General Feature

  • Air Flow
    Optimal Single Blade

    Yes

    Air Direction Control (Up/Down)

    Auto

    Air Direction Control (Left/Right)

    Manual

    Air Flow Control Step (Cool/Fan)

    4 Speed

    Natural Breeze

    Yes

  • Air Purification
    S-Plasma Ion

    Yes

    Full HD Filter

    80

    Anti-Bacterial Coating

    Yes

    Auto Clean (Self Cleaning)

    Yes

  • Convenience
    Indoor Temp. Display

    Yes

    Remote Controller

    Yes

    Display On/Off

    Yes

    Beep On/Off

    Yes

    Real-Time Timer

    Yes

    Auto Changeover

    Yes

    Auto Restart

    Yes

  • Low Ambient
    Cooling

    -10 - 46°C

    Heating

    -15 - 24°C

  • Operating Mode
    Turbo Mode

    Yes

    Dlight Cool

    Yes

    Good Sleep

    Yes

    Smart Saver

    Yes

    Dehumidification

    Yes

    Auto Mode

    Yes

    Fan Mode

    Yes

    Quiet

    Yes

  • Outdoor Unit
    Compressor Type

    Twin BLDC

    Anti-Corrosion Fin

    Yes

    Multi-Channel Condenser

    No
