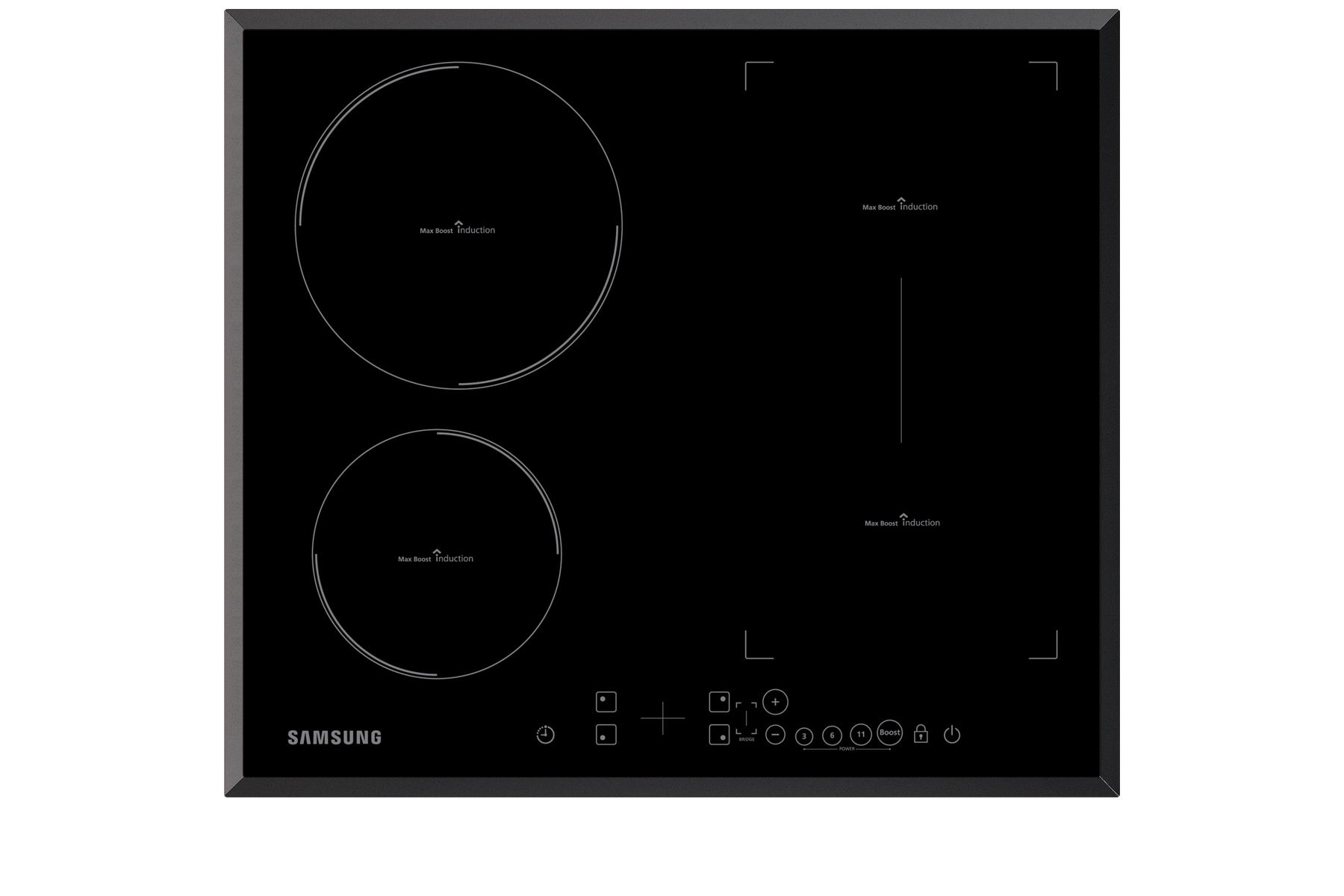

Built in with Anydish zone (CTI613GIN)

CTI613GIN

Built in with Anydish zone (CTI613GIN) SAMSUNG introduces the future of cooking with induction technology that uses the power of magnetic fields to do all the heating. Designed to help save the energy, the surface detects the size of cookware and only activates the fields requires thus the remainder of surface stays cool to touch making it safer and easier to clean - no more baked on spills and accidental burns!

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Built in with Anydish zone (CTI613GIN)

Features

  • 60cm induction cooktop, 1 small + 1 large element, Any dish zone, bevelled frame

touch control

touch control
Controlling is so easy by softly touching icons of the external display panel. Various power level keys such as warming, flame icon and power boost are also useful.

safe to operate

safe to operate
Induction cooktop technology only heats the area that comes in contact with the magnetic or iron-content cookware, leaving the un-used portion of the element unheated. The cookware itself heats the food not the stove.

speed heating

speed heating
Induction cooktops have the same instant control as gas and are the fastest of all cooktop types to heat and cook food - for example, they take about half the time of conventional electric cooktops to boil water.

'Any dish' multizone

'Any dish' multizone
Cooking on conventional cooktops offers you very limited space and many restrictions. SAMSUNG introduces the 'Any dish' zone! This multizone gives you the freedom to choose how you want to use your cooktop. It's designed to use the wide space how you choose. You can cook many dishes at a time or cook in a large dish.

easy to clean

easy to clean
The only area heated whilst cooking is the area with active magnetic field leaving the rest of the surface cool and easy to clean. Continuous surface with no dirt traps, and the controls are touch-sensitive, so there are no knobs to clean around.

other features

• 'Any dish' Zone • Max power 7.2Kw • Booster (Max 2 booster at the same time) • 2 x 1.2Kw (1.8Kw Boost) • 'Any dish' Zone max 3.6Kw • Glass touch control • Over Flow detector • Child lock • Timer • Safety lock

tech specs

Dimension of CTI613GIN/XSA

Features

  • Residual Heat Indicator

    Yes

  • Child Lock

    Yes

General Feature

  • Scraper

    No

  • Heater Element

    Induction

  • Timer

    99 minutes

  • Power control

    Yes

  • Power On/Off

    Yes

SHOW MORE SPECSExpand

Dimension

  • Package Dimension (WxHxD)

    692.0 x 622.0 x 145.0

  • Product Dimension (WxHxD)

    575.0 x 505.0 x 59.5

  • Cut-out size (WxH) mm

    560.0 x 490.0

General Information

  • model type install

    Built-in

  • mode

    Induction 4 Boost, +1 for any dish

  • Frame

    Bevelled frame

  • Surface

    Ceramic

  • Control Method

    Touch Control

Appearance

  • Display

    LED

Heating Element (Ceramic)

  • Single (180mm, 1.8kw)

    1.8 / 2.3kW (B)

  • Double (210/120mm, 2.2kw)

    2.2 / 3.2kW (B)

Support

User Manual

2.85 MB, pdf, ENGLISH

2009.06.22
