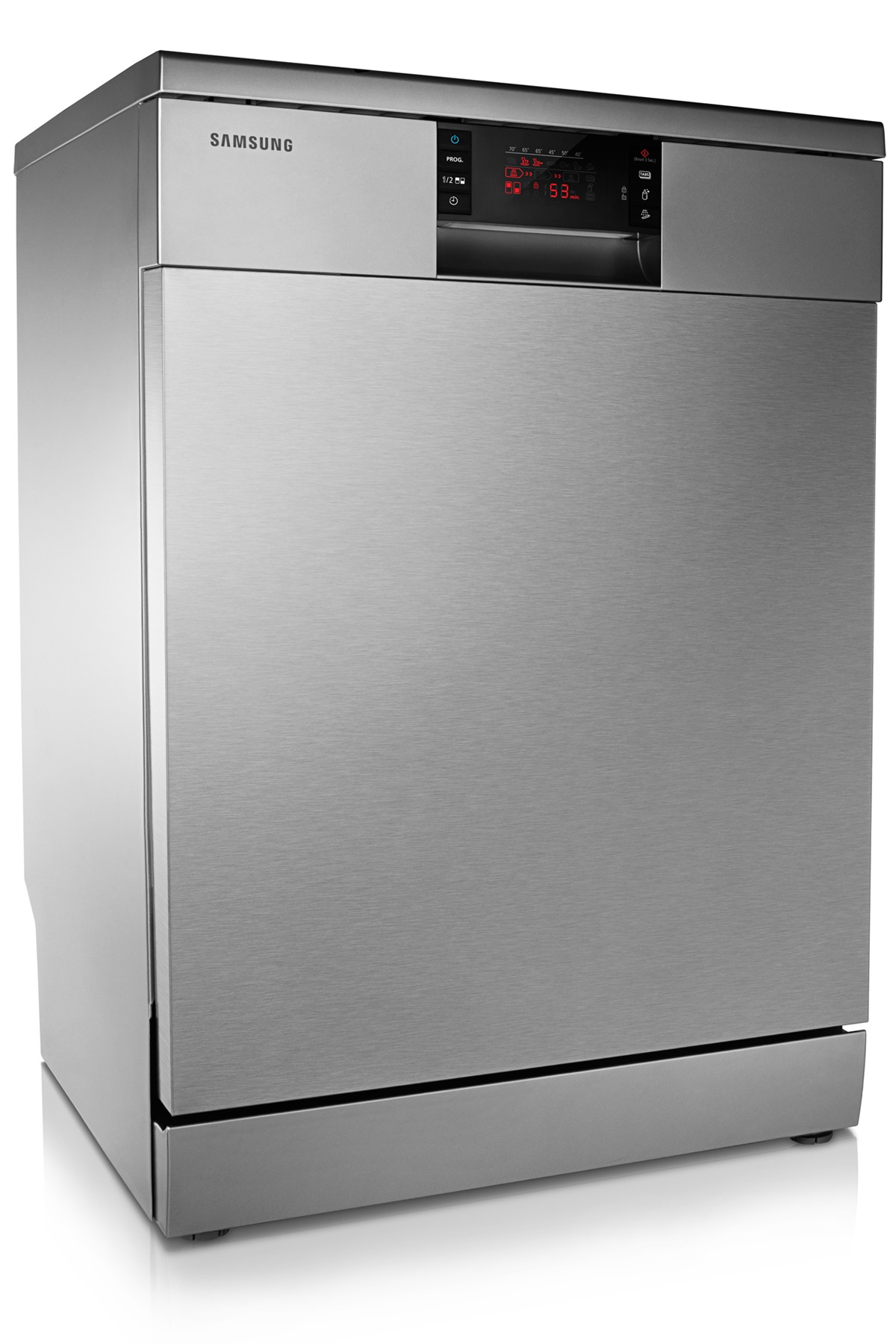

Silver, 13 place settings(DW-FG520L)

DW-FG520L



Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Silver, 13 place settings(DW-FG520L)

Features

  • Half Load Washing
  • Full Flex Tine
  • 13 place settings
  • Angled Racking systems

Large Dish Loading 36cm

Large Dish Loading 36cm
Samsung offers you the option of being able to load a dish up to the size of 36cm. Wash most large items such as oven trays, baking trays, pizza trays & cake pans easily.

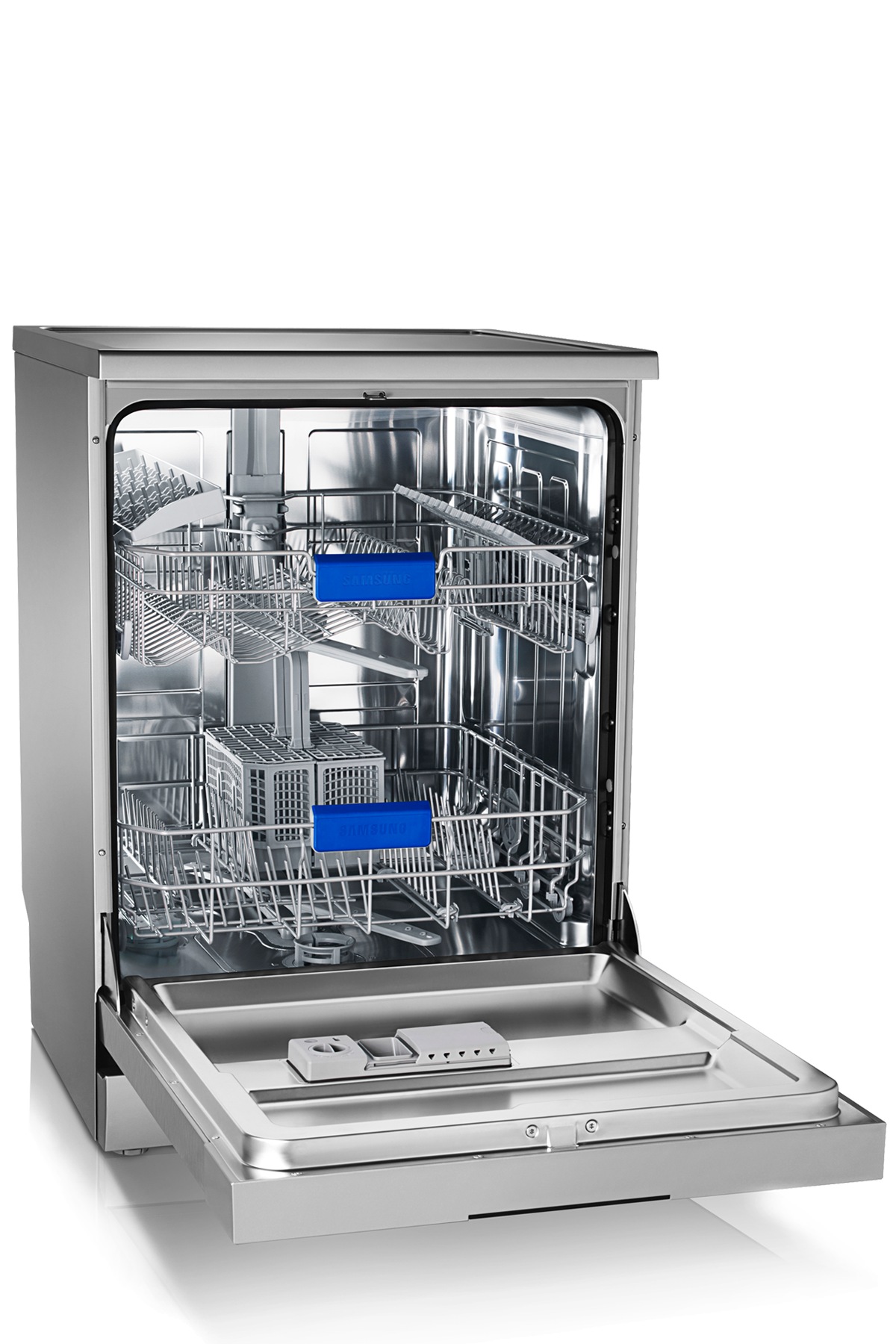

Angled Racking System

Angled Racking system
The angled rack allows dishes to rest at an angle, so water runs off and you can dry items with ease.

Adjustable Upper Basket

Adjustable Upper Basket
If required, the height of the upper rack can be adjusted in order to create more space for large utensils either in the upper rack or lower rack. The upper rack can be adjusted by lifting the handle in a downward or upward direction. Long items, serving cutlery, salad servers or knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or removed when not required for use.

Flex Washing 1/2

Flex Washing 1/2
The half load flex washing option may be used to operate either the upper or the lower rack only when washing few dishes as it fills half or less of the dishwasher capacity.

Full Flex Tine

Full Flex Tine
The full flex tine system helps to create the space for larger dishware when you need it. Its adjustable fold down tines in two steps provides flexibility as various forms of dishes or bowls can be loaded in.

tech specs

Dimension of DW-FG520L/XSA

Design

  • Colour/Material

    ALF

  • Control Type

    Button

  • Control Panel Style

    Front

  • Display lamp color

    Red

Performance

  • Capacity

    13 PS

  • Energy Star

    3.5

  • Energy Annual consumption

    255

  • Noise level (dBA)

    48

  • Cycle time (min)

    149

  • Drying System

    Condensing

  • Water Star

    4.5

  • Water Annual consumption

    11.8

SHOW MORE SPECSExpand

Option

  • Storm Wash

    No

  • Delay Start

    1-24 hours

  • Sanitise

    70°C

  • Half Load

    Upper / lower

  • Child Lock

    Yes

  • Multi-in 1

    Yes

  • Rinse Plus

    No

  • Dry plus

    No

Interior

  • Cavity

    Stainless steel

  • Interior lights

    No

  • Basic spray arms

    3

  • Storm Wash

    No

Programs

  • Number of programs

    7

  • Intensive

    Yes (70°C)

  • Daily Auto

    No

  • Daily

    Yes (65°C)

  • Normal

    Yes (65°C)

  • Express

    Yes (45°C)

  • Quick

    Yes (50°C)

  • Delicate

    Yes (40°C)

  • Pre Wash

    Yes

  • Rinse & Dry

    No

Safety devices

  • Aqua stop(hose leakage)

    Yes

Upper Rack

  • Adjustable Height

    2 stage

  • Full flex tines

    Yes

  • Fold down tines

    No

  • Foldable cup shelves

    Yes

  • Cup support clip

    No

  • Knife rack

    Yes

  • Basket handle

    Yes

Lower Rack

  • Biggest Dish loading (36cm)

    Yes

  • Full flex tines

    Yes

  • Fold down tines

    Yes

  • Basket handle

    Yes

Cutlery Rack

  • 1stop 3rd rack

    No

  • Cutlery basket

    Yes

Net Dimension

  • Width (mm)

    598

  • Height(mm)

    845

  • Depth(mm)

    570

  • Weight (Kg)

    47

Gross dimension

  • Width (mm)

    670

  • Height(mm)

    885

  • Depth(mm)

    660

  • Weight (Kg)

    50

Power / Ratings

  • Electrical(Volts/Hertz/Amps)

    220 ~ 240V; 50Hz; 10A

  • Heater Watts

    2,000W

  • Circulation Motor(w)

    125W

  • Drain Pump(w)

    30W

  • Levelling screws

    0 to 40mm

  • Hard Countertop Installation

    Yes
