LF-TBWHD/EN

TB-WH

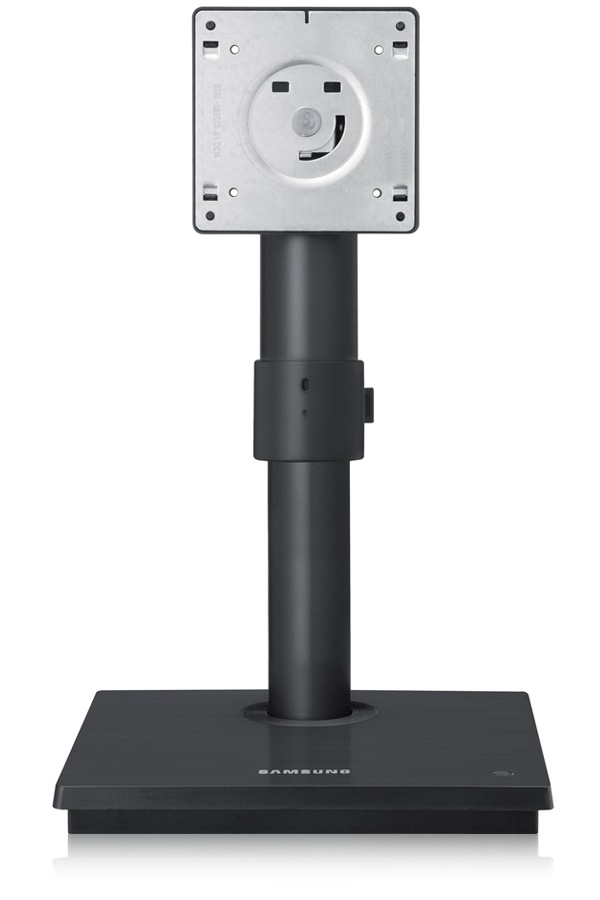

The Samsung TB-WH is a Base Station to be used in the Thin Client Network. (Compatible Monitor : Max Size 27" / Max Weight 6.5kg)

The TB-WH base stand combines with Samsung or any other VESA compatible displays to use in a Thin Client Network.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

LF-TBWHD/EN

Features

  • AMD Ontario 1.6GHz Dual Core
  • DDR3 2GB
  • MagicRMS

Migrate to Desktop Virtualisation

This innovative base stand brings the powerful features of the Samsung Cloud Display to life, notably its special configuration which helps ensure that migration from other systems is a smooth process. Thanks to our base stands, your Cloud Displays can be deployed quickly and efficiently, whatever their size, allowing you to experience the benefits of our latest desktop virtualisation technology.

MagicRMS

The TB-WH base stand can be remotely managed with Samsung MagicRMS Pro software. Being able to remotely manage each work-station can help minimise the need to reboot the server. It includes virtually real-time device status monitoring and the remote upgrading of firmware to all compatible devices, a very useful feature for the day-to-day operations of your business.

tech specs

TB-WH

Interface

  • D-Sub
    VGA Out
  • DVI
    DVI Out
  • USB
    6EA
  • Audio In/Out
    Audio Out, Headphone Out, MIC In
  • Speaker
    Stereo

Design

  • Colour
    Black
  • Stand Type
    Pivot / Tilt / Height Adjustable
  • Wall Mount
    75 x 75 / 100 x 100
  • Form Factor
    Stand Only

SHOW MORE SPECS

Power

  • Energy Efficiency Class
    Energy Star
  • Power Supply (V)
    100 - 240V (50 / 60Hz)
  • Power consumption
    40 watts / 25 watts
  • Power Consumption (Stand-by)
    1.8 watts
  • type
    External Power Adaptor

Dimension

  • Set Dimension with Stand (WxHxD)
    224 x 340 x 227mm
  • Package Dimension (WxHxD)
    445 x 380 x 140mm

Weight

  • Set Weight with Stand
    2.3kg
  • Package Weight
    3.5kg

Accessory

  • Cables
    Power Cord
  • Others
    User Manual, Quick Setup Guide, Warranty Card

Infra

  • Processor
    AMD Ontario 1.6GHz Dual Core
  • Operating System
    WES7
  • GPU
    AMD Radeon HD 6310
  • Storage
    8GB
  • Memory
    2GB
  • USB
    6EA
  • Ethernet
    Gigabit Ethernet

Support

User Manual

3.64 MB, pdf, ENGLISH

2012.12.13

Other Manuals (1)

  • Quick Guide

    1.72 MB, pdf, KOREAN, ENGLISH, ARABIC, CHINESE, CHINESE, FRENCH, GERMAN, HUNGARIAN, INDONESIAN, ITALIAN, JAPANESE, KAZAKH, POLISH, PORTUGUESE, RUSSIAN, SPANISH, SWEDISH, TURKISH

    2012.05.22
