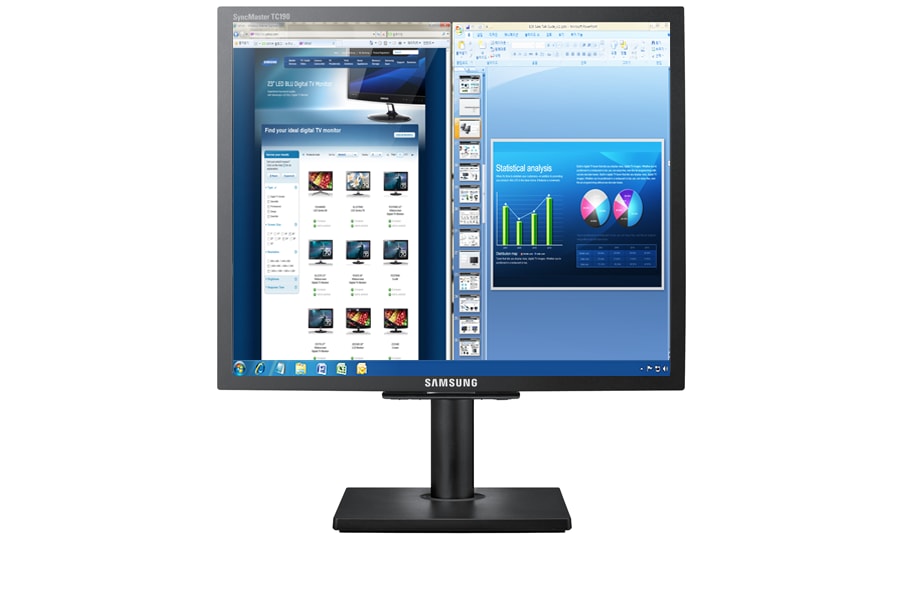

19inch Thin Client Cloud Display (TC190)

TC190



Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

19inch Thin Client Cloud Display (TC190)

Features

  • 19'' Thin Client monitor
  • Save with the Thin Client network
  • Impervious to viruses, spyware and hacking Comprehensive resource archive
  • Easier maintenance via central server

Creating a comprehensive resource archive

Creating a comprehensive resource archive
The advantage of storing information on a central server is that resources can be stored and shared in a more efficient and effective way. When data is uploaded to the server, it is secured against loss and damage far more than when it is contained on individual PCs, while at the same time being made available to a wider group of users. This benefits not only present-day users, but also creates a valuable resource archive that future-users can access and enjoy. Searching information stored on a central server is fast, easy, and intuitive, enabling information to be shared and subjects to be taught in a future-forward way.

Crystal-clear LCD screen

Crystal-clear LCD screen
Unlike other Thin Clients, the Samsung TC190 and TC240 come ready-to-view. With their high-performance, high-quality LCD screens, they are a one-step server based network solution. Their high brightness and contrast ratio allow them to display images with real depth of colour, clarity, and detail while their 5ms response time leaves many conventional PC monitors standing still. Capable of displaying high resolution images with immaculate integrity, the Samsung TC190 and TC240 open up an new world of opportunity to a variety of users, presenting both still images and high-speed video to perfection.

Easier management, easier maintenance

Easier management, easier maintenance
For education purposes, a central server system is not only cost-effective to maintain due to lower software outlay, but it allows the system administrator to control, manage, and update the entire system from one location, making his or her job a lot easier. Because the IT administrator can dedicate their time working on the central server, time and money is saved, making the system easier to manage and maintain.

Creative space-saving solutions

Creative space-saving solutions
When space is a key factor, PCs can be bulky and make a workspace appear more cluttered than it needs to be. The elimination of the need for an external hard drive means that each workspace can be kept as clear and clean as can be, thereby enabling a higher workstation to space ratio, greater productivity. and enhanced user-comfort.

Saving money for you and your customers

Saving money for you and your customers
By eliminating the expense of individual software licenses and personnel support for every workstation, Samsung Thin Client solutions are cost-effective to install and easier for your IT department to manage. Software and data can be installed, managed, and updated on the central server and then distributed across the entire Samsung Thin Client network, enabling each and every workstation to be managed and maintained for a fraction of the cost of a PC-based system.

Security you can trust

Security you can trust
The security offered by a Thin Client network is second-to-none. With important confidential data stored on the central server, the system is efficiently secured against viruses, hacks, and Internet attacks, thereby providing you with a cost- effective system that makes you and your customers feel fully protected at all times.

tech specs

TC190

Display

  • Screen Size
    19"
  • Brightness
    250 cd/m²
  • Contrast Ratio
    1,000:1
  • Resolution
    1,280 x 1,024
  • Response Time
    5
  • Viewing Angle (Horizontal/Vertical)
    170˚ / 160˚ (CR≥10)
  • Colour Supported
    16.7 Mil.

Signal Input

  • Video Signal
    Analog RGB
  • Sync Signal
    Separate H / V, Composite
  • Connector
    15pin D-sub

SHOW MORE SPECS

Power

  • Power consumption
    45 Watts
  • Stand-by Power (DPMS)
    < 2.7 Watt
  • Type
    Built-in

General Feature

  • Plug&Play
    DDC 2B
  • Cabinet Colour
    Black
  • Embedded Function
    [System] - CPU: AMD 210U (1.5G Hz) - OS: WES7 - Extra video memory (64MB) - DDR2 2G (optional) - Flash 4G (optional) [S / W] - Windows XP Service Pack 3 - Internet Explorer 7.0 - Microsoft RDP 6.1 - Citrix XenApp - 2X software - Altiris Deployment Software (Optional) [Connectivity] - Serial Port - Parallel Port - Headphone / Line out port, Microphone in port - USB2.0 * 4 - 1 Giga Ethernet - VGA in (for PC monitor), VGA out (for Dual Video)

Interface

  • Special
    4 x USB2.0

Dimension

  • Set Dimension with Stand (WxHxD)
    410.7 x 385.6 x 197.0mm
  • Set Dimension without Stand (WxHxD)
    410.7 x 344.4 x 74.0mm
  • Package Dimension (WxHxD)
    483 x 400 x 190mm

Weight

  • Package Weight
    - Weight > Shipment Weight (kg): [7.65kg]

Design

  • Wall Mount
    VESA 100㎜
  • Stand Type
    Swivel / Pivot / Height Adjustable
  • Stand Function
    VESA 100㎜

Support

User Manual

1.27 MB, pdf, ENGLISH

2011.12.06

Other Manuals (2)

Driver (1)

  • Device(Install)

    Win 98/ME/2K/XP/X64/Vista/Vista64, 0.05 MB, exe, MULTI LANGUAGE

    2009.10.08 tooltipbox

    Close tooltip pop-up
    1. Title
    Monitor Driver
    2. Applicable Model
    SyncMaster TC190
    3. Carrier or Corporate Customer
    Open Market
    4. Description
    If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64/Vista/Vista64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 98/Me/2000/XP/X64/Vista/Vista64
