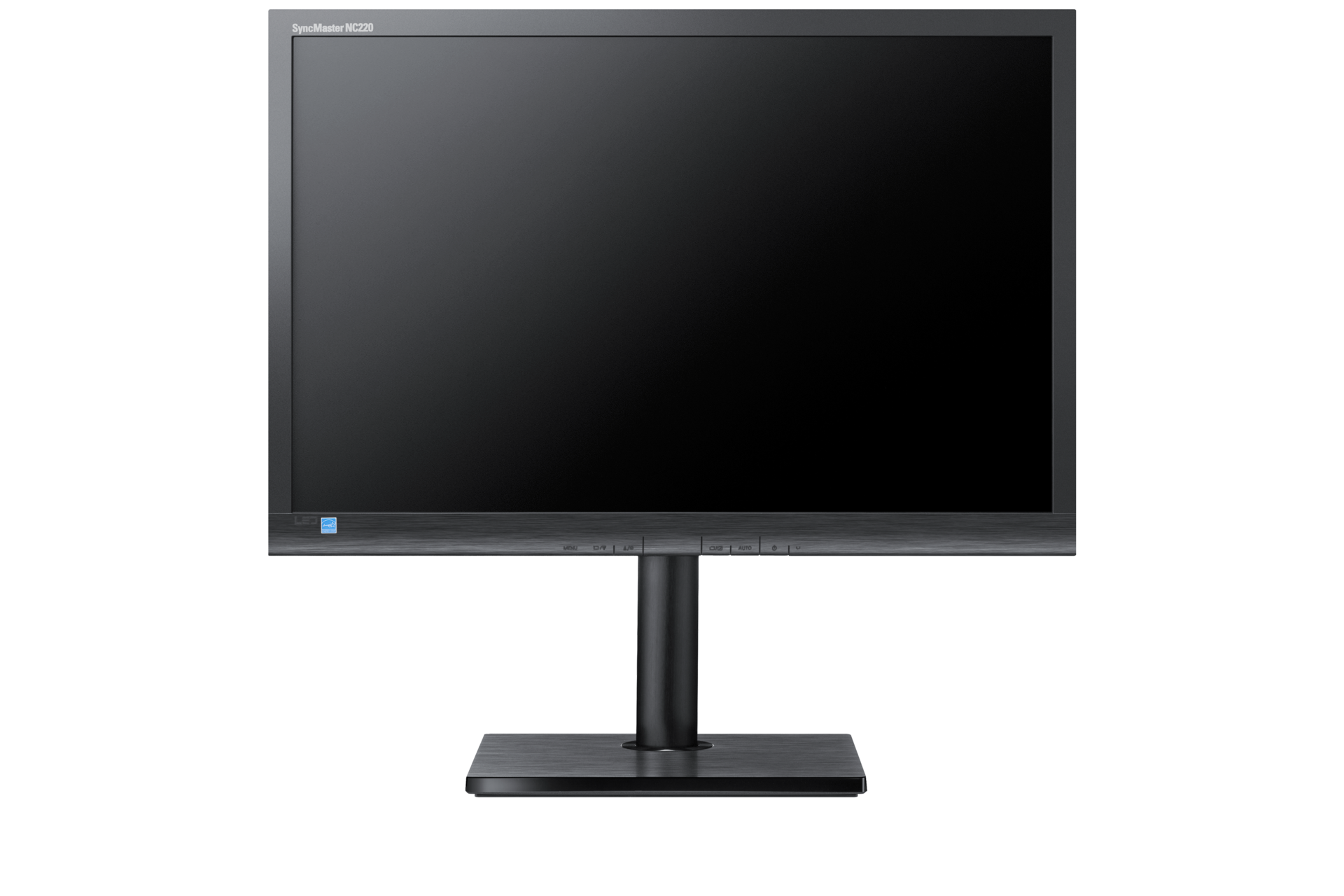

22inch LED Monitor C Series (NC220)

NC220

The Samsung C series allows you to benefit from the power of Samsung’s LED* display technology and the advantages of cloud computing. Designed specifically for business use. The Samsung C series achieves high levels in display performance with its picture quality and slim design. The display also offers Power over Ethernet (UPoE) capabilities (*NC models only) so you can power your display and access the Ethernet through a single cable. The C series can be powered down with one simple step. The display is available in two different models so you have the option of choosing the display that best addresses your business needs and requirements.
* Samsung LED TV’s utilise LCD screens with LED edge lights.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

22inch LED Monitor C Series (NC220)

Features

  • With the Samsung Zero Client monitor for VMware

Security you can trust

Security you can trust
Consolidate “almost all” of your resources on the data centre and deliver your applications and data over LAN / WAN via and encrypted protocol PColP to your zero client. Access your critical data and applications while they are maintained and controlled in the data centre

Little Maintenance

Little Maintenance
Because all software and data is stored on the centralised host platform. The network is easy to install and easy to maintain.
All-in-one design

All-in-one design

Screen. Its contemporary and innovative design ensures that keeping your work environment clean and tidy is simple. The benefit of not having a separate thin client box is that you can use your desk space in a productive manner. These innovative features come together perfectly for an all-in-one design that increases desktop space.
* Samsung’s LED TVs utilise LCD Screens with LED edge lights.
VMware Certified PCoIP Cloud Monitor

VMware Certified PCoIP Cloud Monitor

Innovative PCoIP technology allows consolidation of most of your IT resources into a data centre, and provides high-performance computing via the IP network without reduction in performance or information, this provides a virtualised set of hardware to the operating system. It lets you run virtual multiple machines .At the desktop, the integrated PCoIP portal decompresses and distributes video, audio and data contents while preserving high performance and real-time graphics.
Access to superior graphics

Access to superior graphics

Superior graphics are enabled by the PCoIP protocol, giving users access to full performance graphics from VMware View enabled virtual machines. Full 3D modelling graphics are also available when using PCoIP enabled workstation platforms or PCoIP Host cards in standard PC’s in conjunction with a GPU.

tech specs

NC220

Display

  • H-Scanning Frequency
    31 ~ 80kHz
  • V-Scanning Frequency
    56 ~ 75Hz

Panel

  • Diagonal Size
    22"
  • type
    A-Si TFT active matrix
  • Resolution
    1,680 x 1,050
  • Pixel Pitch (mm)
    0.282 (H) x 0.282 (V)
  • Active Display Area
    473.76 (H) x 296.1 (V)
  • Brightness
    250cd/sq.m
  • Contrast Ratio (Dynamic)
    10,000:1
  • Viewing Angle (Horizontal/Vertical)
    170 / 160 deg (CR ≥ 10)
    178 / 178 deg (CR ≥ 5)
  • Response Time (G-to-G)
    5ms
  • Display Colour
    16.7million
  • Contrast Ratio
    1,000:1

SHOW MORE SPECS

Connectivity

  • Input
    RGB
    RGB-in (Analog-in)
    Video
    No
    Audio
    Yes
  • Output
    RGB
    No
    Video
    DVI-out (for Dual, Digital-out)
    Audio
    Yes
    Power Out
    No
  • External Control
    No
  • External Sensor
    No

Mechanical Specification

  • Dimension
    Set Dimension (WxHxD)
    508.0 x 388.4 x 197.0mm (with Stand)
    508.0 x 388.4 x 50.5mm (w / o Stand)
    Package Dimension (WxHxD)
    585 x 422 x 167mm
  • Weight
    Set Weight
    5.0kg
    Package Weight
    6.1kg
  • VESA Mount
    100 x 100
  • Stand Type
    HAS Stand (Function: HAS 130mm, Tilt, Swivel)

Operation

  • Operating Temperature
    10°C ~ 40°C
  • Humidity
    10%~80%

General Feature

  • Key
    LED backlight, No local O / S

Power

  • Power Supply (V)
    External Adaptor
  • Power consumption
    Off Mode
    0W (Mechanical switch off)
    On Mode
    35W (idle), 51W (max.)
    Sleep Mode
    No sleep mode for NC products
  • type
    External Adaptor

Accessory

  • Included
    - User Manual
    - Power Cord
    - Adaptor
    - Quick Setup Guide
    - Warranty Card

Embedded PC

  • CPU
    Teradici Tera1100
  • Ethernet
    10 / 100 / 1,000
  • Connectivity
    USB
    USB 1.1 x 4EA
    Output
    (1) Video Out (DVI, for dual)
    (2) LAN 2EA (RJ 45, Giga) (function: LAN hub)
    (3) Audio (HeadPhone)
    (4) Serial Port
    (5) Optional Built-in Speaker (1.5W x 2)

Certification

  • EMC
    Yes
  • Environment
    Yes
  • Safety
    Yes

Support
