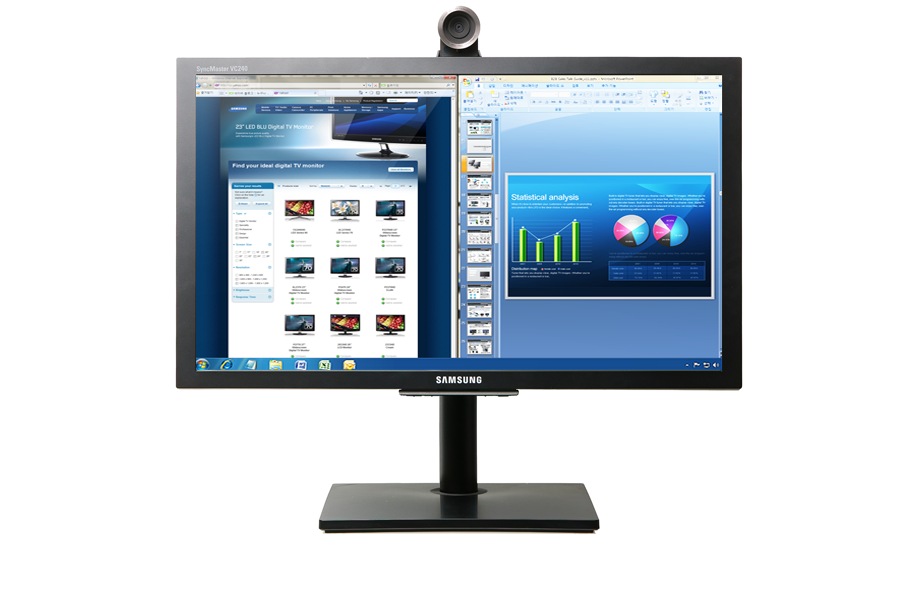

24 inch Video Conferenecing Display (VC240)


Have your next meeting on your desktop. The Samsung VC240 23.6" widescreen LCD display gives you HD video conferencing, displaying high-definition video, integrated stereo speakers and dual echo-cancelling mics for clear, crisp sound on both ends. The versatile VC240 can also function as a PBX terminal, and allow you to add a receiver and dial pad. What can't it do?

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

24 inch Video Conferenecing Display (VC240)


  • 24” Video Conference monitor: All-in-one
  • Clear communication with high quality HD
  • Switch from VC to PC with ease
  • Enjoy clarity with premium stereo speakers

PC-free HD video processing

PC-free HD video processing
The versatile Samsung VC240 is capable of operating as a PC-free videophone, allowing you to communicate clearly without having to boot up your PC. It also presents full HD video independently, enabling other applications to be processed more smoothly by your PC.

Communicate with HD clarity

Communicate with HD clarity
High quality HD video-conferencing is made available by the Samsung VC240’s array of advanced audio-visual technologies, creating clearer communication with seamless HD integrity.
The all-in-one communication solution

The all-in-one communication solution

With its sensational 23.6” LCD widescreen, HD camera, premium stereo speakers, and dual echo-cancelling microphones, the Samsung VC240 monitor performs perfectly as either a stand-alone HD desktop video-conferencing system or as a precision PC monitor.

VC to PC with ease

VC to PC with ease
The Samsung VC240 performs to perfection as an HD PC monitor. With its 1920 x 1080 resolution, fast 5ms response time, and ultra-high contrast and brightness levels, it allows you to switch between HD video-conferencing and PC applications with ease.

tech specs

VC240 23.6" Video Conferencing Monitor


  • Screen Size
  • Brightness
  • Contrast Ratio
  • Resolution
    1920 x 1080
  • Response Time
  • Viewing Angle (Horizontal/Vertical)
    170˚ / 160˚ (CR ≥10)
  • Colour Supported

Signal Input

  • Video Signal
    Analog RGB & DVI-D
  • Sync Signal
    Separate H / V, Composite
  • Connector
    15pin D-sub & DVI



  • Power consumption
    < 85 Watts
  • Stand-by Power (DPMS)
    < 3 Watt
  • Type

General Feature

  • Plug&Play
    DDC 2B
  • OS Compatibility
  • Cabinet Colour
    Black / Black
  • Embedded Function
    [VoIP Feature] - video: H.264 (@30fps)
    - Resolution: 720p, 4 CIF(576p), 4 SIP(480p), CIF, SIP
    - Deblocking & Decoder Robustness - Audio: G.722.1, G.722, G.711, G.729
    - ACE: Acoustic Echo Cancellation
    - AGC: Automatic Gain Control
    - Adaptive Jitter Buffer
    - SIP Bandwidth: Up-to 2Mbps
    - Additional Function:
    - Phone Book List
    - Call History
    [ Connectivity]
    - 2 Port internal Ethernet Switch (10 / 100 Mbps)
    - Headphone Out
    - Mic. In / Stereo Audio In


  • Special
    1 X USB1.1 (for only software up-date)
  • Audio In/Out
    3W x 2


  • Set Dimension with Stand (WxHxD)
    568.6 x 440.0 x 226.0mm
  • Set Dimension without Stand (WxHxD)
    568.6 x 397.4 x 77.7mm
  • Package Dimension (WxHxD)
    650 x 460 x 192mm


  • Package Weight
    10.75 kg


  • Wall Mount
    VESA 100mm (VESA 100mm x 200mm also available)
  • Stand Type
    Swivel / Height Adjustable


Open Source Guide

0.3 MB, pdf, ENGLISH

2010.01.19 tooltipbox

Close tooltip pop-up
Open Source License Notice

For open source license, refer to open source notice of Product Manual.

Other Manuals (2)

Driver (1)

  • Device(Install)

    Win 98/ME/2K/XP/X64/Vista/Vista 64/Win7/Win7 64, 7.91 MB, exe, MULTI LANGUAGE

    2009.12.02 tooltipbox

    Close tooltip pop-up
    1. Title
    Monitor Driver
    2. Applicable Model
    SyncMaster VC240
    3. Carrier or Corporate Customer
    Open Market
    4. Description
    If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64/Vista/Vista64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 98/Me/2000/XP/X64/Vista/Vista64 /Windows7(32bit/64bit)
