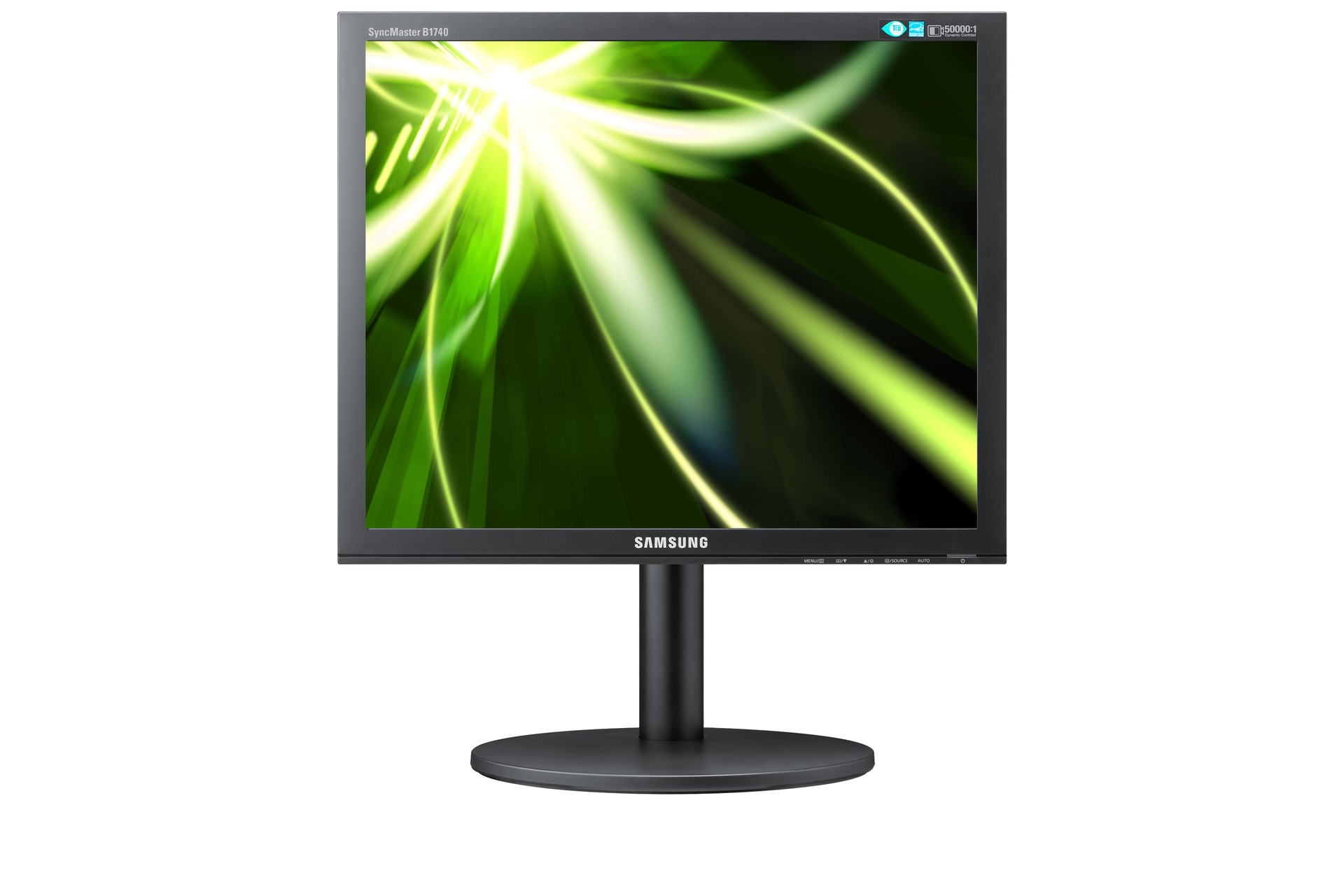

17inch LCD Business Monitor (B1740R)

B1740R

Samsung is changing the way companies run their business. Samsung's Monitors are ergonomically-advanced business enhancement tools that will boost productivity, efficiency and increase satisfaction among the workforce.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

17inch LCD Business Monitor (B1740R)

Features

  • 17" display
  • 5ms response time
  • 1,280 x 1,024 resolution

Control brightness, conserve energy.

Control brightness, conserve energy.
Magic Eco makes saving energy easy. It adjusts Samsung monitor’s brightness based on how much energy you want to save. You have four energy saving options to choose from: 100%, 75%, and 50% power consumption as well as ‘power saving off’. If Magic Eco is turned off, you still enjoy the option of using Samsung’s Magic Bright feature, engineered to let you manually adjust the screen’s brightness. Take the effort out of saving energy and take control with Magic Eco.

A monitor that takes the initiative to share.

A monitor that takes the initiative to share.
With Samsung’s Magic Return you never have to worry about your second monitor losing content. If the cable disconnects and the signal disappears, Magic Return automatically transfers the content from that screen to the other monitor before turning off. There’s no magic here. We just have content sharing down to a science.

Reduce eyestrain. Enhance your viewing experience.

Reduce eyestrain. Enhance your viewing experience.
How do you like to watch movies? Do you like lying down on the couch? Sitting in your favourite chair? Cooking or exercising? Whether you’re standing, sitting or lying down, Samsung’s Magic Angle makes sure that the movie always takes centre stage. And that you’re always comfortable. Wherever you place the Samsung monitor, its 5-mode angle management allows you to extend its viewing angle so the screen always appears as if viewed face-on. So stop craning your neck and start enjoying the movie.

Picture Perfection.

Picture Perfection.
HDCP, or High-bandwidth Digital Content Protection, is Samsung’s innovative way of protecting the integrity of the content that’s being transmitted to your monitor through the DVI interface. This naturally delivers the highest resolution images, allowing you to enjoy 100% pure digital content, all the time.

Feel the Effects of Colour

Feel the Effects of Colour
Enhance images your way using Samsung’s advanced ColourEffect feature. Open your eyes to a completely customized viewing experience as you play with photographic effects that match your mood. Choose from Aqua, Sepia, Green and Greyscale to interact with your display in a whole new way - namely, yours.

The Smart Size.

The Smart Size.
Why should seeing the whole picture be a stretch, or for that matter, a distorted facsimile of the original? With Samsung’s intelligent adjustable image size function, you’ll be able to enjoy images exactly as they were intended, by portraying standard sized content in its original format, on a wider screen.

Customise Your Control.

Customise Your Control.
Samsung’s innovative custom key feature puts enhanced entertainment at your fingertips, literally. By allowing you to assign your favourite function to the customised key, your favourite features are accessed in a flash. Will your customised key bring you Magic Bright, Magic Colour, Colour Effect, or the Image Size function? The beauty is, you decide.

Goes Off by Itself.

Goes Off by Itself.
Samsung Monitors aren’t just high performers. They’re eco-friendly, efficiency experts as well. The automatic off timer allows users to save energy by setting the monitor to turn itself off at a specified time. As an added benefit, this ensures optimal performance for lasting reliability and extended life.
Get into the details

Get into the details

The differences make all the difference. That’s why the Samsung ultra-high 50,000:1 Dynamic Contrast ratio automatic backlight adjustment creates deeper, more dramatic dark tones and brighter, more striking light tones. Now you can enjoy images that echo reality with rich, vivid colour and brilliant natural intensity. When it comes down to the details, conventional monitors simply pale in comparison.
Perfect high speed performance

Perfect high speed performance

With a response time of 5ms, you can be sure that your monitor will perform perfectly, even in the fastest moving scenes. This stunning, seamless motion imaging presents movies, games, and internet streamed content with precision and without the motion judder, blurring, and ghosting that can occur on a slower monitor, allowing you to enjoy a completely immersive viewing experience.
Windows® 7

Windows® 7

The Samsung monitors have been tested to meet all of the technical requirements to be Compatible with Windows® 7. Meets Windows® Colour System standards for consistent and accurate colour across multiple mediums. Enjoy true to life colour on your screen.
MagicBright 3™

MagicBright 3™

Control your screen’s display with just one click. MagicBright 3™ automatically optimises brightness, contrast and gamma correction, based on the mode you choose.
TCO Display 5.0 certified

TCO Display 5.0 certified

Meeting the strict environmental requirements of the TCO Display 5.0 standard, the Samsung monitors represent the cutting-edge of responsible design and manufacture, ensuring the health of both users and the planet.
TCO 03

TCO 03

Satisfied Energy, Emission, Ecology and Ergonomics standards. The most strictest international safety standard for monitors.

tech specs

B1740R

Display

  • Screen Size
    17 inch
  • Brightness
    250cd/m²
  • Contrast Ratio
    DC 50,000:1 (Typ. 1,000:1)
  • Resolution
    1,280 x 1,024
  • Response Time
    5ms
  • Viewing Angle (Horizontal/Vertical)
    170˚ / 160˚ (CR > 10)
  • Colour Supported
    16.7M

Signal Input

  • Video Signal
    Analog RGB, DVI
  • Sync Signal
    Separate H / V, Composite, SOG
  • Connector
    15pin D-SUB, DVI-D

SHOW MORE SPECS

Power

  • Power consumption
    20W
  • Stand-by Power (DPMS)
    < 0.3W
  • Type
    Built-in

General Feature

  • Plug&Play
    DDC 2B
  • OS Compatibility
    Yes
  • Energy/Environment Mark
    TCO'5.0 / TCO'03
  • Cabinet Colour
    Black
  • Accessories
    DVI Cable
  • Embedded Function
    MagicBright3, MagicEco, MagicAngle, MagicReturn, Off timer, Image Size Colour Effect, Customised key, Windows7, DVI with HDCP

Interface

  • Special
    No
  • Audio In/Out
    No

Dimension

  • Set Dimension with Stand (WxHxD)
    373.5 x 330.4 x 149.6mm
  • Set Dimension without Stand (WxHxD)
    373.5 x 314.5 x 68.0mm
  • Package Dimension (WxHxD)
    458 x 188 x 387mm

Weight

  • Package Weight
    5.5 kg

Design

  • Wall Mount
    75 x 75mm
  • Stand Type
    100mm HAS
  • Stand Function
    Tilt

Support

User Manual

4.64 MB, pdf, ENGLISH

2010.08.05

Other Manuals (1)

Driver (1)

  • Device(Install)

    Win 98/ME/2K/XP/X64/Vista/Vista 64/Win7/Win7 64, 7.91 MB, exe, MULTI LANGUAGE

    2010.03.23 tooltipbox

    Close tooltip pop-up
    1. Title
    Monitor Driver
    2. Applicable Model
    SyncMaster B1740R
    3. Carrier or Corporate Customer
    Open Market
    4. Description
    If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64/Vista/Vista64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows 98/Me/2000/XP/X64/Vista/Vista64 /Windows7(32bit/64bit)
