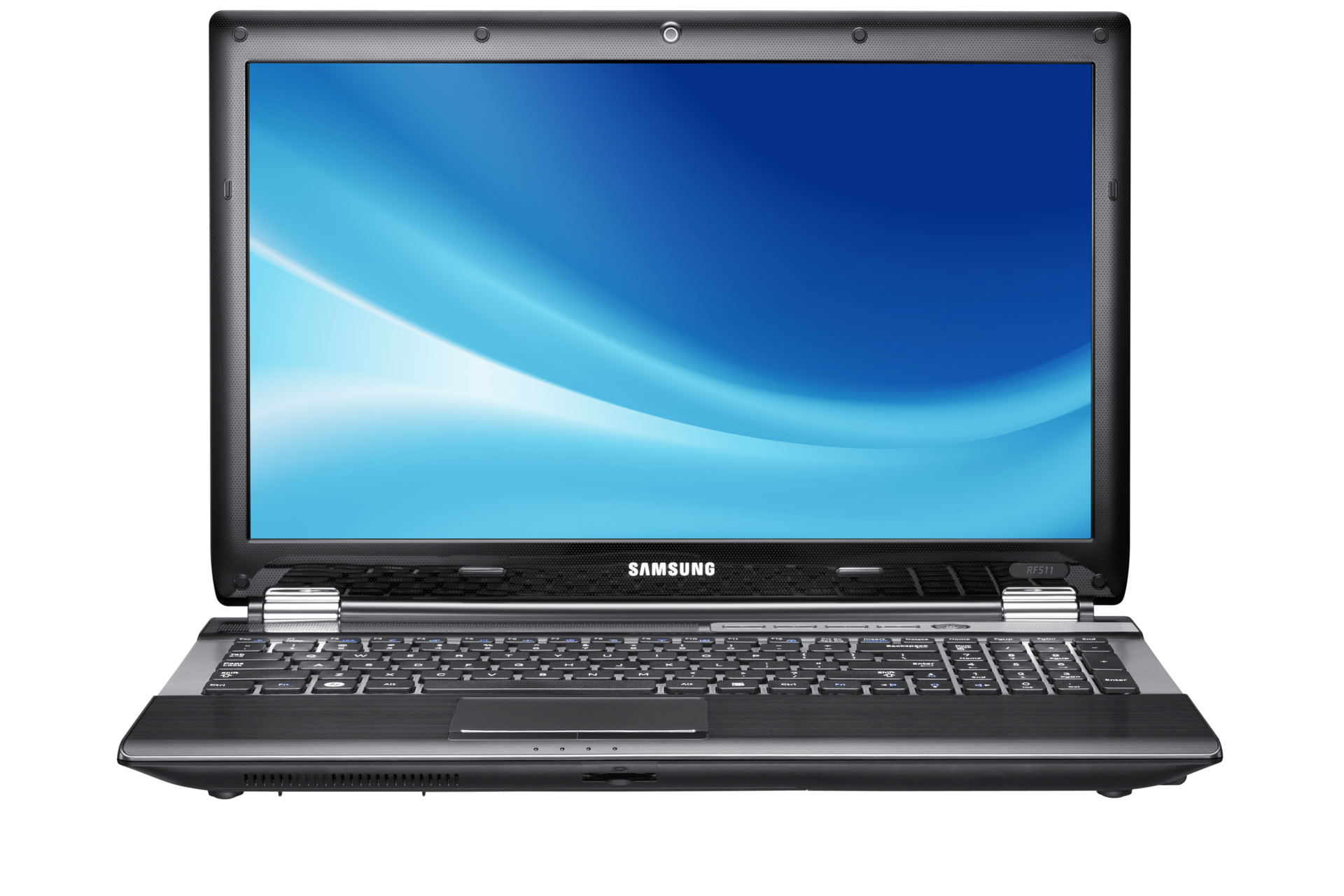

15.6inch Performance Notebook (RF511-S03AU)

NP-RF511

Behind the Samsung RF Series notebook’s stylish, yet minimalist looks, lies a world of rapid interactivity and stunning multimedia. You can experience amazing in gaming and high definition (HD) multimedia thanks to a 15.6” HD LED SuperBright display*, with up to 300nit brightness and 16 million colours. It also sounds just as good thanks to the immersive audio of its unique Enhanced Acoustic Chamber system. And to make sure you always get great performance, the latest Intel® Core™ i7 Processor* automatically allocates processing power where it’s needed most.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

15.6inch Performance Notebook (RF511-S03AU)

Features

  • Premium performance with maximum storage and speed.

Faster file transfers with USB 3.0.

Faster file transfers with USB 3.0.
Samsung knows that the importance of easy and fast file transfers is paramount for PC users. For this reason, the latest USB 3.0 port has been designed to deliver speed, while keeping its compatibility with USB 2.0 / 1.1 devices. It almost sounds too good to be true.

Immerse yourself in realistic 3D audio with SRS Premium Sound.

Immerse yourself in realistic 3D audio with SRS Premium Sound.
Samsung has combined its latest acoustic technology with SRS Premium Surround Sound to deliver a rich and clear audio experience. The enhanced Acoustic Chambers strengthens low-pitch sounds, allowing you to enjoy your music, movies and games. The RF511 provides enhanced bass, crystal clear dialogue and great definition control for maximum clarity at higher frequencies.

Bring your multimedia to life with HD resolution sharpness and clarity.

Bring your multimedia to life with HD resolution sharpness and clarity.
The RF511 with SuperBright 300nit LED display is providing sharp images and bold colours. Its widescreen 16:9 aspect ratio also ensures that you are able to enjoy the most accurate representation of HD movies and games, without annoying black bands.

Premium connectivity with Bluetooth 3.0 High Speed.

Premium connectivity with Bluetooth 3.0 High Speed.
Enjoy wireless transfer of media and other data between your compatible electronic devices — audio, video, print data and more, with an upgraded Bluetooth 3.0 High Speed delivering higher data transmission speeds (24Mbps), 8x faster than Bluetooth 2.1 (3Mbps) and enhanced power control for extended battery life.
Take multi-tasking to a whole new level with Intel® Core™ i7 Processor.

Take multi-tasking to a whole new level with Intel® Core™ i7 Processor.

With intelligent processing for processor-demanding tasks, the new Intel® Core™ i7 Processor (up to Quad Core) delivers speed and efficiency. Supported by Intel® Intelligent Power Technology and Turbo Boost Technology, it optimizes power usage by automatically allocating it where it is needed, thus, perfectly suited for heavy multitasking. So whether you're creating HD videos, composing digital music, editing photos, or playing the latest 3D PC games, the RF511 notebook delivers every time.
Superior 3D Graphics with NVIDIA GeForce GT 540M

Superior 3D Graphics with NVIDIA GeForce GT 540M

Optimized for Windows 7, the 2GB (1GB dedicated) NVIDIA GeForce GT540M (Optimus) memory offers next-gen 3D graphics rendering capability for unparalleled realism, speed, and of course processing power in every facet of the computing experience, especially 3D gaming, 3D image, and HD content viewing. If that’s not enough, then add-in the latest DirectX (10.1) and Shader Model (4.1) interfaces and you’ll quickly see just how much capability and power the RF511 notebook and its NVIDIA GeForce GT540M (Optimus) will put at your fingertips.

Hands on Product Review

Sleep-and-Charge USB

Sleep-and-Charge USB

Pack one less cord on your next trip. The Samsung RF511 lets you charge many of your portable devices, such as your Smart Phone or MP3 player, right through its USB charging port. And your notebook doesn't even have to be turned on.
Fast start

Fast start

In an advanced sleep mode, your notebook saves and stores data onto the HDD as well as memory. When you flip your notebook screen upright, Fast Start brings your computer back to the way you left it—within seconds.

AllShare™

AllShare™

Samsung AllShare™ with DLNA technology lets you share and play multimedia content from your AllShare™ device directly with another AllShare™supported device like TVs, PCs, notebook PCs, even mobile phones.


Data back-up

Data back-up

In the case of sudden loss of power, your notebook is equipped with the Samsung Recovery Solution, which automatically creates system restore points on your HDD, allowing you to continue where you left off while improving the overall stability of your notebook.
* Factory Option

tech specs

RF511-S03AU

Operating System

  • Operating System
    Windows® 7 Home Premium (64-bit)

Processor

  • Processor
    Intel® Core™ i7 Processor 2630QM (2.00Hz, 6MB)

SHOW MORE SPECS

Display

  • LCD
    15.6" LED HD (1,366 x 768) 16:9 300nit Gloss

Physical Specifications

  • Dimension (WxDxH)
    379.6 x 255.5 x 31.4 ~ 37.0mm (14.9" x 10.0" x 1.23" ~ 1.45")
  • Weight
    2.6kg (5.73lbs)

Graphic

  • Graphic Processor
    NVIDIA® Geforce™ GT 540M (Optimus)
  • Graphic Memory
    1GB DDR3 (Ext. Graphic)

Memory

  • System Memory
    6GB (DDR3 / 4GB x 1 + 2GB x 1 )
  • Memory Slot
    2 x SODIMM

Storage

  • HDD
    750GB (5,400rpm S-ATA)
  • ODD
    BluRay (S-ATA)
  • Intel Turbo Memory
    No

Main Chipset

  • Main Chipset
    Intel HM65

Multimedia

  • Sound
    HD (High Definition) Audio
  • Sound Effect
    SRS Premium Sound Effect
    Mic Noise Suppression
  • Multimedia Player
    Cyberlink Power DVD
  • Speaker
    3W Stereo Speaker (1.5W x 2)
  • TV
    No
  • Integrated Camera
    1.3 megapixel HD Webcam

Infra

  • Modem
    No
  • Wired Ethernet LAN
    Gigabit LAN
  • Wireless LAN Ready
    802.11bg/n
  • Bluetooth
    Bluetooth V3.0 High Speed

I/O Port

  • VGA
    Yes
  • S-Video (TV-out)
    No
  • HDMI
    Yes
  • Headphone Out
    Headphone-out
  • Mic-in
    Yes
  • Internal MIC
    Yes
  • PC CardBus Slot
    No
  • USB
    2 x USB 3.0 + 2 x USB 2.0
    (Chargable USB included)
  • Multi Card Slot
    4-in-1 (SD, SDHC, SDXC, MMC)
  • Dock Port
    No
  • SIO
    No
  • IEEE 1394
    No
  • RJ11 (Modem)
    No
  • RJ45 (LAN)
    Yes
  • TV Antenna
    No
  • DC-In (Power Port)
    Yes

Input Device

  • Keyboard
    103 Key
    104 Key
  • EZ BLU Keys
    Fn+F8 (Easy SpeedUp Manager)
    Fn+F7 (Samsung Support Centre)
  • Touch Pad, Touch Screen
    Touch Pad (Scroll Scope, Flat Type)

Security

  • TPM
    No
  • AMT
    No
  • FingerPrint Reader
    No
  • Virus
    Norton Internet Security (60-day Trial)
  • Security
    BIOS Boot Up Password
    HDD Password
  • Lock
    Kensington Lock Port
  • Recovery Solution
    Samsung Recovery Solution

Power

  • AC Adapter
    90 watts
  • Standard Battery
    6 Cell (48Wh)

Software

  • Standard DVD
    OS DVD
  • Installed S/W
    Samsung Update Plus
    Easy Display Manger
    Easy Battery Manager
    Easy Network Manager
    Easy SpeedUp Manager
    Adobe Acrobat Reader
    Microsoft Office Starter 2010
    Samsung Support Centre
    Microsoft Office Starter 2010

Support

Trouble Shooting Guide

5.45 MB, exe, ENGLISH

2011.06.17

Software (24)

  • Battery Life Extender

    Win XP, 13.09 MB, ZIP, MULTI LANGUAGE

    2011.02.25 tooltipbox

    Close tooltip pop-up
    This is a battery management program that extends the battery life time. The settings can be changed depending on the user''s environment.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks.
  • Chargeable USB

    Win XP, 25.37 MB, zip, MULTI LANGUAGE

    2011.02.25 tooltipbox

    Close tooltip pop-up
    This is a program that can be used to charge a device through a USB port even when your computer is shut down or in Standby mode.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks.
  • Easy Display Manager

    Win XP, 19.87 MB, ZIP, MULTI LANGUAGE

    2011.02.25 tooltipbox

    Close tooltip pop-up
    This is a setup program provided for Samsung computers. You can adjust the screen brightness, control the volume, and set an external monitor screen using hotkeys.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks.
  • Easy SpeedUp Manager

    Win XP, 5.42 MB, zip, MULTI LANGUAGE

    2011.02.25 tooltipbox

    Close tooltip pop-up
    This is a program that allows your computer to operate at maximum performance or that sets your computer to Low Noise/Low Power mode using a hotkey.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks.
  • MS Hotfix Security

    Win XP, 24.04 MB, zip, MULTI LANGUAGE

    2011.02.25 tooltipbox

    Close tooltip pop-up
    Please referece the below install steps.

    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks.
  • Recovery Solution

    Win XP, 101.24 MB, ZIP, MULTI LANGUAGE

    2011.02.25 tooltipbox

    Close tooltip pop-up
    When a problem has occured on your computer, this program allows you to recover the content on your hard disk using a backed up image stored on your computer.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks.
  • SAMSUNG Battery Manager

    Win XP, 4.75 MB, zip, MULTI LANGUAGE

    2011.02.25 tooltipbox

    Close tooltip pop-up
    This is a power management program that helps use the battery more efficiently. Optimized power modes are supported depending on the usage environment.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks.
  • Samsung Support Center

    Win XP, 27.32 MB, ZIP, MULTI LANGUAGE

    2011.02.25 tooltipbox

    Close tooltip pop-up
    This is a troubleshooting helper provided by your Samsung computer. It has a system diagnosis function, an Internet After-Sales function, and a system recovery function.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks.

Driver (27)

  • Touchpad

    Win XP, 167.86 MB, ZIP, MULTI LANGUAGE

    2012.08.20 tooltipbox

    Close tooltip pop-up
    Please referece the below install steps.

    1. If you have any pre-installed touch pad driver, please remove it first.(In the case you formatted the HDD and install new driver, please go to step3.)
    * By click the menu [Control Panel -> Add / Remove Programs], you can find whether your system has a pre-installed touch pad driver.
    * If you find [Synaptics Pointing Device Driver] or [ETDWare PS/2 x86...] in the list [Control Panel -> Add / Remove Programs], please remove them. By double-clicking the driver name in the list, you can delete them.

    2. Reboot the System after removing the pre-installed touch pad driver.

    3. Install the new touchpad driver you''ve downloaded.

    4. Please boot your system again.

    - This driver may not be appropriate depending on the computer model.

    Thanks.
  • Qualcomm Atheros WLAN Driver

    Windows 7(32bit,64bit), 74.16 MB, ZIP, MULTI LANGUAGE

    2012.07.11 tooltipbox

    Close tooltip pop-up
    This driver is Atheros Wireless Lan.

    Please referece the below install steps.
    1.Click the attached file and press ''''Save'''' button. Then press ''''Browse...'''' button and select the place where you want to save the selected file.
    2.After downloading the file, find the downloaded file and right_click on the file. On pop_up menu, select ''''Extract All...'''' option.
    3.On ''''Extraction Wizard'''', press ''''Next'''' button and press ''''Browse...'''' button. Select a folder to extract file and press ''''Next'''' again.
    4.After the file has been sucessfully extracted, see the extracted files. Run ''setup.exe.''

    - This driver may show a different version or not be appropriate depending on the computer model.
    (Driver version: 9.2.0.500 / 10.0.0.54)

    Thanks.
  • Bluetooth

    Win XP, 101.21 MB, ZIP, MULTI LANGUAGE

    2011.11.28 tooltipbox

    Close tooltip pop-up
    This driver is Bluetooth.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This driver may not be appropriate depending on the computer model.

    Thanks.
  • Camera

    Win XP, 2.27 MB, ZIP, MULTI LANGUAGE

    2011.11.28 tooltipbox

    Close tooltip pop-up
    This driver is Camera.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This driver may not be appropriate depending on the computer model.

    Thanks.
  • Chipset

    Win XP, 2.54 MB, ZIP, MULTI LANGUAGE

    2011.11.28 tooltipbox

    Close tooltip pop-up
    This driver is Chipset.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This driver may not be appropriate depending on the computer model.

    Thanks.
  • HECI

    Win XP, 3.86 MB, ZIP, MULTI LANGUAGE

    2011.11.28 tooltipbox

    Close tooltip pop-up
    This driver is HECI.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This driver may not be appropriate depending on the computer model.

    Thanks.
  • VGA(Graphics),INTEL

    Win XP, 22.43 MB, zip, MULTI LANGUAGE

    2011.11.28 tooltipbox

    Close tooltip pop-up
    This driver is Intel Internal Graphic.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This driver may not be appropriate depending on the computer model.

    Thanks.
  • Lan

    Win XP, 5.11 MB, ZIP, MULTI LANGUAGE

    2011.11.28 tooltipbox

    Close tooltip pop-up
    This driver is LAN.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This driver may not be appropriate depending on the computer model.

    Thanks.

Firmware (1)

  • Update Software

    Windows 7, 2.11 MB, exe, MULTI LANGUAGE

    2011.07.28 tooltipbox

    Close tooltip pop-up
    This is the program that help you update the BIOS.

    [How to update the BIOS]
    1. Please click the attached file and select the ''download''. Save the file in a folder and double click it.
    2. After activating the file, you can see the Windows messages. Please follow the steps and the BIOS update process will start.
    3. After BIOS update, the System will restart automatically. During the POST, please press F2 to enter the System Setup menu, click F9(Load Setup Default), and then press F10(Save and Exit).

    CAUTION : MAKE SURE NEVER TURN OFF(OR RESET) YOUR SYSTEM DURING THE BIOS UPDATE.

    Thank you.

SW Update

Using the SW Update function, you can easily download and install Windows 8 device drivers and software.

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu Viewer

Have a question or need product support? Go to our support section

  • NEWEST
  • MOST HELPFUL
  • HIGHEST RATING
  • LOWEST RATING
