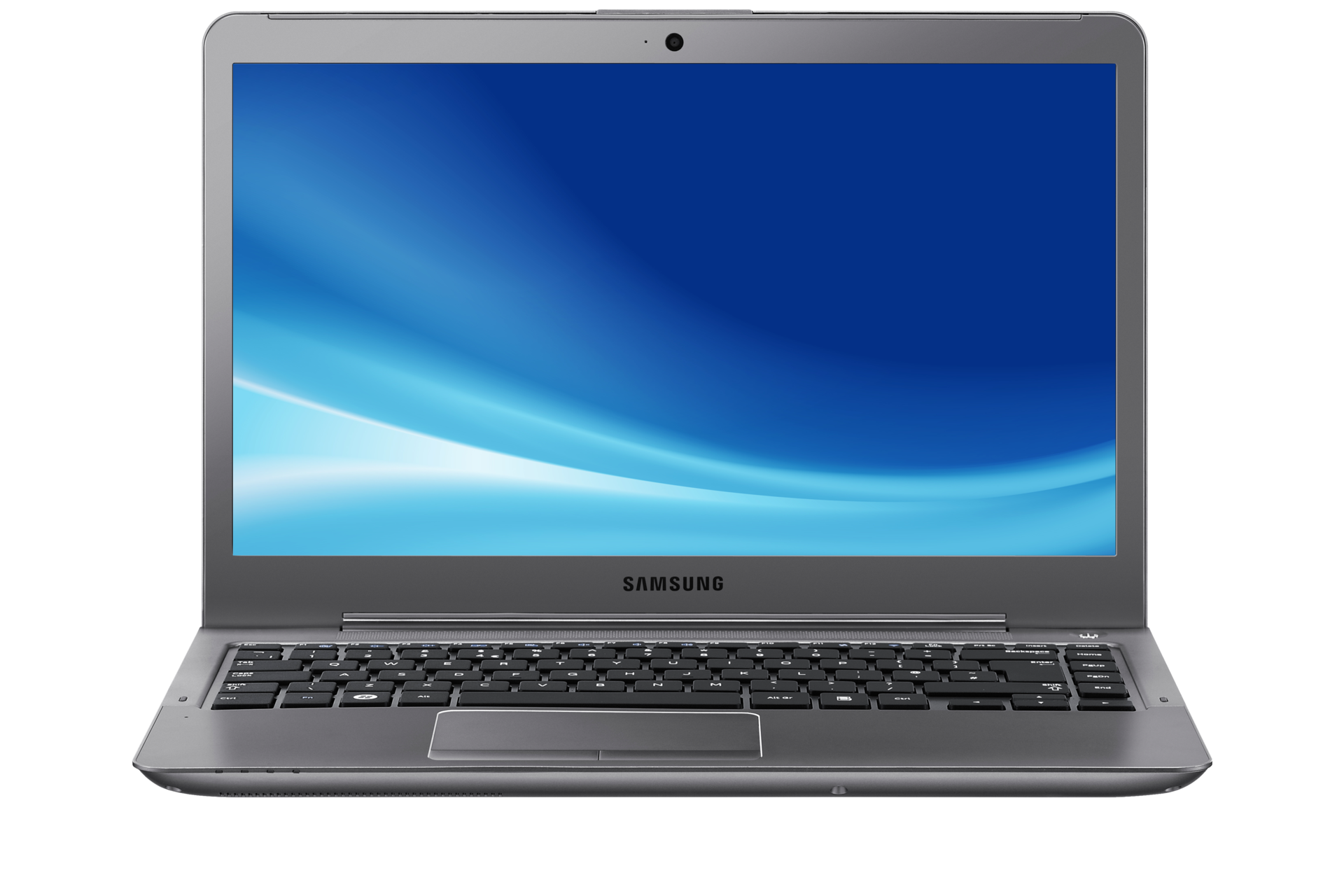

14inch Performance Notebook (530U4B-S01AU)

NP530U4BH



Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

14inch Performance Notebook (530U4B-S01AU)

Features

  • High Performing Ultrabook

Ports Information

Ports Information

Samsung Fast Solutions

Samsung Fast Solutions
You can work and play even more efficiently with the blazingly fast performance of the Samsung Series 5 ULTRA. With Fast Boot the computer boots-up in just 20 seconds while Fast Wakeup wakes form sleep in a few seconds. * Speed will vary depending on the configuration, applications used and wireless settings. * Boot-up time is based on HDD models.

Samsung Display Technology

Samsung Display Technology
Every photo, video, website and document just looks stunning with the Samsung Series 5 ULTRA’s 14.0” HD SuperBright screen, Image Enhancer technology and powerful AMD Radeon™ HD7550M (1GB) graphics*. Your eyes will feel less tired with 40% brighter screen and it’s also anti-reflective, so you can see everything clearly even in the sunshine.

Expandable and upgradable features

Expandable and upgradable features
Not having the right tools can really hamper your ability to work efficiently. The Samsung Series 5 ULTRA includes a hybrid HDD (up to 500GB) to help you multi-task effectively. Plus it includes a full HDMI port, VGA port and integrated optical disk drive.

On the Go

On the Go
Now you need never worry about unexpectedly having to stop work. The Samsung Series 5 ULTRA delivers up to 6.5 hours* of power on a single charge. So whether you’re on a flight or at your favourite café you can stay focused on your work – or having fun! And Samsung’s BatteryLife Plus technology extends the battery life up to 1,500 recharge cycles. * Battery life based on MobileMark test scores that will vary based on configuration.
The Power of a High Performance Notebook

The Power of a High Performance Notebook

Having an ultra-portable notebook has always meant sacrificing storage – until now. Unlike other slim notebooks the Samsung Series 5 ULTRA has a huge amount of space for your files and an integrated Optical Disk Drive (ODD). Its ultra large capacity HDD can store up to 500GB of data, so can always enjoy your favourite music, pictures and movies. * SSD models are also available.

Professional Durability & Style

Professional Durability & Style
The Samsung Series 5 ULTRA unites professional style and durability. The sophisticatedly simple and refined exterior is a cool metallic aluminium, while the underside is made with fibber glass that’s light but resistant to wear and tear.
The Ultimate Design for On the Go

The Ultimate Design for On the Go

Carrying a heavy notebook is always a big burden, especially for professionals who are always on the road. The Samsung Series 5 ULTRA is amazingly portable and perfectly designed for a mobile life. Because it’s remarkably thin and light it’s easy to take it with you anytime and almost anywhere – so you’ll always have your own office.

tech specs

530U4B-S01AU

Operating System

  • Operating System
    Windows® 7 Home Premium (64-bit)

Processor

  • Processor
    Intel® Core™ i5 Processor 2467M (1.60GHz, 3MB L3 Cache)

SHOW MORE SPECS

Display

  • LCD
    14.0" SuperBright 300nit HD LED Display (1,366 x 768), Anti-Reflective

Physical Specifications

  • Dimension (WxDxH)
    333.0 x 229.5 x 20.9mm (13.10" x 9.00" x 0.82")
  • Weight
    1.79kg (3.94lbs)

Graphic

  • Graphic Processor
    AMD Radeon™ HD7550M
  • Graphic Memory
    1GB DDR3 (Ext. Graphic)

Memory

  • System Memory
    4GB DDR3 System Memory at 1,333MHz (on BD 4GB)
  • Memory Slot
    1 DIMM Slots

Storage

  • HDD
    500GB S-ATAII Hard Drive (5,400RPM) with ExpressCache 16GB
  • ODD
    Super Multi Dual Layer

Main Chipset

  • Main Chipset
    Intel HM65

Multimedia

  • Sound
    HD Audio
  • Sound Effect
    Mic Noise Suppression
    SoundAlive™
  • Speaker
    4W Stereo Speaker (2W x 2)
  • Integrated Camera
    1.3 megapixel HD Webcam

Infra

  • Modem
    No
  • Wired Ethernet LAN
    10 / 100 / 1,000 Gigabit Ethernet LAN
  • Wireless LAN Ready
    Inte®l Centrino® Advanced-N 6230, 2 x 2 802.11 abg/n (up to 300Mbps), Widi Support
  • Bluetooth
    Bluetooth V3.0 High Speed

I/O Port

  • VGA
    Yes
  • HDMI
    Yes
  • Headphone Out
    Headphone-out / Mic Combo
  • Mic-in
    Headphone-out / Mic Combo
  • Internal MIC
    Yes
  • USB
    (Sleep-and-Charge)
    2 USB 3.0, 1 USB 2.0
  • Multi Card Slot
    4-in-1 (SD, SDHC, SDXC, MMC)
  • Dock Port
    No
  • RJ11 (Modem)
    No
  • RJ45 (LAN)
    Yes
  • DC-In (Power Port)
    Yes

Input Device

  • Keyboard
    87 Key
    86 Key
  • Touch Pad, Touch Screen
    Touch Pad (Scroll Scope, Flat Type, Gesture UI)

Security

  • AMT
    No
  • Virus
    Norton Internet Security (60-day Trial)*
  • Lock
    Security Slot
  • Recovery Solution
    Samsung Recovery Solution
  • FingerPrint Reader
    No
  • TPM
    No
  • H/W Security
    No
  • S/W Security
    BIOS Boot Up Password
    HDD Password
    Norton Internet Security(60-day Trial)*
    Absolute Data Protection(90-day Trial)*

Power

  • AC Adapter
    60 Watt*
  • Standard Battery
    8 Cell (45.3Wh)

Software

  • Standard DVD
    OS DVD
  • Installed S/W
    Universal Printer / Scanner Driver
    Easy File Share
    Easy Migration
    Adobe Acrobat Reader
    Microsoft Office Starter 2010
    Samsung Support Center
    Microsoft Office Starter 2010
    WildTangent Game Console
    Windows Live
    Norton Online Backup (30-day Trial)
    Skype
    Cyberlink Media Suite
    Cyberlink Youcam
    Software Launcher
    Intel® Anti-Theft Technology
    Intel® Identity Protection Technology

Support

User Manual (Windows 8)

18.26 MB, pdf, ENGLISH

2012.10.26

Other Manuals (2)

Software (21)

  • Sogou Pinyin

    Windows 7(32bit,64bit), 23.05 MB, ZIP, MULTI LANGUAGE

    2012.04.05 tooltipbox

    Close tooltip pop-up
    Please referece the below install steps.

    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected
    file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks
  • Battery Life Extender

    Win XP, 13.09 MB, ZIP, MULTI LANGUAGE

    2012.02.28 tooltipbox

    Close tooltip pop-up
    This is a battery management program that extends the battery life time. The settings can be changed depending on the user''s environment.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected
    file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks
  • Chargeable USB

    Win XP, 14.87 MB, zip, MULTI LANGUAGE

    2012.02.28 tooltipbox

    Close tooltip pop-up
    This is a program that can be used to charge a device through a USB port even when your computer is shut down or in Standby mode.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected
    file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks
  • Easy Display Manager

    Win XP, 20.07 MB, ZIP, MULTI LANGUAGE

    2012.02.28 tooltipbox

    Close tooltip pop-up
    This is a setup program provided for Samsung computers. You can adjust the screen brightness, control the volume, and set an external monitor screen using hotkeys.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected
    file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks
  • Easy SpeedUp Manager

    Win XP, 5.48 MB, ZIP, MULTI LANGUAGE

    2012.02.28 tooltipbox

    Close tooltip pop-up
    This is a program that allows your computer to operate at maximum performance or that sets your computer to Low Noise/Low Power mode using a hotkey.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected
    file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks
  • MS Hotfix Security

    Win XP, 24.04 MB, zip, MULTI LANGUAGE

    2012.02.28 tooltipbox

    Close tooltip pop-up
    This is Hotfix files for resolving security problems.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected
    file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks
  • Recovery Solution

    Win XP, 102.31 MB, ZIP, MULTI LANGUAGE

    2012.02.28 tooltipbox

    Close tooltip pop-up
    When a problem has occured on your computer, this program allows you to recover the content on your hard disk using a backed up image stored on your computer.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected
    file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks
  • SAMSUNG Battery Manager

    Win XP, 4.75 MB, zip, MULTI LANGUAGE

    2012.02.28 tooltipbox

    Close tooltip pop-up
    This is a power management program that helps use the battery more efficiently. Optimized power modes are supported depending on the usage environment.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected
    file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    - This software may not be appropriate depending on the computer model.

    Thanks

Driver (29)

  • ExpressCache

    Windows 7(32bit), 5.33 MB, ZIP, MULTI LANGUAGE

    2012.06.02 tooltipbox

    Close tooltip pop-up
    Please referece the below install steps.

    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    -This driver may not be appropriate depending on the computer model.

    Thanks.
  • ExpressCache

    Windows 7(64bit), 6.44 MB, ZIP, MULTI LANGUAGE

    2012.06.02 tooltipbox

    Close tooltip pop-up
    Please referece the below install steps.

    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    -This driver may not be appropriate depending on the computer model.

    Thanks.
  • Intel Protection Technology middleware Driver

    Windows 7(32bit,64bit), 19.97 MB, ZIP, MULTI LANGUAGE

    2012.03.02 tooltipbox

    Close tooltip pop-up
    Please referece the below install steps.

    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    -This driver may not be appropriate depending on the computer model.

    Thanks.
  • Wireless LAN,INTEL

    Win XP, 34.64 MB, ZIP, MULTI LANGUAGE

    2012.02.24 tooltipbox

    Close tooltip pop-up
    This is Intel Wireless Lan driver.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    -This driver may not be appropriate depending on the computer model.

    Thanks.
  • TPM

    Win XP, 0.05 MB, zip, MULTI LANGUAGE

    2012.02.24 tooltipbox

    Close tooltip pop-up
    Please referece the below install steps.

    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    -This driver may not be appropriate depending on the computer model.

    Thanks.
  • Touchpad

    Win XP, 178.52 MB, ZIP, MULTI LANGUAGE

    2012.02.24 tooltipbox

    Close tooltip pop-up
    Touchpad provides the same function as a mouse and the left and right buttons of the touchpad play the roles of the left and right
    buttons of a mouse.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    -This driver may not be appropriate depending on the computer model.

    Thanks.
  • Bluetooth

    Win XP, 34.1 MB, ZIP, MULTI LANGUAGE

    2012.02.24 tooltipbox

    Close tooltip pop-up
    This is Bluetooth driver.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    -This driver may not be appropriate depending on the computer model.

    Thanks.
  • Chipset

    Win XP, 2.54 MB, ZIP, MULTI LANGUAGE

    2012.02.24 tooltipbox

    Close tooltip pop-up
    This is mainboard Chipset driver.

    Please referece the below install steps.
    1. Click the attached file and press ''Save'' button.
    Then press ''Browse...'' button and select the place where you want to save the selected file.
    2. After downloading the file, find the downloaded file and right_click on the file.
    On pop_up menu, select ''Extract All...'' option.
    3. On ''Extraction Wizard'', press ''Next'' button and press ''Browse...'' button.
    Select a folder to extract file and press ''Next'' again.
    4. After the file has been sucessfully extracted, see the extracted files.
    Run ''Setup.exe'' file or ''setup.exe'' file in the folder.

    -This driver may not be appropriate depending on the computer model.

    Thanks.

Firmware (1)

  • Update Software

    Windows 7, 2.11 MB, exe, MULTI LANGUAGE

    2012.01.03 tooltipbox

    Close tooltip pop-up
    This is the program that help you update the BIOS.

    [How to update the BIOS]
    1. Please click the attached file and select the ''download''. Save the file in a folder and double click it.
    2. After activating the file, you can see the Windows messages. Please follow the steps and the BIOS update process will start.
    3. After BIOS update, the System will restart automatically. During the POST, please press F2 to enter the System Setup menu, click F9(Load Setup Default), and then press F10(Save and Exit).

    CAUTION : MAKE SURE NEVER TURN OFF(OR RESET) YOUR SYSTEM DURING THE BIOS UPDATE.

    Thank you.

SW Update

Using the SW Update function, you can easily download and install Windows 8 device drivers and software.

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu Viewer

Have a question or need product support? Go to our support section

  • NEWEST
  • MOST HELPFUL
  • HIGHEST RATING
  • LOWEST RATING
