WIS12ABGNX Wireless LAN Adaptor

WIS12ABGNX

The Samsung Wireless LAN Adaptor can bring the amazing internet services on compatible Samsung Smart TVs, Blu-ray Players and Home Theatre Systems to life, and allow you to stream videos, photos and music between compatible devices over your home Wi-Fi network without any messy wires.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Layer Popup Close
At a Glance
  • Stream video, music, photos from compatible devices
  • Wireless networking 802.11a/b/g/n
  • USB 2.0 connection
Wireless LAN Adaptor

Share favourite videos, music and photos – without cables!

With support for all 802.11a/b/g/n wireless services, the Samsung Wireless LAN Adaptor can connect compatible devices in your home entertainment network for easy, cable-free media sharing with compatible Samsung TVs, Blu-ray Players and Home Theatre Systems.
Wireless LAN Adaptor extension cable

No wireless, no problem!

Giving compatible Samsung TVs, Blu-ray Players and Home Theatre Systems the ability to connect without wires to the internet, the Wireless LAN Adaptor includes an extension cable for quick and easy removal from your TV’s USB port.

Output Power

  • IEEE 802.11a11dBm at 54Mbps
  • IEEE 802.11b17dBm at 11, 5.5, 2, and 1Mbps
  • IEEE 802.11g14dBm at 54Mbps
  • IEEE 802.11n (2.4GHz)14dBm (20MHz)/12dBm (40MHz)
  • IEEE 802.11n (5GHz)11dBm (20MHz)/9dBm (40MHz)

Compatibility

  • BD Player2012 E5500
  • HES2013 F5500 series
    2012 E4200, 4500
  • LED TV2013 F5000, F4000

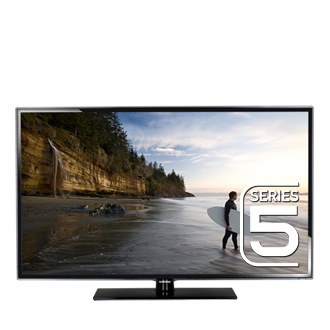

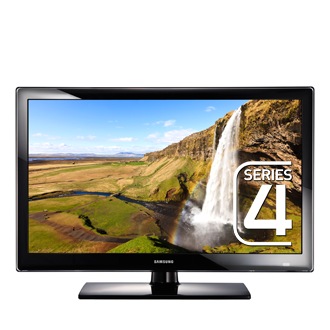

    2012 EH4500, ES5500
  • Plasma TV2012 E550
View remaining tech specs

Standard

  • IEEE 802.11a/b/g/nYes

Host Interface

  • Host InterfaceUSB 2.0

Frequency Range

  • Frequency Range2.412~2.4835GHz/5.15~5.850GHz

Security

  • Security64/128bit WEP, WPA, WPA2, 802 1x, WPS

Data Rate

  • IEEE 802.11a/g54, 48, 36, 24, 18, 12, 9 and 6Mbps
  • IEEE 802.11b11, 5.5, 2 and 1Mbps
  • IEEE 802.11nUp to 300Mbps (40MHz/spatial streams: 2)

Sensitivity

  • IEEE 802.11a/g-68dBm at 54Mbps
  • IEEE 802.11b-84dBm at 11Mbps
  • IEEE 802.11n-68dBm (20MHz)/-65dBm (40MHz)

Dimension (WxHxD)

  • Package95 x 165 x 30mm
  • Set26.6 x 84.0 x 16.0mm

Ideal For Music, Photo

  • IEEE 802.11a/b/g/nRecommended

Ideal For Streaming HD Video

  • IEEE 802.11a/b/g/n(2.4GHz)Not recommended
  • IEEE 802.11n (5GHz)Recommended

Ideal For Streaming SD Video

  • IEEE 802.11a/b/g/nRecommended

Weight

  • Package103g
  • Set17g

Accessory

  • User ManualYes
  • AV genderYes
  • USB Extension CableYes

Power consumption

  • TX (Transmitter)500mA
  • RX (Receiver)300mA
