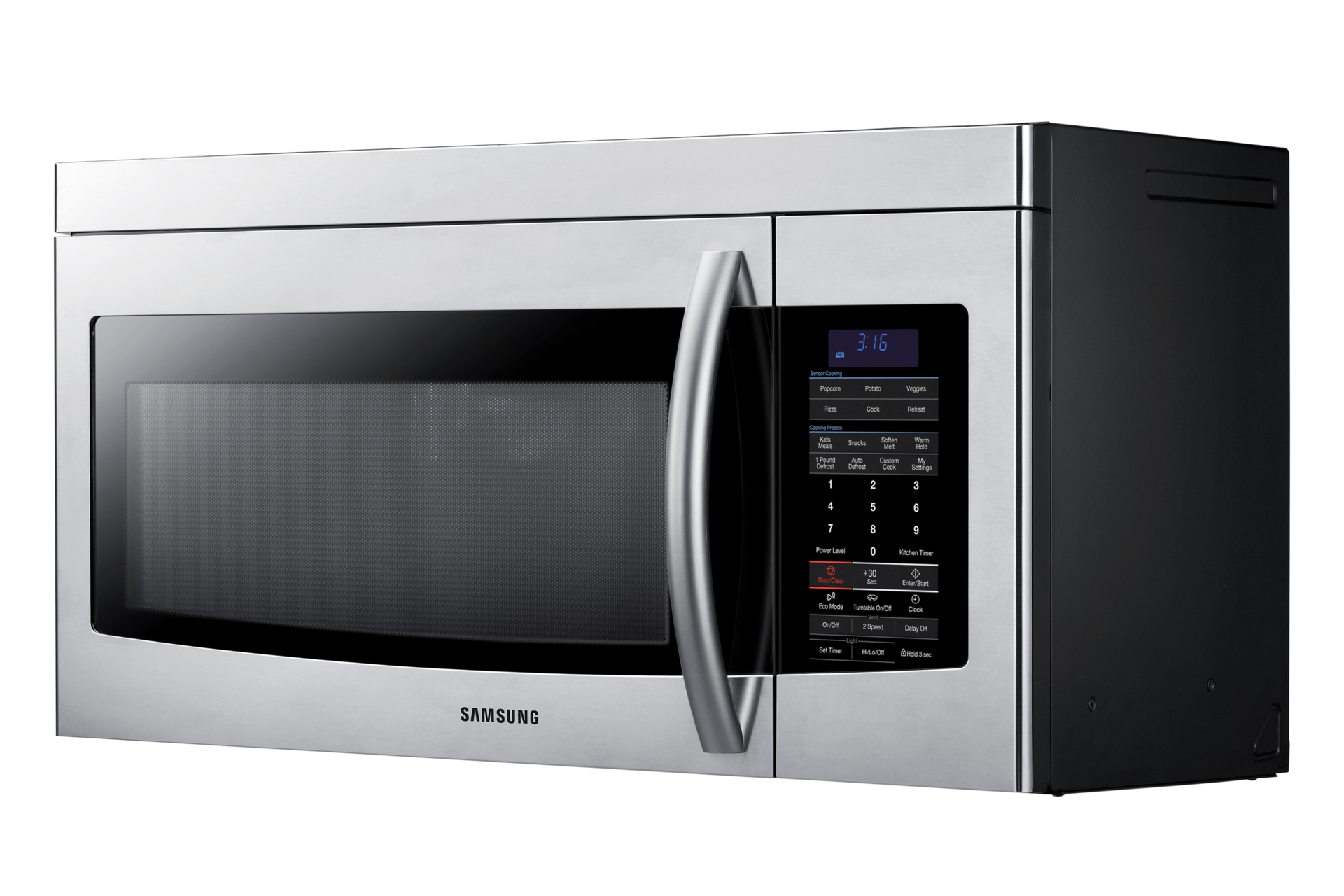

SMH1713S 1.7 cu.ft Over the Range Microwave Stainless Steel


The Samsung SMH1713 Over-The-Range Microwave puts advanced cooking convenience right at your fingertips. It features a powerful 300 CFM Auto Vent to quickly eliminate food odours, an advanced Power Defrost, and spacious 1.7 cu. ft. Capacity. With 1000 W of cooking power, everything is cooked to perfection with a sensor auto reheat and cook feature that monitors the amount of moisture in foods and adjusts re-heating time accordingly. Styled in a sleek, easy to clean finish, it includes many forward-thinking operating features, including 1-line VFD display and low standby power usage. For today’s demanding kitchen needs, the SMH1713 makes sure time is always on your side. 2.1 5 10 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

SMH1713S 1.7 cu.ft Over the Range Microwave Stainless Steel


  • Featuring a powerful 300 CFM Auto Vent and spacious 1.7 cu. ft. capacity
Convenient Sensor Cook / Reheat

Convenient Sensor Cook / Reheat

This function detects food moisture and automatically calculates the optimal time for cooking / reheat. So it makes one simple press of a button to achieve amazing cooking results.
Large Capacity

Large Capacity

With 1.7 cu. ft. of space, there is plenty of interior space to create full meals that you previously never thought would fit. And its built-in turntable ensures that every dish is heated evenly.
Powerful 300 CFM Ventilation System

Powerful 300 CFM Ventilation System

The SMH1713 features a powerful turbo ventilation exhaust that rapidly removes steam and odours with absolutely quiet operation.

Two-Stage Programmable Cooking

Vital time-saving function, that allows you to easily program initial defrost plus a corresponding two step recipe for food simultaneously.

Eco Mode

Save up to 80% of standby energy by pressing the convenient Eco button located on the display.

Electronic Touch Control

Lets you easily program the desired cooking time and power level, at the gentle press of a button, for error-free results every time.

tech specs

Dimension of SMH1713S/XAC


  • Exhaust Vent Capacity (CFM-Cu.Ft./min)


  • Color

    Stainless Steel

General Information

  • Installation


  • Heat Source


  • Power
    Power Source

    120 V / 60 HZ

    Power Consumption (Microwave)

    1500 Watts (Microwave)

    Output Power (Max)

    1000 Watts Output

  • Capacity

    1.7 cu.ft. capacity

  • Power Level

    10 Power Levels

  • Control Method

    Electronic Control Method

  • Door Opening Type

    Handle, Side Swing

  • Display Type

    VFD Display Type

  • Microwave Distribution

    Stirrer + Turntable

  • Cavity Interior




  • Daylight Savings Time Adjustment


  • Eco Mode (Low standby power 1W)


General Feature

  • Max Cooking Time

    99 min 99 s

  • More/Less


  • Cooking Stages


  • One Minute/30 Sec Plus

    30 s+

  • Option

    Auto Defrost / Sensor Reheat

  • Auto Cook


  • Turntable On/Off


  • Setting (My Choice)
    Clock System Option (12H/24H)


    Sound Option


    Child Lock


  • Reminder End Signal


  • Sensor Cook


  • Custom Cook


Physical Specifications

  • Weight
    Product Weight

    21.3 kg / 46.9 lbs

    Shipping Weight

    24.7 kg / 54.5 lbs

  • Dimensions
    Cavity (WxHxD)

    20.7" x 9.6" x 14.4"

    Product (WxHxD)

    29.9" x 16.5" x 17"

    Product without Handle (WxHxD)

    29.9" x 16.5" x 15.1"

    Shipping Dimensions (WxHxD)

    33.4" x 19.9" x 19.4"

  • Loading Quantity

    330 sets per 40 HQ


Owners Overall Ratings

2 out of 10 (20%) customers recommend this product

  • Features3.6/5.0
  • Performance2.4/5.0
  • Design3.5/5.0
  • Value2.5/5.0

Owner Reviews

Sort By



  • Features2/5.0
  • Performance1/5.0
  • Design1/5.0
  • Value1/5.0

Cheap piece of junk

All is good until you realize that when a microwave has to also act as a hood fan, it is not going to be any good. The hood fan part isn't stronger than sucking in air through your own mouth and when the handle breaks off in less than 6 months you'll start laughing at your own stupidity for even considering a microwave/hood fan from Samsung in the first place.


Show more +



  • Features2/5.0
  • Performance2/5.0
  • Design1/5.0
  • Value1/5.0

This microwave's handle has a design flaw and I would not buy this model again.

I purchased this microwave in 2011 and during that time the handle has broken twice in the same place! Now I have taped the upper portion of the handle to the front until we can get a new handle.



  • Features3/5.0
  • Performance1/5.0
  • Design4/5.0
  • Value1/5.0

very noisy fan

bought this unit 6 months ago, installed 3 months ago, and replaced already with a new one. Lost $120 to sell and buy transaction. fan has only 2 speeds and the first one in extremely noisy.

had a headache if this fan worked for a long time. do not buy SMH1713S .

Show more +

average jo'lene


  • Features3/5.0
  • Performance1/5.0
  • Design4/5.0
  • Value2/5.0

Not as good as I had thought

Love this microwave initially, now not so much. After two years it makes an awful,clicking and grinding noise while inuse,very disappointed.
