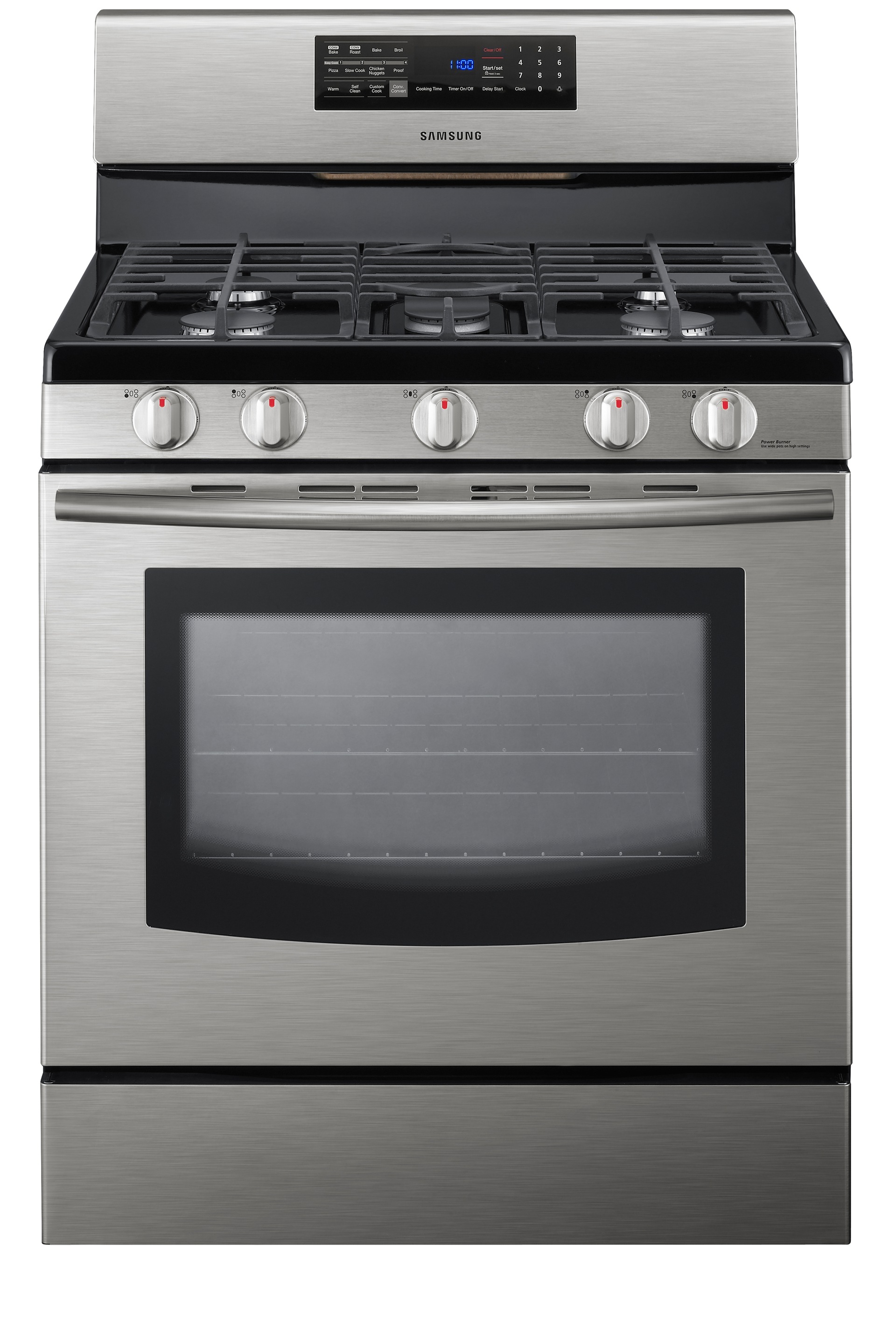

FX510BGS 5.8 cu.ft Gas Range Stainless Steel

FX510BGS/XAC

The Samsung 5.8 cu.ft capacity FX510BGS gas range offers innovative technology and features wrapped up in a sleek and sophisticated package. The extra large oven capacity provides enough space to roast a king-sized turkey with all the trimmings, fan convection cooking and a versatile 56000 BTU cooktop.
5 5 2 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

FX510BGS 5.8 cu.ft Gas Range Stainless Steel

Features

  • Featuring the largest oven capacity and a versatile 56000 BTU cooktop

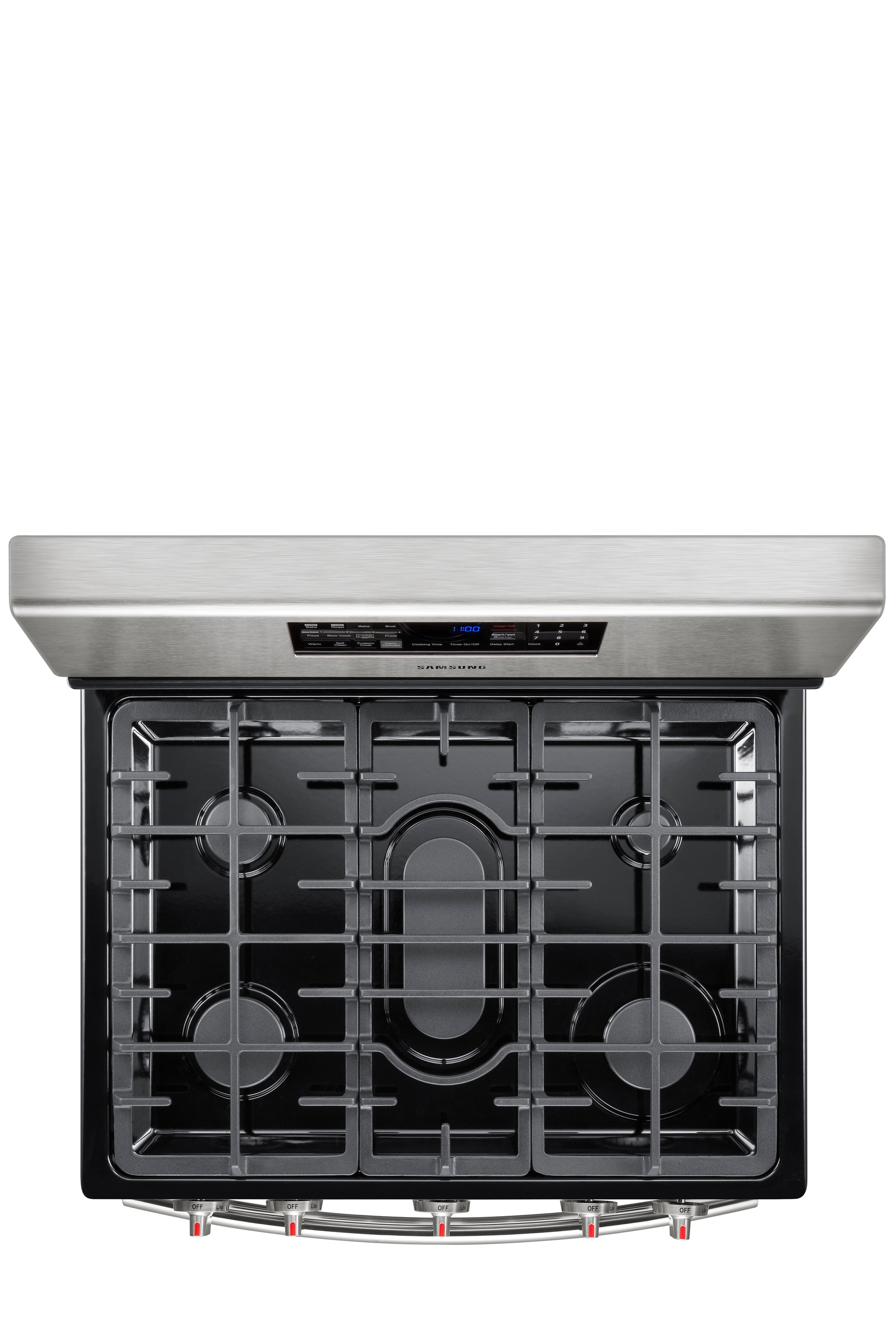

Commercial look grate

Commercial look grate
Easily move even the heaviest pots and pans from burner to burner - without lifting.

Weighted knob

Weighted knob
The weighted knob offers more precise control and better feel.
Large 5.8 cu.ft oven capacity

Large 5.8 cu.ft oven capacity

With the largest oven capacity in its class, the Samsung 5.8 cu.ft FX510BGS gas range lets you prepare more delicious dishes for family and friends without having to worry about space.
Fan Convection Cooking

Fan Convection Cooking

Fan convection cooks food faster producing juicier meats, flakier crusts and perfectly roasted vegetables.
Easy Cook menu

Easy Cook menu

With a touch of button, you can select the correct cooking temperature and time for a variety of dishes.

tech specs

Dimension of FX510BGS/XAC

Cooktop

  • Type

    Porcelain Enamel (Black)

  • Number of Burners

    5

  • Broiler

    Gas

  • Center Oval

    Yes (Giant)

  • Sealed Burner

    Yes

  • Burner Cap

    Matte Black

  • Total Power (BTU)

    56000

  • Right Front (BTU)

    17000

  • Right Rear (BTU)

    5000

  • Left Front (BTU)

    15000

  • Left Rear (BTU)

    9500

  • Center (BTU)

    9500

General Feature

  • Total Power of Connection

    56,000

  • Door
    Number of Glass Layers

    4

  • Grill Heater

    Stainless steel + Glass

  • Child Lock

    Yes

  • Display Type

    Digital LED

  • Interior Lamp

    1 Incandescent 40 W / Back

  • Oven Color

    Stainless Steel

  • Door Opening Type

    Stainless Steel / 4 Stss/ Removable Oven Door

  • Cooking Mode
    Broil

    Low 375°F ~ High 480°F

  • Auto Cook

    Bake: 150°F (65°C) - 550°F (285°C)
    Variable Broil (Low-High) Low 375°F - High 480°F
    Convection Bake: 175°F (80°C) - 550°F (285°C)
    Convection Roast: 175°F (80°C) - 550°F (285°C)

  • Grate

    Matte Black continuous grate

  • Custom Cook

    Yes

  • Numeric Pad

    0 ~ 9

  • End Timer

    Yes

  • Kitchen Timer/Hold Timer

    Yes

  • Warm

    Yes

  • Setting (My Choice)
    Clock System Option (12H/24H)

    12Hr / 24Hr

  • One Touch Instant Cook Pad

    Easy Cook (Preset)

SHOW MORE SPECSExpand

Physical Specifications

  • Drawer (cu.ft.)

    0.7

  • Dimensions
    Cutout (WxHxD)

    29.8" x 45.8" x 23.7"

Accessories

  • Anti-Tip Device

    Yes (Leg Brackets)

  • Number of Racks

    2

  • Number of Rack Positioning

    7

  • Rack Finish

    Chrome

General Information

  • Convection
    Upper/Lower

    1-Fan Convection

  • Oven Type

    Gas Range

  • Cleaning Method

    Self cleaning (2 / 3 / 4 h)

  • Control Method

    Knob + Touch

Hood Ventilation&Lighting (for OTR)

  • Auto Night Light

    Yes

Performance

  • Capacity

    5.8

REVIEWS (2)

Owners Overall Ratings

2 out of 2 (100%) customers recommend this product

  • Features4.5/5.0
  • Performance5.0/5.0
  • Design4.5/5.0
  • Value5.0/5.0

Owner Reviews

Sort By
Newest

Tresher

2013-02-22

  • Features4/5.0
  • Performance5/5.0
  • Design4/5.0
  • Value5/5.0

Great gas range for beginning cooks or professional.

This is the first time we have cooked with gas and it is fantastic. The range cooktop burners ignite perfectly every time and there is a lot of control with temperature when cooking.

The convection oven heats up quickly and cooks evenly. Great range for any cooking level!

Show more +

chris1chris

2011-10-24

  • Features5/5.0
  • Performance5/5.0
  • Design5/5.0
  • Value5/5.0

Great Range

We recently received this range as a wedding gift. The range was delivered to our house, and dropped off in the center of our kitchen. Once unboxed,and the installation instructions were read, installation was a breeze.

Everything needed for installation was clearly marked and easily accessible. Installation steps were clearly conveyed and easy to understand. We had a basic range prior to this one, thus, the feature are great. From the delayed cook function to set the heat and go functions, we have extremely happy with this range. Cheers to a company that can make appliances just as great as the TV’s and other electronics they are known for. 4 stars so far.
