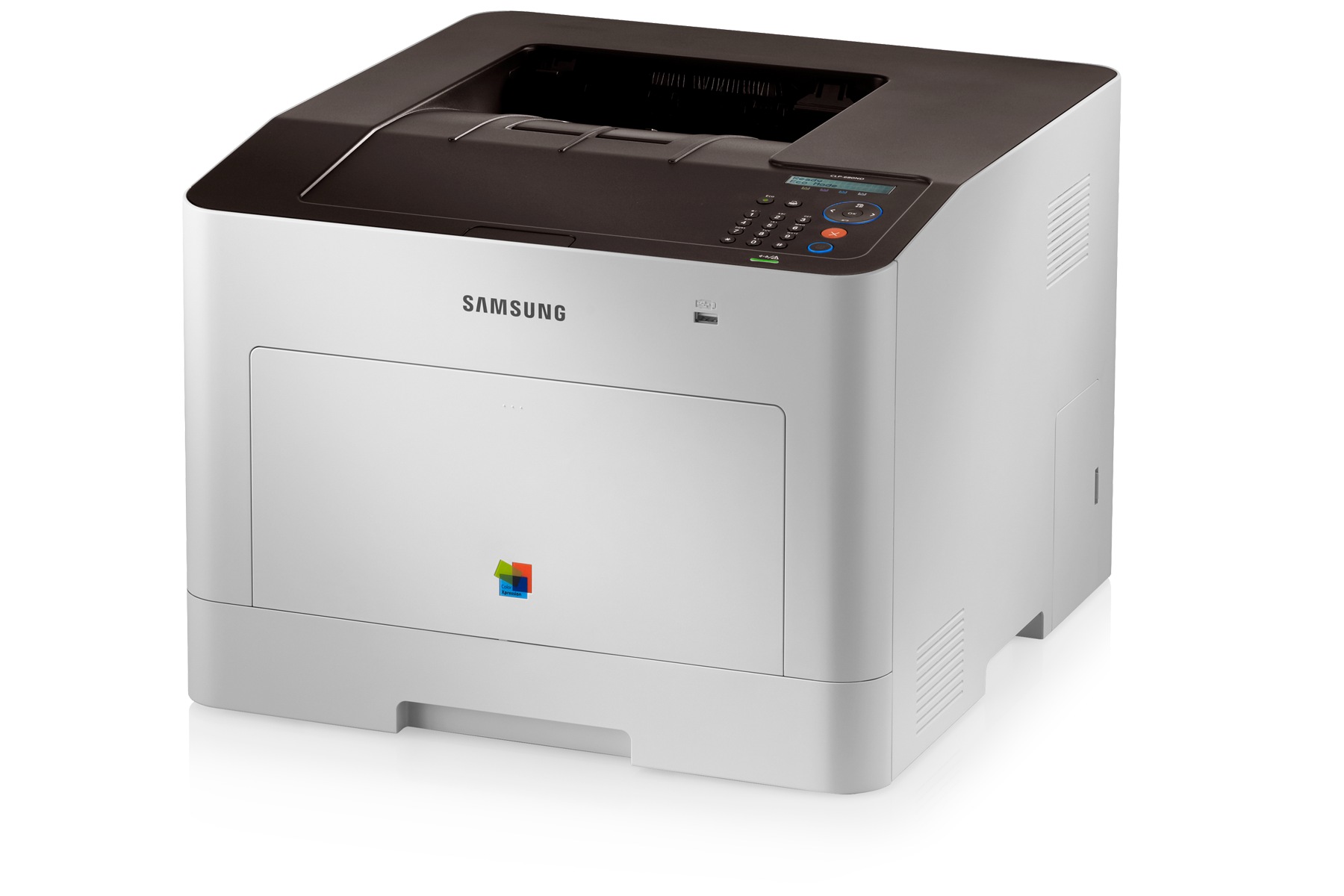

CLP-680ND

Features

  • True colour at the speed of light

Product Configuration

Enjoy quality printouts

Samsung’s unique ReCP (Rendering Engine for Clean Page) Technology improves the overall quality and vibrancy of your colour printing, ensuring every printout looks perfect. It automatically sharpens the focus of both graphics and text, while solid objects are overlapped to eliminate white gaps.

Polymerized toner

Our newly developed polymerized toner has smaller and more uniform particles than conventional toner. Your printouts will have crisper lines and more vivid colours, in addition to eliminating paper curling. Also, its higher wax content improves the image gloss and enhances the durability preventing unwanted fading.

More power, higher productivity

Some days it seems like the printing never ends. With the CLP-680ND's 533 MHz Dual CPU, and 512 MB standard memory (expandable up to 1 GB) you can be sure that this printer will handle the entire load of your workgroup's need.

Speedy and flexible paper handling

If you want to print or copy onto heavier weights of paper, you can. Weights of up to 220 g/m² are handled with ease through the 50 page multipurpose tray as well as the 250 page standard cassette. Plus, with the optional 520 sheet second cassette you can increase your total paper input capacity to 820 sheets. That way you can also use up to three different media types without the need to waste time changing paper.

Professional colour printing made easy for you

With the CLP-680ND you can increase your entire workgroup’s workflow with a range of easy-to-use features and ingenious time-saving support software that helps free you to work smarter and faster. * Easy Operating Panel With the CLP-680ND's two line liquid crystal display and intuitive 5 key compass navigation you can control the device's status, browse the menu and access each unique feature with ease.

Professional colour printing made easy for you

With the CLP-680ND you can increase your entire workgroup’s workflow with a range of easy-to-use features and ingenious time-saving support software that helps free you to work smarter and faster. * Convenient USB printing Print documents directly from the printer, without the need of a computer, via a front-facing Direct USB slot located just below the operating panel.

Professional colour printing made easy for you

With the CLP-680ND you can increase your entire workgroup’s workflow with a range of easy-to-use features and ingenious time-saving support software that helps free you to work smarter and faster. * Secure, confidential printing If you need to print sensitive data through your printer, you can relax. You can now ensure personal print jobs remain personal. Just enter a password, and you can retrieve a print job at your convenience, away from any prying eyes. And with the integrated numeric key pad it's easier than ever!

Low cost, low impact on the world

Save toner, paper and energy with ease - it's good for the environment and it's good for your business' profits. Being economical and printing vibrant colour documents goes hand in hand with the CLP-680ND • Extra high yield means extra low costs Enjoy professional colour print-outs while staying in complete control of your total cost of ownership. Our specially developed higher yield cartridges means more time between changes and less expense with each print out. (Black toner cartridges yield: 6000 standard pages, Yellow / Magenta / Cyan toner cartridges yield: 3500 standard pages) • Cut costs with duplex printing With the integrated duplex feature, saving paper has never been easier. That’s because the paper is turned automatically so that you can print on both sides. It could mean an amazing saving of up to 50% on your paper consumption. • Save money the eco way Every business sees the need to cut costs wherever it can. With the ECO button and the smart eco driver funtions it's easier than ever. Print more on each page with the N-up and duplex functionality, skip blank pages or print in greyscale instead of full colour. With the result simulator you can even see how much CO2, power and paper you've saved.

Low cost, low impact on the world

Save toner, paper and energy with ease - it's good for the environment and it's good for your business' profits. Being economical and printing vibrant colour documents goes hand in hand with the CLP-680ND * Low Power Consumption Despite its impressive list of features and functions, the CLP-680ND consumes less energy than most of its competitors. Its innovative polymerized toner requires lower fusing temperatures, the instant fusing technology saves warm up time before first print, and our new Dual CPU make it one of the greenest devices around today.

Easy Solution support

The printer also brings you software support designed to put you in control of delivering ultimate quality printouts easier than ever before. * Easy Eco Driver Easy Eco Driver helps you compile digital documents in multiple formats and makes it easy to share them with others - even through social networks.

Get the right result before printing

The Samsung Easy Colour Manager allows you to adjust the colour balance, saturation, brightness or contrast of any image prior to printing. Perfect for matching the exact colours of your company logo every time.

Take the stress out of print management

For maximum control, Easy Printer Manager lets you manage all your devices from one location. Check device and toner status, change device settings or set alerts – even through e-mail.

Network Ready

The Samsung CLP-680ND laser printer comes with a convenient built-in network for enhanced connectivity. This allows for any PC on your network to use the printer, which helps cut costs on buying other printers.

Easy toner replacement

Toner changes are made easier with a top loading slide out drawer. And with high yield all-in-one toner cartridges, you save not only time but money.

tech specs

Dimension of CLP-680ND/XAA

General

  • Functions
    Standard

    Print

    Optional

    One-touch Eco Mode / Direct USB / Mobile Print

  • Processor

    Dual CPU (Main: 533 MHz / Sub: 150 MHz)

  • Operational Panel

    2-Line LCD

  • Memory
    Standard

    256 MB

    Maximum

    512 MB

  • Interface
    Standard

    High-Speed USB 2.0 / USB Host / Ethernet 10 / 100 / 1000 Base-TX

    Optional

    IEEE 1284B Parallel Connector

  • Power Consumption

    450 W (Average) / 14 W (Standby) / 1 W (Sleep Mode) / 1.49 kWh (TEC)

  • Noise Level

    Less than 52 dBA (Printing) / Less than 32 dBA (Standby)

  • Dimension (WxDxH)

    420.0 x 452.5 x 311.3 mm (16.54'' x 17.81'' x 12.26'')

  • Weight

    20.15 kg (44.42 lb)

  • Max. Monthly Duty Cycle

    60000 Pages

Print

  • Speed
    Speed(Mono)

    Up to 24 ppm in A4 (25 ppm in Letter)

    Speed(Colour)

    Up to 24 ppm in A4 (25 ppm in Letter)

  • First Print Out Time
    First Print Out Time (Mono)

    Less than 17 s (From Ready Mode)

    First Print Out Time (Colour)

    Less than 17 s (From Ready Mode)

  • Resolution

    Up to 9600 x 600 dpi Effective Output (600 x 600 x 4 bit)

  • Emulation

    PCL5Ce / PCL6C / PS3 / PDF V1.7 / SPL-C (Samsung Printer Language Colour)

  • Duplex Print

    Built-In

  • Operating System

    Window 2003 / Window 2008 / Window XP / Window Vista / Window 7 / Window 2003 Server / Window 2008 Server / Window 2008 Server R2 / Mac OS X 10.4-10.7 Various Linux, UNIX

  • Direct Print Support

    PDF V1.7

  • Print features

    Automatic Double Sided Print / Direct Print / Secure Print

SHOW MORE SPECSExpand

Paper Handling

  • Input Capacity
    Cassette

    250-Sheet Standard Cassette

    Multipurpose tray

    50-Sheet MP Tray

    Other Options

    520-Sheet SCF

    Maximum

    820 Sheets

  • Media Type
    Cassette

    Plain Paper / Thin Paper / Thick Paper / Cardstock / Thicker Paper / Hole Punched / Transparency / Pre-Printed / LetterHead / Recycled / Archive / Bond / Label / Envelope / Cotton / Coloured / Glossy

    Multipurpose tray

    Plain Paper / Thin Paper / Thick Paper / Cardstock / Thicker Paper / Hole Punched / Transparency / Pre-Printed / LetterHead / Recycled / Archive / Bond / Label / Envelope / Cotton / Coloured / Glossy

    Other Options

    Plain Paper / Thin Paper / Cardstock / Hole Punched / Pre-Printed / LetterHead / Recycled / Archive / Bond / Label / Cotton / Coloured / Glossy

  • Media Size
    Cassette

    A4 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / A5 / Statement / A6 / Index Card Stock / Postcard / Envelope Monarch / Envelope No-10 / Envelope DL / Envelope C5 / Envelope C6 / Envelope No 9 / Custom [76 x 127 mm (3" x 5") - 216 x 356 mm (8.5" x 14")]

    Multipurpose tray

    A4 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / A5 / Statement / A6 / Index Card Stock / Postcard / Envelope Monarch / Envelope No-10 / Envelope DL / Envelope C5 / Envelope C6 / Envelope No 9 / Custom [76 x 127 mm (3.0" x 5.0") - 216 x 356 mm (8.5" x 14")]

    Other Options

    A4 / Letter / Legal / Oficio / Folio / JIS B5 / ISO B5 / Executive / A5 / Statement / Custom [98 x 210 mm (3.86" x 8.3") - 216 x 356 mm (8.5" x 14")]

  • Media Weights
    Cassette

    Supported Weight: 60 - 220 g/m² (16 - 59 lb) Thin Paper: 60 - 70 g/m² / Plain Paper: 70 - 90 g/m² / Thick Paper: 91 - 105 g/m² / Bond Paper: 105 - 120 g/m² / Cardstock: 121 - 163 g/m² / Thicker Paper: 164 - 220 g/m²

    Multipurpose tray

    Supported Weight: 60 - 220 g/m² (16 - 59 lb) Thin Paper: 60 - 70 g/m² / Plain Paper: 70 - 90 g/m² / Thick Paper: 91 - 105 g/m² / Bond Paper: 105 - 120 g/m² / Cardstock: 121 - 163 g/m² / Thicker Paper: 164 - 220 g/m²

    Other Options

    Supported Weight: 60 - 163 g/m² (16 - 43 lb) Thin Paper: 60 - 70 g/m² / Plain Paper: 70 - 90 g/m² / Thick Paper: 90 - 105 g/m² / Bond Paper: 105 - 120 g/m² / Cardstock: 121 - 163 g/m²

  • Output Capacity

    150-Sheet Face Down

Consumables

  • Toner
    Black

    Standard Toner Cartridge Yield: 2000 Standard Pages (Ships with 2000 Pages Starter Toner Cartridge) / High Toner Cartridge Yield: 6000 Standard Pages * Declared Yield Value in accordance with ISO / IEC 19798

    Color (C/M/Y)

    Standard Toner Cartridge Yield: 1500 Standard Pages (Ships with 1500 Pages Starter Toner Cartridge) / High Toner Cartridge Yield: 3500 Standard Pages * Declared Yield Value in accordance with ISO / IEC 19798

  • Transfer Belt

    Approx. 100000 Pages

  • Waste Toner Container

    Approx. 14000 Pages (Black) / 3500 Pages (Colour)

Option

  • Option

    520-Sheet Cassette / IEEE 1284B Parallel Connector / 512 MB Memory

Solution

  • Device Management

    Yes

  • Output Management

    Yes

  • Mobility

    Yes
