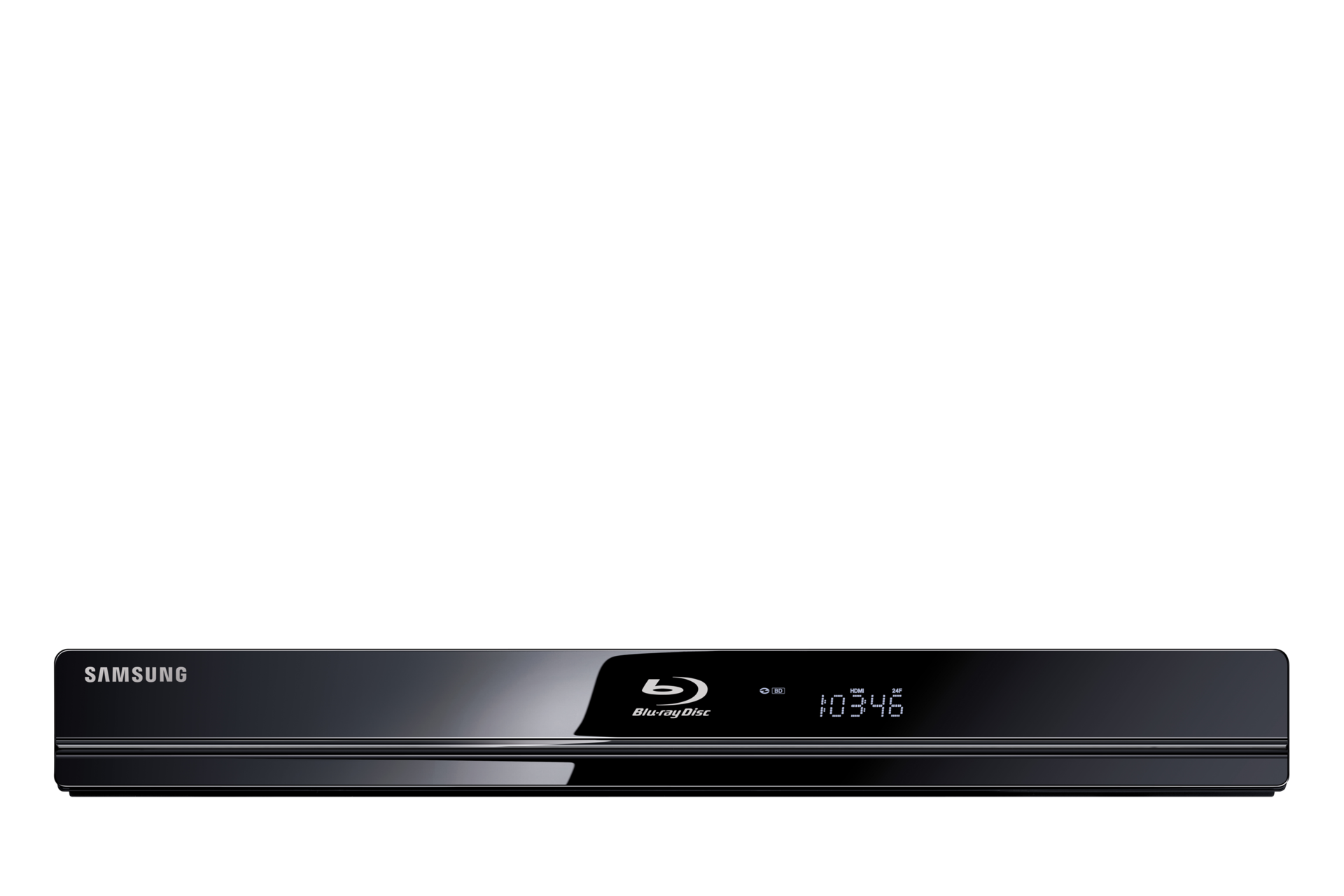

BD-P1600

BD-P1600

BD-P1600 You’ll be taken by the BD-P1600’s sleek style that hides an outstanding list of performance features. There’s the new standard in audio from Dolby™ TrueHD and DTS® HD Master Audio; wireless capability (dongle not included); super-convenient connectivity management with HDMI™ output with Anynet+; and BD Live ready, which, with your own USB key, gives you access to exciting extra movie content on BD Live enabled Blu-ray discs. 5 5 1 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

BD-P1600

Features

  • Full HD 1080p audio and video power in a sleek new body

Full HD 1080p blu-ray disc player

Full HD 1080p blu-ray disc player
With blu-ray Full HD (and 24 frames per second) playback, you get every single pixel out of a film possible. Experience vivid, crystal-clear visuals that are more natural, more realistic and simply stunning. You can drop-in an old DVD and watch the picture get up-converted to near HD quality.

BD Live Ready

BD Live Ready
BD Live (Blu-ray profile 2.0) enables you to download additional content and interactive features directly to your Blu-ray player via internet connection with BD Live supported discs. Additional USB memory (not included) with a minimum capacity of 1 GB is required to support this function.

HDMI™ Anynet+ (HDMI-CEC)

HDMI™ Anynet+ (HDMI-CEC)
You're in full command with the BD-P1600. Anynet+ delivers streamlined, one-touch control over all your Anynet compatible connected devices such as the TV, AV receiver, and home theatre. You can operate all of them with a single remote control that enables commands to be passed among devices within the system. A true "plug and play" product, it comes with a Consumer Electronics Control (CEC) feature that lets you operate SAMSUNG HDMI products with a single remote control.

Ethernet connectivity

Ethernet connectivity
Stay connected and up-to-date with the BD-P1600's advanced networking abilities. Ethernet connectivity allows you to download firmware updates for your blu-ray player ensuring compatibility with the latest BD movie releases. Additionally this Ethernet port also enables future networking interactivity available from blu-ray.

Progressive Scan Out

Progressive Scan Out
Progressive Scan Output scans individual picture lines in sequence rather than alternately, maximizing the clarity of digital images and bringing new realism to your DVD viewing experience.

high definition audio

high definition audio
For the ultimate audio experience in up to 7.1ch, SAMSUNG blu-ray players can decode or bitstream Dolby TrueHD and DTS-HD Master Audio. These advanced HD audio formats provide lossless audio that is bit-for-bit identical to the studio master delivering a surreal surround sound experience.

BD Wise

This advanced technology takes DVD up-conversion to the next level with blu-ray-like video quality. Via HDMI™ 2-way communication the DVD player identifies supported SAMSUNG HDTV's and the 2 devices automatically optimize picture settings for the highest quality DVD picture.

USB 2.0

All SAMSUNG blu-ray players include two USB 2.0 ports (1 front / 1 rear). These inputs enable playback of multimedia files, firmware updates, WiFi connectivity and memory support for BD Live.

WiFi Ready

Connect to the internet wirelessly with the addition of a SAMSUNG wireless USB dongle (available separately) Download firmware updates and BD Live content seamlessly without the need for an Ethernet cable or jack.

tech specs

Dimension of BD-P1600/XAC

Playback

  • Compatibility
    Playback Media

    BD / DVD / CD

    Playback Formats

    BD / DVD / CD

Video Feature

  • DAC

    12bit / 148.5MHz

  • A/V Quality
    DVD Upconversion

    Yes (up to 1080p)

  • Decoding Format
    VC-1

    Yes

    MPEG-2

    Yes

    H.264

    Yes

    HD JPEG

    Yes

    MP3

    Yes

    WMA

    No

    DivX

    No

  • Output Resolution (HDMI/Component)
    1920 x 1080 P

    Yes / No

    1920 x 1080 I

    Yes / Yes

    1280 x 720 P

    Yes / Yes

    720 x 480 P (720 x 576 P)

    Yes / Yes

    720 x 480 I (720 x 576 I)

    No / Yes

SHOW MORE SPECSExpand

Physical Features

  • A/V Quality
    Dolby Dital Decoder

    Yes

  • Connectivity
    Composite Video Outputs

    Yes

    Component Video Outputs

    Yes

    S-Video Outputs

    Yes

    Coaxial Digital Audio Outputs

    No

Connectivity

  • Optical Digital Audio Output
    Optical Digital Audio Outputs

    Yes

  • HDMI Output
    HDMI CEC

    Yes

    HDMI Outputs(Version)

    Yes (Ver 1.3)

  • Network
    Network

    WiFi Ready

  • USB Host
    USB 2.0

    Yes (2)

  • Analog Audio Outputs
    5.1ch audio out

    No

    Analog Audio Outputs

    2 ch

Dimensions

  • Product Dimension (WxHxD)
    Dimensions

    430 x 54 x 199 mm

  • Shipment Dimension(WxHxD)
    Dimensions

    514 x 142 x 312 mm

Function

  • Macrovision 7.0
    Macrovision 7.0

    Yes

  • Always On Menu
    Always On Menu

    Yes

  • Subtitle Color Variation
    Subtitle Color Variation

    Yes

  • POP Up Menu
    POP Up Menu

    Yes

  • Advanced Scene Search
    Advanced Scene Search

    Yes

  • BD-JAVA
    BD-JAVA

    Yes

  • Closed Caption
    Closed Caption

    Yes

  • High Definition Bitmap Subtitle
    High Definition Bitmap Subtitle

    Yes

  • High Definition Text Subtitle
    High Definition Text Subtitle

    Yes

  • A/V Quality
    Dolby Digital Plus Decoder

    Yes

    DTS Decoder

    Yes

    DTS HD Decoder

    Yes

    Dolby True HD Decoder

    Yes

  • BD Profile
    BD Profile

    Yes (profile 2.0)

Physical Features

  • Input
    Tuner (ATSC/NTSC)

    No

    Composite

    No

    S-Video

    No

    Stereo (L/R)

    No

    Memory Card Slot

    No

  • Input Select
    DV

    No

  • Power
    Power Supply

    110 V AC

    Power Consumption

    30 W

    Stand-by Power

    0.27 W

  • Loading Quantity
    20ft

    1312

    40ft

    2688

Weight

  • Product Weight
    Weight

    2.2 kg

  • Shipment Weight
    Weight

    3.3 kg

Audio Feature

  • DAC

    24bit / 192KHz

Recording

  • Recordable Media
    HDD

    Yes

    BD-RE

    Yes

    BD-R

    Yes

REVIEWS (1)

Owners Overall Ratings

1 out of 1 (100%) customers recommend this product

  • Features5.0/5.0
  • Performance4.0/5.0
  • Design5.0/5.0
  • Value5.0/5.0

Owner Reviews

Sort By
Newest

stevef67

2014-08-18

  • Features5/5.0
  • Performance4/5.0
  • Design5/5.0
  • Value5/5.0

Great Machine...

It's a great machine for the money....HOWEVER, I can not view Netflix on it, here in Canada...which is sad :(

Support

Open Source Guide

0.62 MB, pdf, ENGLISH

2011.04.19

Other Manuals (6)

Firmware (4)

  • Upgrade File(USB type)

    All OS, 76.44 MB, zip, ENGLISH

    Version : 2.21

    2012.06.12 tooltipbox

    Close tooltip pop-up
    < BD-P1600 Firmware>

    This Firmware update provides the following benefits:

    Ver 2.21 : Jun. 12. 2012
    1.Improved specific BD title''s playback compatibility

    Ver 2.19 : Jan. 06. 2012
    1. Improves a specific disc''s playback capability.

    Ver 2.18 : Sep. 09. 2011
    1.Improved specific BD title''s playback compatibility

    Ver 2.17 : Jun. 10. 2011
    1.Improved specific BD title''s playback compatibility

    Ver 2.16 : Mar. 16. 2011
    1. Improves a specific disc''s playback capability.

    Ver 2.15 : Feb. 26. 2011
    1. Improves a specific disc''s playback capability.
    2. The latest YouTube video does not play.
    3 .Pandora hang up when playing in the ad

    Ver 2.13 : Dec. 13. 2010
    1. Improves a specific disc''s playback capability.

    Ver 2.12 : Aug. 27. 2010
    1. Improves a specific BD title''s playback capability.

    Ver 2.09 : MAY. 31. 2010
    1. Improves a specific BD title''s playback capability.

    Ver 2.07 : MAR. 20. 2010
    1. Improves a specific BD title''s playback capability.

    Ver 2.06 : FEB. 10. 2010
    1. Improves a specific BD title''s playback capability.

    Ver 2.05 : OCT. 31. 2009
    1. Improves a specific BD title''s playback capability.

    Ver 2.04 : SEP. 30. 2009
    1. Improves a specific BD title''s playback capability.

    Ver 2.02 SEP. 3. 2009
    1. Youtube e-Contents service.
    2. MKV/MP4 file playback.

    Ver 1.02 : JUNE. 23. 2009
    1. Improves playback compatibility of some movie titles
  • Upgrade guide

    All OS, 0.08 MB, pdf, ENGLISH

    Version : USB Type

    2012.06.12

  • Upgrade File(CD type)

    All OS, 76.44 MB, zip, ENGLISH

    Version : 2.21

    2012.06.12 tooltipbox

    Close tooltip pop-up
    < BD-P1600 Firmware>

    This Firmware update provides the following benefits:

    Ver 2.21 : Jun. 12. 2012
    1.Improved specific BD title''s playback compatibility

    Ver 2.19 : Jan. 06. 2012
    1. Improves a specific disc''s playback capability.

    Ver 2.18 : Sep. 09. 2011
    1.Improved specific BD title''s playback compatibility

    Ver 2.17 : Jun. 10. 2011
    1.Improved specific BD title''s playback compatibility

    Ver 2.16 : Mar. 16. 2011
    1. Improves a specific disc''s playback capability.

    Ver 2.15 : Feb. 26. 2011
    1. Improves a specific disc''s playback capability.
    2. The latest YouTube video does not play.
    3 .Pandora hang up when playing in the ad

    Ver 2.13 : Dec. 13. 2010
    1. Improves a specific disc''s playback capability.

    Ver 2.12 : Aug. 27. 2010
    1. Improves a specific BD title''s playback capability.

    Ver 2.09 : MAY. 31. 2010
    1. Improves a specific BD title''s playback capability.

    Ver 2.07 : MAR. 20. 2010
    1. Improves a specific BD title''s playback capability.

    Ver 2.06 : FEB. 10. 2010
    1. Improves a specific BD title''s playback capability.

    Ver 2.05 : OCT. 31. 2009
    1. Improves a specific BD title''s playback capability.

    Ver 2.04 : SEP. 30. 2009
    1. Improves a specific BD title''s playback capability.

    Ver 2.02 SEP. 3. 2009
    1. Youtube e-Contents service.
    2. MKV/MP4 file playback.

    Ver 1.02 : JUNE. 23. 2009
    1. Improves playback compatibility of some movie titles
  • Upgrade guide

    All OS, 0.08 MB, pdf, ENGLISH

    Version : CD Type

    2012.06.12
