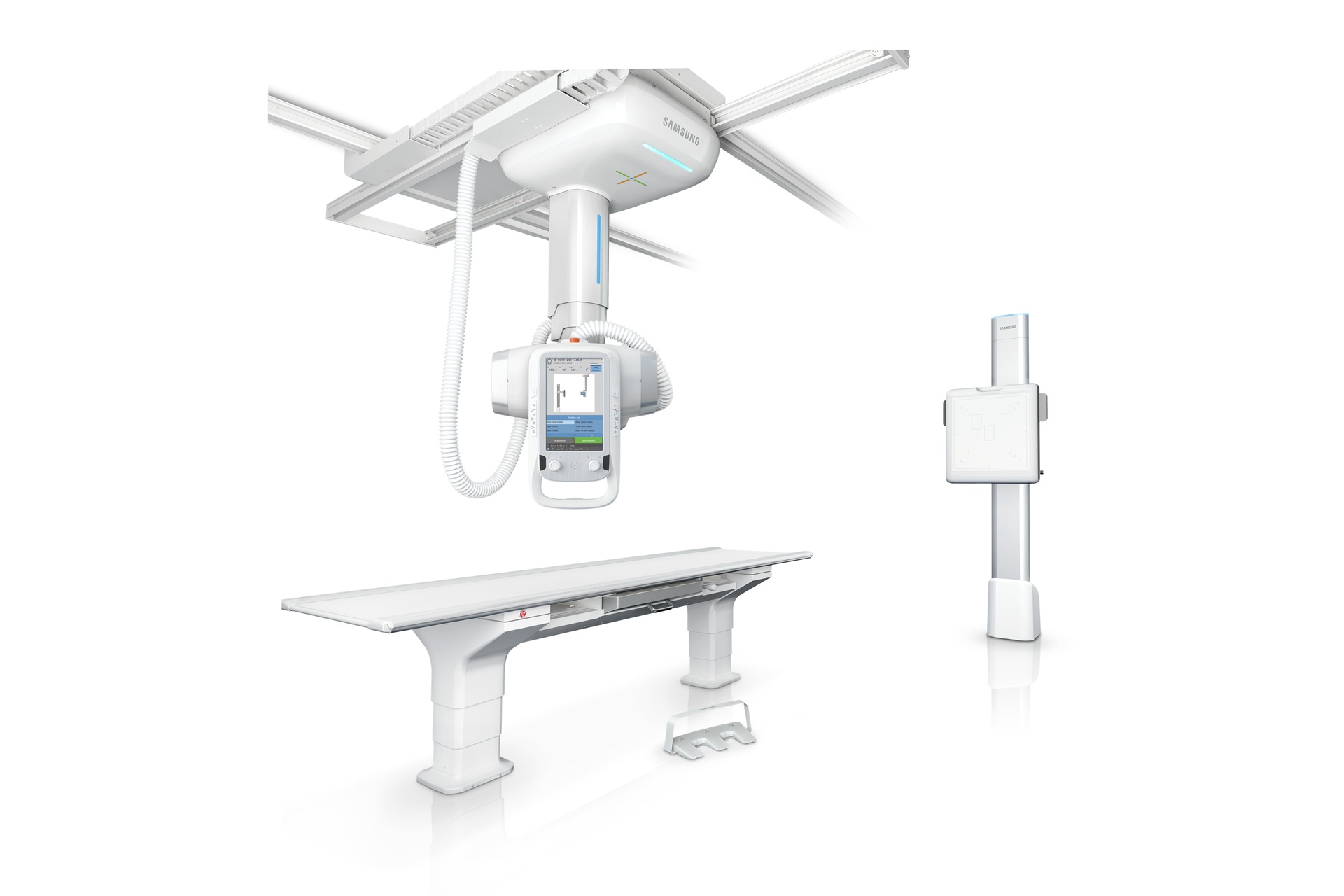

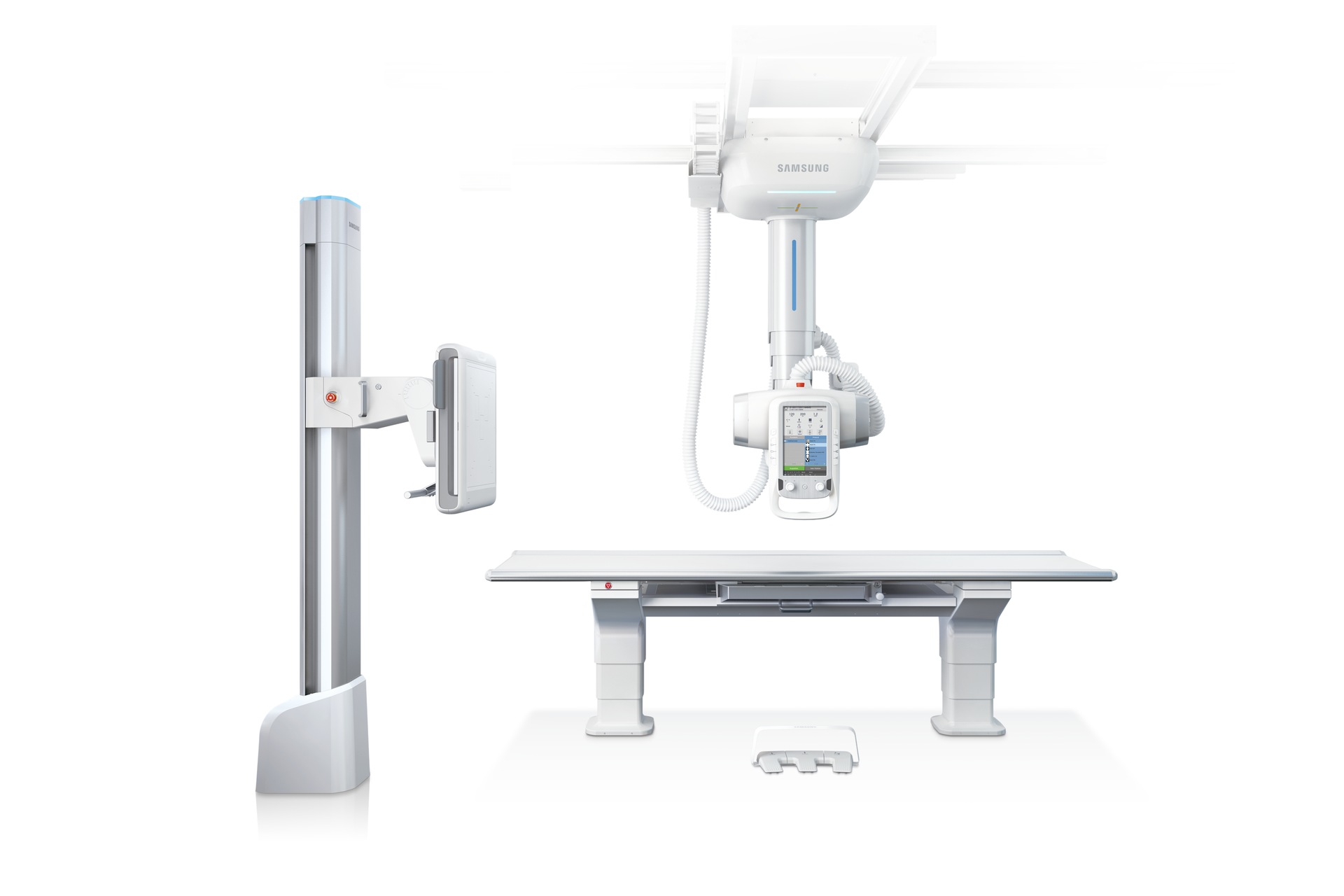

GC80

XGEO GC80

  • The GC80 series delivers high-quality Digital Radiography performance along with a simplified workflow, to maximize user experience. The GC80 series offers you the best diagnostic solution, while increasing your throughput and improving your workplace.


    * Product model names and detector type may vary depending on the license registration progress in each country.

Features

Image sharpness and low dose with S-Detector
Newly developed S-Detector displays the patient’s anatomical structure clearly with high Detective Quantum Efficiency (DQE). In addition, the detector lowers the radiation dose.
Newly developed S-Detector displays the patient’s anatomical structure clearly with high Detective Quantum Efficiency (DQE). In addition, the detector lowers the radiation dose.
High-quality images with S-Vue™
Samsung’s next-generation S-Vue imaging engine delivers high-resolution images through advanced processing and adaptive filtering and provides enhanced image contrast and sharpness.
Next Generation Imaging Engine S-Vue™ : Enhanced image sharpness and clarity, Ensured image integrity, Excellent dynamic range
Strategic investment with S-Share
S-Detectors (S4343-W, S4335-W and S3025-W) are compatible with GM60A and GC80.
S-Detectors (S4343-W, S4335-W and S3025-W) are compatible with GM60A and GC80.
Optimal accuracy with Smart Stitching
Accurate diagnosis is provided through a stitched image rather than Separated images.
Smart stitching captures two or more images consecutively, and then stitches the multiple images into one images.
Accurate diagnosis is provided through a stitched image rather than Separated images.  Smart stitching captures two or more images consecutively, and then stitches the multiple images into one images.

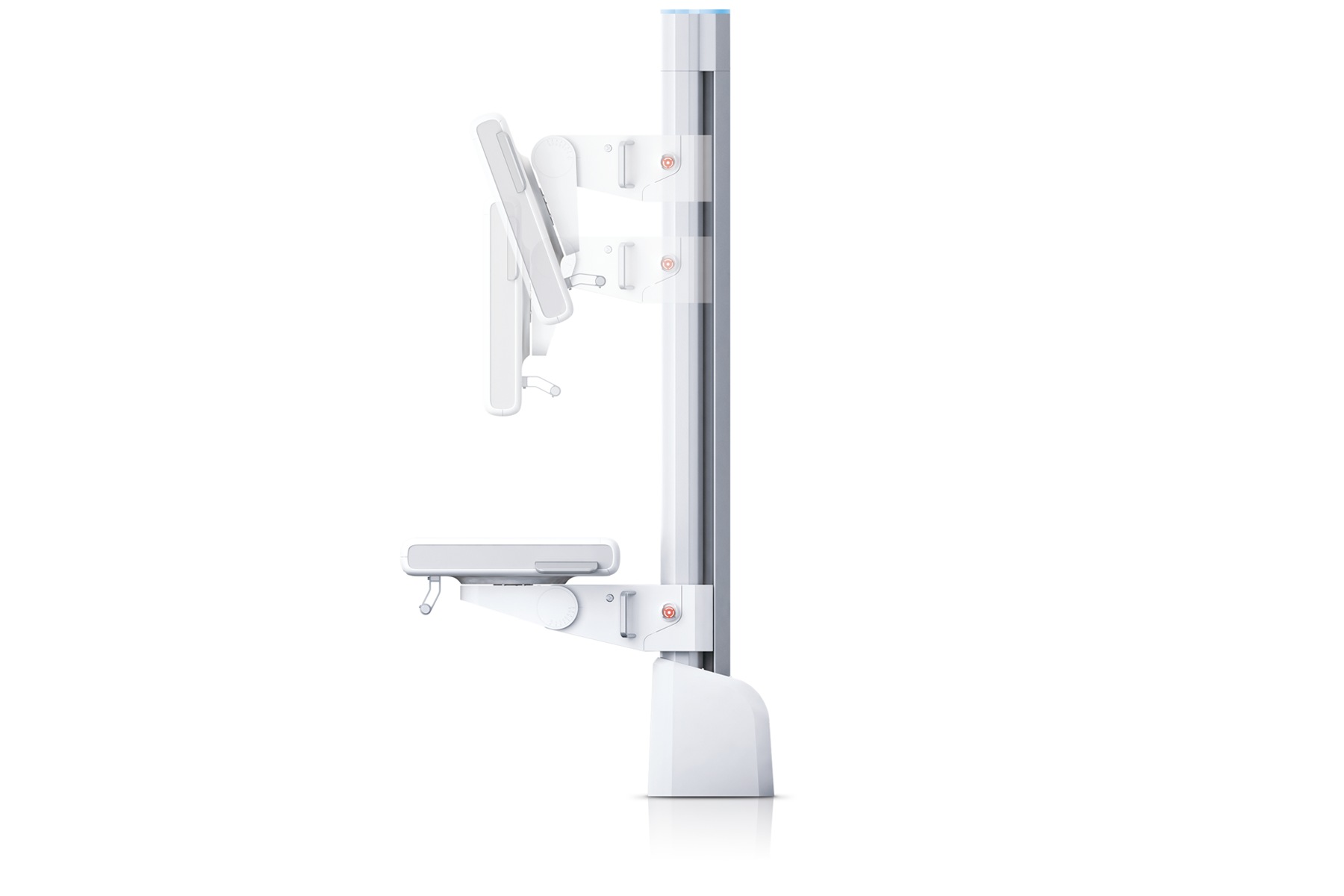

Ergonomic and flexible design
Tilting at the range from -20 to +90 degrees, the receptor enables users to take images at various positions without a table.
Tilting at the range from -20 to +90 degrees, the receptor enables users to take images at various positions without a table.
Lightweight Wireless S-Detector
S-Detector provides higher throughput, making the patients in the procedure more comfortable and convenient. As a result, the operator’s effort is reduced, and a greater number of patients can be served.
S-Detector provides higher throughput, making the patients in the procedure more comfortable and convenient. As a result, the operator’s effort is reduced, and a greater number of patients can be served.
Varying sizes
S-Detectors are available in three different sizes, providing personalized care from pediatric to bariatric patients and ensuring optimized images for different sizes of body parts, such as hand, chest or spine.
S-Detectors are available in three different sizes, providing personalized care from pediatric to bariatric patients and ensuring optimized images for different sizes of body parts, such as hand, chest or spine.
Great durability
S3025-W is water-resistant to protect it from liquid sprays and dust.
The unit’s water resistance also protects it from spills and damage resulting from unexpected contact.
S3025-W is water-resistant to protect it from liquid sprays and dust.  The unit’s water resistance also protects it from spills and damage resulting from unexpected contact.
Soft Handling
Low-level noise and easy handling technology enable users to operate the Rube Head Unit with low physical pressure, even without a side handle.
Low-level noise and easy handling technology enable users to operate the Rube Head Unit with low physical pressure, even without a side handle.

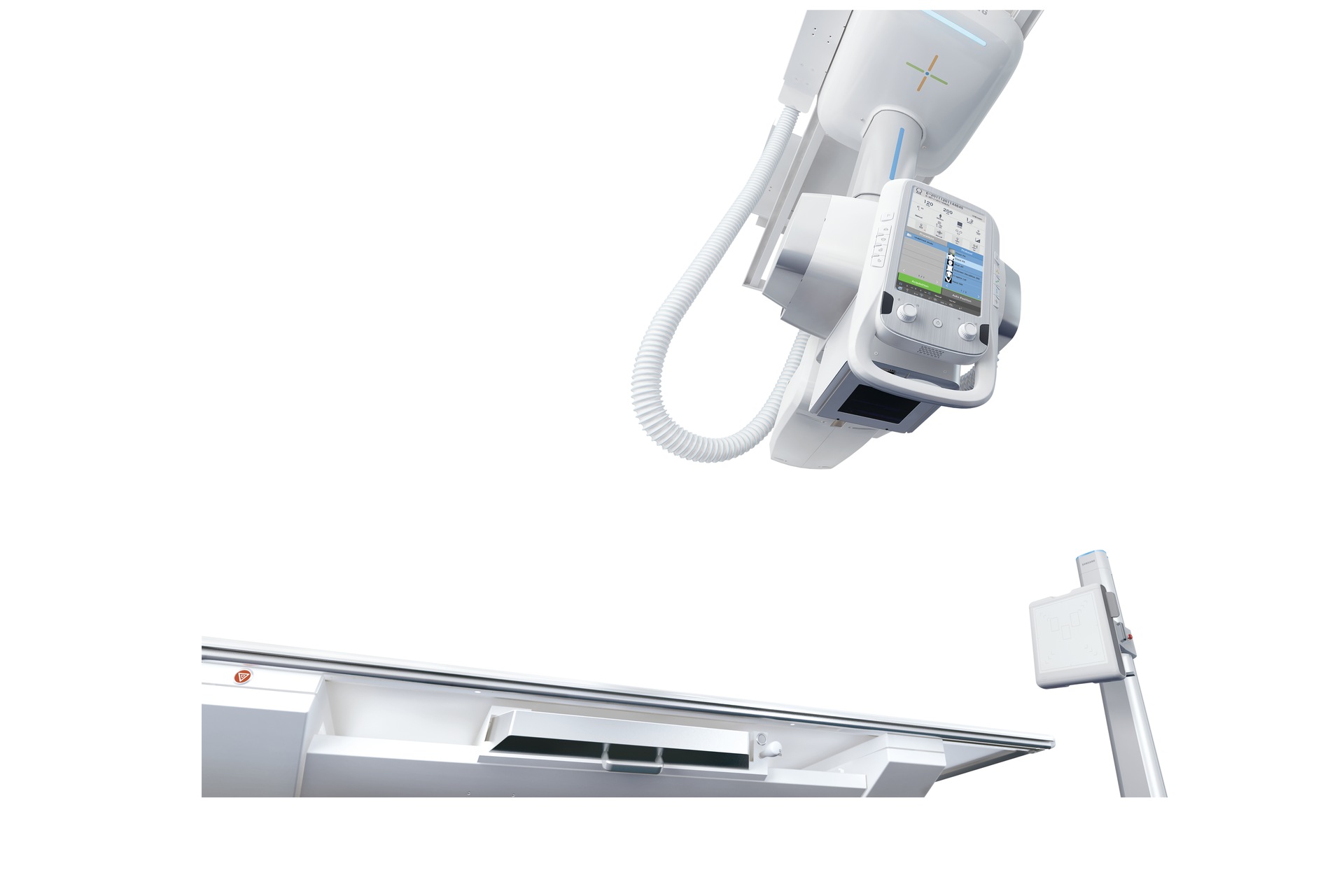

Intuitive User Interface
Intuitive icons and buttons of the THU (Tube Head Unit) allow users to easily operate the system. It is easy to shoot multiple images after checking the preview on the THU’s 12-inch wide screen.
Intuitive icons and buttons of the THU (Tube Head Unit) allow users to easily operate the system. It is easy to shoot multiple images after checking the preview on the THU’s 12-inch wide screen.
Useful Audio User Interface (AUI)
Different sounds and colors are assigned to easy movement of the tube. Applying AUI to each movement helps users easily figure out the location of the THU (Tube Head Unit) while keeping patients under observation.
Different sounds and colors are assigned to easy movement of the tube. Applying AUI to each movement helps users easily figure out the location of the THU (Tube Head Unit) while keeping patients under observation.
Positioning Help
The visual guide provides various scanning positions to help the user acquire images easily.
The visual guide provides various scanning positions to help the user acquire images easily.
6-way Table
The flexible 6-way table can endure maximum 350kg weight. The elevating range is 545~900mm and both wireless and wired foot switch are possible. Thin table legs make the best use of fixed space.
The flexible 6-way table can endure maximum 350kg weight. The elevating range is 545~900mm and both wireless and wired foot switch are possible. Thin table legs make the best use of fixed space.
Remote Control
Most functions of the equipment can be controlled by a remote control, which allows the user to work with the scanner more conveniently without going back and forth between the scanning room and the control room.
Most functions of the equipment can be controlled by a remote control, which allows the user to work with the scanner more conveniently without going back and forth between the scanning room and the control room.
Wireless Foot Switch
The wireless foot switch prevents patients or operators from accidentally tripping over the foot switch cable and allows the operator to adjust the table position from anywhere.
The wireless foot switch prevents patients or operators from accidentally tripping over the foot switch cable and allows the operator to adjust the table position from anywhere.
Individual Blade Control (4-way Control Device)
4-axis individual blade control function reduces radiation dose and is especially useful for pediatric chest examination.
4-axis individual blade control function reduces radiation dose and is especially useful for pediatric chest examination.
Collision avoidance system
Six sensors at the THU, swivel arm and receptor can detect the movement of patients and users to avoid collision.
Six sensors at the THU, swivel arm and receptor can detect the movement of patients and users to avoid collision.
DAP (Dose Area Product)
By measuring the amount of X-ray being used by the collimator, users can measure the dosimetry of patients being examined. DAP information can also be delivered to PACS and effectively managed.
By measuring the amount of X-ray being used by the collimator, users can measure the dosimetry of patients being examined. DAP information can also be delivered to PACS and effectively managed.
AEC (Auto Exposure Control)
The AEC function prevents excessive exposure to X-rays and provides patients the best image quality possible.
The AEC function prevents excessive exposure to X-rays and provides patients the best image quality possible.
RMS
This system provides a customized service that enables users to manage the status of equipment through real-time monitoring of any problems. It also provides remote repair services through remote access assistance.
This system provides a customized service that enables users to manage the status of equipment through real-time monitoring of any problems. It also provides remote repair services through remote access assistance.
Key features
GC80 series
GC80 / XGEO GC80 : Tube 600kHU / HVG(Generator) 80kW / Soft Handling O / Auto Positioning O / Smart Stitching Option / Wireless Detector S3025-W, S4335-W, S4343-W / S-Share O XGEO GC80V-65 / XGEO GC80V-80 : Tube 400kHU / HVG(Generator) 65kW, 80kW / Soft Handling X / Auto Positioning X / Smart Stitching Option / Wireless Detector S4335-W, S4343-W / S-Share X
