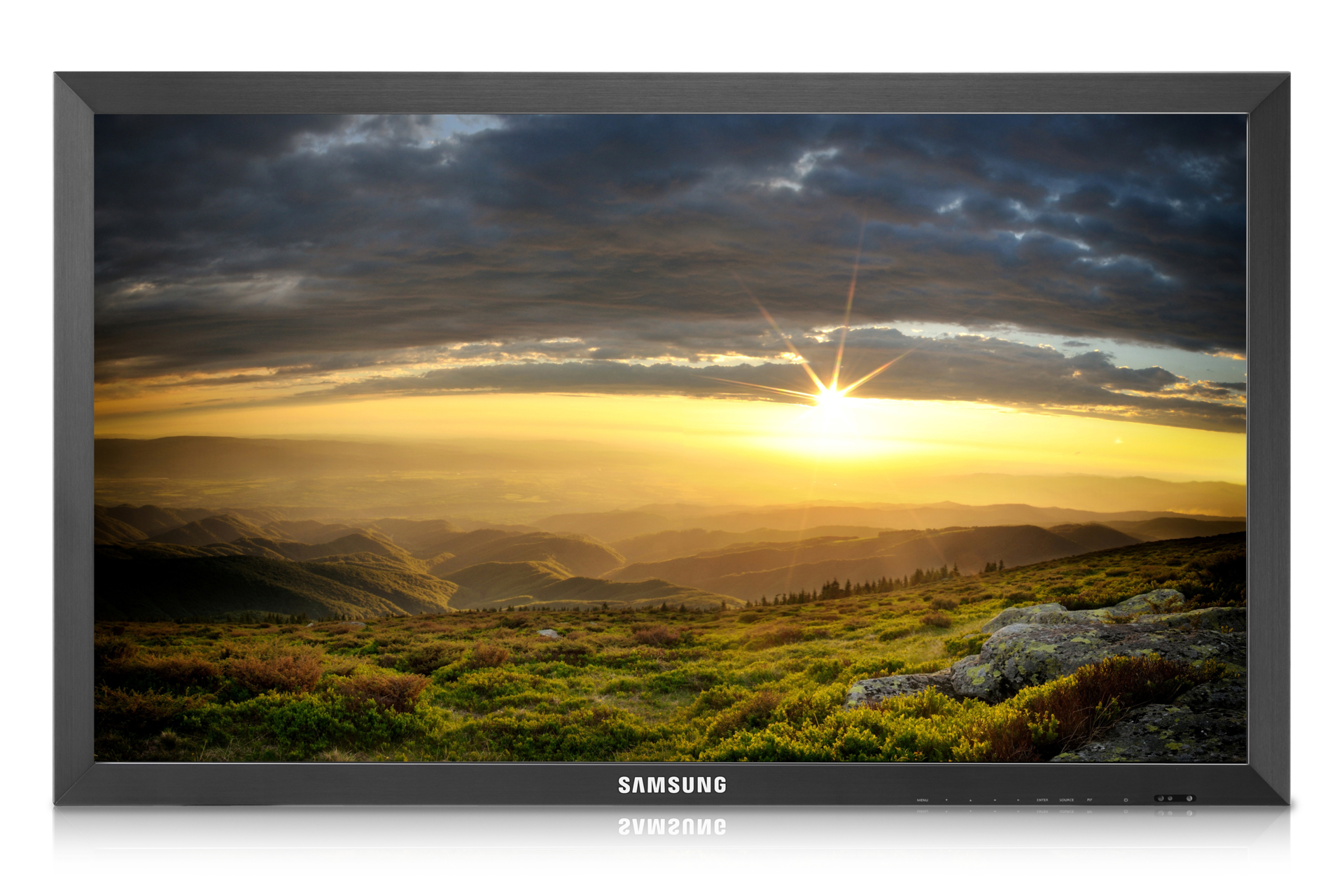

400TS-3If you require outdoor signage that can really handle the elements, then the Samsung 400TS-3 LFD is a perfect choice. With features like enhanced connectivity for remote control, built-in speakers, and a robust exterior, you can count on your communications being not only brilliant but also up-and-running whatever the weather. It also comes with touchscreen controls, built-in cooling fans, and easy-to-build video wall capabilities. With so many helpful features, this display is sure to become your most trusted work resource.
Recycling Batteries Responsibly
The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.
The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centers can be obtained from: www.recycle-more.co.uk
All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.
- If you require outdoor signage that can really handle the elements, then the Samsung 400TS-3 LFD is a perfect choice.
- With features like enhanced connectivity for remote control, built-in speakers, and a robust exterior, you can count on your communications being not only brilliant but also up-and-running whatever the weather.
- It also comes with touchscreen controls, built-in cooling fans, and easy-to-build video wall capabilities.
- With so many helpful features, this display is sure to become your most trusted work resource.
Enhanced connectivity without extra costs.
Easy control goes the distance.
Set a schedule that’s always on time.
A video wall that lives up to your standards
Save money, save space with built-in speakers.
A cool way to ensure longevity.
Choose the right view, landscape or portrait.
A screen that won’t shatter your digital dreams.
Twice the information, double the impact.
On-screen interactivity built-right-in.
A great picture that’s glare-free.
A slide-in design with easy accessibility.
30kHz ~ 81kHz
Maximum Pixel Frequency
56Hz ~ 85Hz
Active Display Area
885.6(H) x 498.15(V)
Contrast Ratio (Dynamic)
Response Time (G-to-G)
8 bit - 16.7M
Analog D-SUB, DVI-D, Display Port
CVBS, HDMI1, HDMI2, Component (D-sub 15pin)
RCA(L/R) , Stereo mini Jack
5V (for SBB)
RJ45, RS232C(in/out) , USB B type (touch screen)
Set Dimension (WxHxD) (mm)
973.2 X 584.4 X 128.1
Package Dimension (WxHxD) (mm)
1085 X 703 X 310
Set Weight (kg)
Package Weight (kg)
VESA Mount (mm)
Media Player Option Type
SIM (Slide in Module )
Operating Temperature (℃)
All-in-one Touchscreen (Dual Touch)
Embedded Touch (IR), Lamp Error Detection,Brightness Sensor, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC,Built in Speaker (10W + 10W),Plug and Play (DDC2B), PIP/PBP, Video Wall(10x10), Pivot Display, Button Lock, Smart Scheduling, Smart F/W update
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
less than 1W
235W(max) / 193W(typ)
less than 2W
Quick Setup Guide, Warranty Card,Application CD, D-Sub cable, Power Cord,Remote Controller, Batteries
Memory▲ (Actual available memory for end user usage may vary due to pre-configuration. The pre-configuration includes preloaded operating system and applications.)
FCC (USA) FCC Part 15, Subpart B class A
CE (Europe) EN55022, EN55024
VCCI (Japan) V-3 (CISPR22)
KCC (Korea) :KN22, KN24
BSMI (Taiwan) : CNS13438 (CISPR22)
C-Tick (Australia) : AS/NZS3548 (CISPR22)
CCC(China) :GB 9254-2008, GB 17625.1-2003
ENERGY STAR 5.0 (USA)
UL (USA) : UL 60950-1
CSA (Canada) : CSA C22.2 No. 60950-1
TUV (Germany) : EN60950-1
NEMKO (Norway) : EN60950-1
KC (Korea) : K60950-1
CCC (China) : GB 4943-2001
PSB (Singapore) : IEC60950-1
GOST (Russia) : IEC60950-1, EN55022
SIQ (Slovenia) : IEC60950-1, EN55022
PCBC (Poland) : IEC60590-1, EN55022
NOM (Mexico) : NOM-019-SCFI-1993
IRAM (Argentina) :IEC60950-1
SASO (Saudi Arabia) : IEC60950-1
6.54 MB, pdf, ENGLISH
7.01 MB, pdf, ENGLISH
5.76 MB, pdf, CHINESE(Simplified)
7.06 MB, pdf, CHINESE(Traditional)
7.17 MB, pdf, CHINESE(Simplified)
6.1 MB, pdf, CHINESE(Traditional)
1.76 MB, pdf, ENGLISH
1.49 MB, pdf, CHINESE(Simplified)
Win 98/ME/2K/XP/X64/Vista/Vista 64/Win7/Win7 64, 7.9 MB, exe, MULTI LANGUAGE
Version : 1.0
2011.01.25Close tooltip pop-up1. Title
2. Applicable Model
3. Carrier or Corporate Customer
If you have trouble for setting up the Monitor under Windows 98/Me/2000/XP/X64/Vista/Vista64, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.
System Requirements : Windows 98/Me/2000/XP/X64/Vista/Vista64 /Windows7(32bit/64bit)
