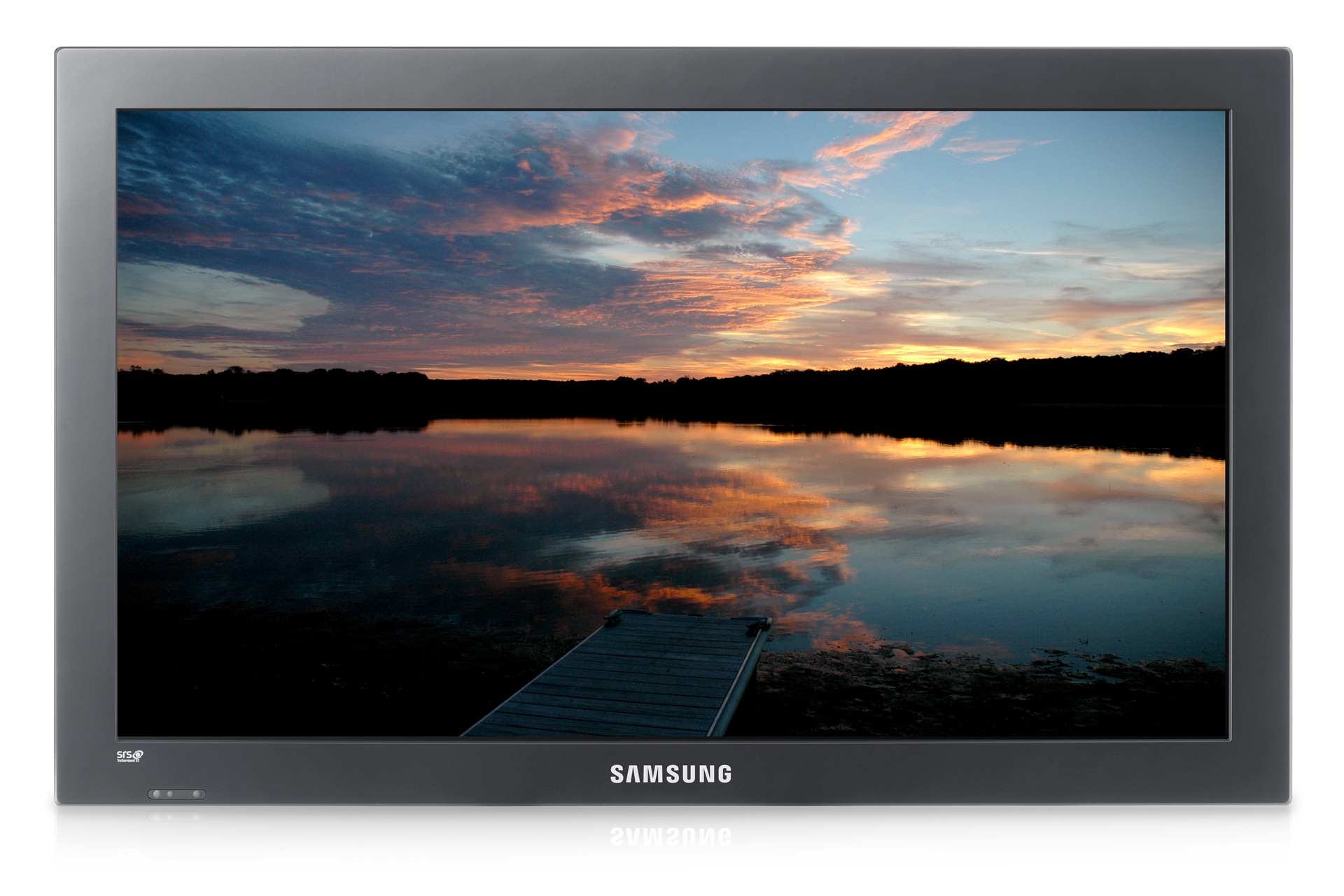

460BX Built using industry standard cold cathode fluorescent lamp (CCFL) technology, the Samsung BX LFDs provide a solid, reliable and economical solution to meet your display needs. Take the hassles out of your communications with a powerful and flexible screen from the Samsung BX range. Featuring built-in speakers for a full multimedia experience, it will really help your business stand out in a crowd. Providing Full HD resolution at an affordable price, the Samsung BX series delivers your message with power and precision.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centers can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.



  • Built using industry standard cold cathode fluorescent lamp (CCFL) technology, the Samsung BX LFDs provide a solid, reliable and economical solution to meet your display needs.
  • Take the hassles out of your communications with a powerful and flexible screen from the Samsung BX range.

A video wall that lives up to your standards

A video wall that lives up to your standards
Create the ultimate video wall with Samsung LFDs that cater to your needs. And because this LFD has an embedded video matrix processor, it supports 1x1 to 10x10 wall formats, allowing you to enjoy total convenience. Best yet, since they need no additional support, the possibilities are almost endless.

Save money, save space with built-in speakers.

Save money, save space with built-in speakers.
Maximize your impact with a great picture and crisp audio. Your message will be heard loud and clear with built-in speakers. You’ll save money when you eliminate the cost of purchasing separate speakers, and you’ll save valuable space as well.

A cool way to ensure longevity.

A cool way to ensure longevity.
Enjoy continuous, reliable operation thanks to a built-in fan control. Housed inside of the LFD, the fan guarantees you can count on it for years to come without worrying about it overheating. You can even control the fan with an easy-to-use on screen display.

Choose the right view, landscape or portrait.

Choose the right view, landscape or portrait.
This Samsung LFD gives you the flexibility to display your image vertically or horizontally—whatever the situation calls for. With a pivot function that rotates the screen 90˚degrees and the freedom to display presentations in portrait mode or advertisements in landscape mode, this makes for one versatile monitor.

A great picture that’s glare-free.

A great picture that’s glare-free.
Whether you have a story to tell or a product to sell, it’s important that your image is crystal clear. This Samsung LFD delivers just that—even if your display is located in a brightly-lit environment. It eliminates any reflections that can disrupt your ad’s readability, keeping images smooth and visible.

tech specs

Dimension of LH46ARPLBC/XY


  • H-Scanning Frequency

    30kHz ~ 81kHz

  • Maximum Pixel Frequency


  • V-Scanning Frequency

    56Hz ~ 85Hz


  • Diagonal Size


  • Technology

    S-PVA (B-DID)

  • Resolution

    1920 x 1080 (16:9)

  • Pixel Pitch(mm)

    0.53025 (H) x 0.53025 (V)

  • Active Display Area

    1018.08 (H) x 572.67 (V)

  • Brightness


  • Contrast Ratio (Dynamic)


  • Viewing Angle(Horizontal/Vertical)


  • Response Time (G-to-G)


  • Display Color

    8 bit - 16.7M

  • Color Gamut


  • Contrast Ratio


  • Light Source Type




  • Input

    Analog D-SUB, DVI-D


    CVBS, Component (D-Sub 15pin)


    Stereo mini Jack

  • Output
    Power Out

    5V (for SBB)

  • External Control

    RS232C (in)


  • Dimension
    Set Dimension (WxHxD) (mm)

    1102.0 x 656.8 x 91.4mm

    Package Dimension (WxHxD) (mm)

    1199.0 x 748.0 x 230.0mm

  • Weight
    Set Weight (kg)


    Package Weight (kg)


  • VESA Mount (mm)

    600 x 400mm

Operation Time

  • Operating Temperature (℃)

    0℃ - 40℃

  • Humidity (%)

    10 - 80%

General Feature

  • Key

    Economy and Reliability

  • Special

    Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C MDC, Built in Speaker (5W + 5W), Plug and Play (DDC2B, DDC/CI), Video Wall(10x10), Pivot Display


  • Power Supply

    AC 100 - 240V ~ (+/- 10 %), 50/61 Hz

  • Power Consumption
    Off Mode

    less than 1W

    On Mode

    240 (Max) / 220 (Typ)

    Sleep Mode

    less than 1W

  • Technology



  • Included

    Quick Setup Guide, Warranty Card,Application CD, D-Sub cable, Power Cord,Remote Controller, Batteries

  • Optional





  • EMC

    FCC (USA) : FCC Part 15,Subchaptyer J,Class
    ACE (Europe) : EN55022, EN55024
    VCCI (Japan) : V-3 (CISPR22)
    KCC (Korea) : KN22, KN24
    BSMI (Taiwan) : CNS13438 (CISPR22)
    C-Tick (Australia) : AS/NZS3548 (CISPR22)
    CCC(China) : GB 9254-2008, GB 17625.1-2003

  • Environment


  • Safety

    UL (USA+Canada) : UL60065
    TUV (Germany) : EN60065
    NEMKO (Norway) : IEC60065/EN60065
    EK (Korea) : K60065
    CCC (China) : GB8898
    PSB (Singapore) : IEC60065
    GOST (Russia) : IEC60065, EN55022
    SIQ (Slovenia) : IEC60065, EN55022
    PCBC (Poland) : IEC60065, EN55022
    NOM (Mexico) : NOM-001-SCFI-1993
    IRAM (Argentina) : IRAM
    SASO (Saudi Arabia) : IEC60065


Driver (1)

  • Device(Install)(Monitor driver)

    Windows 7(32bit,64bit), 7.9 MB, exe, MULTI LANGUAGE

    Version : 1.0


    Close tooltip pop-up
    1. Title
    Monitor Driver
    2. Applicable Model
    SyncMaster 460BX
    3. Carrier or Corporate Customer
    Open Market
    4. Description

    If you have trouble for setting up the Monitor under Windows 7, this program will help you to install Windows Monitor Driver. You can install the most suitable Windows driver for your monitor.

    System Requirements : Windows7(32bit/64bit)
