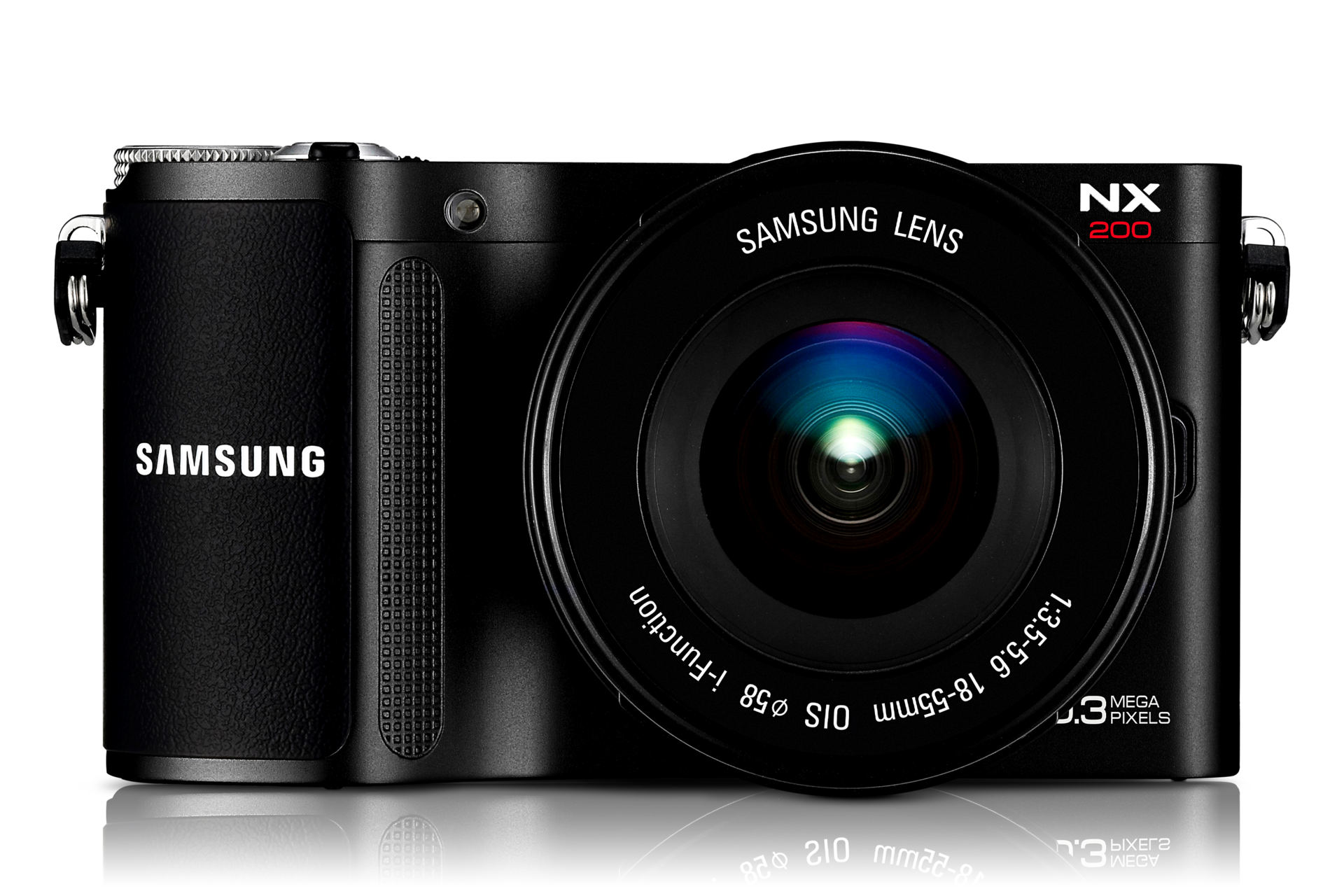

SMART CAMERA NX200

NX200

SMART CAMERA NX200 Until now, photographers have had to choose between the highest performance levels and ease of use. Samsung’s long-anticipated NX200 renders that decision obsolete, unleashing the professional photographer inside us all. Thanks to a 20.3 megapixels APS-C CMOS Sensor, the NX200 delivers images that will satisfy even the most discerning eye. Just as importantly, the camera’s innovative features and design make those images easier than ever to capture.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centers can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

SMART CAMERA NX200

Features

  • - NX200 combines with the highest performance levels and ease of use.
  • - With 20.3 megapixels APS-C CMOS Sensor, NX200 delivers images that will satisfy even the most discerning eye.

Reality never looked so real
20.3MP APS-C CMOS Sensor

Samsung NX200
Samsung has customized the new, 20.3 megapixels APS-C CMOS Sensor to perfectly complement the mirrorless lens system of the Samsung NX200, a feature typically found only in DSLRs. The professional-grade sensor ensures that each individual pixel receives more light. The resulting images are amazingly true to life, with rich, brilliant colors. The sensor also captures Full HD video that maintains higher definition and clarity than ever before.

A camera that’s quick on the draw
High Speed Capture (7fps/Fast AF)

A camera that’s quickon the drawHigh Speed Capture (7fps/Fast AF)
Picture-perfect moments don’t last long. The Samsung NX200’s High Speed Capture capabilities enable you to capture fast-moving subjects with confidence. An all-new autofocus algorithm delivers accurate, instantaneous autofocus without a separate sensor module. And because you can take sequential pictures at 7fps, you won’t miss out on the best possible image.

See more in lower light
Wide range ISO (100~12800)

See more in lower lightWide range ISO (100~12800)
The right exposure can make the difference between a stunning photo and a forgettable one. But some lighting conditions call for greater sensitivity than most cameras allow. The NX200 lets you shoot as high as 12800 ISO at normal settings. Even in low light, you can take high-speed photos with minimal noise or blurring. When needed, the range can be expanded further so you can maximize the potential of any light available, capturing natural-looking images even indoors or at night.

Take full control of your pictures
i-Function 2.0

Take full control of your picturesi-Function 2.0
The NX200 makes it easy to create spectacular images on the fly. Samsung’s updated i-Function 2.0 lets you manually control image capture settings right on the lens with a single button and the value ring. You get easy access not only to lens-specific settings but also to i-Zoom and i-effect. Intuitive icons explain each function so you can make the most of every shot.

Discover the true beauty of Full HD video
1080 30p Full HD Movie (H.264)

Discover the true beauty of Full HD video1080 30p Full HD Movie (H.264)
The NX200’s uncompromising performance isn’t limited to still images. The camera’s 1080 30p Full HD recording capabilities let you create professional-looking videos, too. An 18-200mm lens exclusively for Full HD video produces smooth, dynamic movies with wide zoom capability. When you’re ready for showtime, an HDMI interface lets you transmit your vision straight to the big screen.

Bring the magic back into your photos and videos
Magic mode (Smart Filter + Magic Frame)

Bring the magic back into your photos and videosMagic mode (Smart Filter + Magic Frame)
The NX200’s Magic Mode gives you control over special moods and effects that expand your creative palette. Your choice of 10 types of Smart Filters and 12 types of Magic Frames help you create poster-quality visuals without all the work. New special effects include Soft Focus for a warm ambience and Half-Tone Dot for a comic-book look.
3.0” VGA AMOLED Display

3.0” VGA AMOLED Display

The NX200’s thin and light 3.0” VGA AMOLED display provides darker blacks and more vibrant colors than a conventional TFT-LCD display, even in direct sunlight. It also responds 3,000 times faster, so your images appear almost as quickly as you shoot them, freeing you to move on to the next shot.
Panorama, 3D Panorama

Panorama, 3D Panorama

The NX200’s panoramic capabilities let you capture vast landscapes and dramatic vertical shots with the push of a button on the mode dial. Shooting 3D images is just as easy. With both modes active at once, you can even create spectacular 3D panoramas to display on your 3D HDTV.

tech specs

Dimension of EV-NX200ZDSBHK

Sensor

  • Sensor Type

    APS-C CMOS

  • Effective Pixel

    Approx. 20.3 Mega-pixels

  • Total Pixel

    Approx. 21.6 Mega-pixels

Lens

  • Mount

    Samsung NX Mount

  • Usable Lens

    Samsung Lenses for Samsung NX Mount

SHOW MORE SPECSExpand

ViewFinder

  • Field of View

    Approx. 100%

  • LCD Monitor

    3.0" AMOLED

Focusing

  • Technology

    Contrast AF

  • Mode

    Single AF, Continuous AF, MF

Shutter Speed

  • Technology

    Electronically controlled vertical-run focal plane shutter

  • Speed

    Auto: 1/4000sec ~ 30sec.
    Manual: 1/4000sec ~ 30sec(1/3EV step)
    Bulb(Limit time: 4min.)

Exposure

  • Metering System

    TTL 221(17x13) Block segment
    Metering : Multi, Center-weighted, Spot
    Metering range : EV 0 - 18 (ISO100‧30mm F2.0)

  • Compensation

    ±3 EV (1/2EV, 1/3EV step)

  • AE Lock

    Shutter Button half press

  • ISO Equivalent

    Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800 (1EV or 1/3EV step)
    * Auto ISO upper level is selectable. (Up to ISO 3200)

Flash

  • Technology

    External Flash only (Bundle with SEF8A)

  • External Flash

    Samsung External Flash available (SEF42A, SEF20A, SEF15A: Optional)

White Balance

  • Mode

    Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K(Manual)

Picture Wizard

  • Picture Wizard

    Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1-3)

Shooting

  • Mode

    Smart Auto 2.0, Lens Priority, Program, Shutter Priority AE, Aperture Priority AE, Manual, Panorama, Scene, Movie

  • Scene Mode

    Beauty shot, Children, Close Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow, Night, Portrait, Landscape, Sports, 3D Photo, Sound Picture

  • Sound Picture

    JPEG Only
    Sound Recording Time (Before and after shooting each 5 or 10sec.)

  • Image Size

    JPEG (3:2) : 20M (5472x3648), 10.1M (3888x2592), 5.9M (2976x1984), 2M (1728x1152), 5M (2736x1824): Burst mode only
    JPEG (16:9) : 16.9M (5472x3080), 7.8M (3712x2088), 4.9M (2944x1656), 2.1M (1920x1080)
    JPEG (1:1) : 6M (2448x2448), 6.7M (2592x2592), 4M (2000x2000), 1.1M (1024x1024)
    RAW : 20M (5472x3648)

  • Quality

    Super fine , Fine, Normal

Storage

  • Media

    SD, SDHC, SDXC (Up to 128GB)

  • File Format

    RAW (SRW), JPEG (EXIF 2.21), DCF, DPOF 1.1, PictBridge 1.0

  • Image Size

    "20M : RAW 17
    20M (3:2) : Super Fine 94, Fine 185, Normal 272
    10.1M (3:2) : Super Fine 192, Fine 368, Normal 530
    5.9M (3:2) : Super Fine 318, Fine 593, Normal 834
    2M (3:2) : Super Fine 827, Fine 1393, Normal 1806
    Burst (5M) : Super Fine 371, Fine 685, Normal 954
    16.9M (16:9) : Super Fine 116, Fine 227, Normal 333
    7.8M (16:9) : Super Fine 246, Fine 467, Normal 665
    4.9M (16:9) : Super Fine 379, Fine 699, Normal 972
    2.1M (16:9) : Super Fine 799, Fine 1354, Normal 1762
    13.3M (1:1) : Super Fine 147, Fine 284, Normal 413
    7M (1:1) : Super Fine 272, Fine 513, Normal 728
    4M (1:1) : Super Fine 454, Fine 823, Normal 1130
    1.1M (1:1) : Super Fine 1344, Fine 2062, Normal 2508
    Movie : 1920x1080 30p : High Quality 8min., Normal 10min.
    1280x720 60p : High Quality 8min., Normal 9min.
    1280x720 30p : High Quality 14min., Normal 16min.
    640x480 30p: High Quality 37min., Normal 43min.
    320x240 30p: High Quality 119min., Normal 145min.
    * These figures are measured under the Samsung standard

Image Play

  • Technology

    Single image, Thumbnails (3/15/40 images), Slide show, Movie

  • Editing

    Red eye fix, Back light comp., Photo Style Selector, Resize, Rotate, Face Retouch, Smart Filter

Power Source

  • Dedicated battery

    Rechargeable battery : BP1030(1030mAh)
    Charger: BC1030

  • Battery Life

    Approx. 160min/320shots(CIPA Standard)

Design

  • Dimensions

    116.5 × 62.5 × 36.6mm (excluding the projecting parts of the camera)

  • Weight (g)

    220.4g(without battery and memory card)

  • Operating Temperature (℃)

    0 ~ 40°C

  • Operating Humidity (%)

    5 ~ 85%

Software

  • Camera Driver

    Intelli-studio 3.0
    Samsung RAW Converter 4
    Adobe Reader

System Requirement in General

  • For Windows

    Windows XP/Vista/7
    Intel Pentium, AMD Athlon Processor(Intel Pentium 4, AMD Athlon XP or later recommended)
    1GB or more RAM recommended
    Minimum 100MB of available hard disk space
    1,024 x 768 pixels, Full Color(24-bit or higher) color display compatible

  • For Machintosh

    Mac OS X v10.6/v10.5/v10.4
    Power PC/Intel Processor-based or compatible computer(Core 2 Quad or later recommended)
    1GB or more RAM recommended
    Minimum 100MB of available hard disk space
    1,024 x 768 pixels, 24-bit color display compatible monitor

Support

User Manual

7.04 MB, pdf, ENGLISH

2013.01.28

Other Manuals (2)

  • User Manual

    21.2 MB, pdf, CHINESE(Simplified)

    2013.01.28

  • User Manual

    20.2 MB, pdf, CHINESE(Traditional)

    2013.01.28

Software (2)

  • Samsung RAW Converter(-)

    Mac OS 10.3 ~ 10.7, 67.27 MB, dmg, KOREAN, ENGLISH, CHINESE, CHINESE, FRENCH, GERMAN, RUSSIAN, SPANISH

    Version : 4.0.4.0

    2012.07.30 tooltipbox

    Close tooltip pop-up
    Samsung RAW Converter 4.0.4.0 (English / Mac)

    [Samsung RAW Converter 4.0.4.0] Software Download Guide (English)

    Samsung RAW Converter 4.0.4.0 is the program to develop Samsung RAW file.

    You can transform RAW file image into JPEG or TIFF file.

    This software is the exclusive use of DNG and SRW file, it only works on Mac OS.

    This program is compatible on Mac OS 10.3 10.7.

    [Supported Products]

    SAMSUNG NX20, NX210, NX1000, NX200, NX100, NX11, NX10, NX5, WB2000, WB5500/HZ50W, WB5000/HZ25W, GX20, GX10, EX1

    But, this program does not support RAW file shoot by other brands products. (Only supports .DNG/.SRW shoot by Samsungs products.)
  • Samsung RAW Converter(-)

    Win 2000/XP/Vista/Win7, 61.36 MB, exe, KOREAN, ENGLISH, CHINESE, CHINESE, FRENCH, GERMAN, RUSSIAN, SPANISH

    Version : 4.0.4.0

    2012.07.30 tooltipbox

    Close tooltip pop-up
    Samsung RAW Converter 4.0.4.0 (English / Windows)

    [Samsung RAW Converter 4.0.4.0] Software Download Guide (English)

    Samsung RAW Converter 4.0.4.0 is the program to develop Samsung RAW file.

    You can transform RAW file image into JPEG or TIFF file.

    This software is the exclusive use of DNG and SRW, it only works on Windows OS.

    This program is compatible on Window 7(32bit OS), but Window 7(64bit OS) does not support this program. [Supported Products] SAMSUNG NX20, NX210, NX1000, NX200, NX100, NX11, NX10, NX5, WB2000, WB5500/HZ50W, WB5000/HZ25W, GX20, GX10, EX1

    But, this program does not support RAW file shoot by other brands products. (Only supports .DNG/.SRW shoot by Samsungs products.)

Firmware (3)

  • Upgrade File

    All OS, 33.43 MB, zip, MULTI LANGUAGE

    Version : 1.13

    2014.04.02 tooltipbox

    Close tooltip pop-up
    1. Title - NX200 firmware v1.13
    2. Carrier or Corporate Customer - open market
    3. Description

    [v1.13]
    1. Support compatibility of new lens(16-50mm-S, 16-50mm-Power Zoom)
    2. Other bugs are fixed

    [v1.12]
    1. Improved lens interface of new lens(10mm)

    [v1.11]
    1. Improve problem that does not working distance scale bar with lens 60mm
    2. Improve problem that infinity AF error on special focusing length with 18-200mm

    [v1.10]
    1. Improve problem that delay recording after you turn on the power with high-capacity SD card
    2. Reduce time after high speed shooting
    3. Improve punt error in small aperture(F5.6 or higher) condition with 85mm Lens
    (It need to upgrade 1.10 Firmware 85mm Lens)
    4. Improve Shutter lag on MF ASSIST with With 60mm Macro Lens
    5. Compatibility for new lens (12-24mm)
    6. Other bugs are fixd

    [v1.04]
    1. Raw file size is reduced up to 25%, and processing speed has been improved with the opimized Raw file processing
    (Image quality is the same)
    - Compatible with Adobe Photoshop Camera Raw 6.7 Update
    2. Auto Focusing(AF) performance under dark or dim condition has been improved(Accuracy & Speed)

    [v1.03]
    1. Improved the sound quality at recording the movie
    2. Improved the image quality and fixed minor bugs

    [v1.02]
    1. Sometimes it cannot work normally when you use K-Mount Adaptor in condition of Kalvin temperature WB setting
    2. AWB malfunction when you use K-Mount Adaptor after turn it on
    3. Add AEL(AE Lock) function at Custom setting

    [v1.01]
    1. Low chroma effect especially yellow color
    2. File number initialization
    3. Low speed of continues shot at 3FPS
    4. Cannot automatically cancle of expended display when you use Mount Adaptor
  • Lens Upgrade File

    All OS, 0.37 MB, zip, MULTI LANGUAGE

    Version : 1.11

    2014.04.02 tooltipbox

    Close tooltip pop-up
    This is the latest LENS firmware package.
    To maximize improved firmware performance, body firmware should be the latest version.

    1. 18-55mm-III (v1.11)
    - Improved OIS performance
    - Improved the DMF sense of rotation for MF ring
    - Add new function for NX30 - Enable 3 steps control of DMF sensitivity

    2. 18-55mm-I (v1.20), 18-55mm-II_iFn (v1.10),
    20-50mm-I (v1.10), 20-50mm-II (v1.00), 20mm (v1.10),
    50-200mm-I (v1.20), 50-200mm-II_iFn (v1.10)
    - Change the sense of rotation for MF Ring. (Opposite position)
    - Reduce the Current consumption when lens operated.
    - Improved infinity AF(Auto Focus) accuracy at fireworks mode.

    3. 18-200mm (v1.10)
    - Improved NX200 movie mode aperture noise
    - Improved OIS current and noise

    4. 30mm (v1.22)
    - Intermittent failure of DMF that occurs when user press half shutter is fixed.
    - Accuracy of auto focus has been improved.

    5. 85mm (v1.10)
    - Back focusing problem of small aperture is fixed.

    [How to check the Lens firmware version]
    Please select the menu in the following order.
    Menu -> Setup -> Device information

    [How to update the Lens firmware]
    1) Download the lens firmware file into the root directory of the SD memory card.
    - When you upgrade the lens firmware, the lens which you upgrade must be attached on the camera.
    - If you can not attach the lens to the camera, you can not not upgrade it.
    - The file name of lens firmware is ''lens.bin''
    - If there is a difference between attached lens and lens firmware file, you can find the ''File Error'' message.
    2) Insert the SD card on which the lens firmware file is to be saved and then turn on the camera.
    3) Please select the menu in the following order.
    Menu -> Setup -> Device Information -> Firmware Update -> Lens Firmware -> ''Yes''
  • Upgrade guide

    All OS, 0.13 MB, pdf, MULTI LANGUAGE

    Version : Upgrade Guide_ENG

    2012.03.23 tooltipbox

    Close tooltip pop-up
    This is NX200 Firmware upgrade guide.

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderGoIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu ViewerGo

Have a question or need product support? Go to our support sectionGo

  • NEWEST
  • MOST HELPFUL
  • HIGHEST RATING
  • LOWEST RATING
