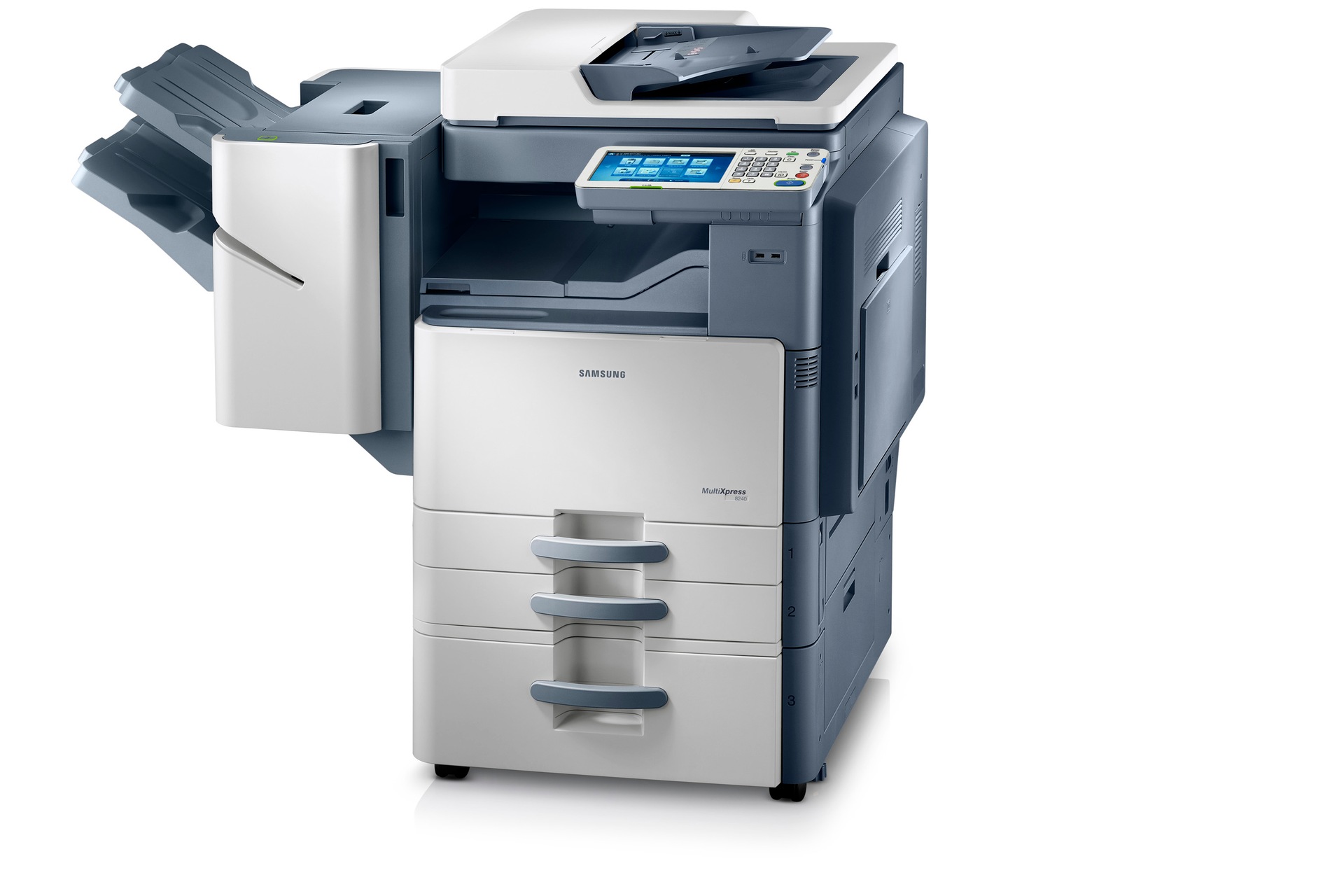

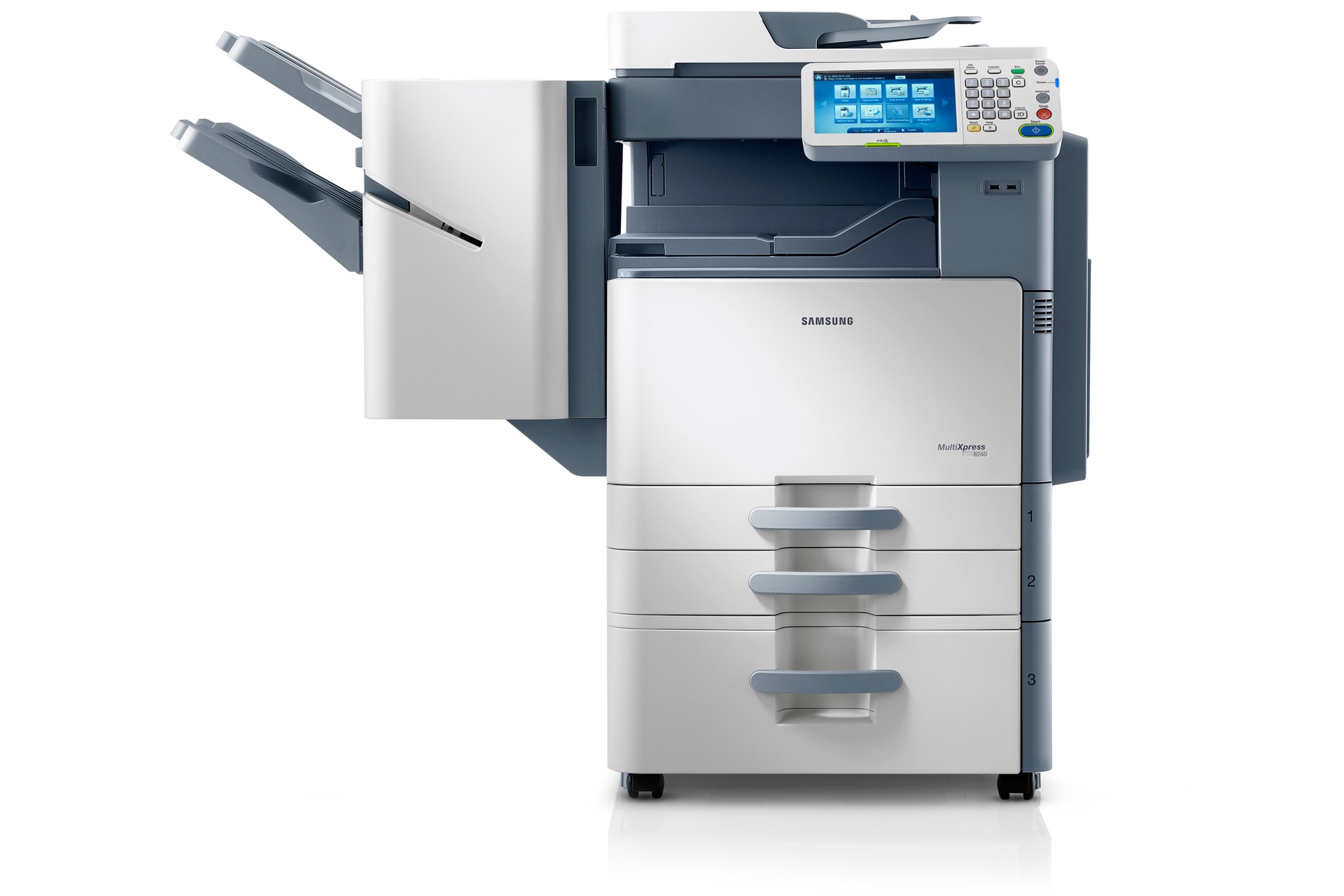

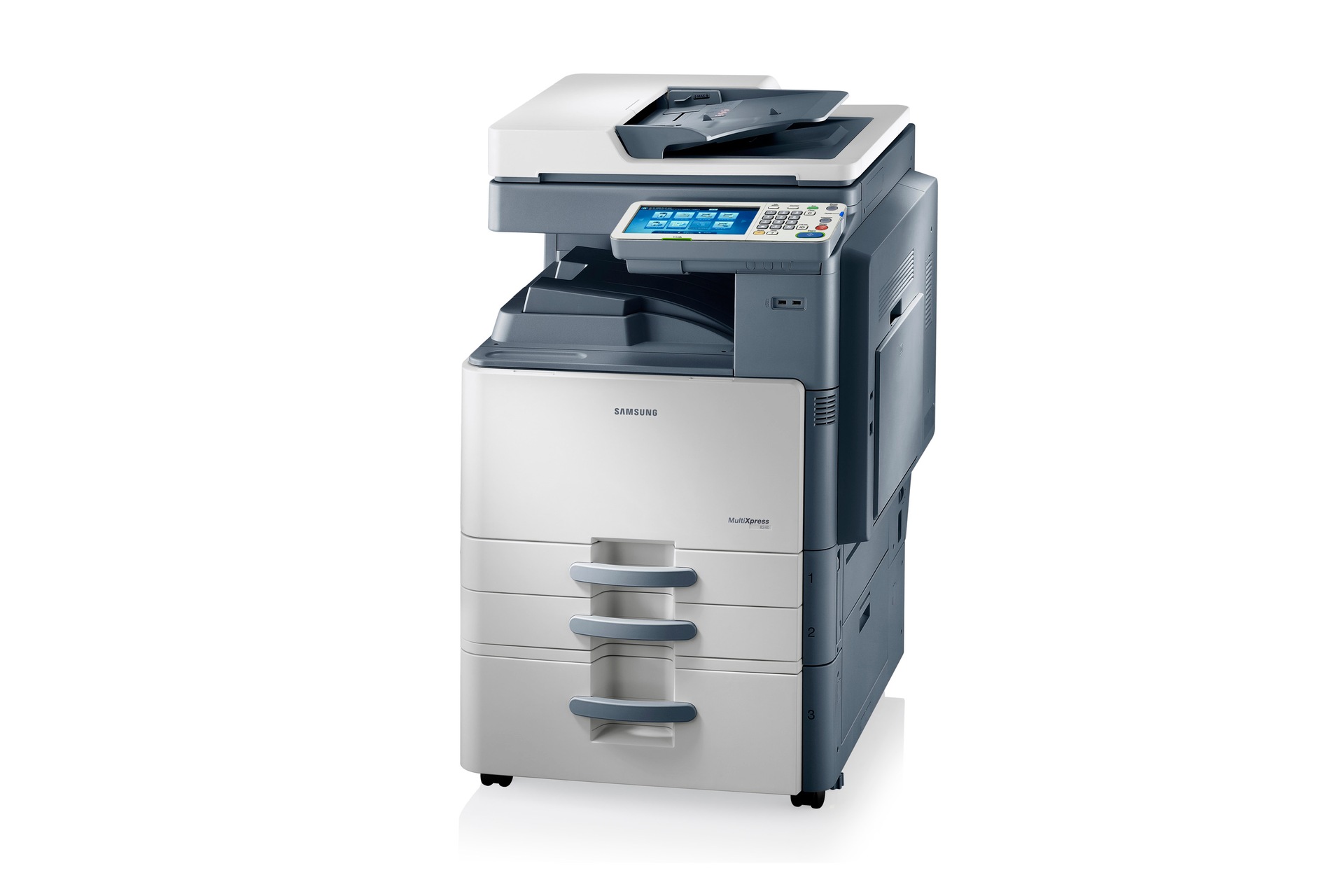

SCX-8240NA 40ppm A3 Multifunction Printer


  • Our A3 MFPs will exceed the expectations of the most demanding users through enhanced productivity, faster output, flexible finishing options and cost saving solutions compatibility.

SCX-8240NA 40ppm A3 Multifunction Printer

Contact us


Smart Samsung solution support

Smart Samsung solution support
Samsung offers various solutions such as Device Management, Document Solutions, Security Solutions as well as Mobile Solutions to meet modern office solution requirements.

Improve performance with twice the power

Improve performance with twice the power
The MultiXpress 8240NA enhance office productivity with faster printing and scanning capabilities, powered by a fully integrated Samsung 1 GHz dual-core processor. Large print and copy jobs are easier to manage, and scanning throughput is increased. The dual-core processor performs printing tasks faster than a conventional processor, enabling employees to focus on core work activities.

Wide media acceptance, including banners

Wide media acceptance, including banners
The MultiXpress 8240NA MFPs can accept a wide array of media types. The A3-capable MFPs accept the widest copy paper weight in the class. A multipurpose tray supports envelopes of various widths, heavy stock paper and other special media.

Enjoy quality printouts

Enjoy quality printouts
Samsung's unique ReCP (Rendering Engine for Clean Page) Technology improves the overall quality and vibrancy of your black & white printing, ensuring every printout looks perfect. It automatically sharpens the focus of both graphics and text, while solid objects are overlapped to eliminate white gaps.

Prevent document fading with polymerized toner

Prevent document fading with polymerized toner
Samsung polymerized toner produces smaller and more uniform particles than conventional toners. Printouts have crisper lines and intense colors, and pages curl less often. Additionally, the high wax content improves the image gloss and durability, which helps prevent the document from fading.

Low power consumption

Low power consumption
The combined boards and chips that make up the All-in-One Board help reduce the number of complex parts, decreasing the failure rate. The All-in-One Board assists in controlling overall energy consumption by lowering power requirements. When compared to a conventional board during an internal test, the All-in-One Board helped reduce Typical Electricity Consumption (TEC) by up to 50.1 percent.
Samsung Instant Fusing System (IFS) technology also helps increase printing and copying speed. In addition, IFS reduces energy use, which further aids in controlling operating costs. The combination of the All-In-One Board, IFS and polymerized toner help companies decrease expenditures.

Simplified savings with the touch of a button

Simplified savings with the touch of a button
Businesses can lower operating expenses with greater ease using Eco Mode, an energy-saving feature that helps com­panies reduce paper and power costs. By simply pressing the Eco button on the MFP, users can print more onto every page, with options for 2-up, 4-up and duplex printing.
Additionally, users can select the option to automatically skip blank pages, which helps save on toner, further reducing
supply expenses. Based on an internal Samsung test, Samsung MFPs with Eco Mode outperformed an MFP without Eco Mode: Easy Eco Driver provides users a preview of a document before printing, which helps reduce wasted printouts. While previewing the document, users can modify its format by re­moving text and images. The user can also adjust the layout (for example, from 1-up to 2-up printing) without changing the original document layout.

LCD control panel that is largest in its printer class

LCD control panel that is largest in its printer class
The color LCD control panel on the MultiXpress 8240NA MFPs is 8.9 in. and considered one of the largest MFPs in its MFP class. in its printer class. The control panel tilts for convenient viewing of the current job status, following prompts during an operation and setting up menus. Also, LED indicators, such as low paper alerts or a ready-for-use indicator, help users more quickly determine the device status.

Reduced downtime for maintenance

Reduced downtime for maintenance
Decreased maintenance and installation times help businesses meet deadlines within budget. Toner replacement for the MultiXpress 8240NA printers is designed for ease of use. In addition, users can correct paper jams without the need for a maintenance call. Fewer steps are required to replace high-frequency service items (HFSIs), such as fusers, rollers and image transfer units (ITUs). Fewer maintenance steps means the device is more readily available when users need it.

XOA (Open Architecture Platform)

XOA (Open Architecture Platform)
Enjoy the freedom of connecting your multifunctional product to your line-of-business applications through the unique Open Architecture Platform (XOA). Based on open standards, XOA allows print solution vendors to create embedded applications that enhance the use of the device’s capabilities to improve business processes.

Mobile printing*

Mobile printing*
Mobile workers can print, scan and transfer files wirelessly from a Samsung mobile device. Workers can realize increased productivity because they can print without having to install printer drivers to use robust print features.

*Note: Wireless Access Point (AP) is required.

Extensive paper handling and finishing capabilities

Workgroup members can finish various types of documents with the optional 1,250 / 3,250 finisher (hole punch and booklet), stapling and folding features. Users can select from the optional dual-cassette feeder (DCF) and high-capacity feeder (HCF).



  • Functions
    Print / Copy / Scan / Network / Duplex
  • Processor
    1 GHz (Dual Core)
  • Operational Panel
    8.9" Color Touch-Panel LCD, 1024 x 600 (WSVGA)
  • Memory
    1.0 GB
  • Hard Disk Drive
    320 GB HDD Stadnard (Document Box Space): 154 GB
  • Interface
    High Speed USB 2.0 Device/Host / Ethernet 10/100/1000 BASE TX
    Foreign device Interface
  • Warm-up time
    From Power On
    39 second
    From Sleep
    16 second
  • Power Requirements
    AC 220-240V / 50/60 Hz
  • Power Consumption
    Max 1.1kW (Ready: <100W / Low power: <20W / Sleep: <1.5W) / TEC: 1,994 kwh
  • Noise Level
    Copying: 55dBA, Printing: 52dBA, Ready: 37dBA, Sleep: 27dBA
  • Dimensions (WxDxH)
    677.5 x 763 x 853.6 mm / 26.7" x 30.0" x 33.6" (including DADF)
  • Weight
    92.5 Kg / 204 lbs (including DADF / Waste Toner Box)
  • Max. Monthly Duty Cycle
    150,000 pages
  • Network Security
    SSL/TLS / IP sec / SNMPv3 / IPv6 / Protocol & Port Management / IP/MAC filtering
  • Certification
    CCC(ISO15408) / IEEE P2600-2008 / WHQL Compliance


  • Speed
    Speed (Mono)
    Up to 40 ppm in A4/Letter
  • First Print Out Time
    First Print Out Time (Mono)
    8 seconds
  • Resolution
    Default 600 x 600 x 2 bit Up to 600 x 600 x 4 bit
  • Emulation
    PCL5Ce, PCL6C, PostScript Level3, PDF 1.7
  • Duplex Print
  • Operating System
    Windows XP (32/64bit) / 2003 (32/64bit) / Vista (32/64bit) / 2008 / Win7 / 2008 R2 (64 only) / Mac OS 10.5-10.6 / RedHat Enterprise Linux WS 4, 5 (32/64bit) / Fedora Core 2-10 (32/64bit) / SuSE Linux 9.1 (32bit) / OpenSuSE 9.2, 9.3, 10.0, 10.1, 10.2 10.3, 11.0 11.1 (32/64bit) / Mandrake 10.0, 10.1 (32/64bit) / Mandriva 2005, 2006, 2007, 2008, 2009 (32/64bit) / Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04 8.10 (32/64bit) / SuSE Linux Enterprise Desktop 9, 10 (32/64bit) / Debian 3.1, 4.0, 5.0 (32/64bit)
  • Network Protocols
    IP Managment(DHCP, DHCPv6, BOOTP, AutoIP, SetIP, Static), Discovery Protocol (SLP, UPnP, Bonjour, DNS, WINS) / Printing Protocol(TCP/IP(9100), TCP/IP(9100)v6 / LPR / LPR6 / IPP, WSD) / Management Protocol(SNMPv1.2, SNMPv1.2(IPv6) / SNMP3 / SNMPv3(IPv6) / HTTP / HTTPs / LDAP / LDAPs / SMTP) / Scan Protocol(SMTP / SMTPs / FTP / SMB / Twain for Network / WebDav) / Security Protocol(SMB / Kerberos / LDAP / IPSec)
  • Fonts
    Scalable 93 / OCR-A / OCR-B
    Scalable 136
  • Direct Print Support
    Jpeg, TIFF, PDF, Samsung PRN
  • Print features
    Secure Print, Stored Print, Booklet print, N-up, Cover/Insert Page Print, Toner Save, Skip Blank Page, etc.



  • Administrator Guide
    • Administrator Guide
      0.01MB, htm,
  • Other Manuals (6)
    • User Manual
      0.01MB, htm,
    • Open Source Announcement
      0.66 MB, pdf,
    • Wireless Install Guide
      1.52 MB, pdf,
    • User Manual
      41.78 MB, pdf,
    • DoC(Declaration of Conformity)
      0.01MB, pdf,
    • Installation Guide
      8.45 MB, pdf,
  • Software (10)
    • PC fax Utility
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 10.11 MB, exe,
      Version : V1.11.20
    • PC fax Utility
      Mac OS 10.5 ~ 10.10, 6.42 MB, zip,
      Version : V1.01.45
    • Easy Document Creator
      Win 2000/XP/2003/2008/Vista/Win 7/Win 8(32/64bit), 18.02 MB, exe,
      Version : V1.06.50
    • Easy Printer Manager
      Win 2000/XP/2003/2008/Vista/Win 7/Win 8(32/64bit), 39.76 MB, exe,
      Version : V1.05.75.00
    • Scan OCR program
      Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 28.6 MB, exe,
      Version : V1.01.12
    • Set IP
      Mac OS 10.4 ~ 10.10, 0.22 MB, zip,
      Version : V1.00.10
    • Set IP
      Win 2000/XP/2003/2008/Vista/Win 7/Win 8/Win 8.1 (32bit,64bit), 1.41 MB, exe,
      Version : V1.05.08.3:14
    • SyncThru 6,SNMP Agent
      Win 2000/XP/2003/ Vista/2008/Win 7(32,64bit), 27.07 MB, exe,
      Version : V6.0.0.286
    • SyncThru 6,Job account plug-in
      Win 2000/XP/2003/ Vista/2008/Win 7(32,64bit), 4.97 MB, par,
      Version : V1.
    • SyncThru 6
      Win 2000/XP/2003/ Vista/2008/Win 7(32,64bit), 208.73 MB, zip,
      Version : V6.0.319
  • Driver (20)
    • Universal Print Driver,XPS
      Win Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 17.79 MB, exe,
      Version : V2.50.06.00:02
    • Universal Print Driver
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 21.34 MB, exe,
      Version : V2.50.06.00:03
    • Universal Print Driver,PCL6
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 14.41 MB, exe,
      Version : V2.50.06.00:02
    • Universal Print Driver PS
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 13.79 MB, exe,
      Version : V2.50.06.00:03
    • Print Driver
      Mac OS 10.4, 11.78 MB, zip,
      Version : V2.07.00
    • Scan Driver
      Mac OS 10.4, 49.02 MB, zip,
      Version : V2.31.49
    • Scan Driver
      Mac OS 10.5 ~ 10.10, 49.99 MB, zip,
      Version : V2.31.54
    • Print Driver
      Mac OS 10.5 ~ 10.10, 9.98 MB, zip,
      Version : V2.08.00
    • Printing & Scan Driver
      Linux, 15.87 MB, gz,
      Version : V1.00.29
    • Print Driver,PCL6
      Win 2000/XP/2003/Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 30.64 MB, exe,
      Version : V3.
    • Print Driver,(Add Printer)
      Win 2000/XP/2003/Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 51.21 MB, zip,
      Version : V3.
    • Print Driver,(Post Script)
      Win 2000/XP/2003/Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 29.92 MB, exe,
      Version : V2.00.99.33
    • Scan Driver
      Win 2000/XP/2003/Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 22.6 MB, exe,
      Version : V3.31.19.06
    • Print Driver
      HP-UX 11.0,11i v1,11i v2,11i v3 (PA-RISC, Itanium), 57.5 MB, gz,
      Version : V3.00.02:52
    • Print Driver
      IBM AIX 5.1,5.2,5.3,5.4,6.1,7.1 (PowerPC), 25.88 MB, gz,
      Version : V3.00.02:52
    • Print Driver
      Sun Solaris 9,10,11 (x86, SPARC), 47.56 MB, gz,
      Version : V3.00.02:52
    • Print Driver
      Win 2000/XP/2003/Vista/2008/2012/Win 7/Win 8/Win 8.1(32,64bit), 30.67 MB, exe,
      Version : V3.12.29.07:33
    • Print Driver,XPS
      Windows 8 (32bit,64bit), 16.71 MB, exe,
      Version : V3.03.11.00:09
    • Universal Scan Driver
      Win XP/2003/2008/2012/Vista/Win 7/Win 8/Win 8.1(32,64bit), 22.49 MB, exe,
      Version : V1.02.19
    • Print Driver,XPS
      Win Vista/2008/Win 7(32,64bit), 37.49 MB, exe,
      Version : V3.02.50.00:25
