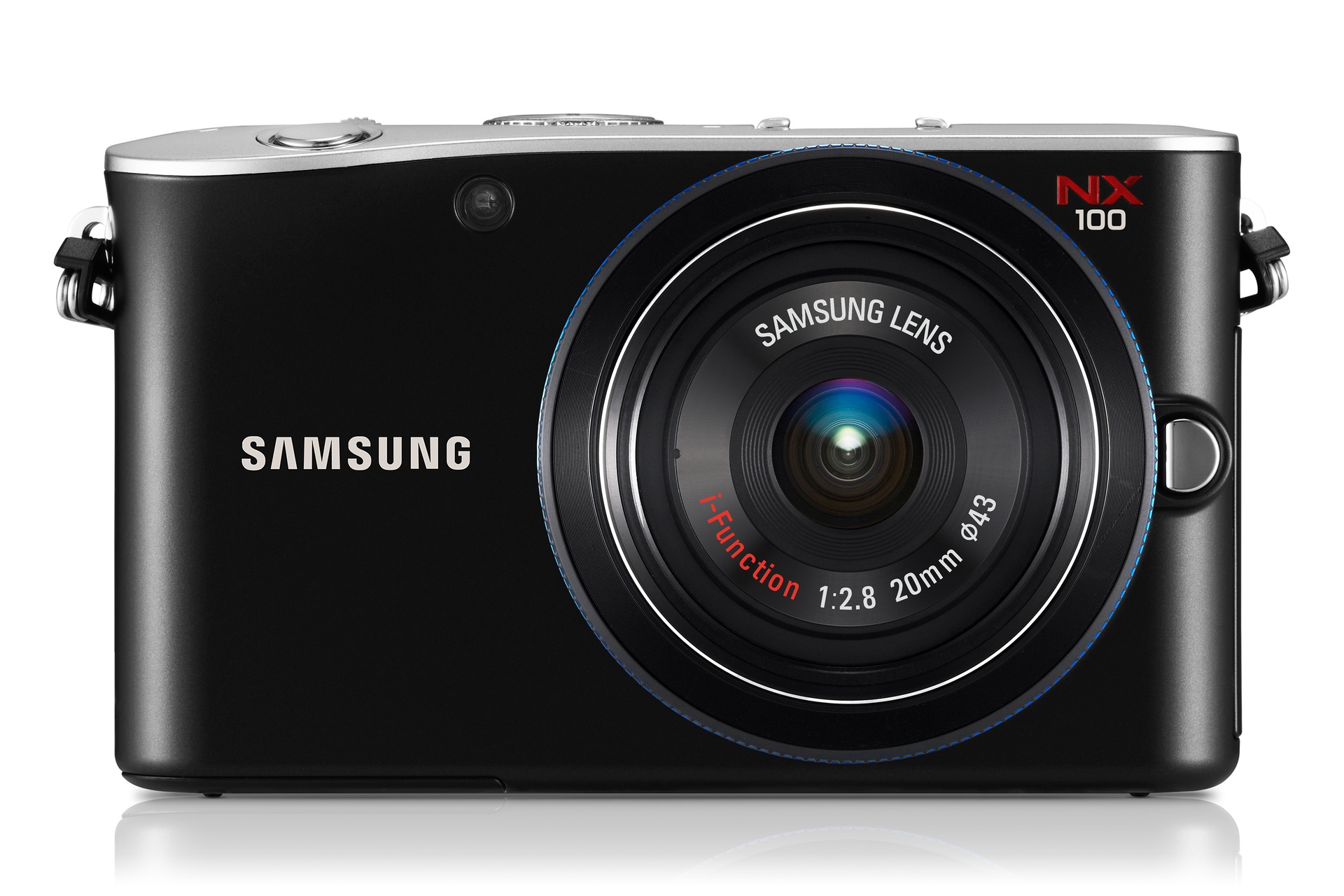

NX100

NX100

Capture more of life and in even greater detail with the NX100. All the settings you need are intuitively accessible on the i-Function lens. Press the i-Function button to change settings while previewing the image in real-time on the display. What’s more, the NX100 is as portable as it is powerful, with a sleek, compact design available in three stylish colours.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

NX100

Features

  • The stylish NX100 offers new ways to create stunning photos with an innovative
    i-Function Lens Mirka

Extraordinary photos in seconds with i-Function lens.

Extraordinary photos in seconds with i-Function lens.
No matter which i-Function lens you choose, the NX100 will recognise it automatically and suggest the best scene modes. Select your setting to instantly optimise your camera. And since all the settings are on the lens itself you can make adjustments quickly to create breathtaking images in no time.

Designed to amaze. Sized to travel.

Designed to amaze. Sized to travel.
The compact NX100 offers the advanced features of a DSLR, but without the bulk. Create professional, high-quality photos you never thought were possible with a pocket-sized camera. And with its leaf-like design, stylish colours and curved smooth exterior, it’s as stunning as the pictures you take.

The large camera sensor that’s big on quality.

The large camera sensor that’s big on quality.
Equipped with a large APS-C size CMOS sensor that minimises noise, the NX100 reproduces clearer images with richer, more natural colours. It also allows the use of high ISO in low-light settings, with less noise. A large sensor also makes it easy to achieve shallow depth of field for more dramatic results.

3.0" AMOLED screen: bright, fast, thin.

3.0" AMOLED screen: bright, fast, thin.
Brighter than an LCD screen, and with a dynamic 10000:1 contrast ratio, our AMOLED display provides sharper pictures with vivid, true-to-life colours. And its response rate is a 1000 times faster than LCD. What’s more, the screen remains evenly lit, letting you view the display at any angle.

Fast AF that captures life in an instant.

Fast AF that captures life in an instant.
Looking for the camera that can keep up with you? The NX100 features a quick, accurate and highly optimised AF (Auto Focus) that focuses in an incredible, approximate 170ms (0.17 seconds)*. No more missed photo ops or kids half out of frame. Capture fleeting moments perfectly before they pass you by. *Tested under Samsung's standard conditions and may vary depending on camera firmware and settings.

Smart Filter for creative effects, imaginative photos.

Smart Filter for creative effects, imaginative photos.
Smart Filter is a collection of lens effects that give your stills an artistic edge. The Miniature filter reduces everything in your shot, the Vignetting filter delivers striking compositional contrast, and the Fish-eye filter zooms in to give your subject a cool, distorted, wide-angled look.
Sound Picture

Sound Picture

Capture both the sights and sounds of special moments. The NX100 features Sound Picture, which lets you record the music in the background and the laughter of loved ones as you take their picture. Now, reliving your memories can be a much more vivid experience.
GPS System (optional)

GPS System (optional)

The optional GPS add-on easily mounts onto your camera, automatically tagging and sorting your photos by location at the time you take your photo via global positions such as Seoul, London, and New York. It then conveniently displays the location when you scroll through your photos.
High Sensitivity ISO 6400

High Sensitivity ISO 6400

Nobody likes low-light noise. And with the NX100 you won’t get any. Its ISO of 6400 delivers crystal-clear indoor shots even in low light along with sharp details on fast-moving objects.

HD Movie Recording

HD Movie Recording

The NX100 captures HD movies in 720p resolution and H.264 advanced video compression format. Its APS-C size large CMOS sensor offers not only detailed and clear video clips, but also allows target objects to stand out of the picture like in a motion picture.
  • 2011 CES Innovation Award2011 CES Innovation Award
  • Entry Compact System Camera of the Year Entry Compact System Camera of the Year

tech specs

Dimension of EV-NX100ZBABGB

Image Sensor

  • Sensor Type
    CMOS
  • Sensor Size
    23.4 x 15.6 mm
  • Effective Pixel
    Approx. 14.6 Mega-pixels
  • Total Pixel
    Approx. 15.1 Mega-pixels
  • Color Filter
    R GB primary colour filter

Lens

  • Mount
    Samsung NX Mount
  • Usable Lens
    Samsung Lenses for Samsung NX Mount

SHOW MORE SPECSExpand

Image Stabilisation

  • Type
    Lens Shift (depends on Lens)

Dust Reduction

  • Type
    Super sonic drive

Display

  • Type
    AMOLED
  • Size
    3.0"
  • Resolution
    VGA (640 x 480) 614k dots (PenTile)
  • Field of View
    Approx. 100%

Viewfinder

  • Type
    EVF (Optional)

Focusing

  • Type
    Contrast AF
  • Focusing point
    Selection: 1 point (Free selection) Multi: Normal 15 points, Close Up 35 points Face Detection: Max. 10 faces
  • Mode
    Single AF, Continuous AF, MF
  • AF-assist lamp
    Yes (Green LED)

Shutter Speed

  • Type
    Electronically controlled vertical-run focal plane shutter

Exposure

  • Metering System
    Metering: Multi, Centre-weighted, Spot Metering range: EV0 ~ 18 (ISO100 • 30 mm F2.0)
  • Compensation
    ±3EV (1/3EV step)
  • AE Lock
    AEL button
  • ISO Equivalent
    Auto, 100, 200, 400, 800, 1,600, 3,200 (1EV or 1/3EV step) Extension settable: ISO 6400

Drive Mode

  • Mode
    Single, Continuous, Burst, Self-timer, Bracket (AE, WB, PW)
  • Continuous
    JPEG: 3fps up to 6shots (LDC: On) 10 shots (LDC: Off) Burst mode: 10, 15, 30fps selectable, 30 shots by 1 released RAW: 3fps up to 3shots
  • Bracket
    Auto Exposure Bracket (±3EV), White Balance Bracket (±3 step), Picture Wizard Bracket (Selectable 3 modes)
  • Self-timer
    2 - 30sec. (1sec. step)
  • Remote controller
    Wired: SR9NX01 (Optional)

Flash

  • External Flash
    Samsung External Flash available (SEF42A, SEF20A, SEF15A: Optional)
  • Synchro (Flash attachment)
    Hot Shoe

White Balance

  • Mode
    Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K (Manual)
  • Micro adjustment
    Each 7 steps in Amber / Blue / Green / Magenta axis

Picture Wizard

  • Mode
    Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1 - 3)
  • Parameter
    Contrast, Sharpness, Saturation, Colour

Shooting

  • Mode
    Smart Auto, Lens Priority, Program, Shutter Priority, Aperture Priority, Manual, Scene, Movie
  • Scene Mode
    Beauty shot, Children, Close Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow, Night, Portrait, Landscape, Sports, Sound Picture
  • Image Size
    JPEG (3:2): 14M (4,592 x 3,056), 10M (3,872 x 2,592), 6M (3,008 x 2,000), 2M (1,920 x 1,280), 1.4M (1,472 x 976): Burst mode only JPEG (16:9): 12M (4,592 x 2,584), 8M (3,872 x 2,176), 5M (3,008 x 1,688), 2M (1,920 x 1,080) JPEG (1:1): 9M (3,056 x 3,056), 6.7M (2,592 x 2,592), 4M (2,000 x 2,000), 1.6M (1,280 x 1,280) RAW: 14M (4,592 x 3,056)
  • Quality
    Super fine, Fine, Normal
  • RAW Format
    SRW
  • Colour Space
    SR GB, Adobe R GB

Movie Clip

  • Format
    MP4 (H.264)
  • Compression
    Movie: H.264, Sound: AAC
  • Image Size
    1,280 x 720, 640 x 480, 320 x 240 (Default: 1,280 x 720)
  • Frame rate
    30fps
  • Sound
    Mono Sound
  • Movie Editing
    Still Image Capture, Time Trimming

Image Play

  • Type
    Single image, Thumbnails (3 / 9 / 20 images), Slide show, Movie
  • Highlight Warning
    Available
  • Editing
    Red eye fix, Back light comp., Photo Style Selector, Resize, Rotate, Face Retouch, Smart Filter
  • Photo Style Selector
    Soft, Vivid, Forest, Autumn, Misty, Gloomy, Classic

Storage

  • Media
    SD, SDHC
  • File format
    RAW (SRW), JPEG (EXIF 2.21), DCF, DPOF 1.1, PictBridge 1.0
  • Capacity (1GB)
    14M: RAW 34 14M (3:2): Super Fine 141, Fine 282, Normal 423 10M (3:2): Super Fine 195, Fine 391, Normal 587 6M (3:2): Super Fine 320, Fine 640, Normal 961 2M (3:2): Super Fine 732, Fine 1465, Normal 2198 Burst (1.4M): Super Fine 1161, Fine 2322, Normal 3484 12M (16:9): Super Fine 166, Fine 332, Normal 499 8M (16:9): Super Fine 232, Fine 464, Normal 696 5M (16:9): Super Fine 376, Fine 752, Normal 1129 2M (16:9): Super Fine 850, Fine 1703, Normal 2550 9M (1:1): Super Fine 210, Fine 420, Normal 630 6.7M (1:1): Super Fine 288, Fine 576, Normal 864 4M (1:1): Super Fine 470, Fine 940, Normal 1411 1.6M (1:1): Super Fine 1041, Fine 2083, Normal 3121 Movie: 1280 x 720: High Quality 15min., Normal 22min. 640 x 480: High Quality 44min., Normal 66min. 320 x 240: High Quality 145min., Normal 210min.※ These figures are measured under the Samsung standard*

Languages

  • Languages
    16 (Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese, Polish, Finnish, Russian, Simplified / Traditional Chinese)

Direct Print System

  • PictBridge
    PictBridge

Interface

  • Digital Output Connector
    USB 2.0 (HI-SPEED)
  • Video Output
    NTSC, PAL (user selectable) HDMI 1.3: (1080i, 720P, 576P / 480P)
  • External Release
    Yes
  • DC Power Input Connector
    DC 9.0V, 1.5A (100 ~ 240V)

Power

  • Power Source
    Type
    Rechargeable battery: BP1310 (1,300mAh) Charger: BC1310AC Adaptor: AD9NX01 (Optional)
  • Battery
    Running Time (For This Model)
    Still: 420 shots / 210min (CIPA Standard) Movie: 130min

Physical Specification

  • Dimension (WxHxD)
    Dimension (WxHxD)
    120.5 x 71 x 34.5 mm (excluding the projecting parts of the camera)
  • Weight
    282g (without batter Y and memory card) 340g (Battery and memory card included)
  • Operating Temperature
    0 ~ 40°C
  • Operating Humidity
    5 ~ 85%

Software

  • Application
    Intelli-studio 2.1, Samsung RAW Converter 4 Adobe Reader

System Requirement in general

  • For Windows
    PC with processor better than Intel Pentium III 500 MHz (Intel Pentium 800 MHz or higher reco mmended) Windows XP / Vista / 7 Minimum 256 MB RAM (512 MB or more reco mmended) 250 MB of available hard disk space (1 GB or more reco mmended) USB portCD-ROM drive 1,024 x 768pixels, 16-bit colour display compatible monitor (24-bit colour display reco mmended) Microsoft Direct X 9.0c or later
  • For Macintosh
    Power Mac G3 or later Mac OS 10.4 or later Minimum 256 MB RAM (512 MB or more reco mmended) Minimum 110 MB of available hard-disk space USB portCD-ROM drive

System Requirements for Samsung Raw Converter

  • For Windows
    Windows XP / Vista / 7 Intel Pentium, AMD Athlon Processor (Intel Pentium 4, Athlon XP or later reco mmended) 1 GB or more RAM reco mmended Minimum 100 MB of available hard disk space 1,024 x 768pixels, Full Colour (24-bit or higher) colour display compatible monitor
  • For Macintosh
    Mac OS X v10.6 / v10.5 / v10.4 Power PC / Intel Processor-based or compatible computer (Core 2 Quad or later reco mmended) 1 GB or more RAM reco mmended Minimum 100 MB of available hard disk space 1,024 x 768pixels, 24bit colour display compatible monitor

Support

User Manual

7.8 MB, pdf, ENGLISH

2013.01.29

Software (2)

  • Samsung RAW Converter(-)

    Mac OS 10.3 ~ 10.7, 67.27 MB, dmg, KOREAN, ENGLISH, CHINESE, CHINESE, FRENCH, GERMAN, RUSSIAN, SPANISH

    2012.07.30 tooltipbox

    Close tooltip pop-up
    Samsung RAW Converter 4.0.4.0 (English / Mac)

    [Samsung RAW Converter 4.0.4.0] Software Download Guide (English)

    Samsung RAW Converter 4.0.4.0 is the program to develop Samsung RAW file.

    You can transform RAW file image into JPEG or TIFF file.

    This software is the exclusive use of DNG and SRW file, it only works on Mac OS.

    This program is compatible on Mac OS 10.3 10.7.

    [Supported Products]

    SAMSUNG NX20, NX210, NX1000, NX200, NX100, NX11, NX10, NX5, WB2000, WB5500/HZ50W, WB5000/HZ25W, GX20, GX10, EX1

    But, this program does not support RAW file shoot by other brands products. (Only supports .DNG/.SRW shoot by Samsungs products.)
  • Samsung RAW Converter(-)

    Win 2000/XP/Vista/Win7, 61.36 MB, exe, KOREAN, ENGLISH, CHINESE, CHINESE, FRENCH, GERMAN, RUSSIAN, SPANISH

    2012.07.30 tooltipbox

    Close tooltip pop-up
    Samsung RAW Converter 4.0.4.0 (English / Windows)

    [Samsung RAW Converter 4.0.4.0] Software Download Guide (English)

    Samsung RAW Converter 4.0.4.0 is the program to develop Samsung RAW file.

    You can transform RAW file image into JPEG or TIFF file.

    This software is the exclusive use of DNG and SRW, it only works on Windows OS.

    This program is compatible on Window 7(32bit OS), but Window 7(64bit OS) does not support this program. [Supported Products] SAMSUNG NX20, NX210, NX1000, NX200, NX100, NX11, NX10, NX5, WB2000, WB5500/HZ50W, WB5000/HZ25W, GX20, GX10, EX1

    But, this program does not support RAW file shoot by other brands products. (Only supports .DNG/.SRW shoot by Samsungs products.)

Firmware (4)

  • Lens Upgrade File

    All OS, 0.37 MB, zip, MULTI LANGUAGE

    2014.06.30 tooltipbox

    Close tooltip pop-up
    This is the latest LENS firmware package.
    To maximize improved firmware performance, body firmware should be the latest version.

    1. 18-55mm-III (v1.11)
    - Improved OIS performance
    - Improved the DMF sense of rotation for MF ring
    - Add new function for NX30 - Enable 3 steps control of DMF sensitivity

    2. 18-55mm-I (v1.20), 18-55mm-II_iFn (v1.10),
    20-50mm-I (v1.10), 20-50mm-II (v1.00), 20mm (v1.10),
    50-200mm-I (v1.20), 50-200mm-II_iFn (v1.10)
    - Change the sense of rotation for MF Ring. (Opposite position)
    - Reduce the Current consumption when lens operated.
    - Improved infinity AF(Auto Focus) accuracy at fireworks mode.

    3. 18-200mm (v1.10)
    - Improved NX200 movie mode aperture noise
    - Improved OIS current and noise

    4. 30mm (v1.22)
    - Intermittent failure of DMF that occurs when user press half shutter is fixed.
    - Accuracy of auto focus has been improved.

    5. 85mm (v1.10)
    - Back focusing problem of small aperture is fixed.

    [How to check the Lens firmware version]
    Please select the menu in the following order.
    Menu -> Setup -> Device information

    [How to update the Lens firmware]
    1) Download the lens firmware file into the root directory of the SD memory card.
    - When you upgrade the lens firmware, the lens which you upgrade must be attached on the camera.
    - If you can not attach the lens to the camera, you can not not upgrade it.
    - The file name of lens firmware is ''lens.bin''
    - If there is a difference between attached lens and lens firmware file, you can find the ''File Error'' message.
    2) Insert the SD card on which the lens firmware file is to be saved and then turn on the camera.
    3) Please select the menu in the following order.
    Menu -> Setup -> Device Information -> Firmware Update -> Lens Firmware -> ''Yes''
  • Upgrade File

    All OS, 6.03 MB, zip, ENGLISH

    2012.12.13 tooltipbox

    Close tooltip pop-up
    1. Title
    This is the latest firmware for NX100 camera version of 1.13

    2. Applicable Model
    NX100

    3. Carrier or Corporate Customer
    Open market

    4. Description

    [ Improved items of v1.13 ]
    1. Compatibility with lens 45mm
    2. Improve AF error when closing aperture.

    [ Improved items of v1.12 ]
    1. For New Lens Line-up, 60mm F2.8 Macro & 85mm F1.4
    - Users, who using Samsung New Lens 60mm & 85mm, are required to upgrade the camera body firmware
    (ver 1.12 or later)

    [ Improved items of v1.11 ]
    1. Add panorama function inside the Scene mode.
    2. Compatible with 18-55(II), 50-200(II) 18-200 mm i-function lens (Add OIS menu)
    3. Improved Movie clip algorithm, AF function improved at low contrast.
    4. Changed defalt setting of movie clip AF mode: CAF

    [ Improved items of v1.03 ]
    1.Improved SD memory card compatibility.

    [ Improved items of v1.02 ]
    1. Noise fine tunning
    2. Color Reproduction fine tunning
    3. Other system stabilization
  • Upgrade guide

    All OS, 0.37 MB, pdf, MULTI LANGUAGE

    2011.10.19 tooltipbox

    Close tooltip pop-up
    This is firmware upgrade guide (1.12)
  • Lens upgrade Guide

    All OS, 1.13 MB, pdf, MULTI LANGUAGE

    2011.04.21 tooltipbox

    Close tooltip pop-up
    Samsung Lens firmware upgrade Guide

    -. Improvement
    1) Change the sense of rotation for MF Ring. (Opposite position)
    2) Reduce the Current consumption when lens operated.
    3) Improved infinity AF (Auto Focus) accuracy at fireworks mode.

    -. Version information and available lens.
    1) 18-55mm (v1.20)
    2) 18-55mm_iFn (v1.10)
    3) 20-50mm (v1.10)
    4) 20mm (v1.10)
    5) 30mm (v1.20)
    6) 50-200mm (v1.20)
    7) 50-200mm_iFn (v1.10)

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderGoIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu ViewerGo

Have a question or need product support? Go to our support sectionGo

Similar Items
  • NEWEST
  • MOST HELPFUL
  • HIGHEST RATING
  • LOWEST RATING
