NX11

NX11

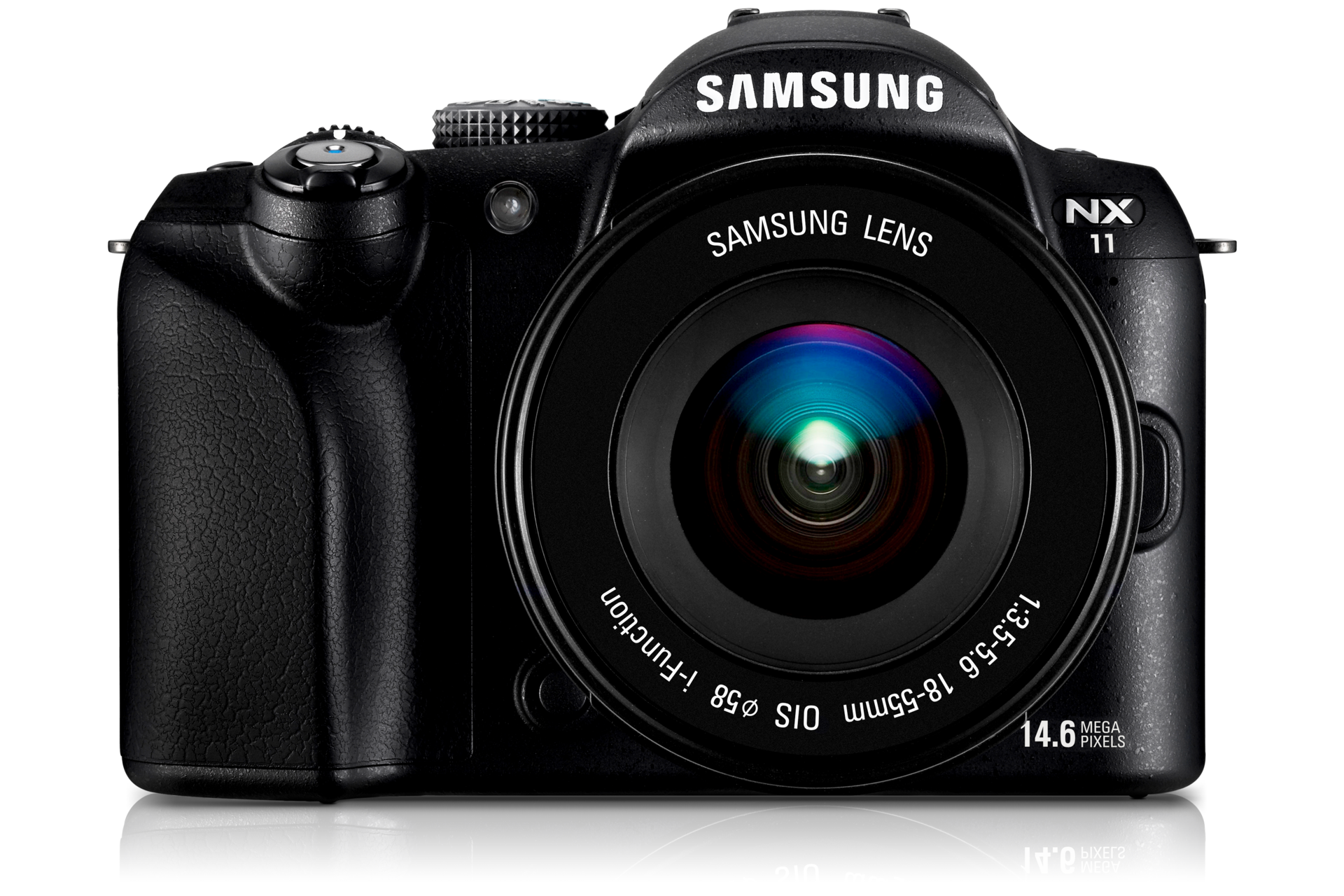

NX11 Create stunning images easily with the NX11. Featuring the i-Function lens—which lets you intuitively control complex manual settings—it comes with new features like Panorama Mode and Sound Picture. You can capture everything from sweeping landscapes to the chirping of birds in the background. Your eyes and ears take it all in, and now so does your camera.
The NX11 Compact System Camera received a Recommended Award from Photography Blog and 4 and a half out of 5 stars in April, 2011

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Features

  • i-Function Lens
  • Large camera sensor
  • Lens Priority Mode

The large camera sensor that’s big on quality.

The large camera sensor that’s big on quality.
Equipped with a large APS-C size CMOS sensor that minimises noise, the NX11 reproduces clearer images with richer, more natural colours. It also allows the use of high ISO in low-light settings, with less noise. A large sensor also makes it easy to achieve shallow depth of field for more dramatic results.

Take control with the i-Function Lens.

Take control with the i-Function Lens.
Whether you’re a beginner or an expert, the i-Function Lens meets your needs with its dual modes. An expert can instantly adjust manual settings such as shutter speed and exposure in the P / A / S / M modes, while the built-in Lens Priority mode lets a beginner use different lenses easily and correctly.

Set the scene right with Lens Priority Mode.

Set the scene right with Lens Priority Mode.
With Lens Priority Mode, the camera recognises the attached lens and provides optimised settings for that particular lens. And when you change the lens, the settings automatically readjust for optimal shooting. Just push the i-Function button, rotate the lens and let the camera do the rest.

Take in the entire view with Panorama Mode

Take in the entire view with Panorama Mode
It’s now very easy to create amazing, wide-screen shots. Simply press the shutter button in Panorama Mode while moving the camera in the direction you want. A progress bar on the screen will let you know when you’ve reached the maximum width—just perfect for those shots that can’t be contained by a standard 4 x 6.

Fast AF that captures life in an instant

Fast AF that captures life in an instant
Looking for the camera that can keep up with you? The NX11 features a quick, accurate and highly optimised AF (Auto Focus) that focuses in an incredible, approximate 170ms (0.17 seconds)*. No more missed photo ops or kids half out of frame. Capture fleeting moments perfectly before they pass you by. * Tested under Samsung's standard conditions and may vary depending on camera firmware and settings.

3.0" AMOLED screen: bright, fast, thin.

3.0" AMOLED screen: bright, fast, thin.
Brighter than an LCD screen, and with a dynamic 10000:1 contrast ratio, our AMOLED display provides sharper pictures with vivid, true-to-life colours. And its response rate is a 1000 times faster than LCD. What’s more, the screen remains evenly lit, letting you view the display at any angle.

Electronic Viewfinder: what you see is what you get.

Electronic Viewfinder: what you see is what you get.
The NX11 electronic viewfinder displays accurately the same information that you see on the AMOLED screen. Since camera settings can be applied to the preview image instantly, what you see in the electronic viewfinder will be identical to the picture you take.
HD Movie Recording

HD Movie Recording

The NX11 captures HD movies in 720p resolu-tion and H.264 advanced video compression format. Its APS-C size large CMOS sensor offers not only detailed and clear video clips, but also allows target objects to stand out of the picture like in motion picture.
Internal flash

Internal flash

Leave the external flash and light meter at home. The Samsung NX11 comes with a built-in flash that pops up to help you quickly capture life’s most spontaneous moments. What’s more, Auto TTL mode automatically adjusts the brightness of the light, ensuring you get the perfect picture in a flash.
Sound Picture

Sound Picture

Capture both the sights and sounds of special moments. The NX11 features Sound Picture, which lets you record the music in the background and the laughter of loved ones as you take their picture. Now, reliving your memories can be a much more vivid experience.
ISO 100

ISO 100

The NX11 goes a step further to deliver optimally exposed images—even in environments with high-intensity light. Its ISO of 100 opens the iris one step more than an ISO of 200, and reduces the shutter speed, to both easily capture a scene in motion and yield excellent background blur.

tech specs

Dimension of EV-NX11ZZBABGB

Image Sensor

  • Sensor Type

    CMOS

  • Sensor Size

    23.4 x 15.6 mm

  • Effective Pixel

    Approx. 14.6 Mega-pixels

  • Total Pixel

    Approx. 15.1 Mega-pixels

  • Color Filter

    R GB primary colour filter

Lens

  • Mount

    Samsung NX Mount

  • Usable Lens

    Samsung Lenses

SHOW MORE SPECSExpand

Image Stabilisation

  • Type

    Lens Shift (depends on Lens)

  • Mode

    OIS Mode1 / Mode2 / OFF

Distortion Correct

  • Mode

    LDC On / Off (depends on Lens)

i-Function

  • i-Function

    i-Scene (depends on Lens)

Dust Reduction

  • Type

    Super sonic drive

Display

  • Type

    AMOLED

  • Size

    3.0"

  • Resolution

    VGA (640 x 480) 614k dots (PenTile)

  • Field of View

    Approx. 100%

  • User Display

    Grid (4 types), Histgram, Icons : On / Off

Viewfinder

  • Type

    EVF

  • Resolution

    VGA (640 x 480) 921k dots equiv.

  • Field of View

    Approx. 100%

  • Magnification

    Approx. 0.86x (APS-C, 50 mm, -1m-1)

  • Eyepoint

    Approx. 20.2 mm

Focusing

  • Type

    Contrast AF

  • Focusing point

    Selection : 1 Point (Free selection) Multi : Normal 15 Points, Close Up 35 Points Face Detection : Max. 10 faces

  • Mode

    Single AF, Continuous AF, MF

  • AF-assist lamp

    Yes (Green LED)

Shutter Speed

  • Type

    Electronically controlled vertical-run focal plane shutter

Exposure

  • Metering System

    Metering: Multi, Centre-weighted, Spot Metering range: EV0 ~ 18 (ISO100•30 mm F2.0)

  • Compensation

    ±3 EV (1/2EV , 1/3EV step)

  • AE Lock

    AEL button

  • ISO Equivalent

    Auto, 100, 200, 400, 800, 1600, 3200 (1EV or 1/3EV step)

Drive Mode

  • Mode

    Single, Continuous, Burst, Self-timer, Bracket (AE, WB, PW)

  • Continuous

    JPEG: 3fps up to 6shots (LDC: On) 10 shots (LDC: Off) Burst mode: 10, 15, 30fps selectable, 30 shots by 1 released RAW: 3fps up to 3shots

  • Bracket

    Auto Exposure Bracket (±3EV), White Balance Bracket (±3 step), Picture Wizard Bracket (Selectable 3 modes)

  • Self-timer

    2 - 30sec. (1sec. step)

  • Remote controller

    Wired : SR9NX01 (Optional)

Flash

  • Type

    TTL Auto Pop-up flash

  • Mode

    Smart Flash, Auto, Auto + Red-eye reduction, Fill-in, Fill-in + Red-eye reduction, 1st Curtain, 2nd Curtain, OFF

  • Guide Number

    11 (at ISO 100)

  • Angle of View Coverage

    28 mm wide-angle (Equivalent to 35 mm)

  • Sync. Speed

    Less than 1/180sec.

  • Flash Compensation

    ± 2EV (0.5EV step)

  • External Flash

    Samsung External Flash available (SEF42A, SEF20A, SEF15A : Optional)

  • Synchro (Flash attachment)

    Hot Shoe

White Balance

  • Mode

    Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K (Manual)

  • Micro adjustment

    Each 7 steps in Amber / Blue / Green / Magenta axis

Dynamic Range Expansion

  • Dynamic Range Expansion

    Smart Range On / Off

Picture Wizard

  • Mode

    Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1 - 3)

  • Parameter

    Contrast, Sharpness, Saturation, Colour

Shooting

  • Mode

    SmartAuto, Lens Priority, Program, Shutter Priority AE, Aperture Priority AE, Manual, Sound Picture, Panorama, Scene, Movie

  • Scene Mode

    Beauty shot, Children, Close Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow, Night, Portrait, Landscape, Sports

  • Sound Picture

    JPEG OnlySound Recording Time (Before and after shooting each 5sec or 10sec)

  • Image Size

    JPEG (3:2) : 14M (4592 x 3056), 10M (3872 x 2592), 6M (3008 x 2000), 2M (1920 x 1280), 1.4M (1472 x 976): Burst mode only

  • Quality

    Super fine, Fine, Normal

  • RAW Format

    SRW

  • Colour Space

    sR GB, Adobe R GB

Movie Clip

  • Format

    MP4 (H.264)

  • Compression

    Movie : H.264, Sound : AAC

  • Mode

    Program, Aperture Priority

  • Image Size

    1280 x 720, 640 x 480, 320 x 240 (Default: 1280 x 720)

  • Frame rate

    30fps

  • Sound

    Mono Sound

  • Movie Editing

    Still Image Capture, Time Trimming

Image Play

  • Type

    Single image, Thumbnails (3 / 9 / 20 images), Slide show, Movie

  • Highlight Warning

    Availiable

  • Editing

    Red eye fix, Back light comp., Photo Style Selector, Resize, Rotate, Face Retouch, Smart Filter

  • Smart Filter

    Miniature, Fish-Eye, De-fog, Halftone Dots, Soft Focus

  • Photo Style Selector

    Soft, Vivid, Forest, Autumn, Misty, Gloomy, Classic

Storage

  • Media

    SD, SDHC (Up to 32 GB)

  • File format

    RAW (SRW), JPEG (EXIF 2.21), DCF, DPOF 1.1, PictBridge 1.0

  • Capacity (1GB)

    14M: RAW 34 14M (3:2) : Super Fine 141, Fine 282, Normal 423 10M (3:2) : Super Fine 195, Fine 391, Normal 587 6M (3:2) : Super Fine 320, Fine 640, Normal 961 2M (3:2) : Super Fine 732, Fine 1465, Normal 2198 Burst (1.4M) : Super Fine 1161, Fine 2322, Normal 3484
    12M (16:9) : Super Fine 166, Fine 332, Normal 499 8M (16:9) : Super Fine 232, Fine 464, Normal 696 5M (16:9) : Super Fine 376, Fine 752, Normal 1129 2M (16:9) : Super Fine 850, Fine 1703, Normal 2550
    9M (1:1) : Super Fine 210, Fine 420, Normal 630 6.7M (1:1) : Super Fine 288, Fine 576, Normal 8644M (1:1) : Super Fine 470, Fine 940, Normal 1411 1.6M (1:1) : Super Fine 1041, Fine 2083, Normal 3121
    Movie : 1280 x 720 : High Quality 15min., Normal 22min. 640 x 480 : High Quality 44min., Normal 66min. 320 x 240 : High Quality 145min., Normal 210min.*

Languages

  • Languages

    16 (Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese, Polish, Finnish, Russian, Simplified / Traditional Chinese)

Direct Print System

  • PictBridge

    PictBridge

GPS

  • Type

    Geo-tagging w/ Optional GPS Module (WGS84)

  • Function

    - Location Name(OSD) (English and Korean only) - Google Map Link (with intelli-Studio)

Interface

  • Digital Output Connector

    USB 2.0 (HI-SPEED)

  • Video Output

    NTSC, PAL (user selectable)

  • External Release

    Yes

  • DC Power Input Connector

    DC 9V, 1.5A (100 ~ 240V)

Power

  • Power Source
    Type

    Rechargeable battery : BP1310 (1300mAh)
    Charger: BC1310
    AC Adaptor : AD9NX01 (Optional)

  • Battery
    Running Time (For This Model)

    200min/400shots (CIPA Standard)

Physical Specification

  • Dimension (WxHxD)
    Dimension (WxHxD)

    123 x 87 x 39.8 mm (excluding the projecting parts of camera)

  • Weight

    353g (without batteries and card)

  • Operating Temperature

    0 ~ 40°C

  • Operating Humidity

    5 ~ 85%

Software

  • Application

    intelli-studio 3.0, Samsung RAW Converter 4, Adobe Reader

System Requirement in general

  • For Windows

    Windows XP SP2 / Vista / 7 Intel Pentium 4 3.2 GHz or higher / AMD AthlonTMFX, 2.6 GHz or higher Minimum 512 MB RAM (1 GB or more reco mmended) 250 MB of available hard disk space (1 GB or more reco mmended) 1024 x 768 pixels, 16-bit color display compatible monitor (1280 x 1024 pixcels, 32-bit color display reco mmended) USB 2.0, Microsoft DirectX 9.0c or latern VIDIA Geforce 7600GT or higher / ATI X1600 series or higher # 64-bit editions of Windows XP / Vista / and 7 are not supported

System Requirements for Samsung Raw Converter

  • For Windows

    Windows XP / Vista / 7 Intel Pentium, AMD Athlon Processor (Intel Pentium 4, AMD Athlon XP or later reco mmended) 1 GB or more RAM reco mmended Minimum 100 MB of available hard disk space 1024 x 768 pixels, Full Color (24-bit or higher) color display compatible

  • For Macintosh

    Mac OS X v10.6 / v10.5 / v10.4 Power PC / Intel Processor-based or compatible computer (Core 2 Quad or later reco mmended) 1 GB or more RAM reco mmended Minimum 100 MB of available hard disk space 1024 x 768 pixels, 24-bit color display compatible monitor

Support

User Manual

8.07 MB, pdf, ENGLISH

2013.01.29

Software (2)

  • Samsung RAW Converter(-)

    Mac OS 10.3 ~ 10.7, 67.27 MB, dmg, KOREAN, ENGLISH, CHINESE, CHINESE, FRENCH, GERMAN, RUSSIAN, SPANISH

    Version : 4.0.4.0

    2012.07.30 tooltipbox

    Close tooltip pop-up
    Samsung RAW Converter 4.0.4.0 (English / Mac)

    [Samsung RAW Converter 4.0.4.0] Software Download Guide (English)

    Samsung RAW Converter 4.0.4.0 is the program to develop Samsung RAW file.

    You can transform RAW file image into JPEG or TIFF file.

    This software is the exclusive use of DNG and SRW file, it only works on Mac OS.

    This program is compatible on Mac OS 10.3 10.7.

    [Supported Products]

    SAMSUNG NX20, NX210, NX1000, NX200, NX100, NX11, NX10, NX5, WB2000, WB5500/HZ50W, WB5000/HZ25W, GX20, GX10, EX1

    But, this program does not support RAW file shoot by other brands products. (Only supports .DNG/.SRW shoot by Samsungs products.)
  • Samsung RAW Converter(-)

    Win 2000/XP/Vista/Win7, 61.36 MB, exe, KOREAN, ENGLISH, CHINESE, CHINESE, FRENCH, GERMAN, RUSSIAN, SPANISH

    Version : 4.0.4.0

    2012.07.30 tooltipbox

    Close tooltip pop-up
    Samsung RAW Converter 4.0.4.0 (English / Windows)

    [Samsung RAW Converter 4.0.4.0] Software Download Guide (English)

    Samsung RAW Converter 4.0.4.0 is the program to develop Samsung RAW file.

    You can transform RAW file image into JPEG or TIFF file.

    This software is the exclusive use of DNG and SRW, it only works on Windows OS.

    This program is compatible on Window 7(32bit OS), but Window 7(64bit OS) does not support this program. [Supported Products] SAMSUNG NX20, NX210, NX1000, NX200, NX100, NX11, NX10, NX5, WB2000, WB5500/HZ50W, WB5000/HZ25W, GX20, GX10, EX1

    But, this program does not support RAW file shoot by other brands products. (Only supports .DNG/.SRW shoot by Samsungs products.)

Firmware (2)

  • Upgrade File

    All OS, 4.71 MB, zip, MULTI LANGUAGE

    Version : 1.12

    2012.12.13 tooltipbox

    Close tooltip pop-up
    1. Title
    This is the latest firmware for NX5 camera version of 1.12

    2. Applicable Model
    NX11

    3. Carrier or Corporate Customer
    Open market

    4. Description

    [ Improved items of v1.12 ]
    1. Compatibility with lens 45mm
    2. Improve AF error when closing aperture.

    [ Improved items of v1.11 ]
    1. For New Lens Line-up, 60mm & 85mm
    2.Users, who using Samsung New Lens 60mm & 85mm, are required to upgrade the camera body firmware
    (ver 1.11 or later)
  • Upgrade guide

    All OS, 0.37 MB, pdf, ENGLISH

    Version : Upgrade Guide

    2011.10.19
