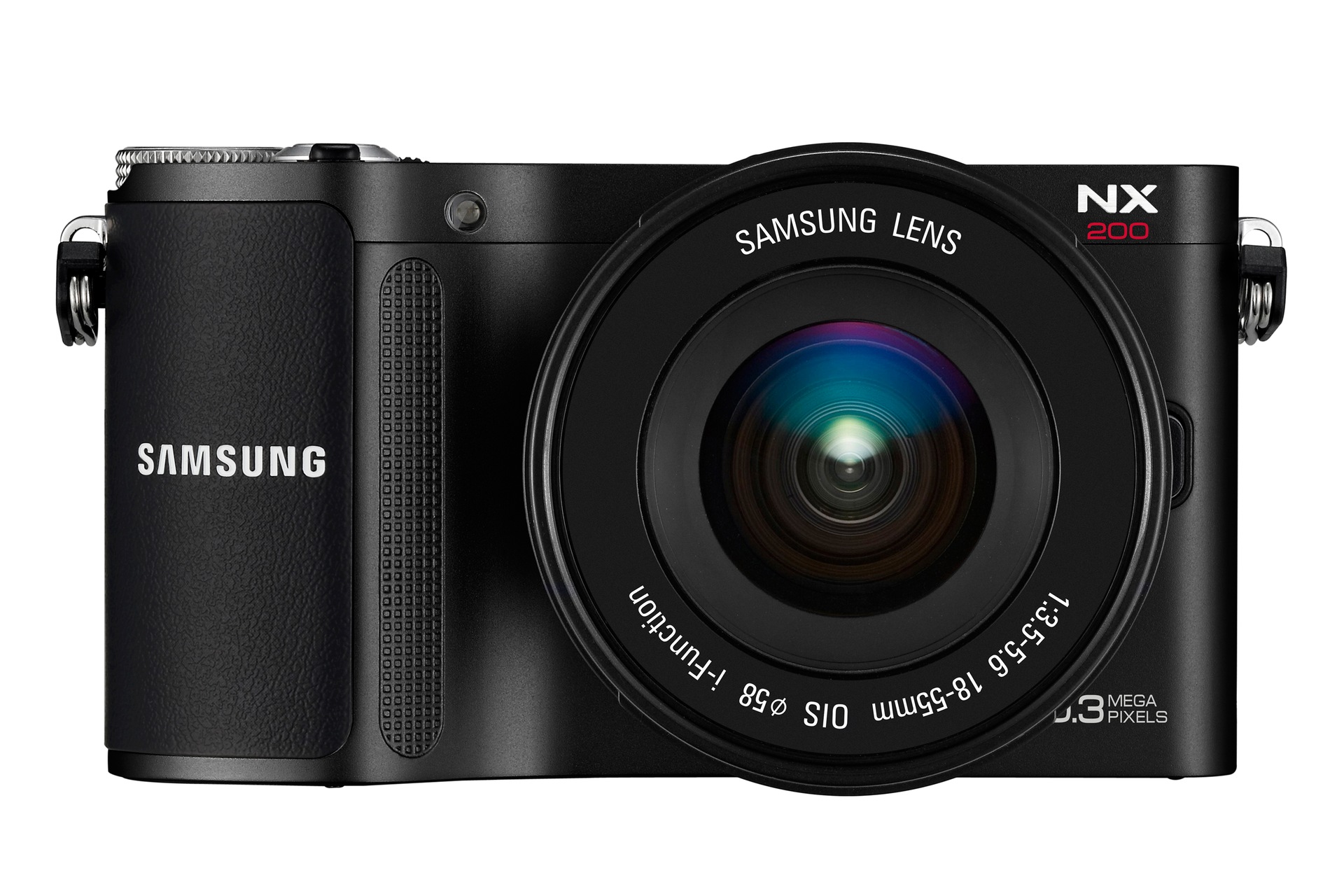

NX200
Digital Camera

NX200

NX200 Digital Camera Until now, photographers have had to choose between the highest performance levels and ease of use. Samsung’s long-anticipated NX200 renders that decision obsolete, unleashing the professional photographer inside us all. Thanks to a 20.3 megapixels APS-C CMOS Sensor, the NX200 delivers images that will satisfy even the most discerning eye. Just as importantly, the camera’s innovative features and design make those images easier than ever to capture.

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

Close VideoClose Video

NX200 Digital Camera

NX200
Digital Camera

Features

  • Reality never looked so real
  • A camera that’s quick on the draw
  • See more in lower light
  • Picture performance that meets its design

Reality never looked so real

Reality never looked so real
20.3MP APS-C CMOS Sensor Samsung has customised the new, 20.3 megapixels APS-C CMOS Sensor to perfectly complement the mirrorless lens system of the Samsung NX200, a feature typically found only in DSLRs. The professional-grade sensor ensures that each individual pixel receives more light. The resulting images are amazingly true to life, with rich, brilliant colours. The sensor also captures Full HD video that maintains higher definition and clarity than ever before.

A camera that’s quick on the draw

A camera that’s quick on the draw
High Speed Capture (7fps / Fast AF) A camera that’s quick on the draw, with High Speed Capture (7fps) and ultra-fast autofocus (100ms). Picture-perfect moments don’t last long enough. The Samsung NX200’s High Speed Capture capabilities enable you to capture fast moving objects at a sequential rate of 7fps at full resolution, allowing you to capture every movement in incredible detail. An all-new autofocus algorithm delivers accurate, instantaneous (100ms) autofocus, so you can capture every memory - however quickly it happens.

See more in lower light

See more in lower light
Wide range ISO (100 ~ 12800) The right exposure can make the difference between a stunning photo and a forgettable one. But some lighting conditions call for greater sensitivity than most cameras allow. The NX200 lets you shoot as high as 12800 ISO at normal settings. Even in low light, you can take high-speed photos with minimal noise or blurring. When needed, the range can be expanded further so you can maximise the potential of any light available, capturing natural-looking images even indoors or at night.

Discover the true beauty of Full HD video

Discover the true beauty of Full HD video
1080 30p Full HD Movie (H.264) The NX200’s uncompromising performance isn’t limited to still images. The camera’s 1080 30p full HD recording capabilities let you create professional-looking videos, and the built-in stereo mic make them sound professional too. An 18 - 200mm lens exclusively for Full HD video produces smooth, dynamic movies with wide zoom capability. When you’re ready for showtime, an HDMI interface lets you transmit your vision straight to the big screen.

Picture performance that meets its design

Picture performance that meets its design
The sleekly designed NX200 puts the power of a professional-grade camera in the palm of your hand. Every function was designed for easy access and instinctive use. Packing a genuine DSLR-sized sensor and interchangeable lens system into a lightweight, compact body, the NX200 is the ultimate high-performance camera you can carry in your pocket.

Take full control of your pictures

Take full control of your pictures
i-Function 2.0 The NX200 makes it easy to create spectacular images on the move. Samsung’s unique i-Function technology allows you to manually control image capture settings by touching the i-Function button on the lens and changing the values within these settings with the lens value ring. This allows you to adjust your photo without having to take your eye off the subject and ensures that you capture the perfect shot every time. Updated i-Function 2.0 also allows you to customise which settings you can control via the i-Function button, so you can make the camera work perfectly with your style of photography.

Bring the magic back into your photos and videos

Bring the magic back into your photos and videos
Magic mode The NX200’s Magic Mode gives you control over special moods and effects that expand your creative palette. Your choice of 10 types of Smart Filters and 12 types of Magic Frames help you create poster-quality visuals without all the work. New special effects include Soft Focus for a warm ambience and Half-Tone Dot for a comic-book look.
3” VGA AMOLED Display

3” VGA AMOLED Display

The NX200’s thin and light 3” VGA AMOLED display provides darker blacks and more vibrant colours than a conventional TFT-LCD display, even in direct sunlight. It also responds 3000 times faster, so your images appear almost as quickly as you shoot them, freeing you to move on to the next shot.
Panorama, 3D Panorama

Panorama, 3D Panorama

The NX200’s panoramic capabilities let you capture vast landscapes and dramatic vertical shots at the touch of a button. 3D panorama mode makes these shots even more impressive by making certain elements jump out of the photo. Action panorama - unique to Samsung - allows you to also capture movement along a sweeping panorama. The background will remain a seamless panoramic shot but you’ll capture the moving object at several stages along its journey - ideal for capturing your child’s race at their first sports day.’
DRIMIII DSP (Digital Signal Processor)

DRIMIII DSP (Digital Signal Processor)

One key to the NX200’s stunning images and Full HD video is its advanced image processor. Supporting a sensitivity range of ISO 100 - 12800, DRIM DSP instantly recognises and reduces noise and distortion. That means you don’t need perfect circumstances to get perfect results.
Smart Panel

Smart Panel

Advanced capabilities don’t mean much if you can’t find them. The NX200’s user-friendly Smart Panel puts all the most important controls at your fingertips. Accessible by hot key, the intuitive graphical interface ensures that you won’t miss a great shot while you’re fiddling with settings.

tech specs

Dimension of EV-NX200ZBSBGB

Image Sensor

  • Sensor Type

    CMOS

  • Sensor Size

    23.5 x 15.7 mm

  • Effective Pixel

    Approx. 20.3Mega-pixels

  • Total Pixel

    Approx. 21.6Mega-pixels

  • Color Filter

    R GB primary colour filter

Lens

  • Mount

    Samsung NX Mount

  • Usable Lens

    Samsung Lenses

SHOW MORE SPECSExpand

Image Stabilisation

  • Type

    Lens Shift (depends on Lens)

  • Mode

    OIS Mode1 / Mode2 / OFF

Distortion Correct

  • Mode

    LDC On / Off (depends on Lens)

i-Function

  • i-Function

    i-Scene (depends on Lens)
    Smart Filter (Vignetting, Minature, Fish-Eye, Sketch, Defog, Halftone Dot)
    Intelli-Zoom (x1.2, 1.4, 1.7, 2)

Dust Reduction

  • Type

    Supersonic drive

Display

  • Type

    AMOLED

  • Size

    3"

  • Resolution

    VGA ( 640 x 480 ) 614k dots ( PenTile )

  • Field of View

    Approx. 100%

  • User Display

    Grid (4 types), Histgram, Icons : On / Off, Distance Scale : ft / m / Off

Focusing

  • Type

    Contrast AF

  • Focusing point

    Selection : 1point ( Free selection )
    Multi : Normal 15 points, Closeup 35 points
    Face Detection : Max. 10 faces

  • Mode

    Single AF, Continuous AF, MF

  • AF-assist lamp

    Yes

Shutter Speed

  • Type

    Electronically controlled vertical-run focal plane shutter

Exposure

  • Metering System

    TTL 221 (17 x 13) Block segment
    Metering : Multi, Centre-weighted, Spot
    Metering range : EV 0 - 18 (ISO 100 · 30mm, F2)

  • Compensation

    ±3 EV (1/3EV step)

  • AE Lock

    Shutter Button half press

  • ISO Equivalent

    Auto, 100, 200, 400, 800, 1600, 3200, 6400, 12800 (1 or 1/3EV step)

Drive Mode

  • Mode

    Single, Continuous, Burst (5M size only), Self-timer, Bracket (AE / WB / PW)

  • Continuous

    JPEG : High (7fps) up to 10 shots, Low (3fps) up to 15 shots selectable
    Burst : 10, 15, 30fps selectable, 30 shots by 1 release
    RAW : High (7fps), Low (3fps) selectable up to 8 shots

  • Bracket

    Auto Exposure Bracket (±3EV), WB, PW

  • Self-timer

    2 - 30sec. (1sec. step)

Flash

  • Type

    External Flash only (Bundle with SEF8A)

  • Mode

    Smart Flash, Auto, Auto+Red-eye reduction, Fill-in, Fill-in+Red-eye reduction, 1st Curtain, 2nd Curtain, Off

  • Guide Number

    8 (at ISO 100) (SEF8A)

  • Angle of View Coverage

    28 mm wide-angle (Equivalent to 35 mm) (SEF8A)

  • Sync. Speed

    Less than 1/180sec.

  • Flash Compensation

    -2 - +2EV (1/2EV step)

  • External Flash

    Samsung External Flash available (SEF42A, SEF20A, SEF15A : Optional)

  • Synchro (Flash attachment)

    Hot Shoe

White Balance

  • Mode

    Auto, Daylight, Cloudy, Fluorescent (W, N, D), Tungsten, Flash, Custom, K(Manual)

  • Micro adjustment

    Each 7 steps in Amber / Blue / Green / Magenta axis

Dynamic Range Expansion

  • Dynamic Range Expansion

    Smart Range On / Off

Picture Wizard

  • Mode

    Standard, Vivid, Portrait, Landscape, Forest, Retro, Cool, Calm, Classic, Custom (1 ~ 3)

  • Parameter

    Contrast, Sharpness, Saturation, Colour

Shooting

  • Mode

    SmartAuto 2.0, Program, Aperture Priority, Shutter Priority, Manual, Lens Priority, Magic, Panorama, Scene, Movie

  • Scene Mode

    Beauty shot, Night, Landscape, Portrait, Children, Sports, Close-Up, Text, Sunset, Dawn, Backlight, Fireworks, Beach & Snow, Sound Picture, 3D Photo

  • Sound Picture

    JPEG Only
    Sound Recording Time ( Before and after shooting each 5sec or 10sec )

  • Image Size

    JPEG (3:2):20M (5472 x 3648), 10.1M (3888 x 2592), 5.9M (2976 x 1984), 2M (1728 x 1152), 5M (2736 x 1824): Burst mode only
    JPEG (16:9): 16.9M (5472 x 3080), 7.8M (3712 x 2088), 4.9M (2944 x 1656), 2.1M (1920 x 1080)
    JPEG (1:1): 13.3M (3648 x 3648), 7M (2640 x 2640), 4M (2000 x 2000), 1.1M (1024 x 1024)
    RAW : 20M (5472 x 3648)

  • Quality

    Super fine , Fine, Normal

  • RAW Format

    SRW

  • Colour Space

    sR GB, Adobe R GB

Movie Clip

  • Format

    MP4 (H.264)

  • Compression

    Movie : H.264 , Sound : AAC

  • Mode

    Programme, Aperture Priority, Shutter Priority, Manual

  • Image Size

    1920 x 1080 , 1280 x 720 , 640 x 480, 320 x 240 (Default : 1920 x 1080)

  • Frame rate

    60fps (1280 x 720 Only), 30fps

  • Sound

    Stereo Sound

  • Movie Editing

    Still Image Capture, Time Trimming

Image Play

  • Type

    Single image, Thumbnails (3 / 15 / 40 images), Slide show, Movie

  • Editing

    Smart Filter, Red-eye fix, Backlight comp., Resize, Rotate, Face Retouch, Brightness, Contrast, Vignetting

  • Smart Filter

    Miniature, Soft Focus, Old Film1, Old Film2,, Halftone Dots, Sketch, Fish-Eye, De-fog Negative

Storage

  • Media

    SD, SDHC, SDXC (guarantee up to 128 GB)

  • File format

    RAW (SRW), JPEG (EXIF 2.21), DCF, DPOF 1.1, PictBridge 1.0

  • Capacity (1GB)

    20M : RAW 17
    20M (3:2) : Super Fine 94, Fine 185, Normal 272
    10.1M (3:2) : Super Fine 192, Fine 369, Normal 531
    5.9M (3:2) : Super Fine 319, Fine 595, Normal 837
    2M (3:2) : Super Fine 829, Fine 1397, Normal 1811
    Burst (5M) : Super Fine 372, Fine 687, Normal 957
    16.9M (16:9) : Super Fine 117, Fine 228, Normal 334
    7.8M (16:9) : Super Fine 247, Fine 468, Normal 667
    4.9M (16:9) : Super Fine 380, Fine 701, Normal 974
    2.1M (16:9) : Super Fine 802, Fine 1358, Normal 1767
    13.3M (1:1) : Super Fine 147, Fine 285, Normal 414
    7M (1:1) : Super Fine 173, Fine 515, Normal 730
    4M (1:1) : Super Fine 455, Fine 826, Normal 1133
    1.1M (1:1) : Super Fine 1348, Fine 2068, Normal 2516
    Movie : 1920 x 1080 30p : High Quality 8m 54s, Normal 10m 16s
    1280 x 720 60p : High Quality 8m 21s, Normal 9m 32s
    1280 x 720 30p : High Quality 14m 47s, Normal 16m 37s
    640 x 480 30p : High Quality 37m 16s, Normal 43m 14s
    320 x 240 30p : High Quality 119m 57s, Normal 145m 49s*

Languages

  • Languages

    17 Languages (Korean, English, Danish, German, Dutch, Swedish, Spanish, Italian, Czech, French, Portuguese, Polish, Finnish, Russian, Norsk, Simplified/Traditional Chinese)

Direct Print System

  • PictBridge

    PictBridge

GPS

  • Type

    Geo-tagging w/ Optional GPS Module (WGS84)

  • Function

    - Location Name (OSD) (English and Korean only)
    - Google Map Link (with intelli-Studio)

Interface

  • Digital Output Connector

    USB 2.0 (HI-SPEED) (micro USB Jack)

  • Video Output

    NTSC, PAL (user selectable)HDMI 1.3 : (1080i, 720p, 576p / 480p)

  • External Release

    No

  • DC Power Input Connector

    DC 9V, 1.5A (100 ~ 240V) via Du mmy Battery

Power

  • Power Source
    Type

    Rechargeable battery : BP1030 (1030mAh)
    Charger: BC1030

  • Battery
    Running Time (For This Model)

    165min / 330shots (CIPA Standard)

Physical Specification

  • Dimension (WxHxD)
    Dimension (WxHxD)

    116.5 x 62.5 x 36.2 mm (excluding the projection part)

  • Weight

    220g (without battery and memroy card)

  • Operating Temperature

    0 ~ 40°C

  • Operating Humidity

    5 ~ 85%

Software

  • Application

    intelli-studio 3.0, Samsung RAW Converter 4
    Adobe Reader

System Requirement in general

  • For Windows

    PC with processor better than Intel Pentium III 500 MHz
    (Intel Pentium 800 MHz or higher reco mmended)
    Windows XP / Vista / 7
    Minimum 256 MB RAM (512 MB or more reco mmended)
    250 MB of available hard disk space
    (1 GB or more reco mmended)
    USB port
    CD-ROM drive
    1024 x 768 pixels, 16-bit color display compatible monitor
    (24-bit colour display reco mmended)
    Microsoft Direct X 9.0c or later

  • For Macintosh

    Power Mac G3 or later
    Mac OS 10.4 or later
    Minimum 256MB RAM (512MB or more recommended)
    Minimum 110MB of available hard-disk space
    USB port
    CD-ROM drive

System Requirements for Samsung Raw Converter

  • For Windows

    Windows XP / Vista / 7
    Intel Pentium, AMD Athlon Processor
    (Intel Pentium 4, AMD Athlon XP or later reco mmended)
    1 GB or more RAM reco mmended
    Minimum 100 MB of available hard disk space
    1024 x 768 pixels, Full Color (24-bit or higher) colour display compatible monitor

  • For Macintosh

    Mac OS X v10.6 / v10.5 / v10.4
    Power PC / Intel Processor-based or compatible computer
    (Core 2 Quad or later reco mmended)
    1 GB or more RAM reco mmended
    Minimum 100 MB of available hard disk space
    1024 x 768 pixels, 24-bit colour display compatible monitor
