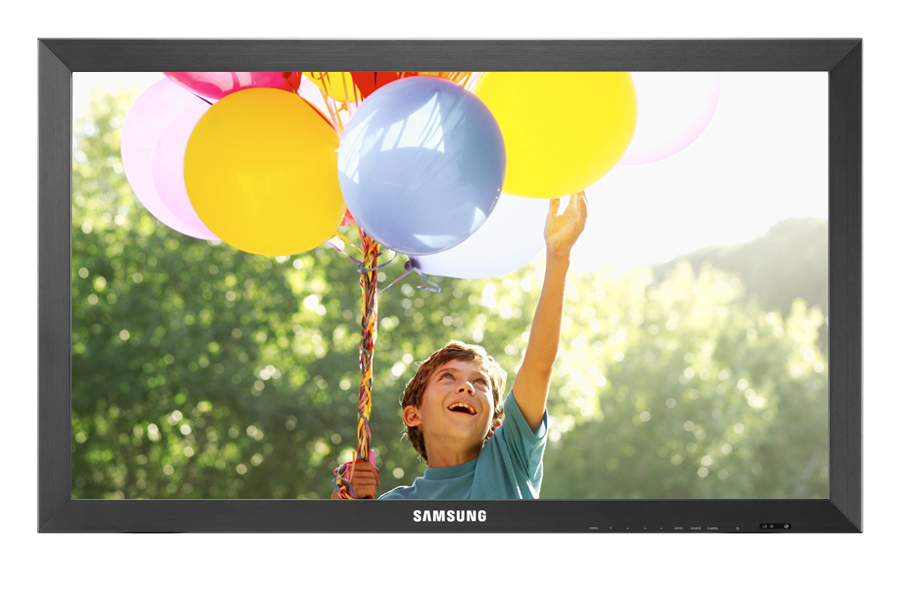

320TSN-3 Front

Product Features

See All

Tech specs

See All

Display

  • Maximum pixel frequency: 148.5 MHz

Connectivity

  • Analog D-SUB, DVI-D, Display Port
  • CVBS, HDMI1,HDMI2, Component (D-sub 15pin)
  • RCA (L / R), Stereo mini Jack
  • Stereo mini Jack output
  • 5V (for SBB) output

Panel

  • 32" panel size (diagonal)
  • S-PVA ( B-DID)
  • 1366 x 768 (16:9) resolution
  • 0.51075 (H) x 0.51075 (W)
  • 697.6845 (H) x 392.256 (V) active display area ( mm)
  • 450cd/m² display brightness
  • Response time: 8ms
  • 8bit - 16.7M

Mechanical Specification

  • 780 x 482 x 116.3 mm
  • 20.8 kg
Display
Maximum Pixel Frequency
Panel
Diagonal Size
Type
Resolution
Pixel Pitch(mm)
Active Display Area
Brightness
Response Time (G-to-G)
Display Colour
Connectivity
Input
RGB
Video
Audio
Output
Audio
Power Out
Mechanical Specification
Dimension (WxHxD)
Set Dimension (WxHxD)
Weight
Set Weight
