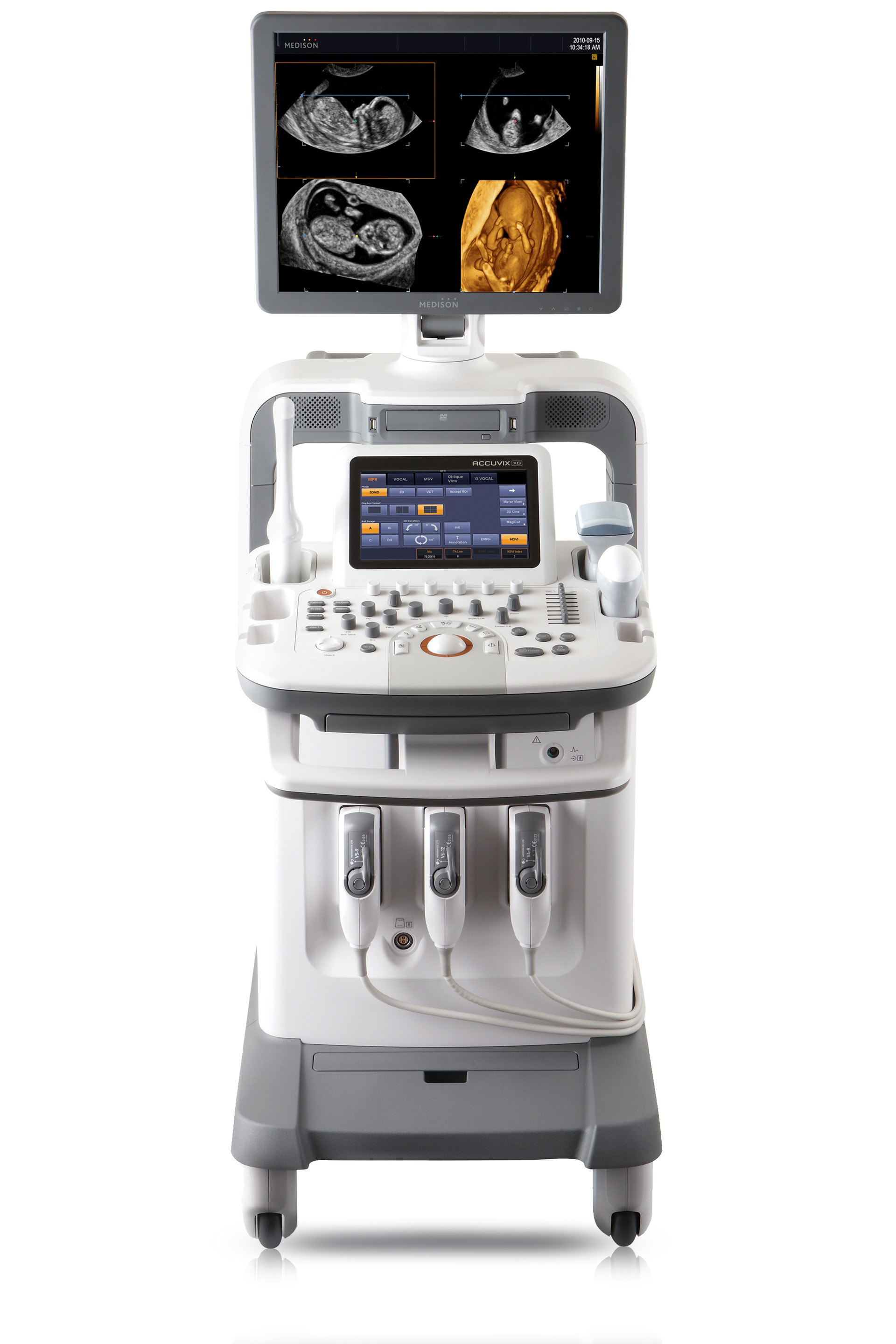

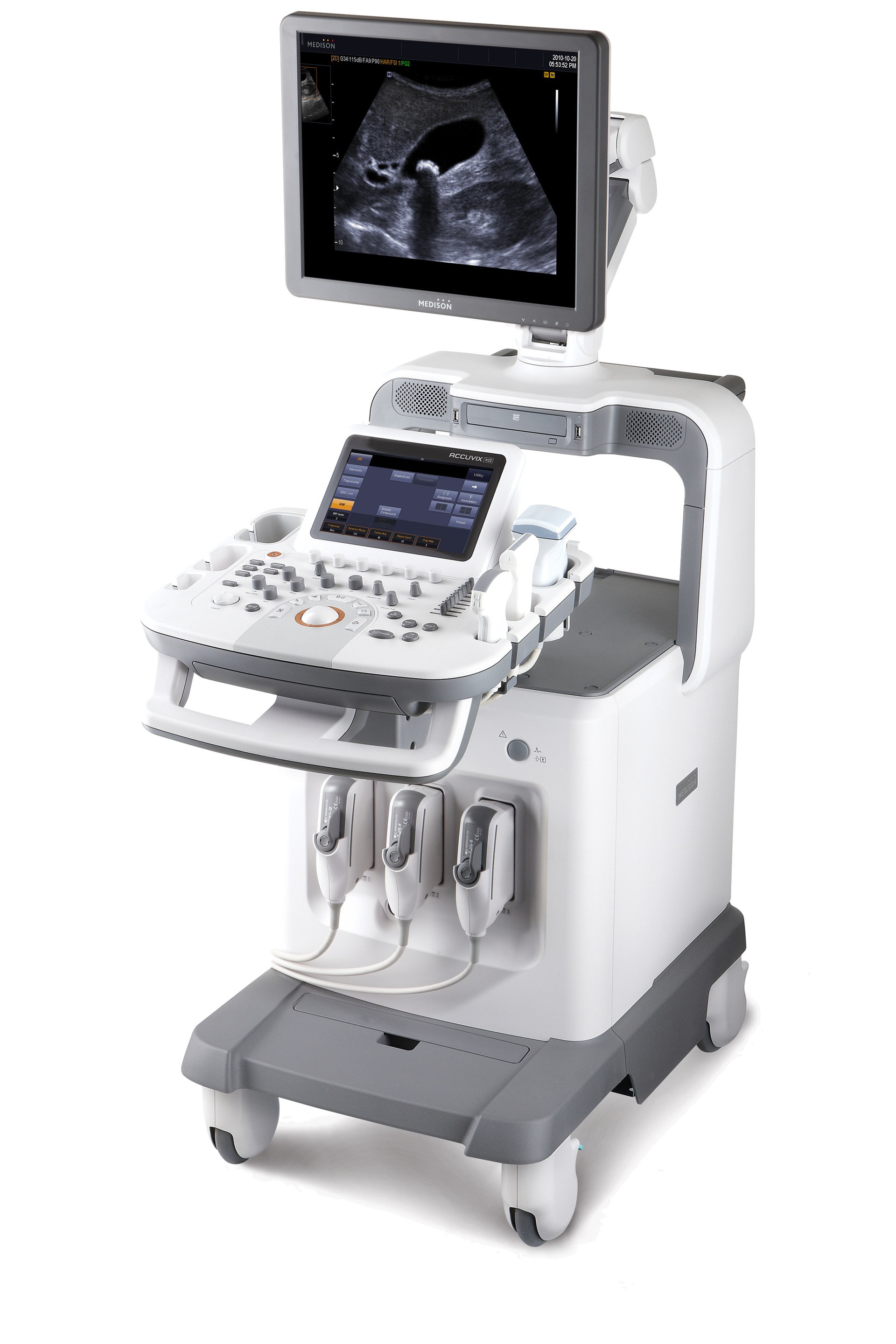

Accuvix XG

Features

  • Samsung provides an easier way to acquire more information and greater confidence with the Accuvix XG
  • You can now experience better imaging quality for better performance

Fully adjustable system, Wide LED touch-screen, 19-inch HD LCD Monitor and articulating monitor arm, Portability

Fully adjustable system, Wide LED touch-screen, 19-inch HD LCD Monitor and articulating monitor arm, Portability

Wider Dynamic Range

Wider Dynamic Range
Dynamic Range is the ratio of the brightest portion of the image to the darkest. The Wide Dynamic Range (WDR) function has been developed to provide clear images where there are both very bright and very dark areas simultaneously in view. WDR captures and displays the two zones in the same frame so that detail is defined in both, enabling enhanced diagnosis accuracy.

Dynamic MR Plus™

Dynamic MR Plus™
The Dynamic MR Plus™ is a 2D image feature which enhances detection and contrast resolution while decreasing speckle echoes. The resulting improvement in image quality is particularly useful when evaluating superficial structures such as thyroid, vessels, pelvic and abdominal anatomy. The rapid and accurate detection that Dynamic MR Plus™ delivers enables your organisation to make diagnoses with increased confidence.

Full Spectrum Imaging™ (FSI™)

Full Spectrum Imaging™ (FSI™)
Full Spectrum Imaging™ (FSI™) produces the penetration capabilities associated with the lower frequencies, while still maintaining the fine pixel uniformity associated with the higher frequencies. This combination consistently delivers superior quality images, even in the most challenging diagnostic circumstances. The resulting clarity delivers improvements in accuracy and efficiency for greater confidence in your diagnostic procedures.

Speckle Reduction Filter™ (SRF™)

Speckle Reduction Filter™ (SRF™)
Speckle noise is a granular noise that increases the mean grey level of a local area. Reduction of this is vital for accurate image interpretation. Speckle Reduction Filter™ (SRF™) improves image quality by reducing or eliminating the unnecessary echoes from ultrasound images. Flexibility is enhanced by the ability of the user to select the degree to which the reduction is implemented, enabling greater control of the process

Cervix ElastoScan™

Cervix ElastoScan™
ElastoScan™ translates stiff and soft tissue information into grey scale image. This technology delivers improved definition of any alteration in the stiffness in tissue state, allowing the operator to utilise the information in the image to deliver increased accuracy in diagnosis. Combined with other innovative features, Cervix ElastoScan™ enables timely and more detailed cervical scan results which will benefit your organisation and its patients.

Spatial Compounding Image™ (SCI™)

Spatial Compounding Image™ (SCI™)
The Spatial Compounding Image™ (SCI™) controls ultrasound beams electronically by steering. SCI™ compounds numerous scan lines to deliver significantly clearer definition in soft tissue planes, with reduced speckle and other noise. The improvement in detail, compared with conventional equipment, enables more rapid diagnosis with higher levels of accuracy which leads to increased confidence and an improved service for your patients.

3D eXtended Imaging™ (3D XI™)

3D eXtended Imaging™ (3D XI™)
3D eXtended Imaging™ (3D XI™) is comprised of a suite of three innovative imaging applications: Multi-Slice View™, Oblique View™ and Volume CT™. Each of these performs specific imaging tasks and combine to give a more comprehensive and holistic overview. This technology allows complete and precise control over 3D/4D volume data manipulation. The enhanced clarity that this brings to the images enables your organisation to offer maximum diagnostic accuracy and a more comprehensive service to your patients.

3D MXI™

3D MXI™
3D MXI™ is an innovative, cutting-edge 3D image processing technology to provide a comprehensive suite of imaging tools. It encompasses Multi Volume Slice™, MirrorView™, Multi-OVIX™, and 3D OH™. Using it enables health professionals to easily view, examine and diagnose 3D volume data. The convenience offered by this suite of tools results in faster diagnosis with higher levels of accuracy.

ADVR™

ADVR™
An integrated, real-time DVD recording feature, ADVR™ enables the Accuvix XG to record DVDs in real time while allowing simultaneous scanning and recording. The key benefit to your organisation is the ability for users to have complete control over the selection of recording areas. The results are sharp, accurate recordings that enable practitioners to deliver confident and timely diagnoses.

QuickScan™

QuickScan™
The QuickScan™ has been designed to maximise workflow efficiency by automatically optimising key imaging parameters at the touch of a button. The resulting increase in efficiency allows your organisation to offer patients an improved service with faster and more accurate diagnoses. This reliable and safe system helps your clinic or hospital to deliver a superior patient experience.
Volume NT & IT™

Volume NT & IT™

Volume NT & IT™ is the latest tool for undertaking NT(Nuchal Translucency) and IT(Intracranial Translucency) examinations. This innovative new 3D technology enables clinicians to detect the true mid-sagittal view from 3D data, combining it with an automated NT and IT measurement. The technology facilitates scanning and capturing the mid-sagittal plane during the first trimester to easily define the region of the NT and IT for measurement, leading to increased accuracy in foetal diagnosis at an earlier stage.
HD Volume Imaging™

HD Volume Imaging™

High Volume Imaging™ (HDVI™) delivers increased accuracy and efficiency to clinical procedures through its superior image quality. The clearer contrast provides enhanced tissue differentiation, edge depiction and speckle reduction to enable more confident and consistent diagnosis. In addition, it improves the clarity of multi-slice, C-plane and subtle lesion images. The sharper definition enables earlier detection of conditions such as foetal brain defects and more precise views of the walls and valves of the foetal heart.
Advanced 3D Feature : VSI™, SFVI™, SmoothCut™, FAD™

Advanced 3D Feature : VSI™, SFVI™, SmoothCut™, FAD™

The new suite of 3D imaging tools results in more comprehensive and realistic images which lead to increased accuracy in scans and diagnosis. Face Auto Detection™ (FAD™) is a one-touch operation which removes volume data that obscures foetal details whilst unwanted noise is eliminated using Smart Filter Volume Imaging™ (SFVI™). Volume Shade Imaging™ (VSI™) improves visualisation by displaying detailed images of skin tones and shading. For added clarity, Smooth Cut™ erases extraneous objects that impair visibility.

tech specs

  • Physical Specification
    Height

    1340 - 1600 mm

    Width

    540 mm

    Depth

    885 - 975 mm

    Weight (Including Battery)

    106.6Kg (235.3LB)

  • Console Design
    Keyboard

    Full alphanumeric QWERTY keyboard

    Probe Ports

    4(include pencil probe)

    HDD

    Integrated HDD : 500GB(SATA)

  • Monitor
    Type

    19" high resolution LCD monitor

    Resolution

    1280 x 1024 x 24bit

  • Control Panel
    Height

    808-988 mm

    Rotation

    ± 50° from center,

    8 TGC Slide Controls

    YES

  • Touch Screen
    Type

    9 inch Wide LED Touch Screen Control

    Display Resolution

    800 x 480 x 24bits

  • Application

    Abdominal, Obstetrics, Gynecology, Small parts, Vascular, Peripheral, Pediatric and Neonatal, Breast, Musculoskeletal, Urology, Cardiology,TCD, Contrast

  • Transducer Types
    Linear Array

    L3-8,L5-13IS,LF5-12,L7-16, LS5-13

    Curved Array

    C2-6IC, C1-4EC, C4-9/10ED, EV4-9/10ED, ER4-9/10ED, VR5-9, C2-8, CF4-9

    Phased Array

    P2-4BA, P3-8CA, P4-12

    CW Array

    CW2.0, CW4.0

    Volume Probe

    3DC2-6, V4-8, V5-9, V6-12

    TEE-phased Array

    MPT3-7

  • Operation Mode

    B-Mode(2D), M-Mode(M), Color M-Mode, Free Angle M-Mode(Arbitrary M-Mode), Color Doppler-Mode, Power Doppler-Mode (PD), Directional Power Doppler-Mode (DPDI), Pulse Wave Doppler-Mode (PW), Continuous Wave Doppler-Mode (CW), Tissue Doppler Imaging-Mode (TDI), Panoramic View, Contrast Enhanced Imaging (Low-MI), Auto IMT, Volume mode (3D/4D), Static 3D, 4D(Live 3D), MSV, Oblique View, XI STIC, Volume NT & IT

  • System Feature

    3D, Account function (User Management), Auto Calc (Real time automatic Doppler calcs.), Contrast Enhanced Imaging (Low-MI), Customizable Annotation: 360 text, Customizable Body Marker, Customizable Measurement Menu, Customizable User Keys, Customization, Doppler Auto Trace , Full Spectrum Imaging (FSI), Image Archive integrated on CD/DVD, Inversion 3D, MagiCut™ ,Pan,Point function,Post-Measurement,Pulse Inversion Harmonic Imaging,Quick Scan™ (in B-mode, PW-mode),Screen Keyboard, SonoView(Image Archive),Speckle Reduction Filter ™(SRF),Static 3D only,Tissue Doppler Imaging(TDI), Tissue Harmonic Imaging™ (THI),Trapezoidal Imaging,VCE™ (Volume Contrast Enhancement),VOCAL,Zoom, Write Zoom, Read Zoom(Magnification), 3D MXI™ (3D Multi-eXtended Imaging), Volume Slice™, Mirror View™, 3DXI™(3D eXtended Imaging), MSV™ (Multi-Slice View)display, Oblique View, OVIX™ (Oblique View eXtended Imaging), Volume CT™ (VCT), 4D, SMART4D™, VSI™, SFVI™, FAD™, Smooth Cut™,Auto IMT™, DICOM,Dynamic MR™, Dynamic MR PLUS™, ECG, ElastoScan™, HDVI™, Panoramic View™, SonoView Pro, Spatial Compounding Imaging™(SCI™), Volume NT & IT™, XI STIC™

Resources

Better Design, Clearer Results
Brochure

Better Design, Clearer Results

With advanced image quality, extensive automation, a better user interface and an ergonomic design, the Accuvix XG ultra sound system is here to help you in your day to day medical practices.

Download pdf
Design Your Practice
Brochure

Design Your Practice

Samsung Medison's latest imaging technologies like 3D imaging, wide LED touch screen, customised menu and quick scan is what makes the Accuvix XG ultrasound system so great and powerful.

Download pdf
