SonoAce R7

SONOACE R7

  • Get outstanding 2D color performance and a simple user interface with this system, ensuring an increase in patient output. It is innovative, ergonomic and offers sensitive waves and Color Doppler

SonoAce R7

Contact us

FeaturesPrint

Enhanced 4D Imaging

Enhanced 4D Imaging
The SonoAce R7 enables a much higher level of diagnostic accuracy than previous models. By incorporating realistic 4D imaging, this innovative technology delivers optimised results in a variety of applications. This increases user confidence and leads to a more informed decision-making process for medical professionals. The enhanced image quality comes at no expense to the unit’s overall mobility.

Dynamic MR™/Dynamic MR PLUS™

Dynamic MR™/Dynamic MR PLUS™
Combining both Object and Pixel Filtering, Dynamic MR™ technology significantly reduces extraneous noise and speckle echoes to create a clearer image of the area in question. This innovative second-stage filtering technique enriches both grey scale and contrast resolution, while also enhancing border detection. Reverberation artefact is thereby minimised, resulting in sharper images for more accurate diagnoses. It assists earlier detection of masses, and is therefore particularly useful when evaluating obstetrical, pelvic and abdominal areas.

Full Spectrum Imaging™ (FSI™)

Full Spectrum Imaging™ (FSI™)
Regardless of the TX setting, the FSI™ uses the entire radio frequency range and a customised probe to produce more comprehensive and reliable images. Broadening the range enables increased penetration and contrast resolution, ensuring better results for operators by reducing speckle and improving signal-to-noise ratio (SNR). This technology can also be applied to harmonic imaging to provide clinics with a more flexible range of diagnostic tools.

3D eXtended Imaging™ (3D XI™)

3D eXtended Imaging™ (3D XI™)
3D eXtended Imaging™ (3D XI™) comprises a suite of three innovative imaging applications to bring cutting edge technology to your organisation. Multi-Slice View™ transforms ultrasound data into a series of sequential images whilst Oblique View™ enables examination of 3D data in a wide range of planes. Finally, the Volume CT™ function allows coronal, sagittal and axial imaging, allowing practitioners to better understand cross-sectional scan information. The combined result is complete control of 3D and 4D volume data manipulation from various perspectives to ensure maximum diagnostic accuracy and confidence.

Spatial Compounding Image™ (SCI™)

Spatial Compounding Image™ (SCI™)
The Spatial Compounding Image™ (SCI™) technology improves signal-to-noise ratio (SNR) and enhances contrast resolution via electronic ultrasound beam steering. This gives operators greater control over their imaging capabilities. SCI™ compounds numerous scan lines to deliver significantly clearer definition in soft tissue planes, with reduced speckle and other interference. The higher quality of the detail, compared with Samsung conventional equipment, enables more rapid diagnosis with higher levels of accuracy which leads to increased confidence and a more refined service for your patients.

QuickScan™

QuickScan™
Samsung’s QuickScan™ has been designed to maximise workflow efficiency by automatically optimising key imaging parameters at the touch of a button. The resulting increase in efficiency allows your organisation to offer patients an improved service with faster and more accurate diagnoses. This reliable and safe system helps your clinic or hospital to deliver a superior patient experience.

Automated Intima-Media Thickness Measurement™ (Auto IMT)

Automated Intima-Media Thickness Measurement™ (Auto IMT)
Measurement of the intima-media thickness of the carotid artery wall has become a widely-used technique as it represents a non-invasive, affordable method of diagnosis. Auto IMT™ provides a user-friendly, state-of-the-art solution which offers output such as the Framingham Score, risk factors and a user graph. In addition, a comprehensive set of settings including Mean, Max, Standard Deviation and Quality Index measurements are instantly available at the touch of a single button.

Enhanced Post-analysis Tool

Enhanced Post-analysis Tool
SonoView Pro™ software is optimised to read a variety of media types and formats, including 2D static images, dynamic cine clips and 3D volume data. This post-analysis tool supports medical professionals by allowing for faster and more convenient reviewing of patient studies. It enhances productivity by letting the user view exams while away from the ultrasound system, freeing up the unit so that its throughput is increased.

Full User-Customisation

Full User-Customisation
The SonoAce R7 is designed to deliver total flexibility and usability for a comprehensive range of clinical situations. The Custom Menu allows the practitioner to preset the items that appear for specific applications according to preference. In this way the options contain only relevant information which enables faster, more efficient operation. In addition, the ability to save edited settings means secure storage and easy retrieval of files, while the Body Marker Edit function allows for clear and simple referencing.
Slim and Compact Design

Slim and Compact Design

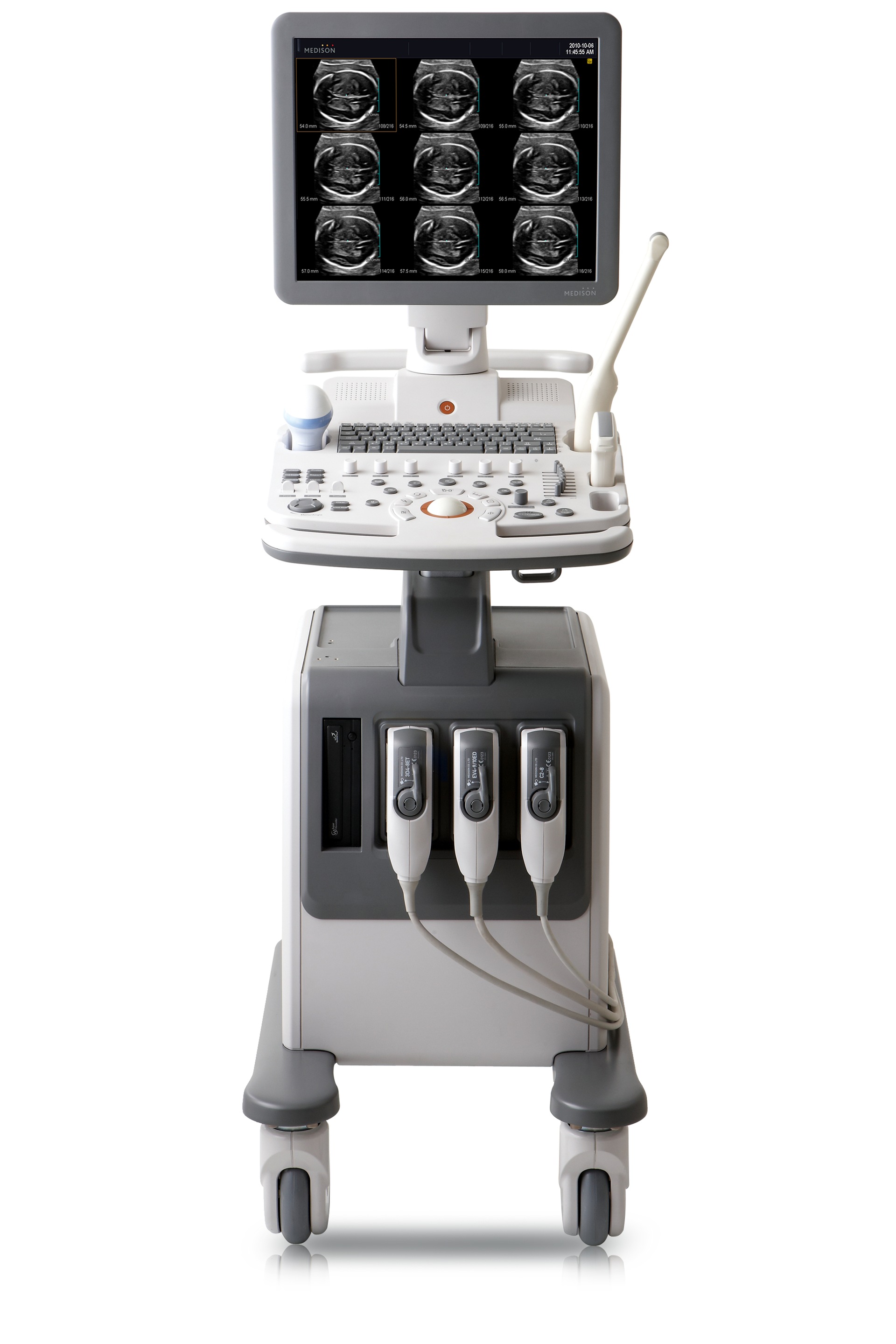

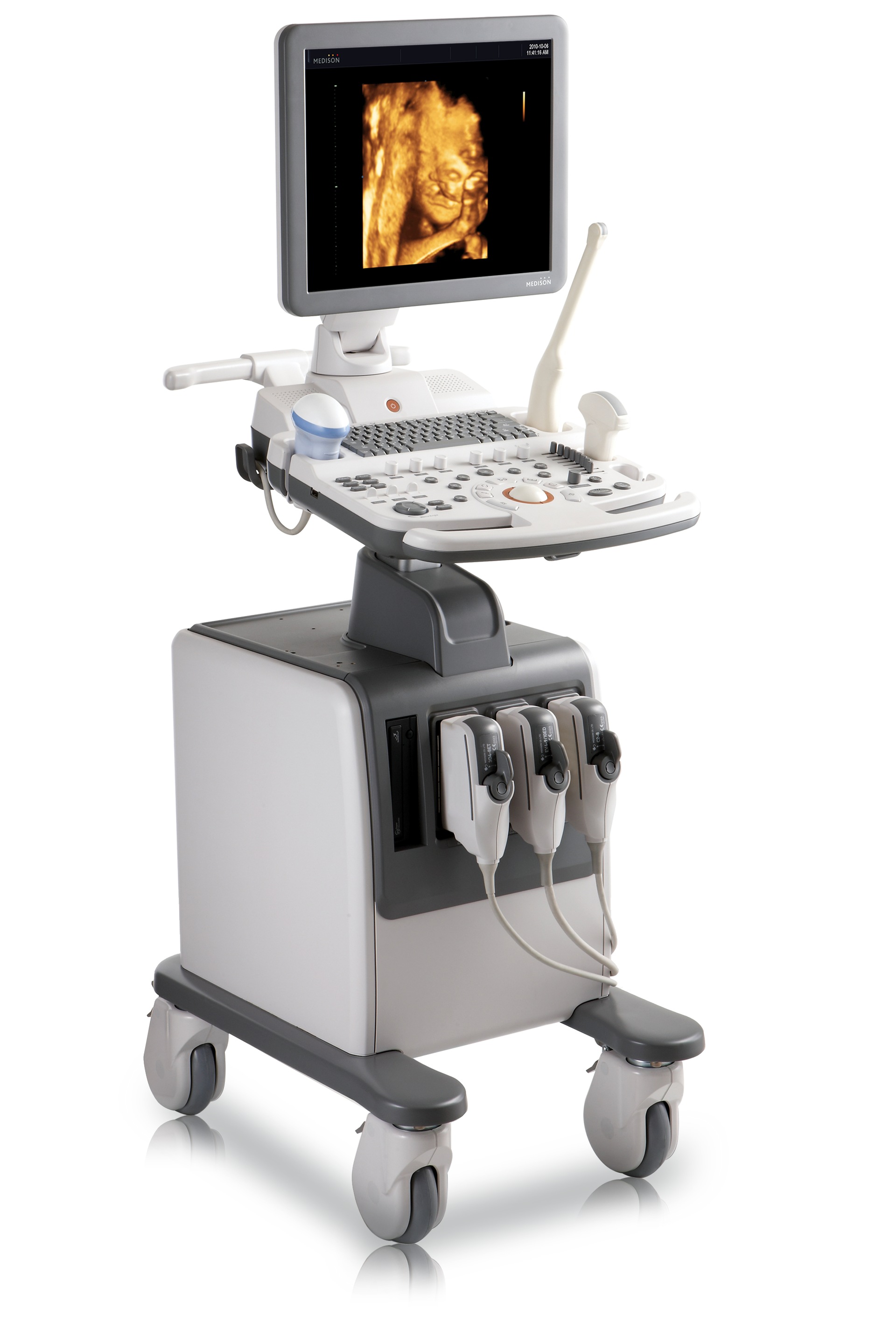

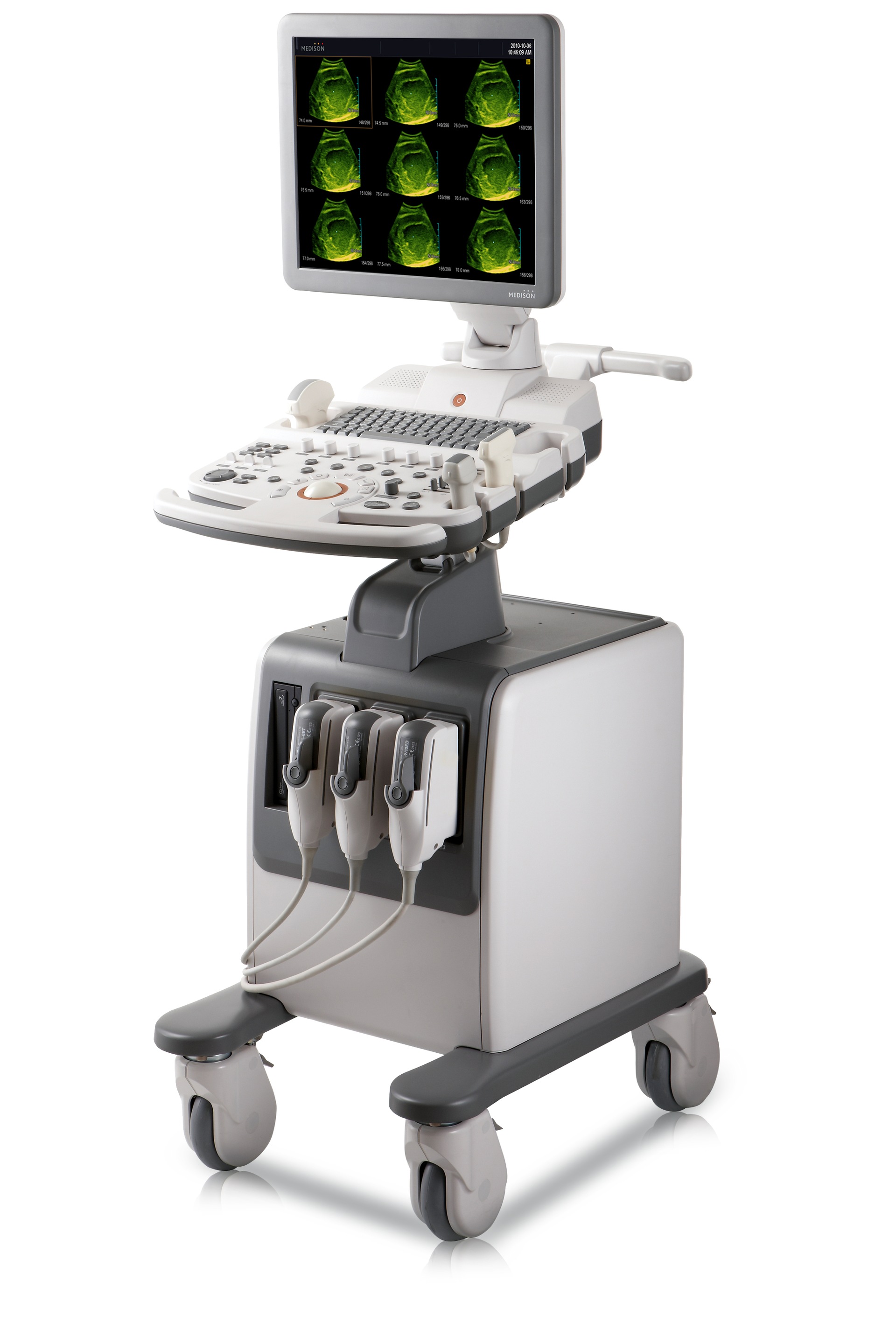

The highly user-friendly SonoAce R7 incorporates a host of ergonomic features into an ultra-compact package. The innovative and slim design is also extremely practical with its four swivel wheels and front and back handles enabling easy mobility. The simple user interface, height-adjustable control panel and backlit keyboard combine to create a tool which enables practitioners to increase patient throughput without sacrificing comfort or performance. By utilising outstanding 3D/4D color technology, its 17-inch LCD monitor displays clear, easily-viewable images to bring about increased diagnostic accuracy.

Support

  • In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.

    Download Adobe Acrobat Reader
  • In order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.

    Download Djvu Viewer
  • Have a question or need product support?

    Go to Support

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.

related insights

Brochure
Probe catalog of SonoAce R7
There are a whole range of SonoAce R7 ultrasound probes that are offered by Samsung. Choose from a variety of Volume Probes, Curved Array Probes, Linear and Phased Array Probes.
Brochure
The Slim Advantage
Samsung's SonoAce R7 promises a whole range of useful features. From an ergonomic design that is easily customisable for your patient to 3D and 4D diagnostic technologies and superlative image quality, this system is redefining ultrasound equipments.
Brochure
A Slim and Ultra Compact System
Samsung promises to deliver brilliant 2D performance with its SonoAce R7 ultrasound system. It features the sensitive Pulsed Wave, Continuous Wave and Color Doppler. Moreover, it also offers 3D and 4D functions, as per requirements.
Features and specifications are subject to change without prior notification.
