SMX-C20RP

SMX-C20RP

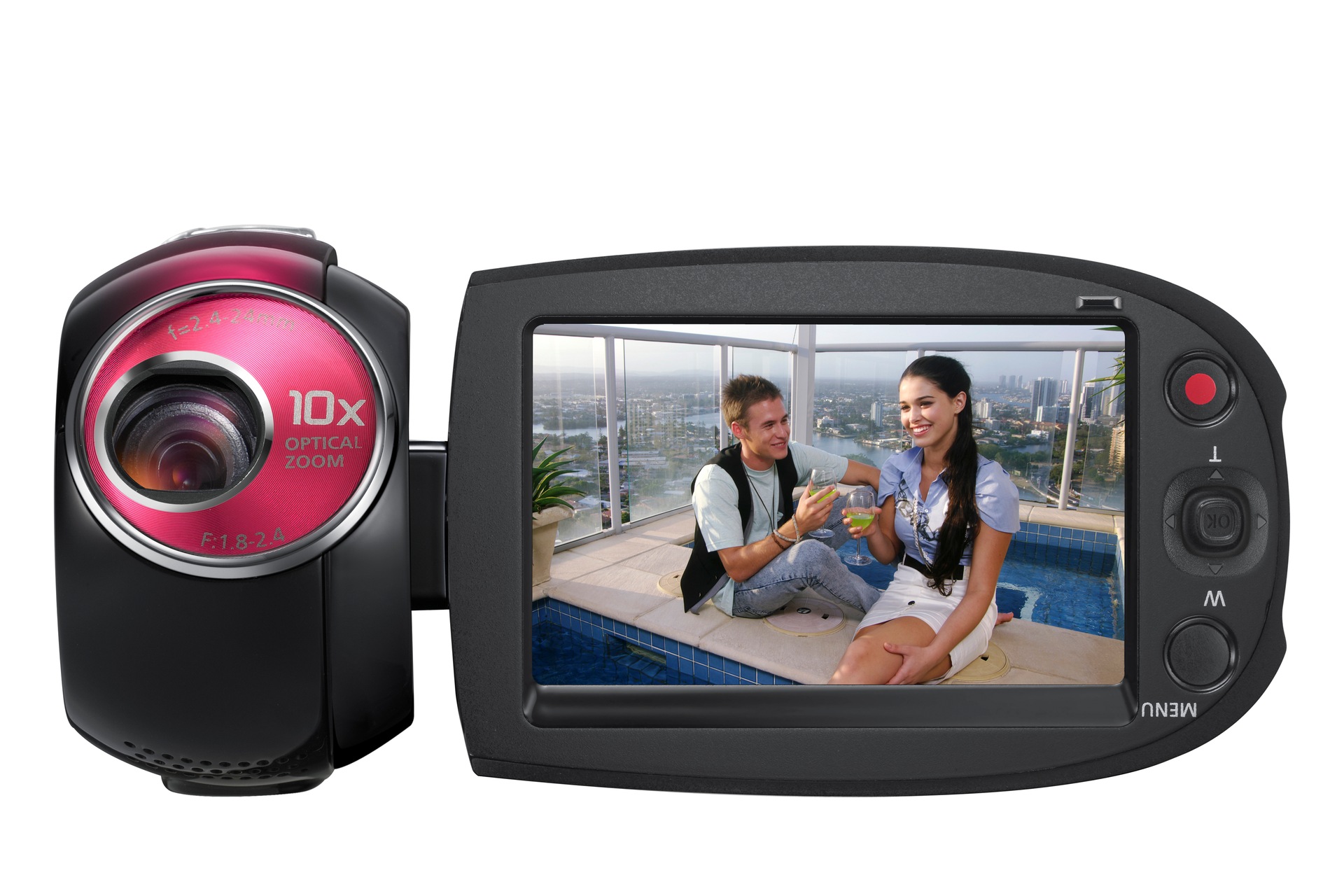

The ethereal Red, Blue, Black or Purple colours infused into the Samsung SMX-C20's glossy finish are designed to match the Stylish Colour Accent motif that defines the design leadership of Samsung products, creating an elegant crystalline effect that is inspired by the rich, natural beauty of hand-blown glass. 0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

SMX-C20RP

Features

  • Inspirational design innovation

Share your world

Share your world
One of the features that makes the Samsung SMX-C20 a truly portable camcorder is that it comes with its built-in PC software, intelli-studio. When the SMX-C20 is connected to a PC, intelli-Studio 2.0 automatically runs, allowing you to view, edit, and share files from anywhere.

Record more with long battery life

Record more with long battery life
Through enhanced energy efficiency coming from 8th generation chip solution, the samsung SMX-C20 can give you more time to play with. Its battery life of over 2 hours 40 minutes ensures that you always have time to take your time and enjoy making movies.

Longer recording with H.264

Longer recording with H.264
Recording in H.264 Codec allows the Samsung SMX-C20 to record over 12 hours of high-quality video footage on a 32GB SD card, giving you the space you need to enjoy stress-free movie making.

Record the passing of time

Record the passing of time
The Time-Lapse recording feature captures frames at preset intervals and then arranges them in sequential order to create a video file that condenses an extended period of time into a fraction of the time.
Express your individuality with style

Express your individuality with style

There’s nothing boring about the Samsung SMX-C20. Its unique infusion of color continues Stylish Color Accent design theme, breaking from convention and setting the standard for digital style yet again. The Samsung SMX-C20 is designed to feel as good as it looks. Its ultra compact size, lightweight body, and organic contours fit comfortably in your hand, inspiring confidence that feels natural in every way.
EZ angle lens

EZ angle lens

The Samsung SMX-C20 is all about the angles. Its lens is slanted to promote a healthy hand position that is comfortable and natural to use, and by adjusting LCD screen 25-degree that paralleled to the lens, LCD screen is set at an angle that gives you a clear, unobstructed view of what you are recording.
Sharing at the touch of a button

Sharing at the touch of a button

Sharing video files on the web has never been easier. Simply select the files in the thumbnail screen, press the upload button. The files are sent directly to, YouTube without any inconvenience to control PC.
Animated Thumbnail

Animated Thumbnail

The Interactive Thumbnail feature allows you to see what is in the file without having to enter full playback mode, making file management and selection more intuitive and enjoyable.
High-Quality Photos

High-Quality Photos

Intelligent image enhancement enables the Samsung SMX-C20 to capture 1600 x 1200 JPEG images, resulting in1.9M Pixel digital still shots, giving you the choice to shoot and share the moment in either high-quality video or photo format.
Battery Charging via USB Port

Battery Charging via USB Port

No adaptor needed. The Samsung SMX-C20 can be charged via USB cable as well as standard DC mains adaptor, all it needs is to be connected to a PC, giving you the freedom to enjoy a more mobile lifestyle.
Smart Auto

Smart Auto

Smart Auto automatically detects which scene setting is the best one to use, so that video and photos are always captured in their best condition. Portrait, Night Portrait, Night, White, Macro, Landscape, Indoor, and Outdoor scenes are supported.

tech specs

Dimension of SMX-C20RP/XTL

Signal Type

  • Signal Type

    (C20RP, C24RP) PAL/(C20RN, C24RN) NTSC

Storage Media

  • Storage Media

    SDHC/SD

SHOW MORE SPECSExpand

Image Sensor

  • Sensor Type

    CCD

  • Sensor Size

    1/6''

  • No. of pixels

    680K

Display

  • Main Screen
    Device Type

    LCD

    Size

    6.86cm (2.7)

    No. of pixels

    230K

Lens

  • Light

    No

  • F Value

    F: 1.8 ~ 2.4

  • Optical Zoom

    10x (Optical Zoom)

  • digital zoom

    1,200x

  • Type

    Samsung Lens

  • Focal Length

    2.4 ~ 24mm

Flash

  • Flash

    No

Shoe

  • Shoe

    No

Video Recording Feature

  • Video Spec
    Recording Format

    H.264 BP

    Recording Resolution

    D1 (720 x 480/60i), Time Lapse Recording Available

    Recording Quality

    TV Super Fine, TV Fine, TV Normal, Web Fine, Web Normal

  • Shutter Speed
    Manual Shutter

    1/60 ~ 1/10,000

    Auto

    Yes

    Slow Shutter Mode (LSS)

    No

  • Image Stabilizer

    Hyper D.I.S.

  • Focus
    Auto Focus

    Yes

    Manual Focus

    Yes

    Face Detection Focus

    Yes

  • Power Night Capture

    No

  • Video Still Capture

    No

  • Back Light compensation

    Yes

  • Low Light Sensitivity

    20 LUX ↓ (Visual)

  • White Balance
    Auto

    Yes

    Manual

    Included in iScene Mode

Audio Recording Feature

  • Audio Format

    AAC

  • Others
    Worldwide AV Output

    Yes

  • No. of Channel

    2ch

  • PC CODEC
    PC Decoder

    Yes

    PC Encoder

    Yes

  • Speaker

    Yes

  • Volume Adjust

    Yes

  • Built-in Microphone

    Yes

  • Wind Filter(WindCut Plus)

    Yes

  • Real Stereo

    Yes

  • Audio Effect
    Voice

    No

    Music

    No

    Wide

    No

    Echo

    No

  • Audio Dub

    No

  • External Microphone

    No

Operation

  • PB Option
    All/Select

    Yes

    Zoom

    No

  • Play/Still

    Yes

  • Stop

    Yes

  • FF/FPS

    Yes

  • REW/RPS

    Yes

  • Line Recording

    No

  • Slow Motion

    Yes

  • Frame Advance

    Yes

  • Shuttle Search

    No

  • Protect
    All/Select

    Yes

  • Delete
    All/Select

    Yes

Still Imaging Feature

  • Still Image
    Format

    JPEG

    Resolution

    800 x 600, 1600 x 1200 (interpolation)

    Quality

    Super Fine only

    Recordable Media

    SDHC/SD

Interface

  • PC
    USB

    2.0

    IEEE 1394

    No

  • Video
    Composite

    Yes

    S-Video

    No

    Component

    No

    HDMI

    No

  • Audio
    EarPhone Jack

    No

  • Memory Card
    Card Slot

    SD/SDHC

Memory Application

  • Built-in Memory
    Built-in Memory

    C20 (0GB), C24 (16GB)

USB Application

  • External Storage

    Yes

  • Direct Print System
    DPOF

    No

    PictBridge

    No

  • USB Charging

    Yes

Others

  • Indicator
    Power LED

    No

    Tally Lamp

    No

    Recharging Indicator

    Yes

    Function key LED

    No

    AF-assist lamp

    No

    Disc Access Lamp

    No

  • Tripod Screw

    No

  • Lens Cover

    Glass Cover

  • Charging in working

    Yes

  • Color Variation

    (C20R) Red, (C20L) Blue, (C20B) Black, (C20U) Purple

S/W and PC OS

  • Compatible OS
    Compatible OS

    Windows XP, Vista, Windows 7

  • Bundle PC S/W

    Intelli-studio (built-in)

Accessory

  • Power
    AC Adaptor/Charger

    Yes

    AC Cord

    No

    Battery Pack

    Yes

  • Strap
    Hand Grip

    Yes

    Shoulder Strap

    No

    Neck Strap

    No

  • Case
    Carrying Case

    No

  • Cable
    Type

    A/V Cable / USB Cable

  • Others
    Remote Control

    No

    Bundle Recordable Media

    No

    Instruction Book

    Yes (CD)

    Pocket Guide

    Yes

Power

  • Power Consumption
    LCD on, VF off

    1.8W

  • Battery
    Model No.

    IA-BH130LB

    Running Time (For This Model)

    160 minutes

Physical Specification

  • Dimension (WxHxD)

    35.2 x 56.2 x 109.0mm

  • Weight

    145g (without battery)

REVIEWS (0)

Owners Overall Ratings

Your opinions about this product can be helpful to us and to anyone thinking about buying one.

Support

User Manual

11.57 MB, pdf, ENGLISH

2010.10.08

Other Manuals (1)

Firmware (1)

  • Upgrade File

    All OS, 90.69 MB, zip, MULTI LANGUAGE

    Version : 1.05 and 1.54

    2011.07.29 tooltipbox

    Close tooltip pop-up
    1. Title
    SMX-C20 seriese firmware
    - version 1.05 for MLC NAND Flash memory
    - version 1.54 for EF NAND Flash memory
    Please check SVC bulletin before Firmware update.(11-DVC-E19)
    2. Applicable Model
    SMX-C20, SMX-C24, SMX-C200
    3. Carrier or Corporate Customer
    open market
    4. Description
    -

Some files may not be available from phones and tablets. Access this page from your desktop computer to be able to download all files.In order to read a PDF file, you must have Adobe Acrobat reader installed on your computer. You can download it at the Adobe website.Download Adobe Acrobat ReaderGoIn order to read DjVu files, you must have the DjVu viewer installed on your computer. Click this banner and install the viewer.Download Djvu ViewerGo
