WB700

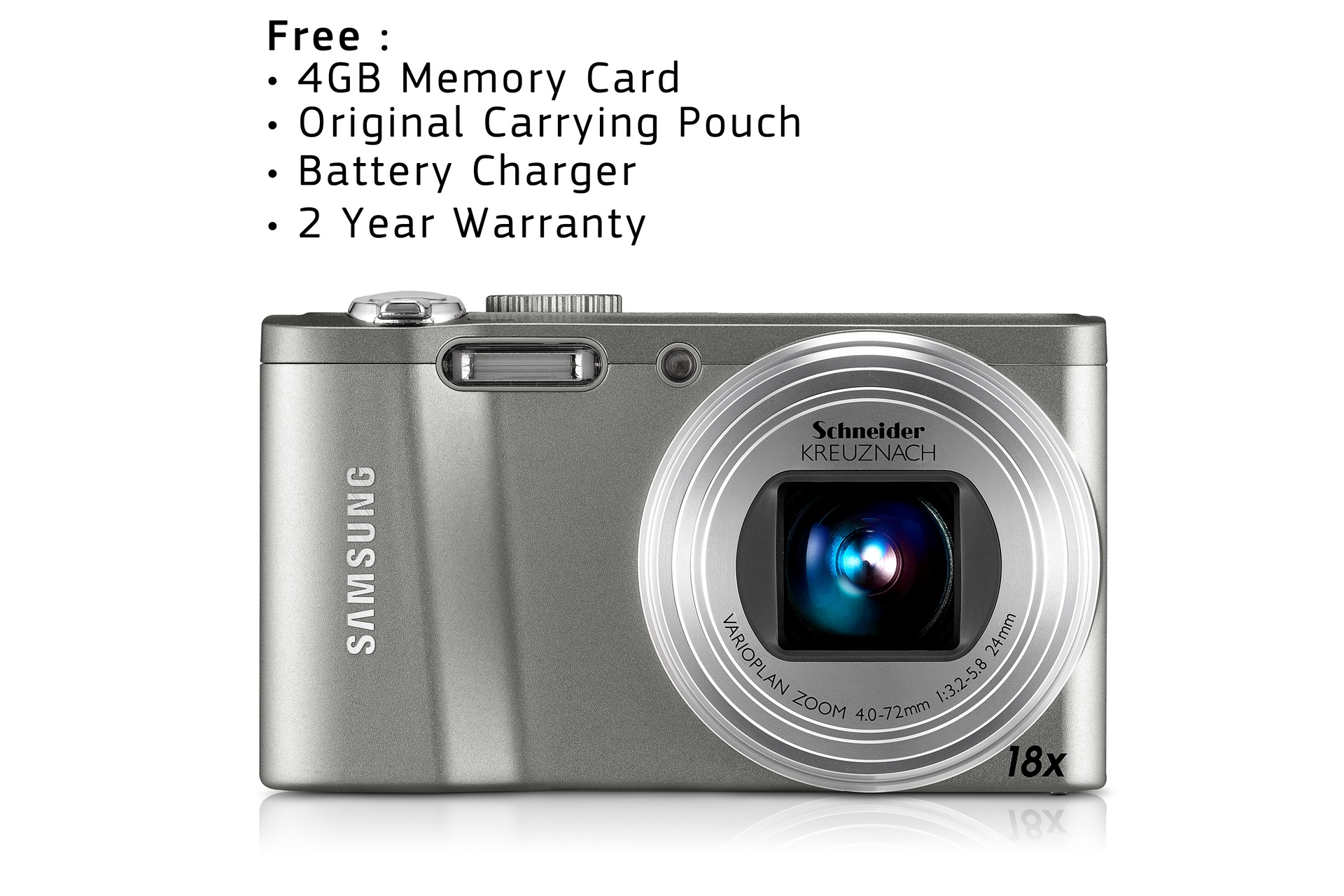

SAMSUNG WB700

Launch yourself into the centre of the action when far away with a 24mm ultra wide angle 18x optical zoom lens, and an extended 1.3x Smart Zoom. Manual Mode gives you control over advanced parameter settings. With maximum capabilities built into its slim design, no other compact comes close. 0 5 0 reviews

Recycling Batteries Responsibly

  • The European Directive on Batteries and Accumulators aims to minimise the impact of batteries on the environment and encourage the recovery of the materials they contain. In the UK, regulations on the recycling of batteries and accumulators (rechargeable batteries) were Introduced in 2009. The Waste Batteries Regulations aim to significantly increase UK collection and recycling of used portable batteries from 3% in 2007 to 25% by 2012, rising to at least 45% in 2016.

  • The battery symbol on a product or on its packaging indicates that the product must not be disposed of with general household waste. Instead, it is the consumer’s responsibility to dispose of their waste batteries at a designated collection point so that they can be recycled. The separate collection and recycling of batteries at the time of dispo sal will help to conserve natural resources and ensure that they are recycled in a manner that protects human health and the environment. A comprehensive list of battery recycling centres can be obtained from: www.recycle-more.co.uk

  • All Samsung products that are subject to the Batteries Directive are compliant with the UK battery and accumulator Requirements. In accordance with national law, SAMSUNG Electronics (UK) Ltd is a member of an approved batteries producer compliance scheme. This scheme collects, treats and disposes of batteries on Samsung’s behalf.

WB700

Features

  • World’s First 18X Compact High Zoom
  • World’s First 18X Compact High Zoom
  • Superior Optical Performance, High image quality, 14 Megapixels, 24mm wide angle
  • Full Size Dual Capture & High Speed Still/Movie Panorama Action
  • Full Manual Control

See beyond the horizon

See beyond the horizon
The 24mm Ultra Wide 18x Zoom captures objects in a wider shooting range, so your vision is translated, just as you imagined it. Take photos of distant people and landscapes and the results are right before your eyes. The 24x Smart-Zoom (18x Optical Super-Zoom) renders all the details, sharp and rich. And the 7.62cm (3.0) TFT LCD screen offers a wider, crystalclear image with improved contrast and true-life colour. You always get the best view possible. The Samsung WB700 fits everything you always wanted into the frame.

High Sensitivity ISO 3200

High Sensitivity ISO 3200
With a true ISO 3200 setting, your Samsung camera can effectively minimise noise for crystal clear images under low light conditions. Plus, ISO 3200 lets you take perfectly focused photos of fast-moving images, like during a sporting event.

When it comes to brightness, it’s brilliant : 7.62cm (3.0) Intelligent LCD

When it comes to brightness, it’s brilliant : 7.62cm (3.0) Intelligent LCD
Its 7.62cm (3.0) Intelligent LCD provides for improved contrast and colour reproduction, which allows you to enjoy a wider and clearer image. And its Intelligent LCD brightness automatically detects environmental illumination and adjusts the LCD brightness for optimal image viewing. It does the thinking for you, which makes the WB700 a smart choice.

Make your own movies

Make your own movies
You get 720p HD quality video at 30 frames per second and recording time 4x longer than MJPEG video. SoundAlive, with special zoom noise reduction technology, gives you crystal-clear, vibrant sound recordings.
Get full control with Full Manual

Get full control with Full Manual

Full Manual gives you the ability to take complete control and capture the photos exactly as you want them to be. Aperture Priority and Shutter Priority settings let you experiment with shutter speeds and depth of field, so you can shoot fast-moving images in low light. With Samsung cameras, your creativity counts most.

Shoot like a pro with Smart Auto 2.0

Shoot like a pro with Smart Auto 2.0
Smart Auto 2.0 (still and movie) analyses key elements in the composition and automatically adjusts its 16 photo modes and 4 movie modes to capture the best shot.
Say goodbye to shaky shots with Dual IS

Say goodbye to shaky shots with Dual IS

Don’t risk ruining that once-in-a-lifetime memory because of a shaking hand or a camera that’s not up to the job. The Dual IS (Image Stabiliser) feature automatically adjusts to compensate for even the slightest hand or body movements, resulting in steadier photos.
What’s more, the Dual IS can maximise the stabilising area while minimising shaking so you get crisp shots every time—even while you or the subject is on the move.
Built in HDMI Type D with Anynet

Built in HDMI Type D with Anynet

Just one HDMI code is all it takes to connect your WB700 directly into your TV, computer or DVD player. With the WB700, making professional quality videos is just as easy as sharing them.
Smart Filter

Smart Filter

Samsung camera’s Smart Filter lens and colour options make special moods easy for still shots and videos. Tilt & Shift Lens Effect adds a miniaturised look and the Vignetting Effect makes striking compositional contrasts. New special effects include Soft Focus to add an emotional feel, Half-Tone Dot to soften skin tones and Old-Film Effect to set up a retro mood or frame. Colour Palette for movies, adds an ultra-vivid vibe. It’s now a snap to get creative.

tech specs

Dimension of EC-WB700ZBMBIN

Image Sensor

  • Sensor Type
    Approx. 7.76mm (2.33) CCD
  • Effective Pixel
    Approx. 14.2 Mega-pixel
  • Total Pixel
    Approx. 16.4 Mega-pixel

Lens

  • Focal Length
    Schneider-KREUZNACH f = 4.06 ~ 73.08mm (35mm film equivalent : 24 ~ 432mm)
  • F Value
    F3.2(W) ~ F5.8(T)
  • digital zoom
    Still Image mode:
    - Smart Zoom : 1.0X ~ 1.33X after optical Zoom
    - Digital Zoom: 1.0X ~ 4.0X : Optical Zoom (X18)
    Super resolution (X1.33)
    Digital Zoom (X4)
    Play mode : 1.0X ~ 12.5X (depends on image size)

SHOW MORE SPECSExpand

Focusing

  • Type
    TTL Auto Focus (Centre AF, Multi AF, Selection AF, Manual Focus, Face Tracking AF, Object Tracking AF)
  • Range
    Normal : 50cm ~ Infinity (Wide), 2m ~ Infinity (Tele) Macro : 3cm ~ 50cm (Wide), 1.5m ~ 2m (Tele) Auto Macro : 3cm ~ Infinity (Wide), 1.5m ~ Infinity (Tele) Manual : 3cm ~ Infinity (Wide), 1.5m ~ Infinity (Tele)

Exposure

  • Control
    Program AE, Shutter AE, Aperture Priority AE or Manual Exposure
  • Metering System
    Multi, Spot, Centre Weighted, Face Detection AE
  • Compensation
    ±2EV (1/3EV steps)
  • ISO Equivalent
    Auto, 80, 100, 200, 400, 800, 1600, 3200

Flash

  • Mode
    Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash Off, Red-eye fix
  • Range
    Wide : 0.3m ~ 5m, Tele : 0.5m ~ 3m (ISO AUTO)
  • Recharging Time
    Approx. 4 seconds

Storage

  • Media
    External memory: SD Card (up to 4GB guaranteed) SDHC (up to 8GB guaranteed)
  • File Format
    Still Image : JPEG, DCF, EXIF 2.21, DPOF 1.1, PictBridge 1.0 Movie Clip : Container : MP4, Video : H.264, Audio : AAC
  • Image Size
    14M : 4,320 x 3,240, 12M P : 4,320 x 2,880, 10M : 3,648 x 2,736, 10M W : 4,320 x 2,432, 5M: 2,592 x 1,944 pixels, 3M: 1,984 x 1,488, 2MW: 1,920 x 1,080 pixels, 1M: 1,024 x 768 pixels

Interface

  • Audio
    Microphone : Stereo Internal Speaker : Mono
  • Digital output connector
    USB 2.0
  • Video Output
    AV : NTSC, PAL (user selectable)HDMI 1.3 (CEC) : NTSC, PAL (user selectable)(Built-in HDMI Type D)
  • DC power input
    4.4V

Physical Specification

  • Dimension
    Dimension (WxHxD)
    105.0 x 58.9 x 24.9mm
  • Weight
    203g
  • Operating Temperature
    0 ~ 40°C
  • Operating Humidity
    5 ~ 85%

Power

  • Power Source
    Type
    Rechargeable battery : SLB-10A (1,050mAh), 110 minutes Connector Type : 20pin Adaptor : SAC-48, USB/Charging Cable : CB20U05A, AV Cable : SCC-AV20

Display

  • Type
    TFT LCD
  • Feature
    7.62cm (3.0), QVGA

Movie Clip

  • Recording
    With Audio or Sound Alive (Zoom Noise Reduction) (Max Recording time : 20 minutes) Movie Size : 1,280 x 720 (30/15fps) High Quality, 1,280 x 720 (30/15fps) Standard Quality, 640 x 480 (30/15fps) , 320 x 240 (30/15fps) Smart Movie : Landscape, BlueSky, NaturalGreen, SunsetSmart Filter: Normal, Miniature, Vignetting, Half Tone Dot, Sketch, Fish-eye, Defog, Classic, Retro, Negative, (Custom RGB)
  • Effect
    Pause during recording, Time Trimming
  • Edit
    Still Image Capture, Time Trimming

Still Image

  • Mode
    - Mode Dial : Smart Auto, Program, Aperture Priority, Shutter Speed Priority, Manual, Scene, Movie, Dual IS
    - Scene: Beauty Shot, Night, Landscape, Text, Sunset, Dawn, Backlight, Beach & Snow
    - Smart Auto : Portrait, Night Portrait, Backlight Portrait, Macro Portrait, Night, Backlight, Landscape, White, NaturalGreen, BlueSky, Sunset, Macro, Macro Text (with Smart Guide), Macro Colour, Tripod, Action
    - Drive : Single, Continuous, AEB, Motion Capture
    - Self-timer : Off, 2 seconds, 10 seconds

Sharpness

  • Sharpness
    5 steps (Soft+, Soft, Normal, Vivid, Vivid+)

Date Imprinting

  • Date Imprinting
    Date&Time, Date, Off (user selectable)

System Requirement in general

  • For Windows
    PC with processor better than PentiumIII 500MHz (Pentiumlll 800MHz recommended) Windows 2000/XP/Vista 250MB of available hard-disk space (Over 1GB recommend) Minimum 256MB RAM (Over 512MB recommended) USB port CD-ROM drive1,024 x 768 pixels, 16-bit colour display compatible monitor (24-bit colour display recommended) Microsoft DirectX 9.0 or later
  • For Macintosh
    Power Mac G3 or later Mac OS 10.3 or higher Minimum 256MB RAM110MB of available hard-disk space USB port CD-ROM drive

REVIEWS (0)

Owners Overall Ratings

Your opinions about this product can be helpful to us and to anyone thinking about buying one.

Support

User Manual

5.8 MB, pdf, ENGLISH

2013.01.31

Firmware (1)

  • Upgrade File

    All OS, 41.73 MB, zip, MULTI LANGUAGE

    2012.02.02 tooltipbox

    Close tooltip pop-up
    1. Title
    [WB700] The latest F/W (109091)
    2. Applicable Model
    WB700
    3. Carrier or Corporate Customer
    Open Market
    4. Description
    This is the latest F/W for WB700 camera.
    Images displayed number was corrected.
    You should use intelli-studio for upgrading firmware.
