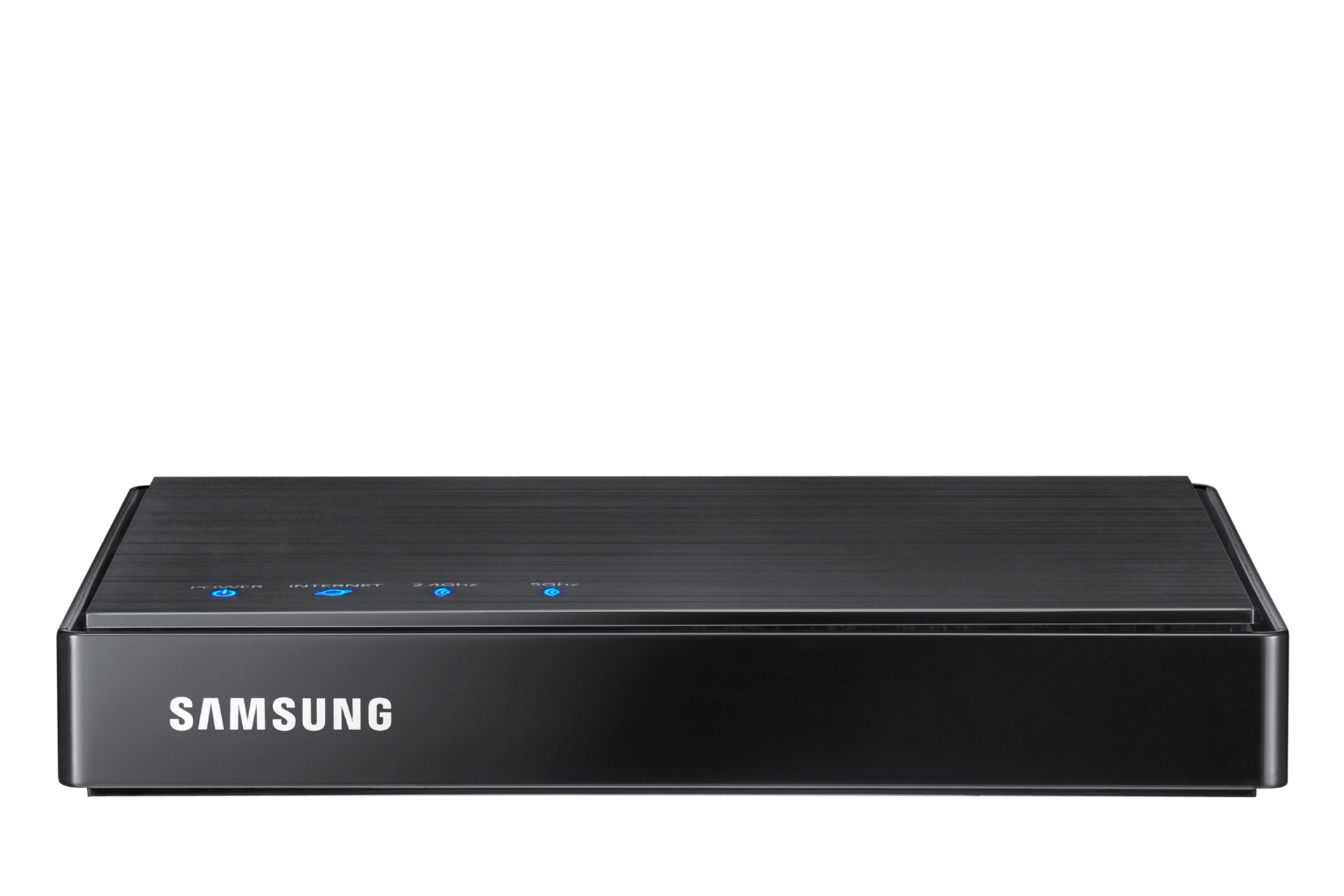

SWR1100 Front

Wireless Router with “One Foot Connection”

Make the most out of your home entertainment network

Will this accessory work with my product?

Use your model number to find out

Product Features

See All

Specifications

See All

Hardware Specification

WAN Interface

  • 1 x 10 / 100 / 1.000 Mbps WAN - Auto MDI / MDIX

LAN Interface

  • 4 x 10 / 100 / 1.000 Mbps PC Port - Auto MDI / MDIX

Wireless Interface

  • 802,11 a / b / g / n (simultaneous)

Status LED

  • Power / WAN / Wireless (2,4 GHz / 5,0 GHz) / WPS / LAN / USB

Temperature

  • Operating: 14 - 140 ºF (-10 - 60 ºC), Storing: -40 - 158 ºF (-40 - 70 ºC)

Operating Voltage

  • Input: 100 - 240 V / 50 - 60 Hz, Output: DC12 V / 2 A

Wireless Specification

Standard

  • IEEE 802,11 a / b / g / n

Wireless Frequency Range

  • 2,40 GHz (2,4000 GHz - 2,4853 GHz), 5,00 GHz (5,15 GHz - 5,35 GHz / 5,47 GHz - 5,85 GHz), Dual-band concurrent

MIMO

  • 2Tx 2Rx

Wireless Bandwidth Rate

  • 1. IEEE 802,11 b: 1, 2, 5,5, 11 Mbps; 2. IEEE 802,11 a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 3. IEEE 802,11 n: MAX 300 Mbps (with HT 40 MHz)

Software Specification

NAT

  • PNAT

Protocols

  • HTTP / DHCP / PPPoE / PPTP / L2TP

Application Protocol

  • H323 / MSN / BattleNet / etc

QoS

  • TV Priority QoS

Function Control

  • PC-based Console Management

Wireless Connection

  • WSP (PBC) / One Foot Connection / Plug & Access
Hardware Specification
WAN Interface
LAN Interface
Wireless Interface
Status LED
Temperature
Operating Voltage
Software Specification
NAT
Protocols
Application Protocol
QoS
Function Control
Wireless Connection
Wireless Specification
Standard
Wireless Frequency Range
MIMO
Wireless Bandwidth Rate
