Protection Integrated with Lights

Samsung LEDs exceptional performance promotes reliable and durable outdoor light solutions for all weather conditions

Samsung LEDs lights lighting up the bridge at night.

Essential for Safer Streets

Outstanding Light Quality Maximizes Reliability

Superior luminous flux with prolonged lifespan perfect for street lights, tunnel lights and highway lights

Samsung LEDs an illuminated road bridge at night that traffics are crossing

Product Selection Guide (Components)

product selection guide detail
Product Key Features Efficacy
(lm/W)
Lifespan
LM301A
  • 0.4 W, 3 V mid power LED
  • Luminous Flux: 64.5 lm @ 150 mA
  • Luminous Efficacy: 153 lm/W
LM302B
  • 0.9 W, 6 V class mid power LED
  • Luminous Flux: 131 lm @ 150 mA
  • Luminous Efficacy: 156 lm/W
LH351B
  • Wattage (Max) : 4.7 W @ 1.5 A
  • Luminous Flux: 165 lm @ 350 mA
  • Luminous Efficacy: 172 lm/W
LH351C
  • Wattage (Max) : 6.0 W @ 2.0 A
  • Luminous Flux: 316 lm @ 700 mA
  • Luminous Efficacy: 160 lm/W
LH351D
  • Wattage (Max) : 9.8 W @ 3.0 A
  • Luminous Flux: 460 lm @ 1050 mA
  • Luminous Efficacy: 153 lm/W
LH508A
  • Wattage (Max) : 6.0 W @ 240 mA
  • Luminous Flux: 624 lm @ 160 mA
  • Luminous Efficacy: 160 lm/W
LH181B
  • Wattage (Max) : 4.5 W @ 1.4 A
  • Luminous Flux: 173 lm @ 350 mA
  • Size: 2.36 x 2.36 mm
LH231B
  • Wattage (Max) : 6.0 W @ 2.0 A
  • Luminous Flux: 337 lm @ 700 mA
  • Size: 2.80 x 2.80 mm

Product Selection Guide (Modules)

product selection guide detail
Product Key Features Efficacy
(lm/W)
Lifespan
T-Type Gen2
  • Power Consumption: 21 W
  • Luminous Flux: 2850 lm
  • Luminous Efficacy: 136 lm/W
T-Type Gen2.5
  • Power Consumption: 20 W
  • Luminous Flux: 2900 lm
  • Luminous Efficacy: 145 lm/W
E-Type Gen2
  • Power Consumption: 21 W
  • Luminous Flux: 2650 lm
  • Luminous Efficacy: 114 lm/W
F-Type
  • Power Consumption: 21 W
  • Luminous Flux: 2400 lm
  • Luminous Efficacy: 100 lm/W
Array Gen2
  • Power Consumption: 70 W
  • Luminous Flux: 9700 lm
  • Luminous Efficacy: 139 lm/W

Improving Security through Lights

Highly Efficient Broad Uniform Lights for Wide Open Areas

Broad and evenly distributed illumination helps secure outdoor parks, campuses, and pedestrian streets

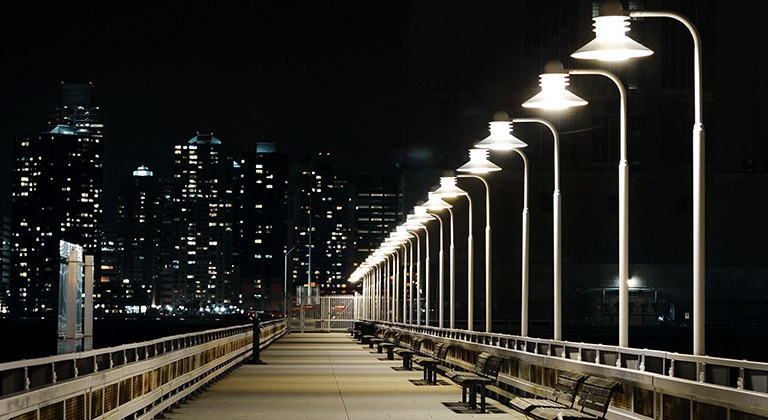

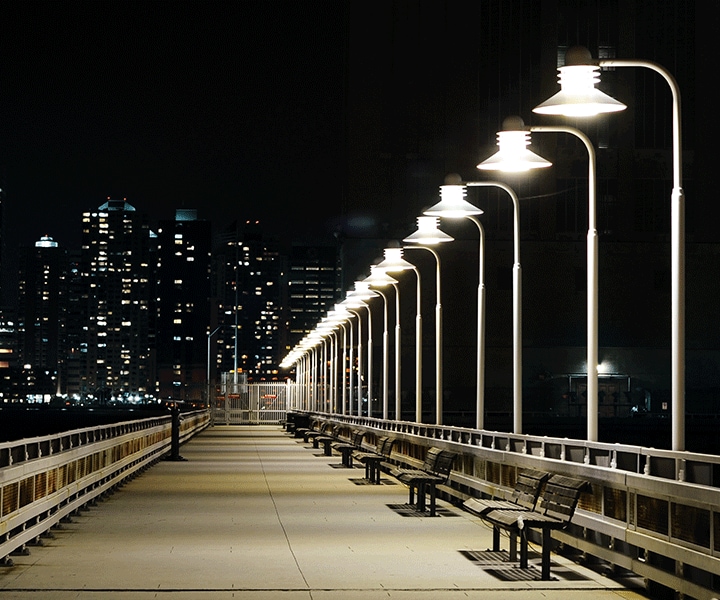

Samsung LEDs an illuminated streetwith benches lit by a row of street lamps

Product Selection Guide (LED Components)

product selection guide detail
Product Key Features Efficacy
(lm/W)
Lifespan
LH351B
  • Wattage (Max) : 4.7 W @ 1.5 A
  • Luminous Flux: 165 lm @ 350 mA
  • Luminous Efficacy: 172 lm/W
LH351C
  • Wattage (Max) : 6.0 W @ 2.0 A
  • Luminous Flux: 316 lm @ 700 mA
  • Luminous Efficacy: 160 lm/W
LH351D
  • Wattage (Max) : 9.8 W @ 3.0 A
  • Luminous Flux: 460 lm @ 1050 mA
  • Luminous Efficacy: 153 lm/W
LH508A
  • Wattage (Max) : 6.0 W @ 240 mA
  • Luminous Flux: 624 lm @ 160 mA
  • Luminous Efficacy: 160 lm/W
LC040D
  • 40 W class COB LED
  • 2, 3-step MacAdam ellipse
  • Size: 28.0 x 28.0 mm
LC060D
  • 60 W class COB LED
  • 2, 3-step MacAdam ellipse
  • Size: 28.0 x 28.0 mm
LC080D
  • 80 W class COB LED
  • 2, 3-step MacAdam ellipse
  • Size: 28.0 x 28.0 mm
LM101A
  • 0.5 W, 3 V mid power CSP
  • 67 lm @ 150 mA
  • Size: 1.18 x 1.18 mm
LM102A
  • 0.9 W, 6 V mid power CSP
  • 124 lm @ 150 mA
  • Size: 1.34 x 1.34 mm
LH181A
  • Wattage (Max) : 4.5 W @ 1.5 A
  • Luminous Flux: 160 lm @ 350 mA
  • Size: 1.91 x 1.91 mm

Product Selection Guide (LED Modules)

product selection guide detail
Product Key Features Efficacy
(lm/W)
Lifespan
T-Type Gen2
  • Power Consumption: 21 W
  • Luminous Flux: 2850 lm
  • Luminous Efficacy: 136 lm/W
T-Type Gen2.5
  • Power Consumption: 20 W
  • Luminous Flux: 2900 lm
  • Luminous Efficacy: 145 lm/W
E-Type Gen2
  • Power Consumption: 21 W
  • Luminous Flux: 2650 lm
  • Luminous Efficacy: 114 lm/W
F-Type
  • Power Consumption: 21 W
  • Luminous Flux: 2400 lm
  • Luminous Efficacy: 100 lm/W
Array Gen2
  • Power Consumption: 70 W
  • Luminous Flux: 9700 lm
  • Luminous Efficacy: 139 lm/W

Creating Extraordinary Experiences in Stadiums

Incredible lumen density with efficient operation

Ultrahigh power with cost-effectiveness is the perfect solution for
large venues like stadiums and arenas

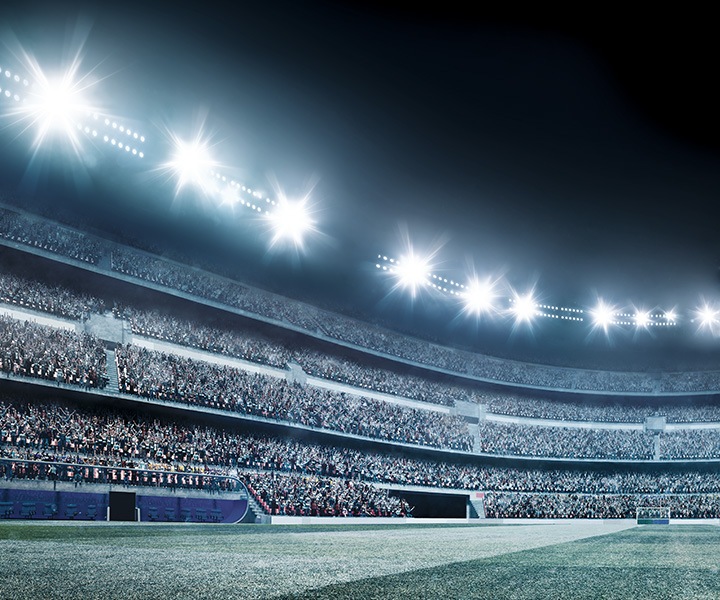

Samsung LEDs football stadium lights shining towards the stands

Product Selection Guide (LED Components)

product selection guide detail
Product Key Features Efficacy
(lm/W)
Lifespan
LH351D
  • Wattage (Max) : 9.8 W @ 3.0 A
  • Luminous Flux: 460 lm @ 1050 mA
  • Luminous Efficacy: 153 lm/W
LH508A
  • Wattage (Max) : 6.0 W @ 240 mA
  • Luminous Flux: 624 lm @ 160 mA
  • Luminous Efficacy: 160 lm/W
LC040D
  • 40 W class COB LED
  • 2, 3-step MacAdam ellipse
  • Size: 28.0 x 28.0 mm
LC060D
  • 60 W class COB LED
  • 2, 3-step MacAdam ellipse
  • Size: 28.0 x 28.0 mm
LC080D
  • 80 W class COB LED
  • 2, 3-step MacAdam ellipse
  • Size: 28.0 x 28.0 mm
